Chapter 3: Jumpers and Connectors

Internal Connectors

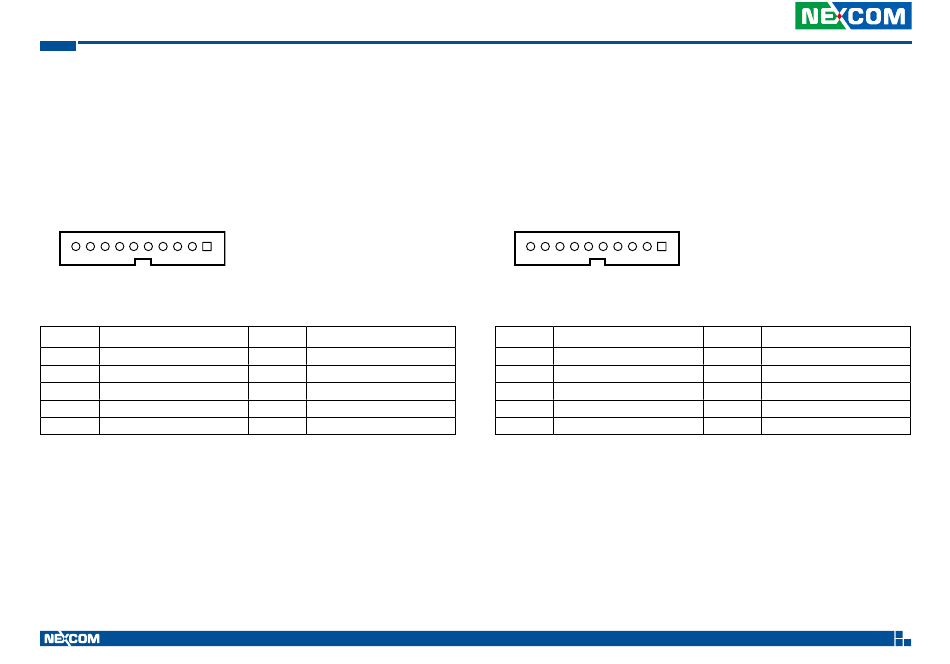

COM1 RS232 Connector

Connector size: 1 x 10 = 10-pin header
Connector location: J3
10
Pin
Definition
1
GND
3
SP_CTS1
5
SP_DTR1
7
SP_RI1
9
SP_TXD1
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
1
Pin
Definition
2
GND
4
SP_DSR1
6
SP_RXD1
8
SP_RTS1
10
SP_DCD1

COM2 RS232 Connector

Connector size: 1 x 10 = 10-pin header
Connector location: J2
10
Pin
Definition
1
GND
3
SP_CTS2
5
SP_DTR2
7
SP_RI2
9
SP_TXD2
17
1
Pin
Definition
2
GND
4
SP_DSR2
6
SP_RXD2
8
SP_RTS2
10
SP_DCD2
VTC 7252-7C4IP User Manual
