Chapter 2: External Connectors Pinout Description

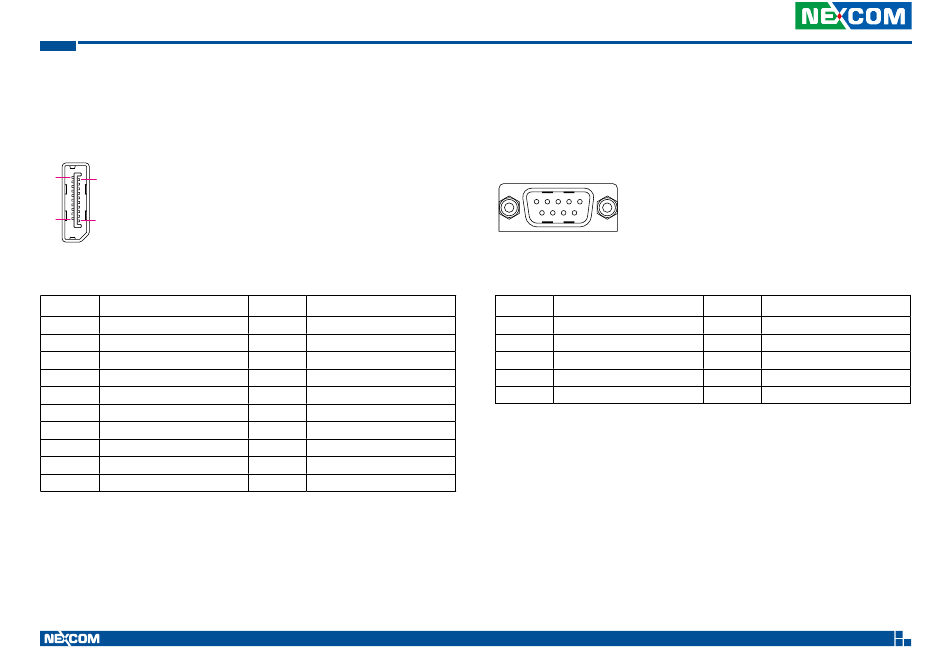

DP Connector

Connector number: 15
1
2
19
20
Pin Definition
1 DDIA_0_DP
3 DDIA_0_DN
5 GND
7 DDIA_2_DP
9 DDIA_2_DN
11 GND
13 DDIA_CONFIG1
15 DDIA_AUXP
17 DDIA_AUXN
19 GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 DDIA_1_DP
6 DDIA_1_DN
8 GND
10 DDIA_3_DP
12 DDIA_3_DN
14 DDIA_CONFIG2
16 GND
18 DDIA_HPD
20 DP_VCC3

RS232 Connector (VTC 7260-x non-PoE Version)

Connector number: 16
1 5
1 5
6 9
6 9
Pin Definition
1 RS232 DCD#
3 RS232 TX
5 GND
7 RTS#
9 RI
21
Pin Definition
2 RS232 RX
4 RS232 DTR#
6 DSR#
8 CTS#
