Chapter 3: Jumpers and Connectors

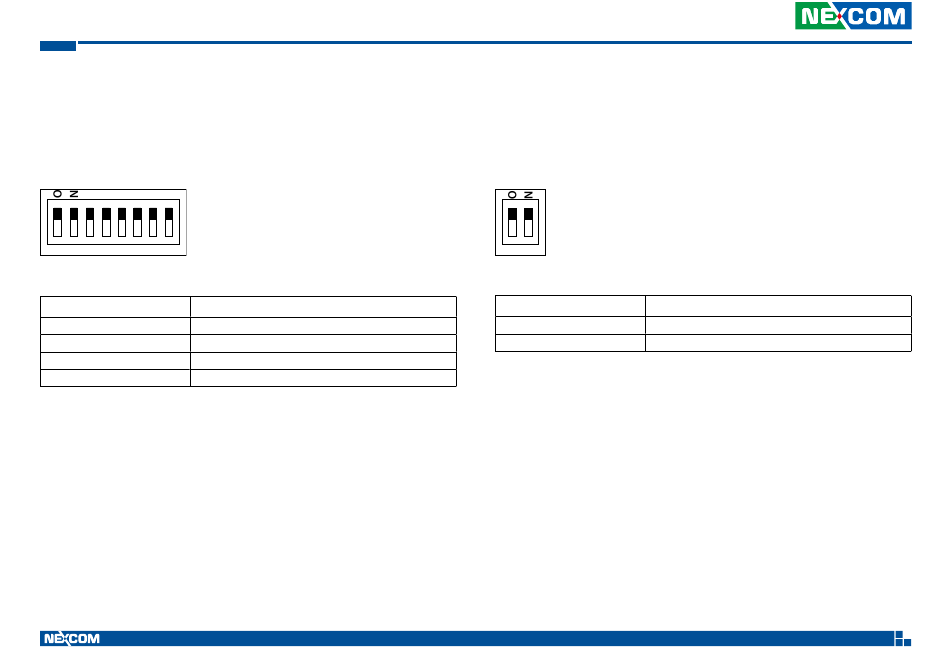

GPIO Pull High Selection Switch
Connector type: 2x8 16-pin DIP switch
Connector location: SW4
1 2 3 4 5 6 7 8
Pin
1-4 ON
GP1-4 Pull High Voltage by Vin (Default)
1-4 OFF
5-8 ON
GPO1-4 Pull High Voltage by Vin (Default)
5-8 OFF
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Definition
GPI-4 Float
GPO1-4 Float
CAN Terminator Resistor Selection Switch
Connector location: SW6
1 2
Pin
1 ON 2 ON
1 OFF 2 OFF
27
Definition
CAN Terminator Resistor (Default)
CAN None Terminator Resistor
VTC 7260 Series User Manual
