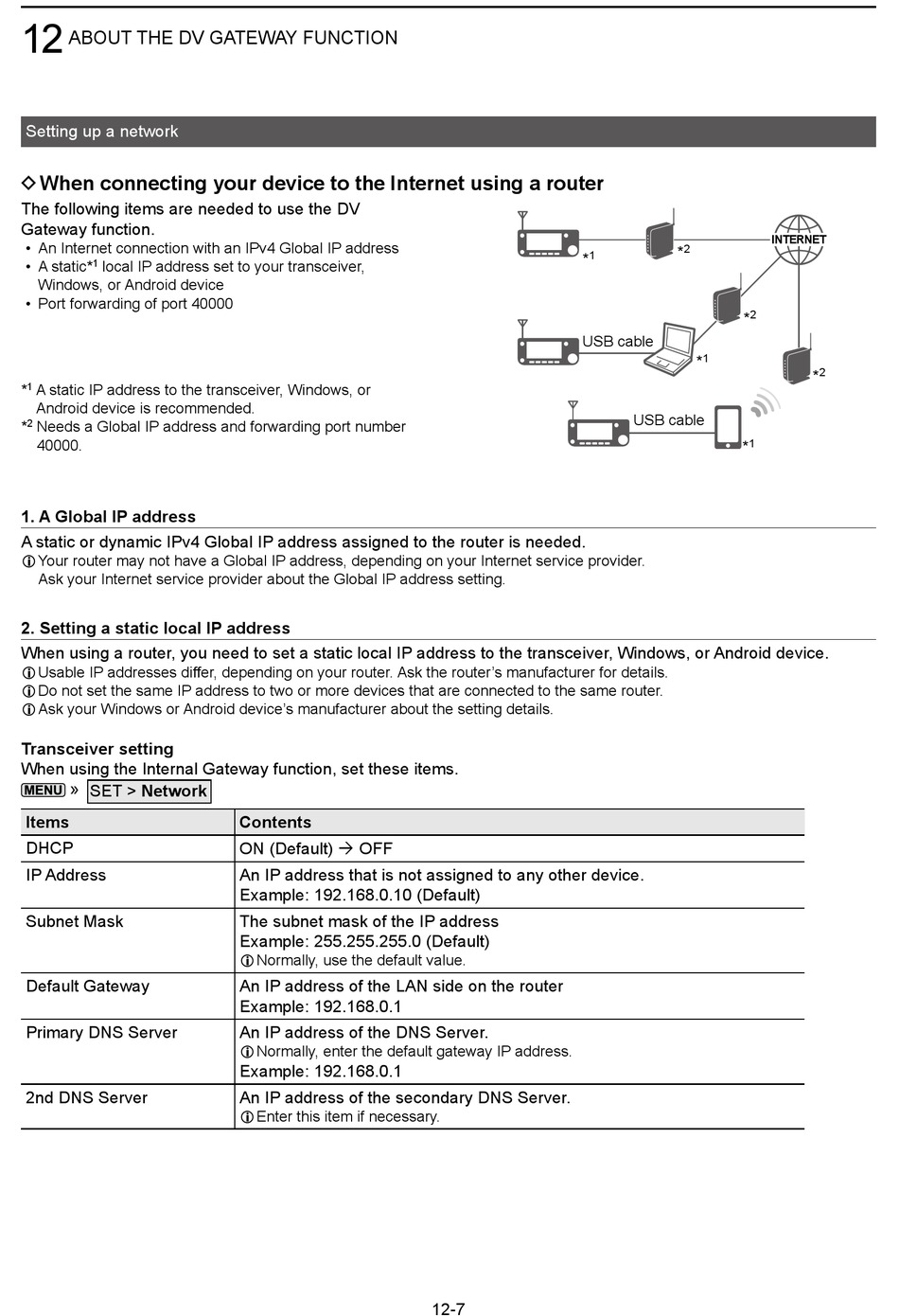

Icom IC-905 Advanced Manual page 176

12
ABOUT THE DV GATEWAY FUNCTION
Setting up a network
D When connecting your device to the Internet using a router
The following items are needed to use the DV
Gateway function�
• An Internet connection with an IPv4 Global IP address
• A static* 1 local IP address set to your transceiver,
Windows, or Android device
• Port forwarding of port 40000
* 1 A static IP address to the transceiver, Windows, or
Android device is recommended�
* 2 Needs a Global IP address and forwarding port number
40000�
1. A Global IP address
A static or dynamic IPv4 Global IP address assigned to the router is needed�
L Your router may not have a Global IP address, depending on your Internet service provider�
Ask your Internet service provider about the Global IP address setting�
2. Setting a static local IP address
When using a router, you need to set a static local IP address to the transceiver, Windows, or Android device�
L Usable IP addresses differ, depending on your router. Ask the router's manufacturer for details.
L Do not set the same IP address to two or more devices that are connected to the same router�
L Ask your Windows or Android device's manufacturer about the setting details�
Transceiver setting
When using the Internal Gateway function, set these items�
» SET > Network
Items
DHCP
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
2nd DNS Server
Contents
ON (Default)  OFF
An IP address that is not assigned to any other device�
Example: 192�168�0�10 (Default)
The subnet mask of the IP address
Example: 255�255�255�0 (Default)
L Normally, use the default value�
An IP address of the LAN side on the router
Example: 192�168�0�1
An IP address of the DNS Server�
L Normally, enter the default gateway IP address�
Example: 192�168�0�1
An IP address of the secondary DNS Server�
L Enter this item if necessary�
* 1
USB cable
12-7
