ABOUT THE DV GATEWAY FUNCTION
Access Point mode operation

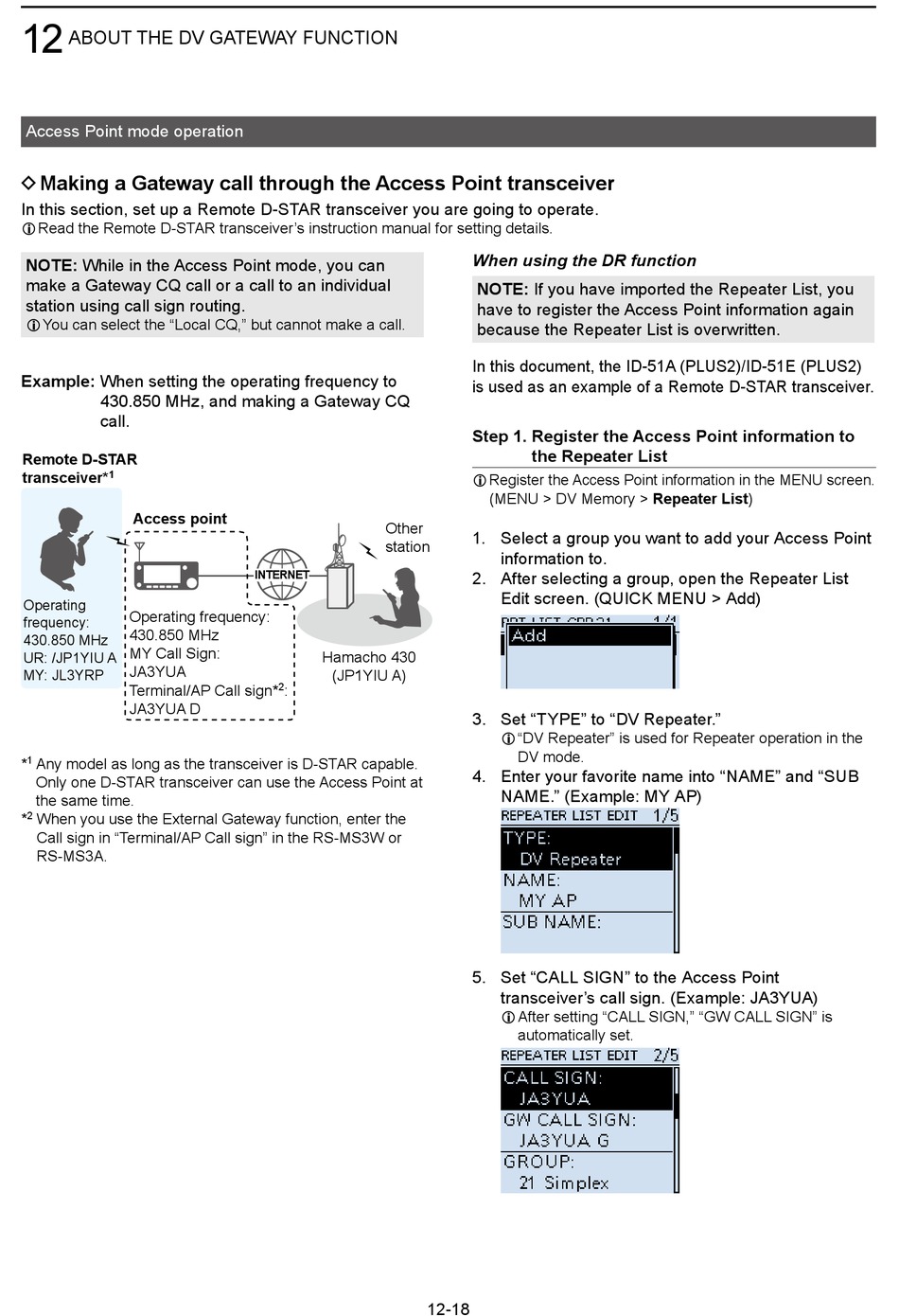

D Making a Gateway call through the Access Point transceiver

In this section, set up a Remote D-STAR transceiver you are going to operate�
L Read the Remote D-STAR transceiver's instruction manual for setting details�
NOTE: While in the Access Point mode, you can
make a Gateway CQ call or a call to an individual
station using call sign routing�
L You can select the "Local CQ," but cannot make a call�
Example: When setting the operating frequency to
430�850 MHz, and making a Gateway CQ
call�
Remote D-STAR
transceiver* 1
Access point
Operating
Operating frequency:
frequency:
430�850 MHz
430�850 MHz
MY Call Sign:
UR: /JP1YIU A
JA3YUA
MY: JL3YRP
Terminal/AP Call sign*
JA3YUA D
* Any model as long as the transceiver is D-STAR capable�
1
Only one D-STAR transceiver can use the Access Point at
the same time�
* 2 When you use the External Gateway function, enter the
Call sign in "Terminal/AP Call sign" in the RS-MS3W or
RS-MS3A�
Other
station
INTERNET INTERNET
Hamacho 430
(JP1YIU A)
2 :
When using the DR function
NOTE: If you have imported the Repeater List, you
have to register the Access Point information again
because the Repeater List is overwritten�
In this document, the ID-51A (PLUS2)/ID-51E (PLUS2)
is used as an example of a Remote D-STAR transceiver�
Step 1. Register the Access Point information to
the Repeater List
L Register the Access Point information in the MENU screen�
(MENU > DV Memory > Repeater List)
1� Select a group you want to add your Access Point
information to�
2� After selecting a group, open the Repeater List
Edit screen� (QUICK MENU > Add)
3� Set "TYPE" to "DV Repeater�"
L "DV Repeater" is used for Repeater operation in the
DV mode�
4� Enter your favorite name into "NAME" and "SUB
NAME�" (Example: MY AP)
5� Set "CALL SIGN" to the Access Point
transceiver's call sign� (Example: JA3YUA)
L After setting "CALL SIGN," "GW CALL SIGN" is
automatically set�
12-18
