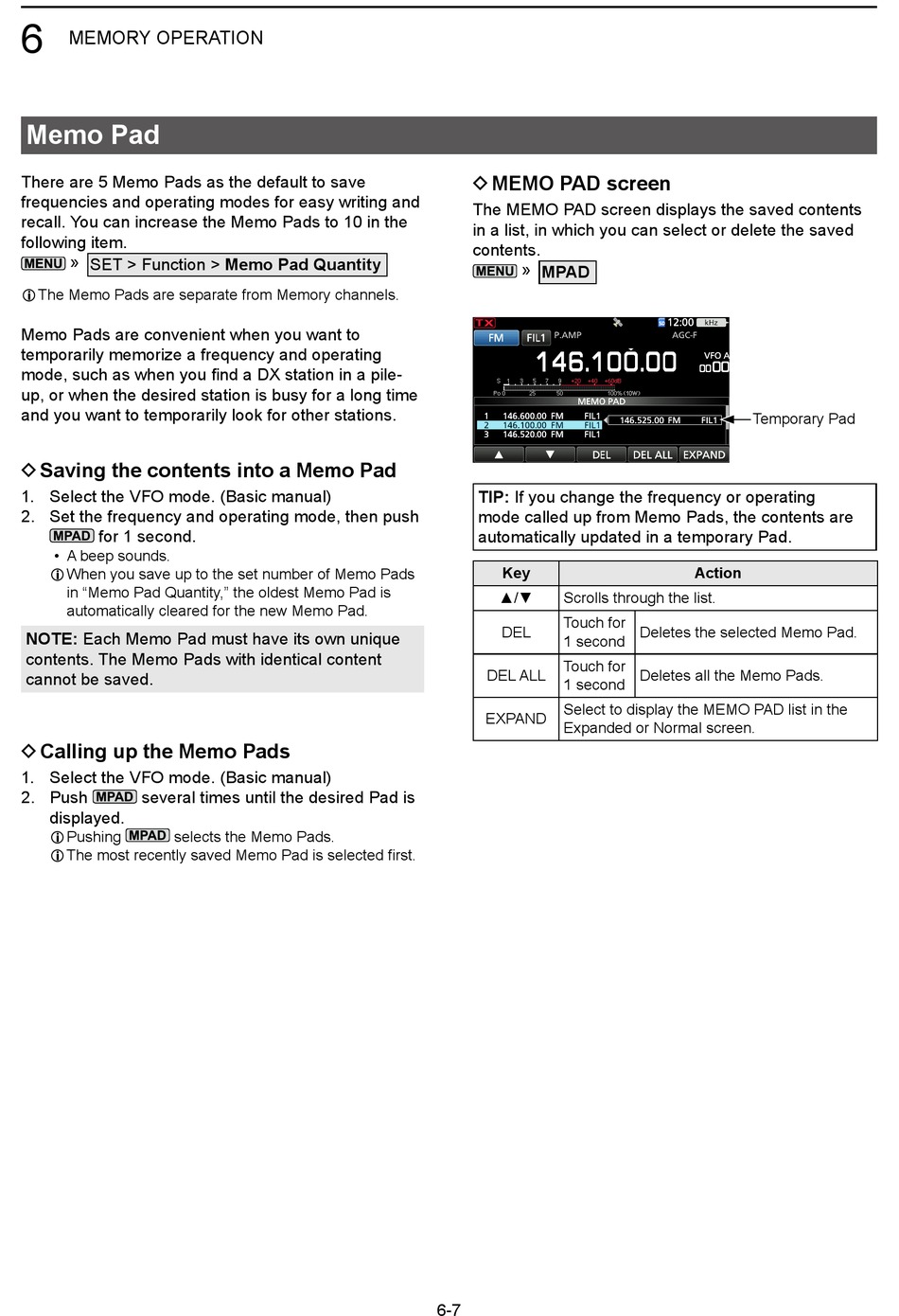

Icom IC-905 Advanced Manual page 56

6
MEMORY OPERATION
Memo Pad
There are 5 Memo Pads as the default to save
frequencies and operating modes for easy writing and
recall� You can increase the Memo Pads to 10 in the
following item�
» SET > Function > Memo Pad Quantity
L The Memo Pads are separate from Memory channels�
Memo Pads are convenient when you want to
temporarily memorize a frequency and operating
mode, such as when you find a DX station in a pile-
up, or when the desired station is busy for a long time
and you want to temporarily look for other stations�
D Saving the contents into a Memo Pad
1� Select the VFO mode� (Basic manual)
2� Set the frequency and operating mode, then push
for 1 second�
• A beep sounds�
L When you save up to the set number of Memo Pads
in "Memo Pad Quantity," the oldest Memo Pad is
automatically cleared for the new Memo Pad�
NOTE: Each Memo Pad must have its own unique
contents� The Memo Pads with identical content
cannot be saved�
D Calling up the Memo Pads
1� Select the VFO mode� (Basic manual)
2� Push several times until the desired Pad is
displayed�
L Pushing selects the Memo Pads�
L The most recently saved Memo Pad is selected first.
D MEMO PAD screen
The MEMO PAD screen displays the saved contents
in a list, in which you can select or delete the saved
contents�
» MPAD
TIP: If you change the frequency or operating
mode called up from Memo Pads, the contents are
automatically updated in a temporary Pad�
Key
▲/▼ Scrolls through the list�
Touch for
DEL
1 second
Touch for
DEL ALL
1 second
Select to display the MEMO PAD list in the
EXPAND
Expanded or Normal screen�
6-7
Temporary Pad
Action
Deletes the selected Memo Pad�
Deletes all the Memo Pads�
