7
SCANS

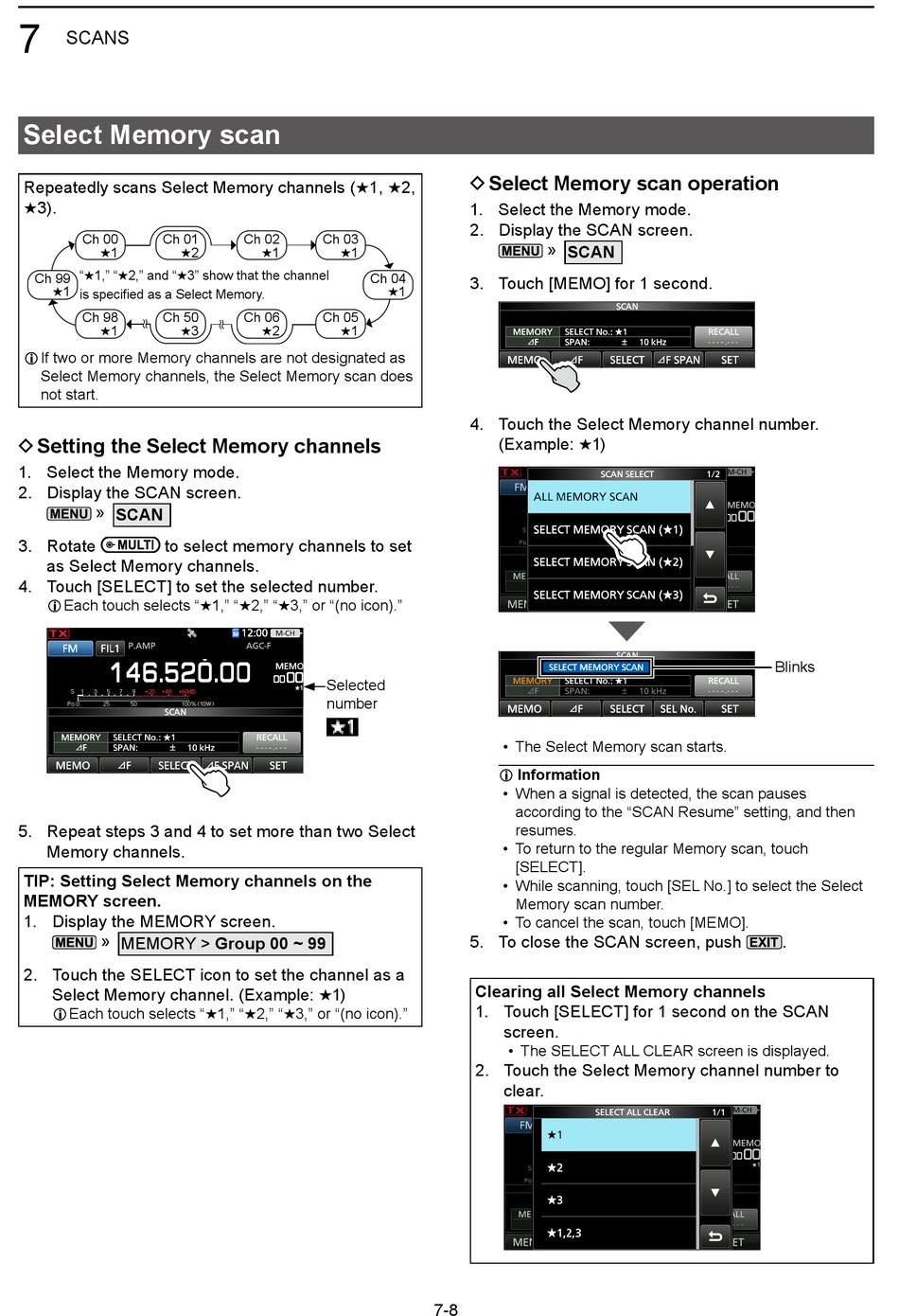

Select Memory scan

Repeatedly scans Select Memory channels (★1, ★2,
★3)�
Ch 00 Ch 01
#1 #2
"#1," "#2," and "#3" show that the channel
Ch 99
#1 is specified as a Select Memory�
Ch 98 Ch 50
#1 #3
L If two or more Memory channels are not designated as
Select Memory channels, the Select Memory scan does
not start�

D Setting the Select Memory channels

1� Select the Memory mode�
2� Display the SCAN screen�
» SCAN
3� Rotate to select memory channels to set
as Select Memory channels�
4� Touch [SELECT] to set the selected number�
L Each touch selects "★1," "★2," "★3," or "(no icon)�"
5� Repeat steps 3 and 4 to set more than two Select
Memory channels�
TIP: Setting Select Memory channels on the
MEMORY screen.
1� Display the MEMORY screen�
» MEMORY > Group 00 ~ 99
2� Touch the SELECT icon to set the channel as a
Select Memory channel� (Example: ★1)
L Each touch selects "★1," "★2," "★3," or "(no icon)�"
Ch 02 Ch 03
#1 #1
Ch 04
#1
Ch 06 Ch 05
#2 #1
Selected
number

D Select Memory scan operation

1� Select the Memory mode�
2� Display the SCAN screen�
» SCAN
3� Touch [MEMO] for 1 second�
4� Touch the Select Memory channel number�
(Example: ★1)
• The Select Memory scan starts�
L Information
• When a signal is detected, the scan pauses
according to the "SCAN Resume" setting, and then
resumes�
• To return to the regular Memory scan, touch
[SELECT]�
• While scanning, touch [SEL No�] to select the Select
Memory scan number�
• To cancel the scan, touch [MEMO]�
5� To close the SCAN screen, push
Clearing all Select Memory channels
1� Touch [SELECT] for 1 second on the SCAN
screen�
• The SELECT ALL CLEAR screen is displayed�
2� Touch the Select Memory channel number to
clear�
7-8
Blinks
�
