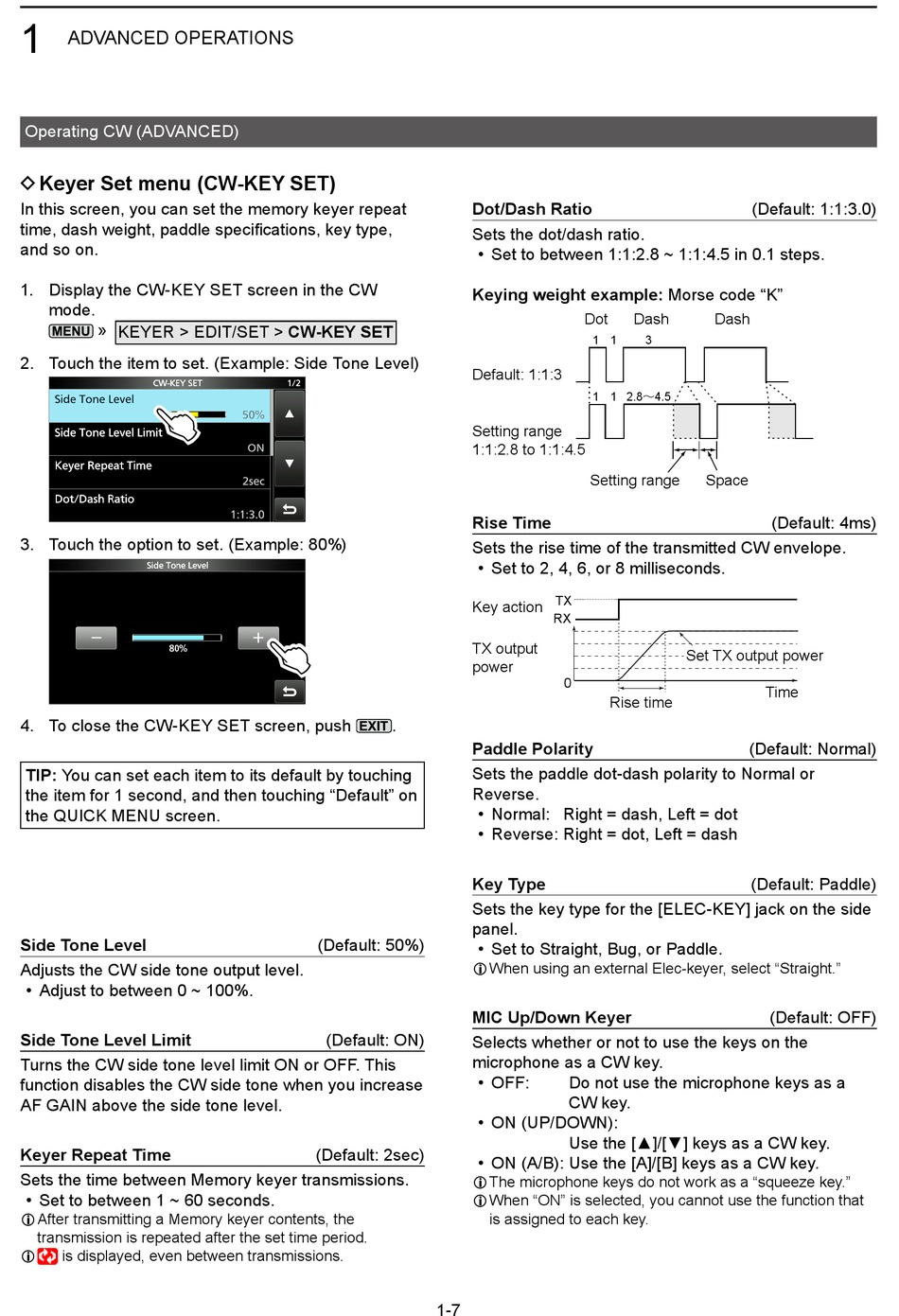

D Keyer Set Menu (Cw-Key Set) - Icom IC-905 Advanced Manual

1
ADVANCED OPERATIONS
Operating CW (ADVANCED)

D Keyer Set menu (CW-KEY SET)

In this screen, you can set the memory keyer repeat
time, dash weight, paddle specifications, key type,
and so on�
1� Display the CW-KEY SET screen in the CW
mode�
» KEYER > EDIT/SET > CW-KEY SET
2� Touch the item to set� (Example: Side Tone Level)
3� Touch the option to set� (Example: 80%)
4� To close the CW-KEY SET screen, push
TIP: You can set each item to its default by touching
the item for 1 second, and then touching "Default" on
the QUICK MENU screen�
Side Tone Level
Adjusts the CW side tone output level�
• Adjust to between 0 ~ 100%�
Side Tone Level Limit
Turns the CW side tone level limit ON or OFF� This
function disables the CW side tone when you increase
AF GAIN above the side tone level�
Keyer Repeat Time
Sets the time between Memory keyer transmissions�
• Set to between 1 ~ 60 seconds�
L After transmitting a Memory keyer contents, the
transmission is repeated after the set time period�
is displayed, even between transmissions�
L
Dot/Dash Ratio
Sets the dot/dash ratio�
• Set to between 1:1:2�8 ~ 1:1:4�5 in 0�1 steps�
Keying weight example: Morse code "K"
Default: 1:1:3
Setting range
1:1:2�8 to 1:1:4�5
Rise Time
Sets the rise time of the transmitted CW envelope�
• Set to 2, 4, 6, or 8 milliseconds�
Key action
TX output
power
�
Paddle Polarity
Sets the paddle dot-dash polarity to Normal or
Reverse�
• Normal: Right = dash, Left = dot
• Reverse: Right = dot, Left = dash
Key Type
Sets the key type for the [ELEC-KEY] jack on the side
panel�
(Default: 50%)
• Set to Straight, Bug, or Paddle�
L When using an external Elec-keyer, select "Straight�"
MIC Up/Down Keyer
(Default: ON)
Selects whether or not to use the keys on the
microphone as a CW key�
• OFF:
• ON (UP/DOWN):
(Default: 2sec)
• ON (A/B): Use the [A]/[B] keys as a CW key�
L The microphone keys do not work as a "squeeze key�"
L When "ON" is selected, you cannot use the function that
1-7
Dot Dash
1 1 3
1 1 2�8～4�5
Setting range
TX
RX
0
Rise time
Do not use the microphone keys as a
CW key�
Use the [▲]/[▼] keys as a CW key.
is assigned to each key�
(Default: 1:1:3�0)
Dash
Space
(Default: 4ms)
Set TX output power
Time
(Default: Normal)
(Default: Paddle)
(Default: OFF)
