6

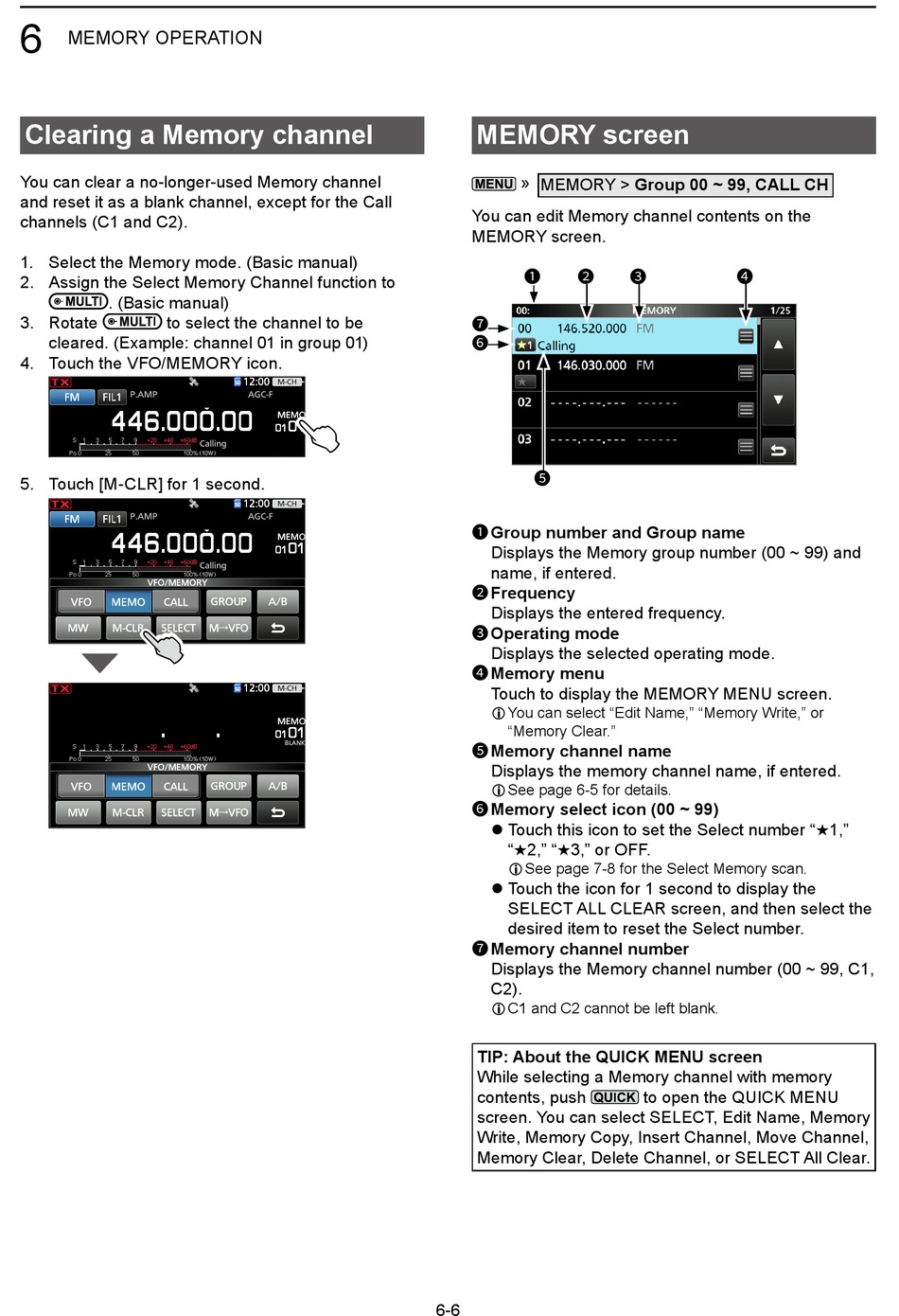

MEMORY OPERATION

Clearing a Memory channel

You can clear a no-longer-used Memory channel
and reset it as a blank channel, except for the Call
channels (C1 and C2)�
1� Select the Memory mode� (Basic manual)
2� Assign the Select Memory Channel function to
� (Basic manual)
3� Rotate to select the channel to be
cleared� (Example: channel 01 in group 01)
4� Touch the VFO/MEMORY icon�
5� Touch [M-CLR] for 1 second�

MEMORY screen

» MEMORY > Group 00 ~ 99, CALL CH
You can edit Memory channel contents on the
MEMORY screen�
1 2
7
6
5
1 Group number and Group name
Displays the Memory group number (00 ~ 99) and
name, if entered�
2 Frequency
Displays the entered frequency�
3 Operating mode
Displays the selected operating mode�
4 Memory menu
Touch to display the MEMORY MENU screen�
L You can select "Edit Name," "Memory Write," or
"Memory Clear�"
5 Memory channel name
Displays the memory channel name, if entered�
L See page 6-5 for details�
6 Memory select icon (00 ~ 99)
� Touch this icon to set the Select number "★1,"
"★2," "★3," or OFF�
L See page 7-8 for the Select Memory scan�
� Touch the icon for 1 second to display the
SELECT ALL CLEAR screen, and then select the
desired item to reset the Select number�
7 Memory channel number
Displays the Memory channel number (00 ~ 99, C1,
C2)�
L C1 and C2 cannot be left blank�
TIP: About the QUICK MENU screen
While selecting a Memory channel with memory
contents, push
screen� You can select SELECT, Edit Name, Memory
Write, Memory Copy, Insert Channel, Move Channel,
Memory Clear, Delete Channel, or SELECT All Clear�
6-6
3 4
to open the QUICK MENU
