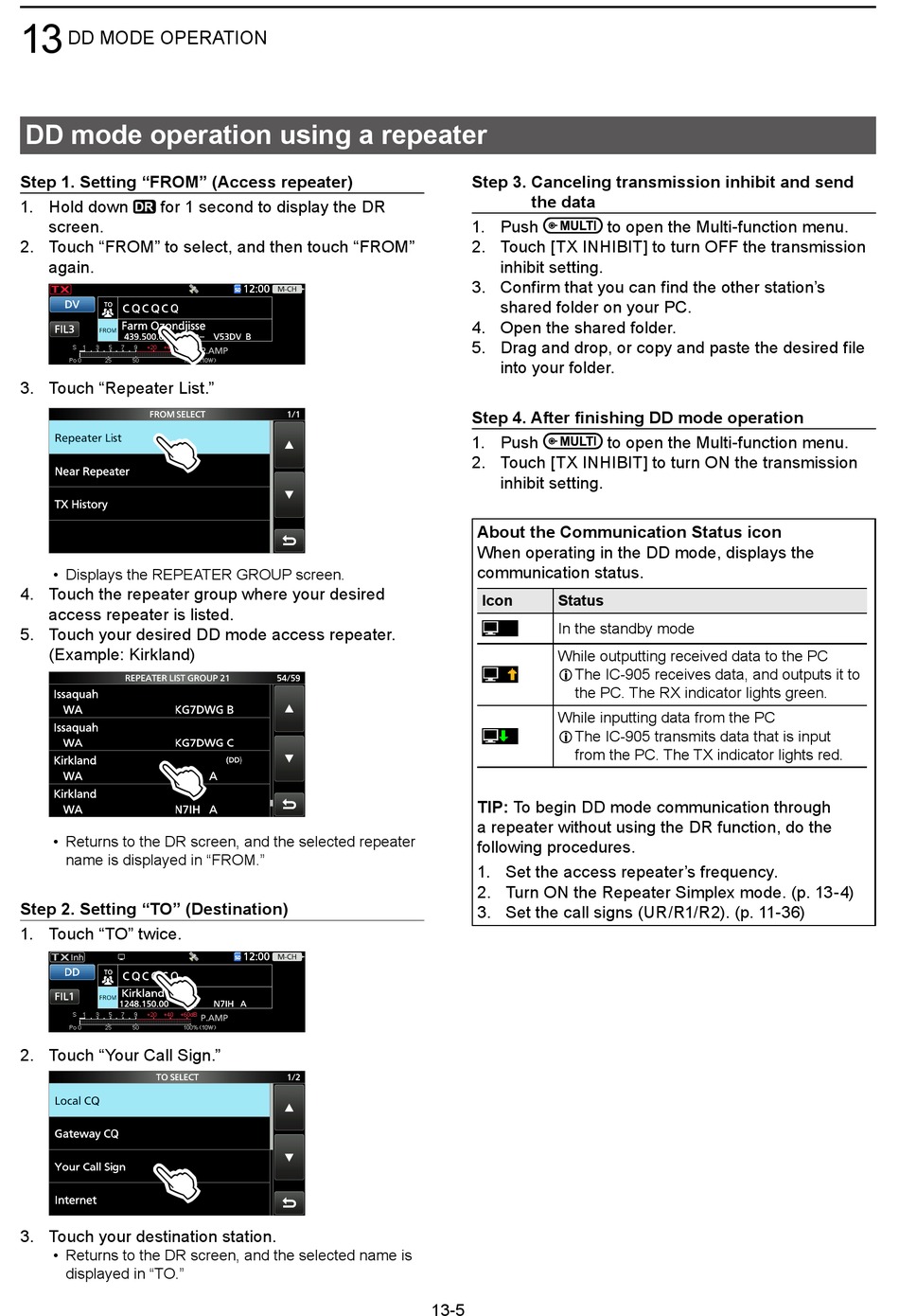

DD MODE OPERATION

DD mode operation using a repeater

Step 1. Setting "FROM" (Access repeater)
1� Hold down for 1 second to display the DR
screen�
2� Touch "FROM" to select, and then touch "FROM"
again�
3� Touch "Repeater List�"
• Displays the REPEATER GROUP screen�
4� Touch the repeater group where your desired
access repeater is listed�
5� Touch your desired DD mode access repeater�
(Example: Kirkland)
• Returns to the DR screen, and the selected repeater
name is displayed in "FROM�"
Step 2. Setting "TO" (Destination)
1� Touch "TO" twice�
2� Touch "Your Call Sign�"
3� Touch your destination station�
• Returns to the DR screen, and the selected name is
displayed in "TO�"
Step 3. Canceling transmission inhibit and send
the data
1� Push
2� Touch [TX INHIBIT] to turn OFF the transmission
inhibit setting�
3� Confirm that you can find the other station's
shared folder on your PC�
4� Open the shared folder�
5� Drag and drop, or copy and paste the desired file
into your folder�
Step 4. After finishing DD mode operation
1� Push
2� Touch [TX INHIBIT] to turn ON the transmission
inhibit setting�
About the Communication Status icon
When operating in the DD mode, displays the
communication status�
Icon Status
In the standby mode
While outputting received data to the PC
L The IC-905 receives data, and outputs it to
the PC� The RX indicator lights green�
While inputting data from the PC
L The IC-905 transmits data that is input
from the PC� The TX indicator lights red�
TIP: To begin DD mode communication through
a repeater without using the DR function, do the
following procedures�
1� Set the access repeater's frequency�
2� Turn ON the Repeater Simplex mode� (p� 13-4)
3� Set the call signs (UR/R1/R2)� (p� 11-36)
13-5
to open the Multi-function menu�
to open the Multi-function menu�
