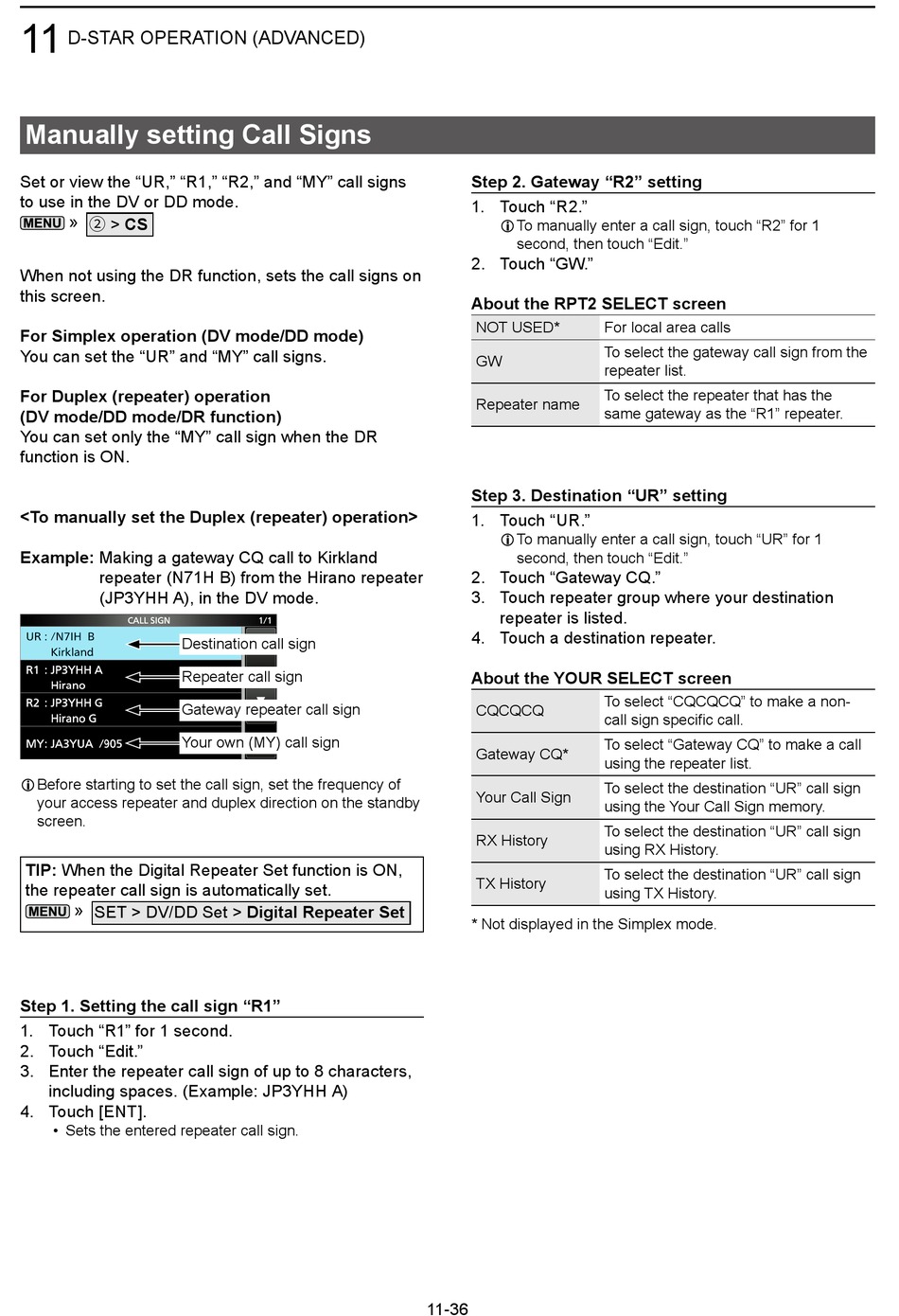

Icom IC-905 Advanced Manual page 168

11
D-STAR OPERATION (ADVANCED)
Manually setting Call Signs
Set or view the "UR," "R1," "R2," and "MY" call signs
to use in the DV or DD mode
» 2 > CS
When not using the DR function, sets the call signs on
this screen
For Simplex operation (DV mode/DD mode)
You can set the "UR" and "MY" call signs
For Duplex (repeater) operation
(DV mode/DD mode/DR function)
You can set only the "MY" call sign when the DR
function is ON
<To manually set the Duplex (repeater) operation>
Example: Making a gateway CQ call to Kirkland
repeater (N71H B) from the Hirano repeater
(JP3YHH A), in the DV mode
Destination call sign
Repeater call sign
Gateway repeater call sign
Your own (MY) call sign
L Before starting to set the call sign, set the frequency of
your access repeater and duplex direction on the standby
screen
TIP: When the Digital Repeater Set function is ON,
the repeater call sign is automatically set
» SET > DV/DD Set > Digital Repeater Set
Step 1. Setting the call sign "R1"
1 Touch "R1" for 1 second
2 Touch "Edit"
3 Enter the repeater call sign of up to 8 characters,
including spaces (Example: JP3YHH A)
4 Touch [ENT]
• Sets the entered repeater call sign
Step 2. Gateway "R2" setting
1 Touch "R2"
L To manually enter a call sign, touch "R2" for 1
second, then touch "Edit"
2 Touch "GW"
About the RPT2 SELECT screen
NOT USED*
GW
Repeater name
Step 3. Destination "UR" setting
1 Touch "UR"
L To manually enter a call sign, touch "UR" for 1
second, then touch "Edit"
2 Touch "Gateway CQ"
3 Touch repeater group where your destination
repeater is listed
4 Touch a destination repeater
About the YOUR SELECT screen
CQCQCQ
Gateway CQ*
Your Call Sign
RX History
TX History
* Not displayed in the Simplex mode
11-36
For local area calls
To select the gateway call sign from the
repeater list
To select the repeater that has the
same gateway as the "R1" repeater
To select "CQCQCQ" to make a non-
call sign specific call.
To select "Gateway CQ" to make a call
using the repeater list
To select the destination "UR" call sign
using the Your Call Sign memory
To select the destination "UR" call sign
using RX History
To select the destination "UR" call sign
using TX History
