Daisy Chaining Connection

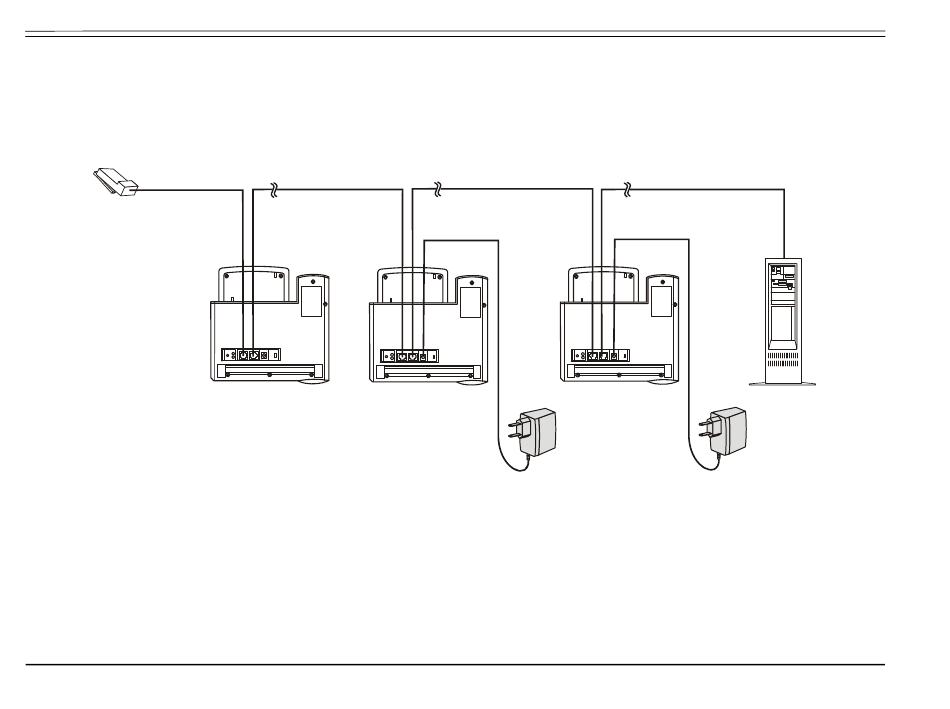

IP phones may be 'daisy chained' by connecting an additional phone to the original phone, instead of connecting directly to
the PC connector. Using this technique, many phones may be operated from the same LAN socket. The first phone may be
powered over the LAN (PoE) or via the AC wall adapter, while all additional phones must use AC power adapter.
Power from LAN
to First Phone
'LAN' to 'PC' 'LAN' to 'PC'
To LAN To PC
Reset Source
Reset Source
Reset Source
Adapter Adapter
Adapter
PoE
PoE PoE
1st 2nd
3rd
PC
phone phone
phone
AC Power Adapters
must be connected
MUST MUST
