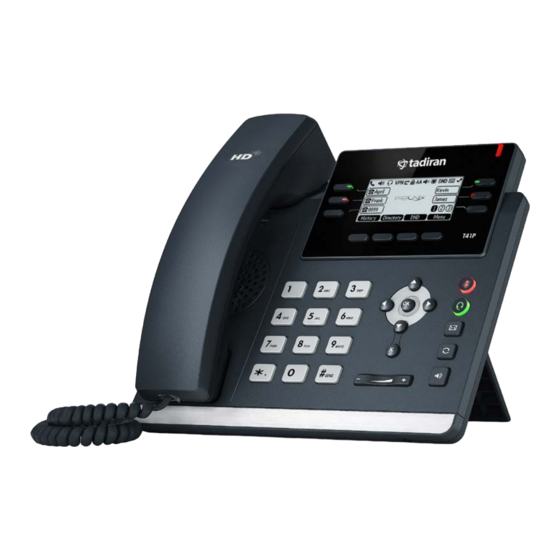

- Page 1 Tadiran T41P IP Phone User Guide Aeonix Version 2.5 Document Edition 1.0...
- Page 2 No parts of this publication may be subject to alteration, modification or commercial use. Tadiran Telecom (TTL), L.P . will not be liable for any damages arising from use of an illegally modified or altered publication.
- Page 3 Copyright Part 15 FCC Rules This device is compliant with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: About This Guide
About This Guide About This Guide Thank you for choosing the T41P IP Phone, an ultra-elegant gigabit IP Phone which is exquisitely designed to provide business telephony features, such as Call Hold, Call Transfer, Busy Lamp Field, Multicast Paging and Conference over an IP network. -
Page 5: Table Of Contents
Table of Contents Table of Contents About This Guide ..............iv Table of Contents ..............v Overview .................. 1 Hardware Component Instructions ..................1 Icon Descriptions ........................3 LED Descriptions ........................4 User Interfaces ........................5 Phone User Interface ......................6 Web User Interface ...................... -
Page 6: Table Of Contents
Table of Contents Recall ........................... 23 Call Mute ..........................23 Call Hold/Resume ....................... 24 Do Not Disturb (DND) ......................24 Call Transfer ........................26 Conference ......................... 26 Regulatory Notices ..............28 Service Agreements ......................28 Limitations of Liability ......................28 Safety Instructions ...................... -
Page 7: Overview
User Interfaces Documentation If you require additional information or assistance with your new phone, contact your system administrator. Hardware Component Instructions The main hardware components of the T41P IP phone are the LCD screen and the keypad. - Page 8 User Guide for the T41P IP Phone Hardware component instructions of the T41P IP phone are: Item Description Shows information about calls, messages, soft keys, time, date and other relevant data: • Call information—caller ID, call duration ① LCD Screen •...
-
Page 9: Icon Descriptions
Overview Icon Descriptions Icons appearing on the LCD screen are described in the following table: Icon Description Network is unavailable Registered successfully Register failed Registering Hands-free speakerphone mode Handset mode Headset mode Voice Mail Auto Answer Do Not Disturb Call Hold Call Mute Ringer volume is 0 Phone Lock... -
Page 10: Led Descriptions
User Guide for the T41P IP Phone Icon Description Missed Calls Received Calls Placed Calls Recording box is full A call cannot be recorded Recording starts successfully Recording cannot be started Recording cannot be stopped LED Descriptions Power Indicator LED... -
Page 11: User Interfaces
Fast flashing red non-current page. Line keys on every page are idle. User Interfaces Two ways to customize configurations of your T41P IP phone: The user interface on the IP phone. The user interface in a web browser on your computer. -
Page 12: Phone User Interface
Configuration Guide for End Users for details on available advanced features, and consult with your Aeonix system administrator for best practices at your site. Documentation The following table shows documentations available for the T41P IP phone. Name Contents Where found... -
Page 13: Getting Started
Getting Started Getting Started This chapter provides the following basic installation instructions and information for obtaining the best performance with the T41P IP phone. Topics include: Packaging Contents Phone Installation Phone Initialization Registration Idle Screen ... -
Page 14: Optional Accessories
Quick Start Guide Check the list before installation. If you find anything missing, contact your system administrator. Optional Accessories The following items are optional accessories for your T41P IP phone. You need to purchase them separately if required. -
Page 15: Phone Installation
Getting Started Wall Mount Bracket Power Adapter Headset Wireless Headset Adapter EHS36 Phone Installation If your phone is already installed, proceed to Phone Initialization on page 12. This section introduces how to install the phone: Attach the stand or the optional wall mount bracket... - Page 16 User Guide for the T41P IP Phone Connect the handset and optional headset Connect the network and power Attach the stand or the optional wall mount bracket Desk Mount Method Wall Mount Method (Optional) Note The wall mount bracket should be purchased separately.
- Page 17 Connect the included or a standard Ethernet cable between the Internet port on the phone and the one on the wall or switch/hub device port. Power over Ethernet With the included or a regular Ethernet cable, the T41P IP phone can be powered from a PoE-compliant switch or hub.
-
Page 18: Phone Initialization
User Guide for the T41P IP Phone To connect the PoE: Connect the Ethernet cable between the Internet port on the phone and an available port on the in-line power switch/hub. Note If in-line power is provided, you don’t need to connect the phone to the power adapter. -
Page 19: Registration
Getting Started Registration Generally, your phone will be deployed with multiple other phones. In this case, your system administrator will configure the phone parameters beforehand, so that after you start up your phone, the phone will be registered and ready for use. If your phone is not registered, you may have to register it. -
Page 20: Customizing Your Phone
User Guide for the T41P IP Phone Customizing Your Phone You can customize your T41P IP phone by personally configuring certain settings, for example, time & date and ring tones. You can add contacts to the phone’s local directory manually or from call history. You can also personalize different ring tones for different callers. -
Page 21: Audio Settings
Customizing Your Phone Audio Settings Volume You can press the volume key to adjust the ringer volume when the phone is idle. You can also press the volume key to adjust the receiver volume of currently engaged audio devices (handset, speakerphone or headset) when the phone is in use. To adjust the volume when the phone is idle: Press to adjust the ringer volume. -
Page 22: Dss Keys
DSS Keys There are two types of DSS keys: Line Keys and Programmable Keys. Details will be introduced in the following. The T41P IP phone supports 15 line keys. Line Keys You can assign predefined functionalities to line keys. You can also define a label for a line key feature which will appear on the LCD screen. - Page 23 Customizing Your Phone The following figure shows an example: When you assign functionalities to line key 7-15, labels of the line key 6-10 are indicated on the second page, and labels of the line key 11-15 are indicated on the third page. The right bottom line key is used to switch pages.
-
Page 24: Basic Call Features
User Guide for the T41P IP Phone Basic Call Features The T41P IP phone is designed to be easily used like a regular phone on a public switched telephone network (PSTN). You can place calls, answer calls, transfer a call to someone else, or conduct a conference call. -
Page 25: Placing Calls
Troubleshooting Placing Calls You can place a call in one of three ways using your T41P IP phone: Using the handset Using the speakerphone Using the headset You can also dial the number first, and then choose the way you want to speak to the other party. - Page 26 6 calls at one time. To place multiple calls: You can have more than one call on your T41P IP phone. To place a new call during an active call, do one of the following: Press the line key.
-
Page 27: Answering Calls
Troubleshooting Answering Calls When you are not in another call, you can answer a call in one of three ways: Using the handset Using the speakerphone Using the headset Note You can reject incoming calls by pressing the X key or the Reject soft key. You can also activate Do Not Disturb mode to reject the incoming calls without ringing on your phone. -
Page 28: Ending Calls
User Guide for the T41P IP Phone Answering When in Another Call If you have an active call, and an incoming call arrives on the phone, do one of the following: Press the Answer soft key. The incoming call is answered and the original call is placed on hold. -
Page 29: Recall
Troubleshooting press or the Send soft key. Recall You can press a recall key to place a call back to the last incoming call. To configure a recall key via phone user interface: Press Menu->Features->DSS Keys. Select a desired DSS key. Press , or the Switch soft key to select Key Event from the Type field. -
Page 30: Call Hold/Resume
User Guide for the T41P IP Phone Call Hold/Resume You can place an active call on hold. Only one active call can be in progress at any time. Other calls can be made and received while placing the original call on hold. When you place a call on hold, your IP PBX may play music to the other party while waiting. - Page 31 Troubleshooting You can enable/disable DND for the phone system, or you can customize DND for each or all accounts. Two DND modes: Phone (default): DND is effective for the phone system. Custom: DND can be configured for each or all accounts ...
-
Page 32: Call Transfer
User Guide for the T41P IP Phone To activate DND in custom mode for all accounts: Press the DND soft key when the phone is idle. The LCD screen displays a list of accounts registered on the phone. Press the All On soft key to activate DND for all accounts. - Page 33 Network conference is not available on all servers. For more information, contact your system administrator. The T41P IP phone supports up to 3 parties (including yourself) in a conference call. This is the default method of conference called Local Conference.
-
Page 34: Regulatory Notices
User Guide for the T41P IP Phone Regulatory Notices Service Agreements Contact your Tadiran Authorized Reseller for information on service agreements applicable to your product. Limitations of Liability TO THE FULL EXTENT ALLOWED BY LAW, TADIRAN EXCLUDES FOR ITSELF AND ITS... - Page 35 Appendix A-Time Zones Environmental Requirements Place the device at a well-ventilated place. Do not expose the device under direct sunlight. Keep the device dry and free of dust. Place the device on a stable and level platform. Please do not place heavy objects on the device in case of damageand ...
- Page 36 User Guide for the T41P IP Phone Cleaning Requirements Before cleaning the device, stop using it and disconnect it from the power supply. Use a piece of soft, dry and anti-static cloth to clean the device. Keep the power plug clean and dry. Using a dirty or wet power plug may ...
-
Page 37: Index
Index Index Answering Calls Attaching Stand Audio Settings Network Connection Backlight Packaging Contents Phone Initialization Call Mute Phone Installation Phone User Interface Call Hold/Resume Placing Calls Call Transfer CE Mark Warning Conference Copyright Overview Customizing Your Phone Optional Accessories Declaration of Conformity Redialing Numbers Do Not Disturb (DND) Registration...
