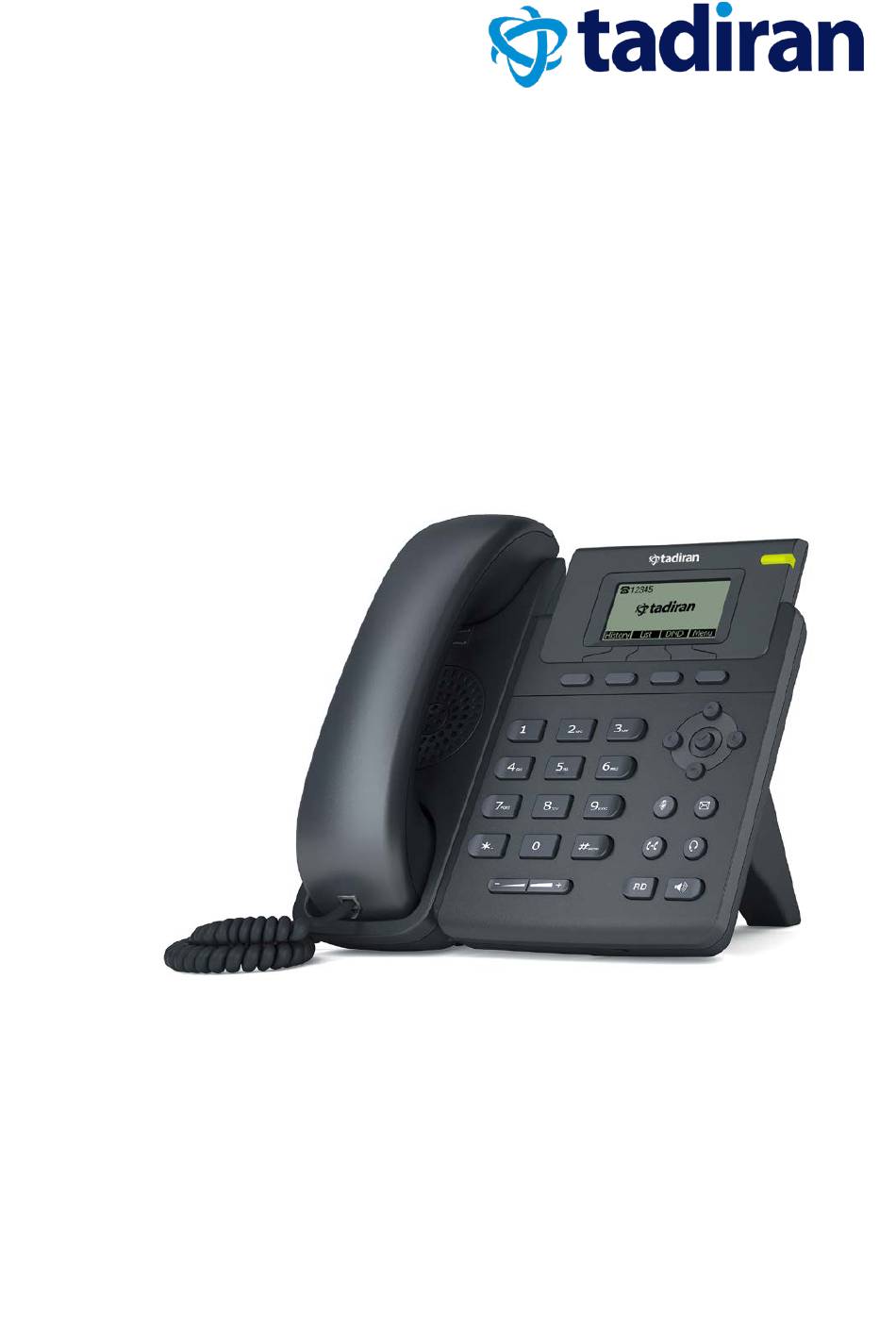

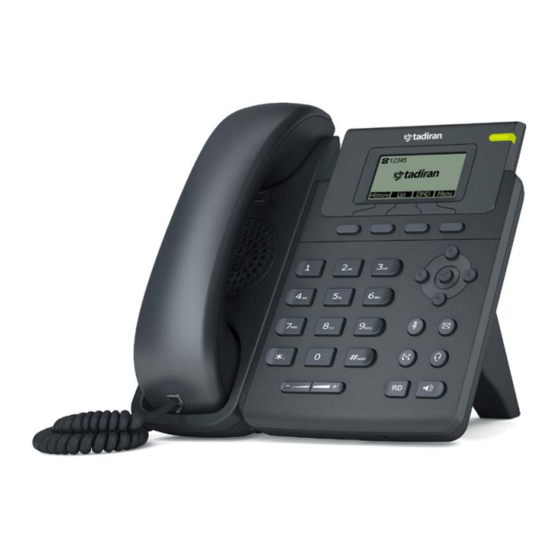

- Page 1 Tadiran T19P IP Phone User Guide Aeonix Version 2.5 Document Edition 1.0...
- Page 2 No parts of this publication may be subject to alteration, modification or commercial use. Tadiran Telecom (TTL), L.P . will not be liable for any damages arising from use of an illegally modified or altered publication.
- Page 3 WEEE separately. GNU GPL Information Tadiran T19P IP phone firmware contains third-party software under the GNU General Public License (GPL). Tadiran uses software under the specific terms of the GPL. Please refer to the GPL for the exact terms and...
-
Page 4: About This Guide
About This Guide About This Guide Thank you for choosing the T19P IP Phone, an ultra-elegant gigabit IP Phone which is exquisitely designed to provide business telephony features, such as Call Hold, Call Transfer, Busy Lamp Field, Multicast Paging and Conference over an IP network. -
Page 5: Table Of Contents
Table of Contents Table of Contents About This Guide ..............iv Table of Contents ..............v Overview .................. 1 Hardware Component Descriptions .................. 1 Icon Instructions ........................2 LED Instructions ........................4 User Interfaces ........................4 Phone User Interface ......................4 Web User Interface ...................... - Page 6 About This Guide Call Hold/Resume ....................... 22 Do Not Disturb (DND) ......................23 Call Transfer ........................24 Conference ......................... 24 Regulatory Notices ..............26 Service Agreements ......................26 Limitations of Liability ......................26 Safety Instructions ......................26 Index ..................28...
-
Page 7: Overview
User Interfaces Documentation If you require additional information or assistance with your new phone, contact your system administrator. Hardware Component Descriptions The main hardware components of the T19P IP phone are the LCD screen and the keypad. -
Page 8: Icon Instructions
User Guide for the T19P IP Phone Hardware component instructions of the T19P IP phone are: Item Description Shows information about calls, messages, soft keys, time, date and other relevant data: • Call information — caller ID, call duration ①... - Page 9 Overview Icon Description Registering Hands-free speakerphone mode Handset mode Headset mode Multi-lingual lowercase letters input mode Multi-lingual uppercase letters input mode Alphanumeric input mode Numeric input mode Multi-lingual uppercase and lowercase letters input mode Voice Mail Text Message Auto Answer Do Not Disturb Call Forwarded/Forwarded Calls Call Hold...
-
Page 10: Led Instructions
Fast flashing green (300ms) The call is mute. The phone is powered off. User Interfaces Two ways to customize configurations of your T19P IP phone: The user interface on the IP phone. The user interface in a web browser on your PC. -
Page 11: Documentation
Overview Documentation The following table shows documentations available for the T19P IP phone. Name Contents Where found Language Quick Installation Basic setup of the In the English Guide phone package Quick Reference Basic call features and In the English Guide... - Page 12 User Guide for the T19P IP Phone...
-
Page 13: Getting Started
Phone Initialization Registration Idle Screen If you require additional information or assistance with your new phone, contact your system administrator. Packaging Contents The following components are included in your T19P IP phone package: T19P IP Phone ... - Page 14 User Guide for the T19P IP Phone Phone Stand Power Adapter (Optional) Handset & Handset Cord Ethernet Cable Quick Installation Guide & Quick Reference Guide Check the list before installation. If you find anything missing, contact your system...
-
Page 15: Phone Installation
Getting Started Phone Installation If your phone is already installed, proceed to Phone Initialization on page 11. This section introduces how to install the phone: 1) Attach and detach the stand 2) Connect the handset and optional headset 3) Connect the network and power Attach the stand and detach the stand a) Attach the stand b) Detach the stand... - Page 16 Power over Ethernet With the included or a regular Ethernet cable, the T19P IP phone can be powered from a PoE-compliant switch or hub. PoE is not applicable to the T19 IP phone.
-
Page 17: Phone Initialization
Getting Started To connect the PoE for the T19P IP phone: Connect the Ethernet cable between the Internet port on the phone and an available port on the in-line power switch/hub. Note If in-line power switch/hub is provided, you don’t need to connect the phone to the power adapter. -
Page 18: Idle Screen
User Guide for the T19P IP Phone Idle Screen If the phone has successfully started up, the idle screen will be shown as below: The idle screen shows the label of current account, time and date, and four soft keys. -
Page 19: Customizing Your Phone
Customizing Your Phone Customizing Your Phone You can customize your T19P IP phone by personally configuring certain settings, for example, contrast, and volume. This chapter provides basic operating instructions for customizing your phone. Topics include: General Settings Audio Settings ... -
Page 20: Audio Settings
User Guide for the T19P IP Phone Audio Settings Volume You can press the Volume key to adjust the ringer volume when the phone is idle. You can also press the Volume key to adjust the receiver volume of currently engaged audio devices (handset, speakerphone or headset) when the phone is in use. -
Page 21: System Customizations
Customizing Your Phone System Customizations Headset Use Physically connect your headset and activate the headset mode for use. For more information on physically connecting a headset, refer to Phone Installation on page 9. Headset Mode Activation/Deactivation To activate the headset mode: Press on the phone. -
Page 22: Programmable Keys
User Guide for the T19P IP Phone Placing Calls on page 19. To deactivate the headset mode: Press again on the phone. The headset icon disappears from the idle screen indicates the headset mode is deactivated. Programmable Keys You can customize the soft keys, navigation keys and function keys on the keypad. The T19P IP phone supports 11 programmable keys. - Page 23 Customizing Your Phone...
-
Page 24: Basic Call Features
User Guide for the T19P IP Phone Basic Call Features The T19P IP phone is designed to be easily used like a regular phone on a public switched telephone network (PSTN). You can place calls, answer calls, transfer a call to someone else, or conduct a conference call. -
Page 25: Placing Calls
Basic Call Features Placing Calls You can place a call in three ways using your T19P IP phone: Using the handset Using the speakerphone Using the headset You can also dial the number first, and then choose the way you want to speak to the other party. -
Page 26: Answering Calls
Error! Bookmark not To place multiple calls: You can have more than one call on your T19P IP phone. To place a new call during an active call: Press the Hold soft key to place the original call on hold. -
Page 27: Ending Calls
Basic Call Features Do one of the following: Press With the handset on-hook and headset mode deactivated, press the Answer soft key. To answer a call using the headset: Do one of the following: Press With the headset mode activated, press the Answer soft key. Answering When in Another Call If you have an active call, and an incoming call arrives on the phone, do one of the following:... -
Page 28: Redialing Numbers
User Guide for the T19P IP Phone Redialing Numbers To redial the last dialed number from your phone: Press twice. A call to your last dialed number is attempted. To redial a previously dialed number from your phone: Press when the phone is idle. -
Page 29: Do Not Disturb (Dnd)
Basic Call Features Note The phone will beep softly every 30 seconds to remind you that you still have a call on hold. To resume a held call: Press the Resume soft key. Multiple Calls on Hold: If multiple calls are placed on hold: Press to switch between the calls, and then press the Resume soft key to retrieve the desired call. -
Page 30: Call Transfer
Network conference is not available on all servers. For more information, contact your system administrator. The T19P IP phone supports up to 3 parties (including yourself) in a conference call. This is the default method of conference called Local Conference. - Page 31 Basic Call Features...
-
Page 32: Regulatory Notices
User Guide for the T19P IP Phone Regulatory Notices Service Agreements Contact your Tadiran Authorized Reseller for information about service agreements applicable to your product. Limitations of Liability TO THE FULL EXTENT ALLOWED BY LAW, TADIRAN EXCLUDES FOR ITSELF AND ITS... - Page 33 Regulatory Notices Please place no heavy objects on the device in case of damage and deformation caused by the heavy load. Keep at least 10 cm between the device and the closest object for heat dissipation. Do not place the device on or near any inflammable or fire-vulnerable object, ...
-
Page 34: Index
User Guide for the T19P IP Phone Index About This Guide Network Connection Answering Calls Attaching Stand Audio Settings Overview Packaging Contents Phone Initialization Call Hold/Resume Phone Installation Call Mute Phone User Interface Call Transfer Placing Calls Conference Programmable Keys...
