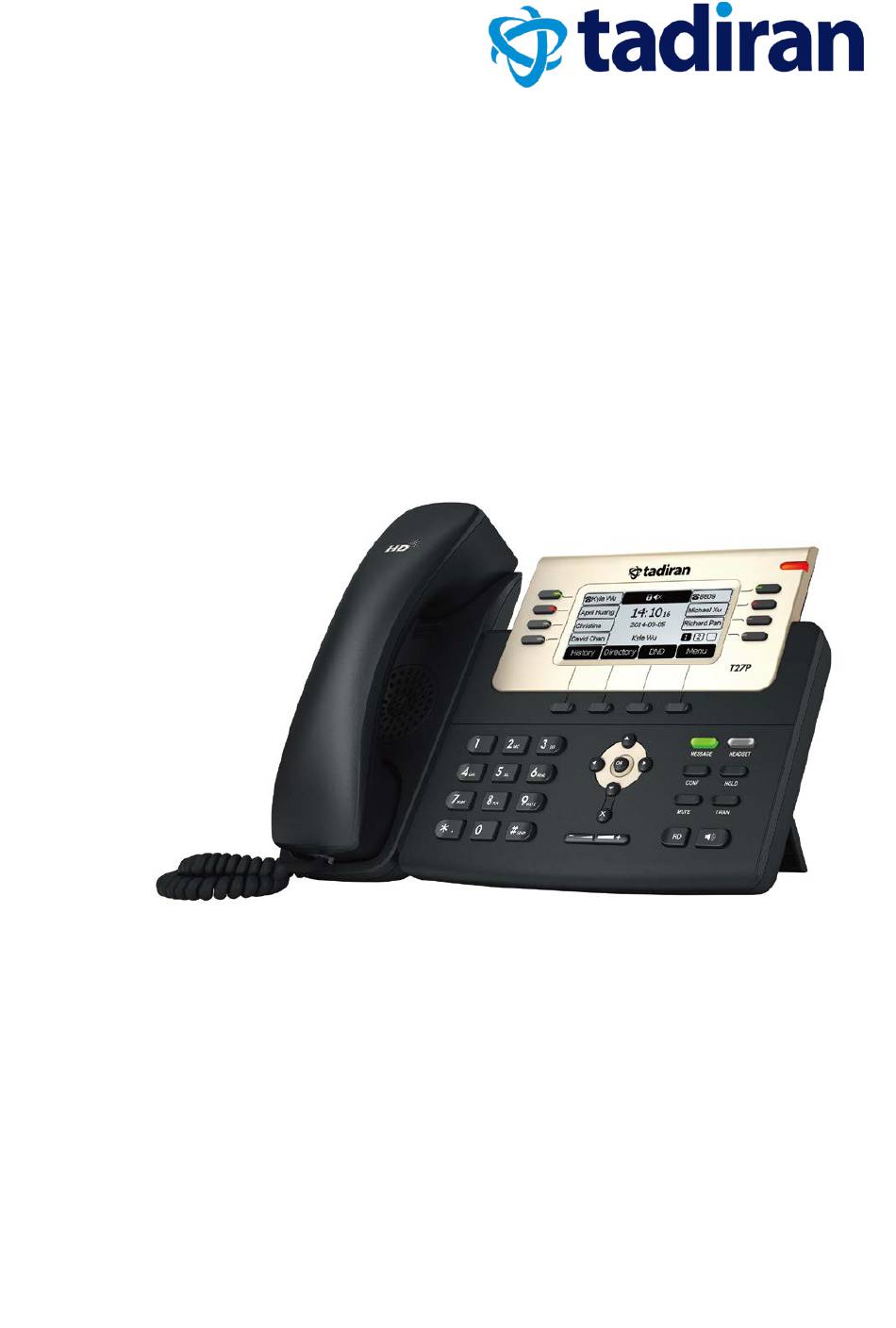

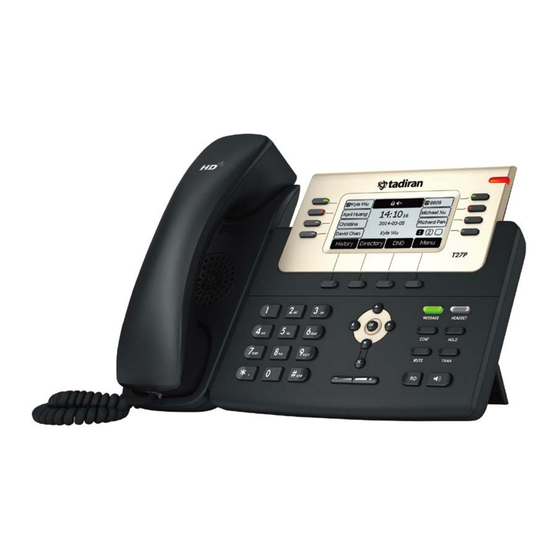

Tadiran T27P/G IP Phone
User Guide
Document Edition 3.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T27P and is the answer not in the manual?

Questions and answers

Related Manuals for Tadiran Telecom T27P

Summary of Contents for Tadiran Telecom T27P

  • Page 1 Tadiran T27P/G IP Phone User Guide Document Edition 3.1...
  • Page 2 No parts of this publication may be subject to alteration, modification or commercial use. Tadiran Telecom (TTL), L.P . will not be liable for any damages arising from use of an illegally modified or altered publication.
  • Page 3 WEEE separately. GNU GPL Information Tadiran T27P/G IP phone firmware contains third-party software under the GNU General Public License (GPL). Tadiran uses software under the specific terms of the GPL. Please refer to the GPL for the exact terms...

  • Page 4: About This Guide

    About This Guide About This Guide Thank you for choosing the T27P or T27G IP Phone (designated in this Guide as T27P/G), an ultra-elegant IP Phone which is exquisitely designed to provide business telephony features, such as Call Hold, Call Transfer, Busy Lamp Field, Multicast Paging and Conference over an IP network.

  • Page 5: Table Of Contents

    Table of Contents Table of Contents About This Guide ..............iv Table of Contents ..............v Overview .................. 1 Hardware Component Descriptions .................. 1 Icon Descriptions ........................3 LED Descriptions ........................5 User Interfaces ........................6 Phone User Interface ......................6 Web User Interface ......................

  • Page 6: Table Of Contents

    Table of Contents Redialing Numbers ......................27 Call Mute ..........................28 Call Hold/Resume ....................... 28 Do Not Disturb (DND) ......................29 Call Transfer ........................31 Conference ......................... 31 Regulatory Notices ..............34 Service Agreements ......................34 Limitations of Liability ......................34 Safety Instructions ......................
  • Page 7 Table of Contents...

  • Page 9: Overview

     User Interfaces  Documentation  If you require additional information or assistance with your new phone, contact your system administrator. Hardware Component Descriptions The main hardware components of the T27P/G IP phone are the LCD screen and the keypad.
  • Page 10 User Guide for the T41P IP Phone Hardware component instructions of the T27P/G IP phone are: Item Description Shows information about calls, messages, soft keys, time, date and other relevant data: • Call information—caller ID, call duration • Icons (for example, ①...

  • Page 11: Icon Descriptions

    Overview Item Description Secures the handset in the handset cradle when the IP phone is mounted vertically. For more information on ⑰ Hookswitch Tab Tadiran Wall how to adjust the hookswitch tab, refer to Mount Quick Installation Guide for Tadiran IP Phones Picking up the handset from the handset cradle, the hookswitch bounces and the phone connects to the ⑱...
  • Page 12 User Guide for the T41P IP Phone Icons Description Auto Answer Do Not Disturb Call Forward/Forwarded Calls Call Hold Call Mute Ringer volume is 0 Phone Lock Received Calls Placed Calls Missed Calls Recording box is full A call cannot be recorded Recording starts successfully Recording cannot be started Recording cannot be stopped...

  • Page 13: Led Descriptions

    Overview LED Descriptions Power Indicator LED LED Status Description Solid red The phone is initializing. Fast flashing red (300ms) The phone is ringing. Slow flashing red (1s) The phone receives a text message or voice mail. The phone is powered off. The phone is idle.

  • Page 14: User Interfaces

    Line keys on every page are idle. User Interfaces Two ways to customize configurations of your T27P/G IP phone: The user interface on the IP phone.  The user interface in a web browser on your PC.

  • Page 15: Documentation

    Overview Documentation The following table shows documentations available for the T27P/G IP phone. Name Contents Where found Language Basic call features Quick Start Guide and phone In the package English customizations Phone user User Guide interface settings for On the website...
  • Page 16 User Guide for the T41P IP Phone...

  • Page 17: Getting Started

    Getting Started Getting Started This chapter provides the following basic installation instructions and information for obtaining the best performance with the T27P/G IP phone. Topics include: Packaging Contents  Phone Installation  Phone Initialization  Registration  Generally, your phone will be deployed with multiple other phones. In this case, ...
  • Page 18 User Guide for the T41P IP Phone Phone Stand  Handset & Handset Cord  Ethernet Cable  Quick Start Guide  Check the list before installation. If you find anything missing, contact your system administrator.

  • Page 19: Optional Accessories

    Getting Started Optional Accessories The following items are optional accessories for your T27P/G IP phone. You need to purchase them separately if required. Power Adapter  Wall Mount Bracket  Headset  Wireless Headset Adapter EHS36 ...

  • Page 20: Phone Installation

    User Guide for the T41P IP Phone Phone Installation If your phone is already installed, proceed to Phone Initialization on page 14. This section introduces how to install the phone: Attach the stand or the optional wall mount bracket Connect the handset and optional headset Connect the network and power Attach the stand or the optional wall mount bracket Desk Mount Method...
  • Page 21 Getting Started Connect the handset and optional headset Note The EXT port can also be used to connect an expansion module EXP39. Connect the network and power You have two options for power and network connections. Your system administrator will advise you which one to use.

  • Page 22: Phone Initialization

    User Guide for the T41P IP Phone Power over Ethernet With the included or a regular Ethernet cable, the T27P/G IP phone can be powered from a PoE-compliant switch or hub. To connect the PoE: Connect the Ethernet cable between the Internet port on the phone and an available port on the in-line power switch/hub.

  • Page 23: Registration

    Getting Started Registration Generally, your phone will be deployed with multiple other phones. In this case, your system administrator will configure the phone parameters beforehand, so that after you start up your phone, the phone will be registered and ready for use. If your phone is not registered, you may have to register it.
  • Page 24 User Guide for the T41P IP Phone...

  • Page 25: Customizing Your Phone

    15s, 30s, 60s, 120s, 300s, 600s or 1800s: Backlight is turned off when the  phone is inactive after the designated time (in seconds). You can also change the intensity of the LCD screen of EXP39 connected to the T27P/G IP phone. To configure the backlight via phone user interface:...

  • Page 26: Contrast

    Press the Save soft key to accept the change or the Back soft key to cancel. Contrast You can configure the LCD screen contrast of EXP39 or T27P/G to a comfortable level. To configure the contrast via phone user interface: Press Menu->Settings->Basic Settings->Display->Contrast.

  • Page 27: System Customizations

    Customizing Your Phone can also press the volume key to adjust the receiver volume of currently engaged audio devices (handset, speakerphone or headset) when the phone is in use. To adjust the volume when the phone is idle: Press to adjust the ringer volume. If ringer volume is adjusted to minimum, the icon will appear on the LCD screen.

  • Page 28: Dss Keys

    DSS Keys There are three types of DSS keys: Line Keys, Programmable Keys and Ext Keys. Details will be introduced in the following. The T27P/G IP phone supports 21 line keys. Line Keys You can assign predefined functionalities to line keys. You can also define a label for a line key feature which will appear on the LCD screen.
  • Page 29 Customizing Your Phone pages. When you assign functionality to line keys located in line key 1-8, the labels of line keys are indicated on the first page. The following figure shows an example: When you assign functionality to line key located in line key 9-21, the label of the line key 8-14 are indicated on the second page, and the labels of the line key 15-21 are indicated on the third page.
  • Page 30 User Guide for the T41P IP Phone Icons Description There is a parked call on the non-current page. For more information on the page switch key LED status, refer to LED Descriptions on page 5. Programmable Keys You can customize the soft keys, navigation keys and function keys. To customize programmable keys via the Aeonix Portal: Aeonix Configuration Guide for End Users Refer to...

  • Page 31: Basic Call Features

    Basic Call Features Basic Call Features The T27P/G IP phone is designed to be easily used like a regular phone on a public switched telephone network (PSTN). You can place calls, answer calls, transfer a call to someone else, or conduct a conference call.

  • Page 32: Placing Calls

    User Guide for the T41P IP Phone Placing Calls You can place a call in one of three ways using your T27P/G IP phone: Using the handset  Using the speakerphone  Using the headset  You can also dial the number first, and then choose the way you want to speak to the other party.
  • Page 33 The T27P/G IP phone can handle a maximum of 50 calls at one time. To place multiple calls: You can have more than one call on your T27P/G IP phone. To place a new call during an active call, do one of the following: Press the line key.

  • Page 34: Answering Calls

    User Guide for the T41P IP Phone You can press to switch between calls, and then press the Resume soft key to retrieve the desired call. Note If multiple accounts are registered on the phone, you can first press the desired line key in the idle screen or press the Line soft key in the dialing screen, and then you can use the selected account to place a call.

  • Page 35: Ending Calls

    Basic Call Features green). Answering When in Another Call If you have an active call, and an incoming call arrives on the phone, do one of the following: Press the Answer soft key. The incoming call is answered and the original call is placed on hold. Press to access the new call.

  • Page 36: Call Mute

    User Guide for the T41P IP Phone Call Mute You can mute the microphone of the active audio device during an active call so that the other party cannot hear you. Call mute applies to all modes (Handset, Headset and Speakerphone).

  • Page 37: Do Not Disturb (Dnd)

    Basic Call Features To resume a held call: Press or the Resume soft key. Multiple Calls on Hold: If multiple calls are placed on hold, do one of the following: Press to switch between the calls, and then press the Resume soft key to retrieve the desired call.
  • Page 38 User Guide for the T41P IP Phone To activate DND in custom mode for a specific account: Press the DND soft key when the phone is idle. The LCD screen displays a list of accounts on the phone. Press to select the desired account and then press the Enter soft key. Press , or the Switch soft key to select Enabled to activate DND.

  • Page 39: Call Transfer

    Network conference is not available on all servers. For more information, contact your system administrator. he T27P/G IP phone supports up to 3 parties (including yourself) in a conference call. This is the default method of conference called Local Conference.
  • Page 40 User Guide for the T41P IP Phone You can press to see all parties in the conference. To join two calls in a conference: Place two calls using two different accounts on the phone (for example, place the first call using account 1, and then place the second call using account 2). Press to select the call for conference and ensure that the call is active (for example, select the call on account 1).
  • Page 41 Troubleshooting...

  • Page 42: Regulatory Notices

    User Guide for the T41P IP Phone Regulatory Notices Service Agreements Contact your Tadiran Authorized Reseller for information about service agreements applicable to your product. Limitations of Liability TO THE FULL EXTENT ALLOWED BY LAW, TADIRAN EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS,...
  • Page 43 Regulatory Notices Place the device on a stable and level platform.  Please do not place heavy objects on the device in case of damageand  deformation caused by the heavy load. Keep at least 10 cm between the device and the closest object for heat ...

  • Page 44: Index

    User Guide for the T41P IP Phone Index Answering Calls Audio Settings Auto Answer Packaging Contents Phone Initialization Phone Installation Backlight Phone User Interface Placing Calls Programmable Keys Call Mute Call Hold/Resume Call Transfer Optional Accessories CE Mark Warning Overview Conference Contrast Copyright...
