4-2 Battery Pack Removal and Replacement

4-2 Battery Pack Removal and Replacement
This section provides instructions for the removal and replacement of the Spectrum Master battery pack.
Many of the procedures in this section are generic, and apply to many similar instruments. Photos
Note
and illustrations used are representative and may show instruments other than the Spectrum Master.
1. Locate the battery access door illustrated in
Battery Door
Location and
Finger Notch

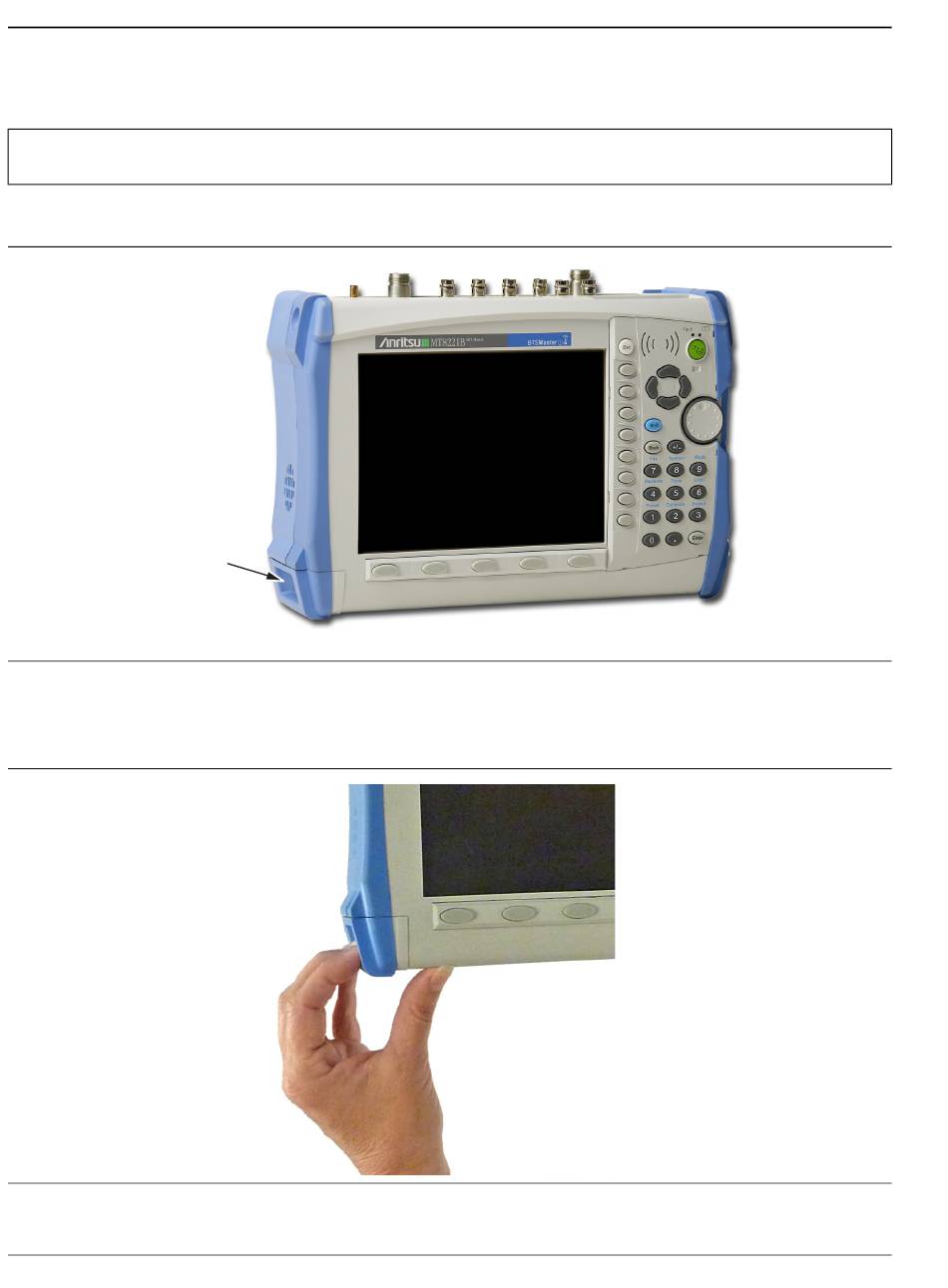

Figure 4-1. Battery Access Door Location and Finger Notch
2. With the Spectrum Master laying flat and face up on a stable surface, grab the battery access door notch
and pull the battery door down towards the bottom of the instrument as shown in
Figure 4-2. Opening the Battery Access Door
4-2
Figure 4-1.
PN: 10580-00279 Rev. E
Chapter 4 — Battery Information
Figure 4-2.
MS272xC MM
