3-6 Option 46 and/or Option 47, Fixed WiMAX Signal Analyzer Verification

3-6

Option 46 and/or Option 47, Fixed WiMAX Signal Analyzer Verification

The tests in this section verify the functionality of the Fixed WiMAX Signal Analyzer of the MS272xC.

Fixed WiMAX Channel Power Accuracy Tests (Option 46)

Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3700A Vector Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• Power Sensor, Anritsu Model MA2482D
• Power Splitter, Aeroflex/Weinschel Model 1870A
• Fixed Attenuator, Aeroflex/Weinschel Model 4410 (2)
• Anritsu 34NN50A 50 ohm Adapter (2)
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Equipment Required for MS2725C and MS2726C
• All of the above, plus
• Anritsu 71693-R Ruggedized K(f) to N(f) Adapter
Setup
MG3700
Vector Signal
Generator
250kHz-6GHz
Ext Ref In
(back panel)
MG3700A Vector Signal Generator

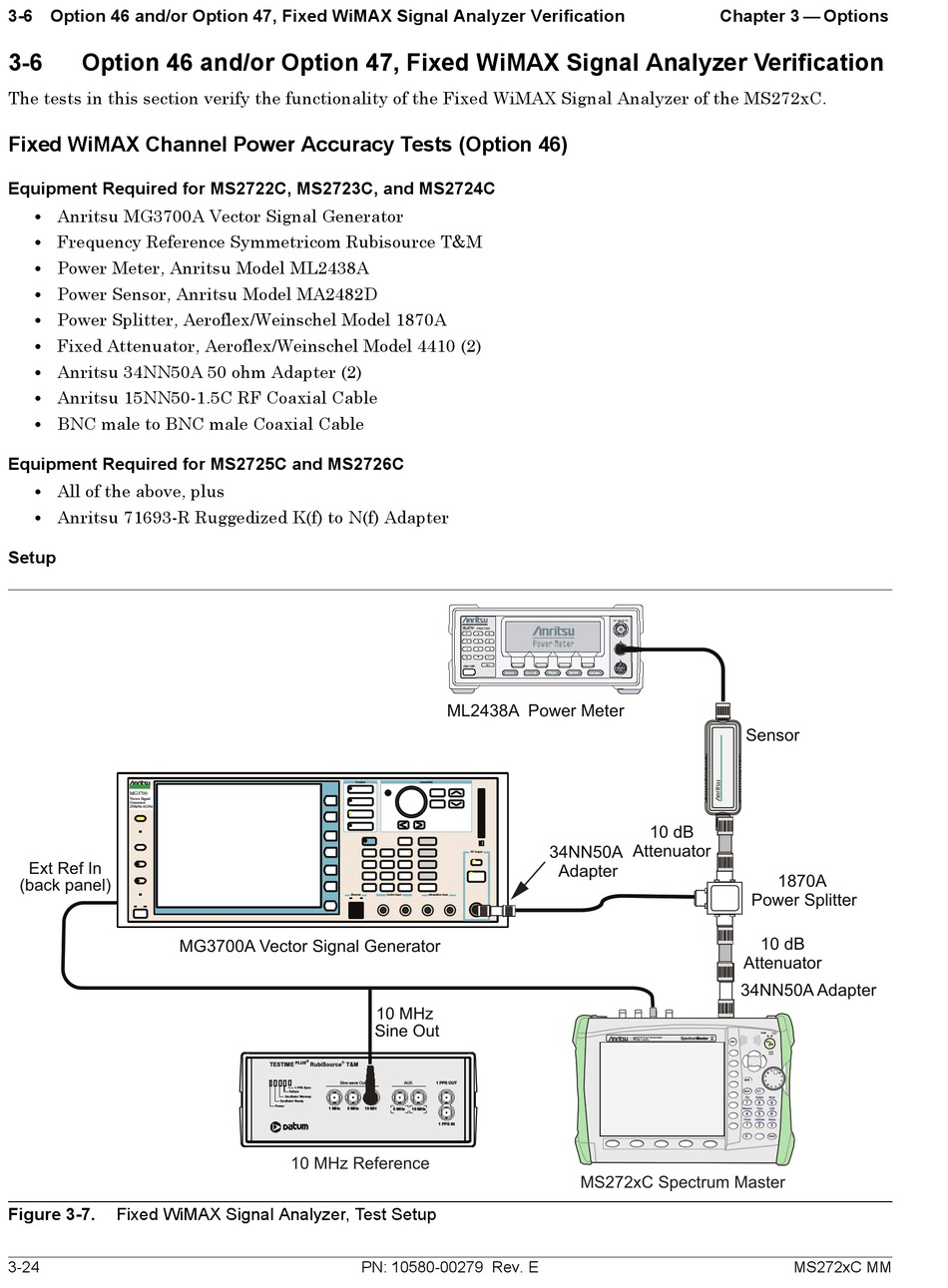

Figure 3-7. Fixed WiMAX Signal Analyzer, Test Setup
