Anritsu Spectrum Master MS2722C Maintenance Manual page 44

Chapter 2 — Spectrum Analyzer Verification
.
Ext Ref In
MS2722C
Spectrum Analyzer
SpectrumMaster
MS272xC Spectrum Master

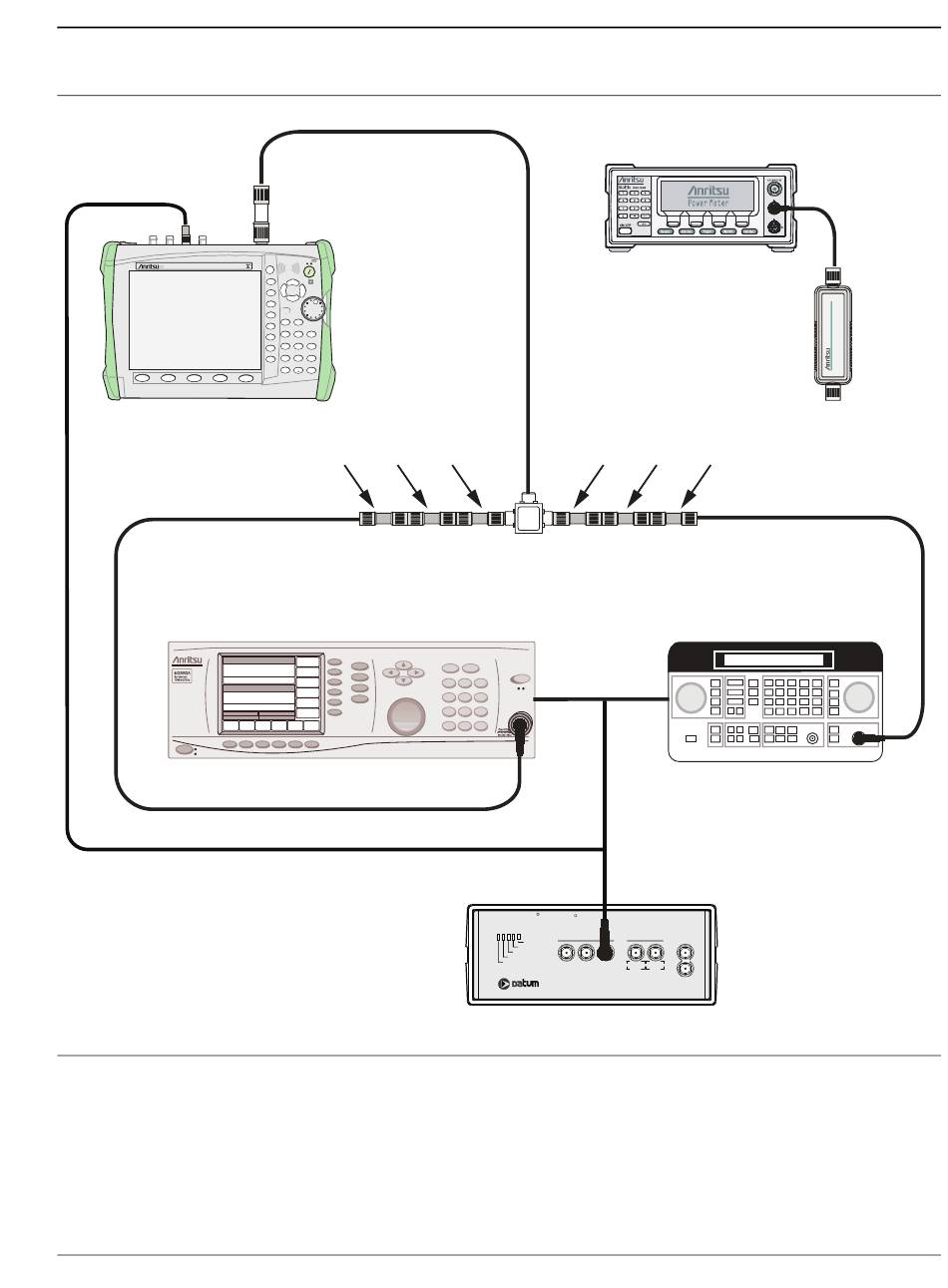

Figure 2-6. 2400 MHz TOI Verification, Test Setup
MS272xC MM
Adapter
34NN50A
Fault
ESC
On
Off
Shift
+/-
Back
File System Mode
7 8 9
Measure Trace Limit
4 5 6
Preset Calibrate Sweep
1 2 3
0
Enter
2 dB 6 dB 20 dB
Attenuators
MG3692x Signal General
PN: 10580-00279 Rev. E
2-10 Third Order Intercept (TOI)
ML2438A Power Meter
20 dB 6 dB
Attenuators
Power
Splitter
1870A
2x Ext Ref In
(back panel)
10 MHz
Sine Out
R
PLUS
TESTIME RubiSource T&M R
Sine wave Out AUX 1 PPS OUT
1 PPS Sync
Failure
Oscillator Warmup
Oscillator Ready
Power
1 MHz 5 MHz 10 MH 5 MHz 10 MHz
1 PPS IN
10 MHz Reference
Sensor
2 dB
7 8 9
4 5 6
1 2 3
.
0 +/-
Agilent 8648D
2-25
