Anritsu Spectrum Master MS2722C Maintenance Manual page 61

3-5 Option 44, 45, and/or 65 WCDMA/HSDPA Signal Analyzer VerificationChapter 3 — Options Verification
ML2438A Power Meter
MG3700
Vector Signal
Generator
250kHz-6GHz
MG3700A Vector Signal Generator

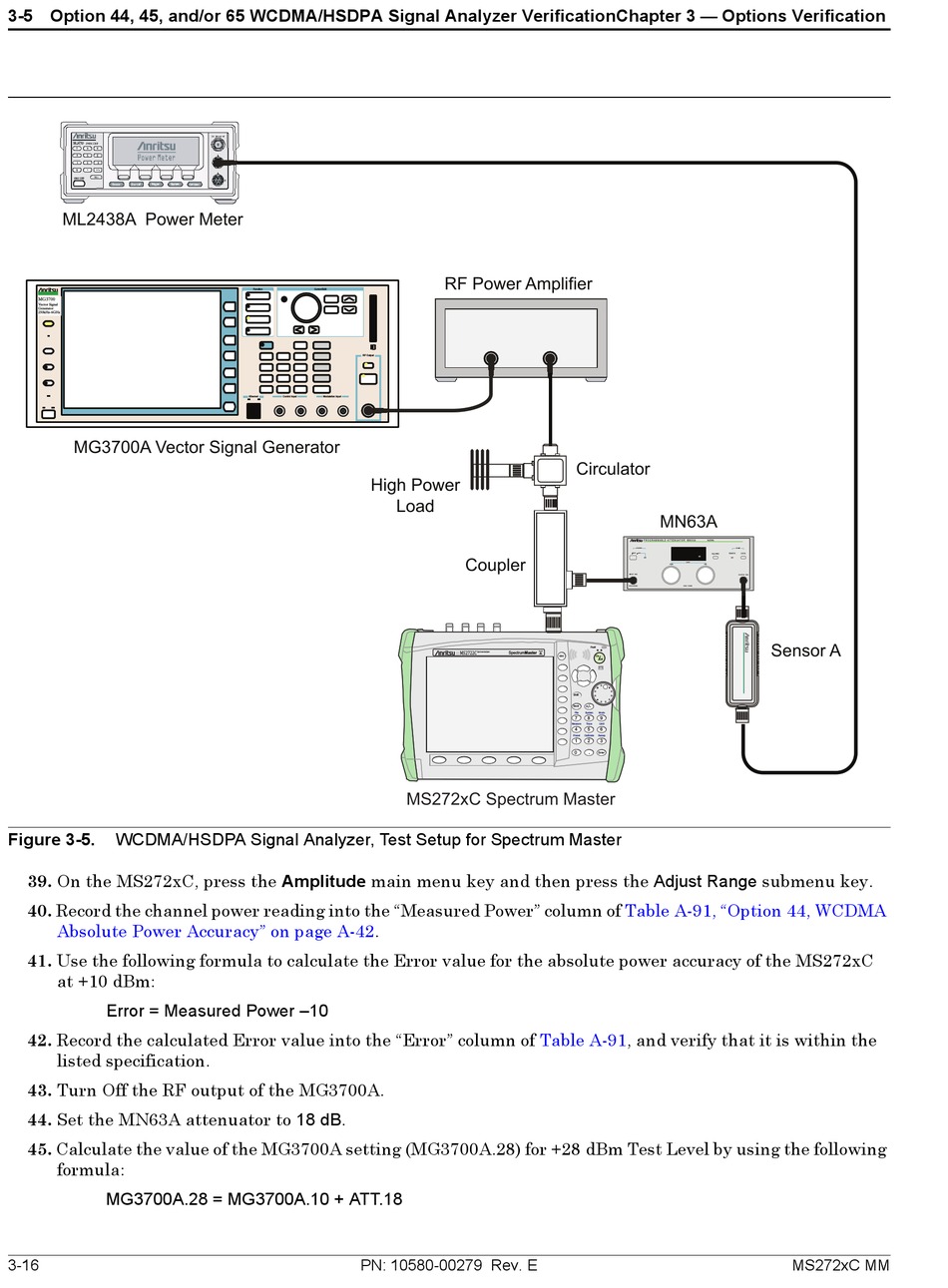

Figure 3-5. WCDMA/HSDPA Signal Analyzer, Test Setup for Spectrum Master
39. On the MS272xC, press the Amplitude main menu key and then press the Adjust Range submenu key.
40. Record the channel power reading into the "Measured Power" column of
Absolute Power Accuracy" on page
41. Use the following formula to calculate the Error value for the absolute power accuracy of the MS272xC
at +10 dBm:
Error = Measured Power –10
42. Record the calculated Error value into the "Error" column of
listed specification.
43. Turn Off the RF output of the MG3700A.
44. Set the MN63A attenuator to 18 dB.
45. Calculate the value of the MG3700A setting (MG3700A.28) for +28 dBm Test Level by using the following
formula:
MG3700A.28 = MG3700A.10 + ATT.18
3-16
Function Cursor/Edit
RF Output
Ethernet Control Input Modulation Input
High Power
Load
MS272xC Spectrum Master
A-42.
PN: 10580-00279 Rev. E
RF Power Amplifier
Circulator
Coupler
Fault
MS2722C
Spectrum Analyzer SpectrumMaster
ESC
On
Off
Shift
+/-
Back
File System Mode
7 8 9
Measure Trace Limit
4 5 6
Preset Calibrate Sweep
1 2 3
0
Enter
Table A-91, and verify that it is within the
MN63A
Sensor A
Table A-91, "Option 44, WCDMA
MS272xC MM
