Chapter 3 — Removal and Replacement
3-1

Remove and Replace Instructions

Some of the procedures in this section are generic, and apply to many similar instruments. Photos
Note and illustrations are representative and may show instruments other than the Models MS2723B and
MS2724B.
3-2

Battery Pack Removal and Replacement

This section provides instructions for the removing and replacing the MS2723B or MS2724B battery pack.
1. With the MS2723B or MS2724B laying flat and face up on a stable surface, locate the battery access door,
as illustrated in

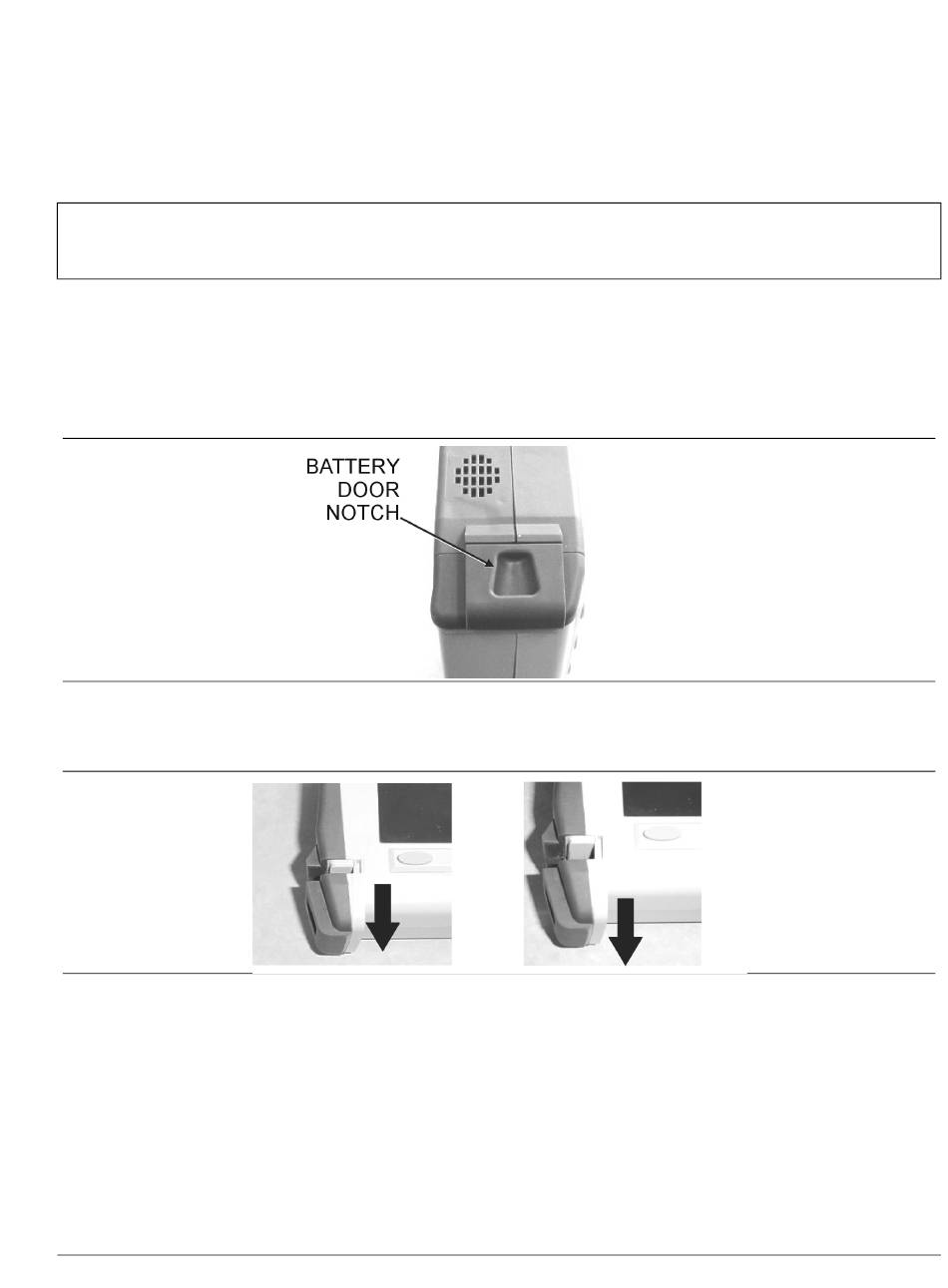

Figure 3-1. Battery Access Door Notch
2. Place a finger in the battery access door notch and push the door down towards the bottom of the
instrument, as illustrated in
Figure 3-2. Removing the Battery Access Door
3. Remove the battery access door.
Models MS2723B and MS2724B MM
Figure 3-1.
Figure 3-2.
PN: 10580-00165 Rev. D 3-1
