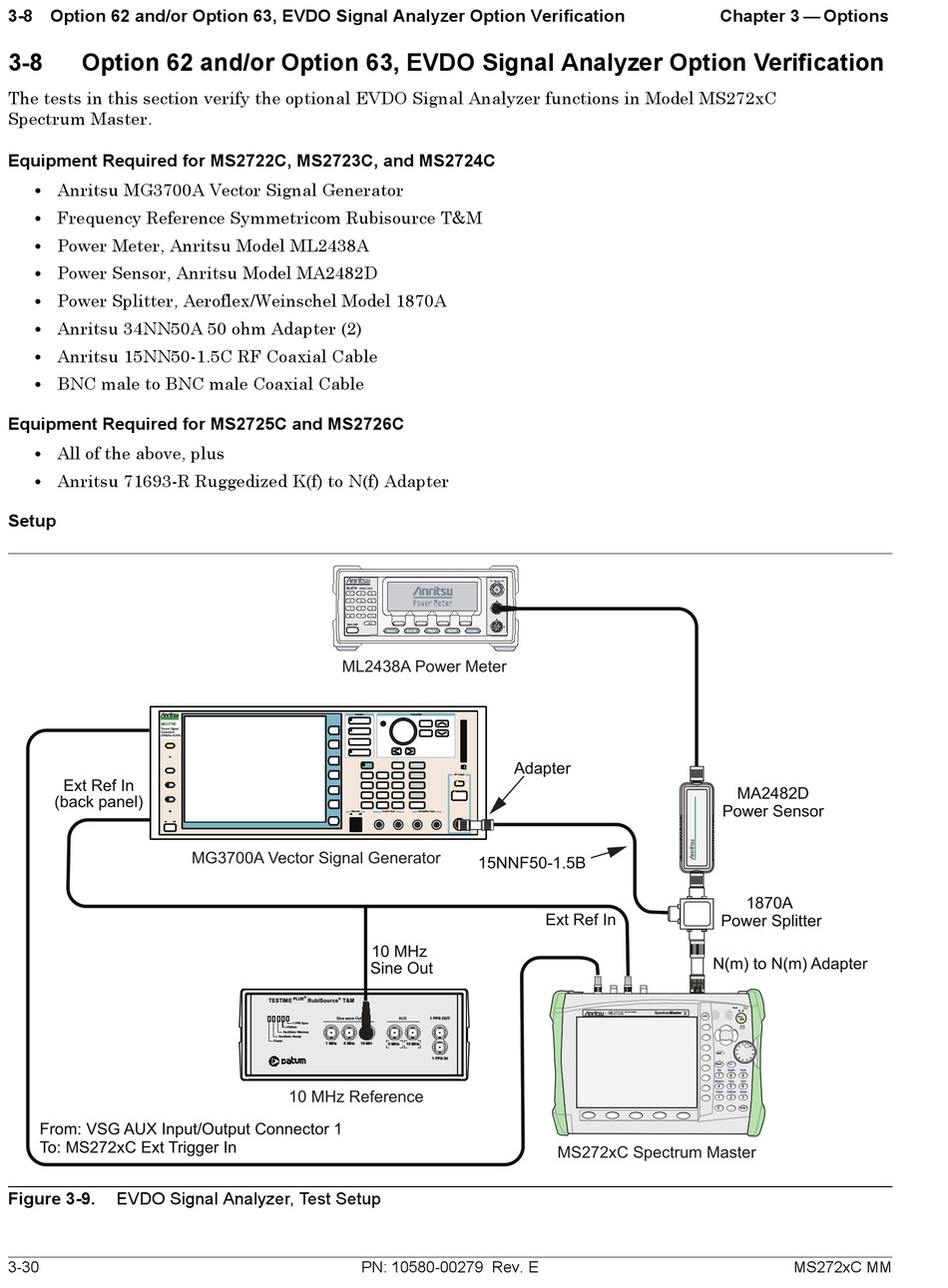

3-8 Option 62 and/or Option 63, EVDO Signal Analyzer Option Verification

3-8

Option 62 and/or Option 63, EVDO Signal Analyzer Option Verification

The tests in this section verify the optional EVDO Signal Analyzer functions in Model MS272xC
Spectrum Master.
Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3700A Vector Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• Power Sensor, Anritsu Model MA2482D
• Power Splitter, Aeroflex/Weinschel Model 1870A
• Anritsu 34NN50A 50 ohm Adapter (2)
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Equipment Required for MS2725C and MS2726C
• All of the above, plus
• Anritsu 71693-R Ruggedized K(f) to N(f) Adapter
Setup
MG3700
Vector Signal
Generator
250kHz-6GHz
Ext Ref In
(back panel)
From: VSG AUX Input/Output Connector 1
To: MS272xC Ext Trigger In
Figure 3-9. EVDO Signal Analyzer, Test Setup
3-30
ML2438A Power Meter
Function
Ethernet
MG3700A Vector Signal Generator
Sine Out
R
PLUS
TESTIME RubiSource T&M R
Sine wave Out
1 PPS Sync
Failure
Oscillator Warmup
Oscillator Ready
Power
1 MHz 5 MHz 10 MH
10 MHz Reference
PN: 10580-00279 Rev. E
Cursor/Edit
Adapter
RF Output
Control Input Modulation Input
15NNF50-1.5B
Ext Ref In
10 MHz
AUX 1 PPS OUT
5 MHz 10 MHz
1 PPS IN
Chapter 3 — Options
Power Sensor
Power Splitter
N(m) to N(m) Adapter
Fault
MS2722C
Spectrum Analyzer
SpectrumMaster
ESC
Shift
Back +/-
File System
7 8
Measure Trace
4 5
Preset Calibrate
1 2
0
MS272xC Spectrum Master
MA2482D
1870A
On
Off
Mode
9
Limit
6
Sweep
3
Enter
MS272xC MM
