3-7 Option 60 and/or Option 61, TDSCDMA Signal Analyzer Option Verification

3-7 Option 60 and/or Option 61, TDSCDMA Signal Analyzer Option
Verification
The tests in this section verify the function of the optional TDSCDMA Signal Analyzer in Models MS272xC
Spectrum Master. Option 60 is TDSCDMA RF measurements. Option 61 is TDSCDMA Demodulator
measurements.
Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3700A Vector Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• Power Sensor, Anritsu Model MA2482D
• Power Splitter, Aeroflex/Weinschel Model 1870A
• Fixed Attenuator, Aeroflex/Weinschel Model 4410 (2)
• Anritsu 34NN50A 50 ohm Adapter (2)
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Equipment Required for MS2725C and MS2726C
• All of the above, plus
• Anritsu 71693-R Ruggedized K(f) to N(f) Adapter
Setup
MG3700
Vector Signal
Generator
250kHz-6GHz
Ext Ref In
(back panel)
From: VSG AUX Input/Output Connector 1
To: MS272xC Ext Trigger In

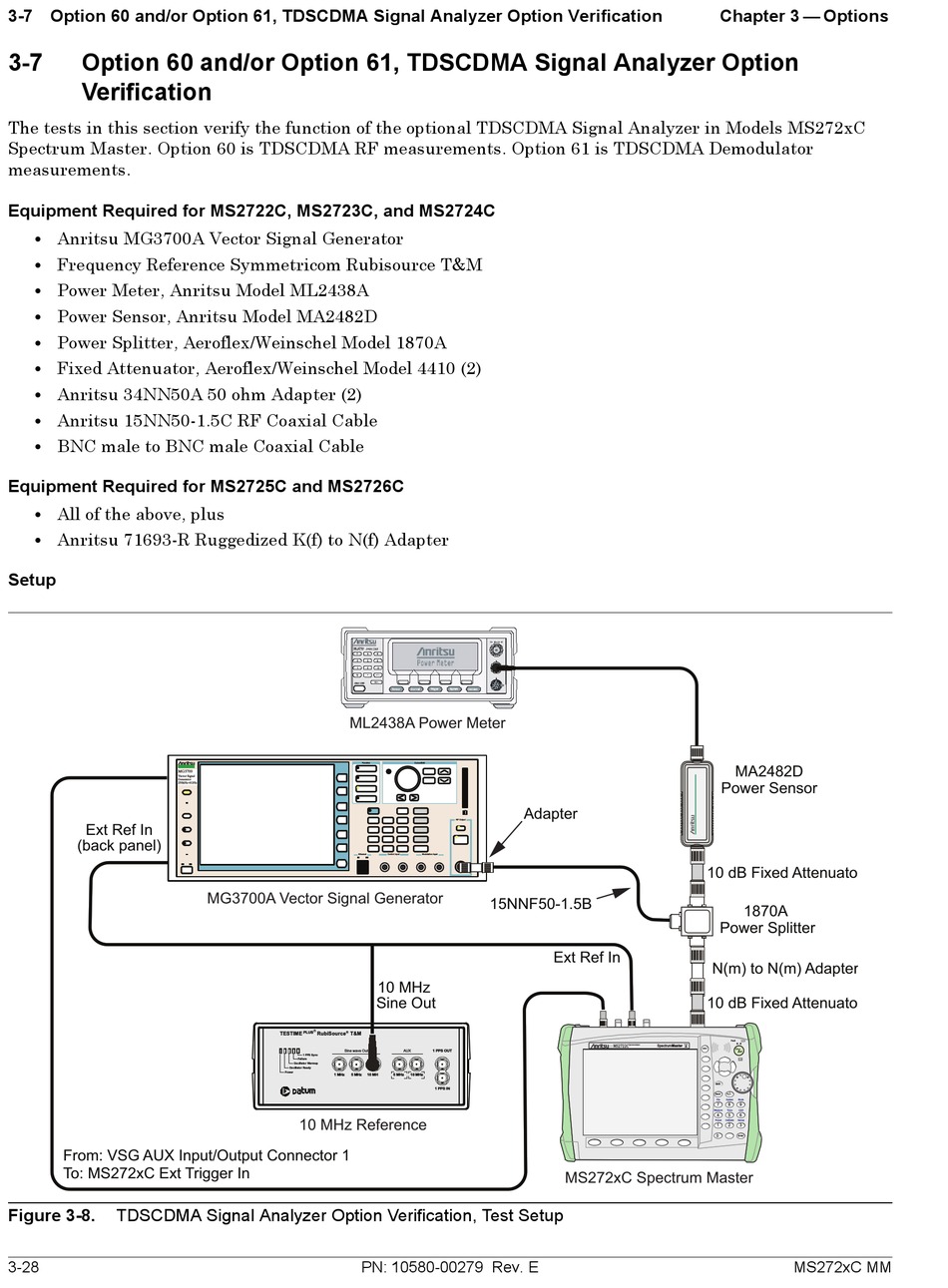

Figure 3-8. TDSCDMA Signal Analyzer Option Verification, Test Setup
3-28
