3-4 Option 42 and/or 43, CDMA Signal Analyzer Verification

3-4

Option 42 and/or 43, CDMA Signal Analyzer Verification

The tests in this section verify the optional CDMA Signal Analyzer functions in Model MS272xC
Spectrum Master.
Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3700A Vector Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• Power Sensor, Anritsu Model SC7400
• Anritsu 34NN50A 50 ohm Adapter (2)
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
• Power Splitter, Aeroflex/Weinschel Model 1870A
Equipment Required for MS2725C and MS2726C
• All of the above, plus
• Anritsu 71693-R Ruggedized K(f) to N(f) Adapter
Setup
MG3700
Vector Signal
Generator
250kHz-6GHz
Ext Ref In
(back panel)
From: VSG AUX Input/Output Connector 1
To: MS272xC Ext Trigger In

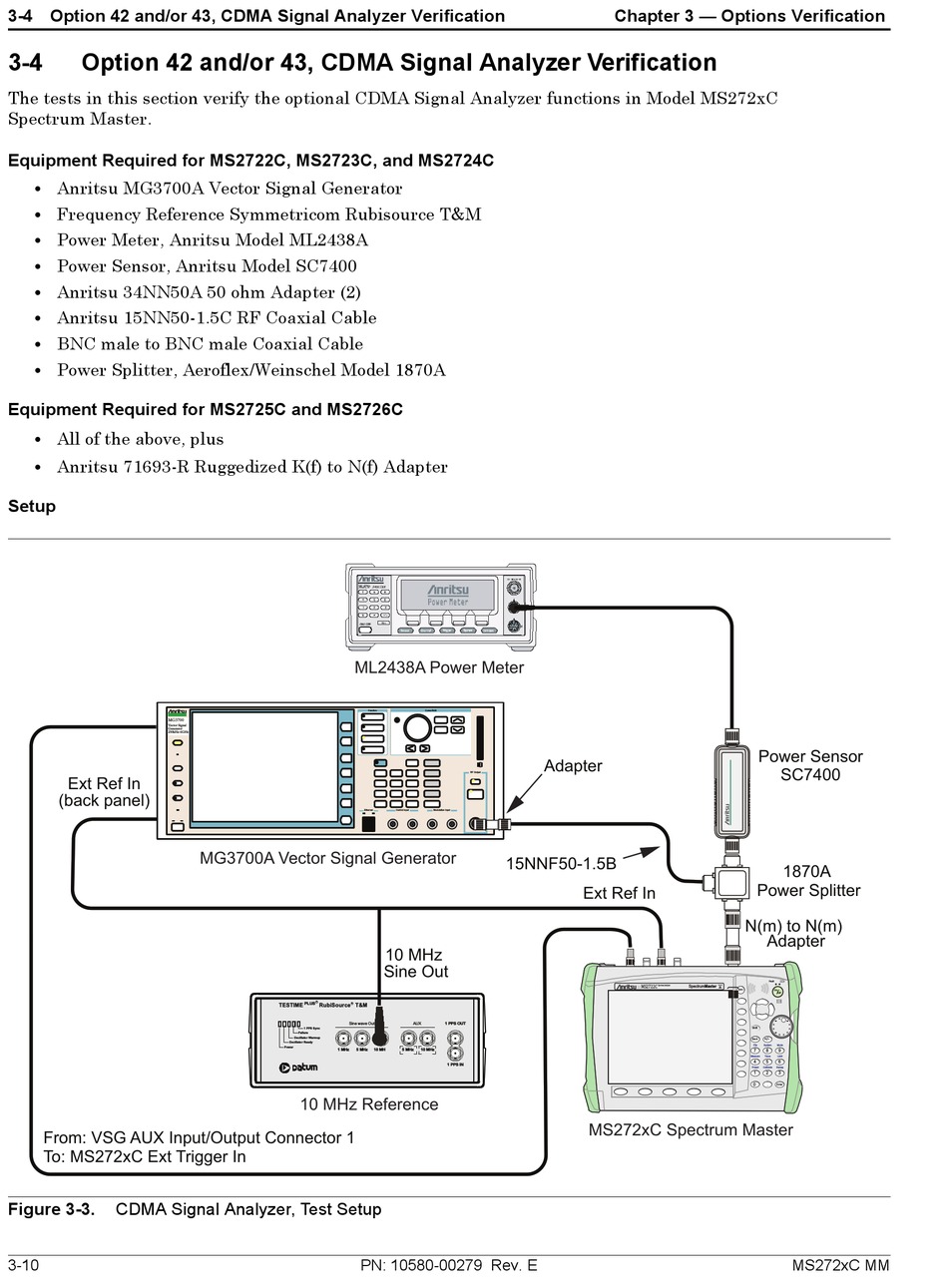

Figure 3-3. CDMA Signal Analyzer, Test Setup
3-10
ML2438A Power Meter
Function
Ethernet
MG3700A Vector Signal Generator
R
PLUS R
TESTIME RubiSource T&M
Sine wave Out
1 PPS Sync
Failure
Oscillator Warmup
Oscillator Ready
Power
1 MHz 5 MHz 10 MH
10 MHz Reference
PN: 10580-00279 Rev. E
Cursor/Edit
Adapter
RF Output
Control Input Modulation Input
15NNF50-1.5B
10 MHz
Sine Out
AUX 1 PPS OUT
5 MHz 10 MHz
1 PPS IN
Chapter 3 — Options Verification
Power Sensor
Power Splitter
Ext Ref In
N(m) to N(m)
MS2722C
Spectrum Analyzer SpectrumMaster
ESC
Shift
Back
File
7
Measure
4
Preset
1
0
MS272xC Spectrum Master
SC7400
1870A
Adapter
Fault
On
Off
+/-
System Mode
8 9
Trace Limit
5 6
Calibrate Sweep
2 3
Enter
MS272xC MM
