Is there a problem updating firmware using USB interface?
An intermittent problem occurs with firmware updates using the USB interface with several of the
hand held test instruments. The list of instruments includes the MS2024A, MS2026A, MS2034,
MS2036A, MS2717A/B, MS2718B, MS2719B, MS2721A/B, MS2723B, MS2724B, MS8911A/B,
MT8220A and MT8222A. After the update is completed, the instrument may fail to boot properly.
If you have an instrument that fails to boot after a failed firmware update, use the following steps
to resolve the problem.
1. Close Master Software Tools and then re-open it.
2. Power off the instrument. Connect it via Ethernet to your local network or directly to your
PC using an Ethernet cross-over cable.

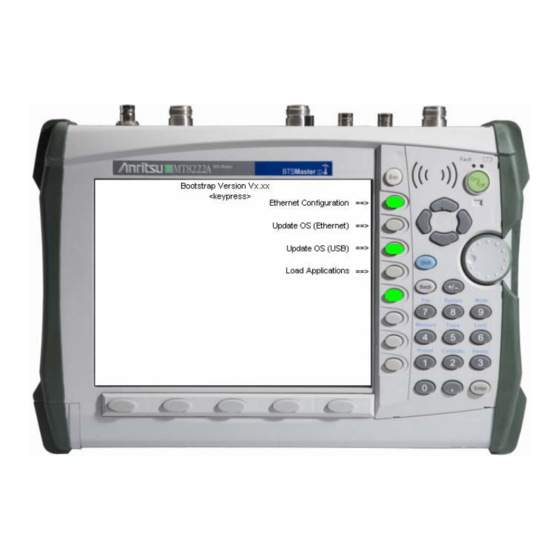

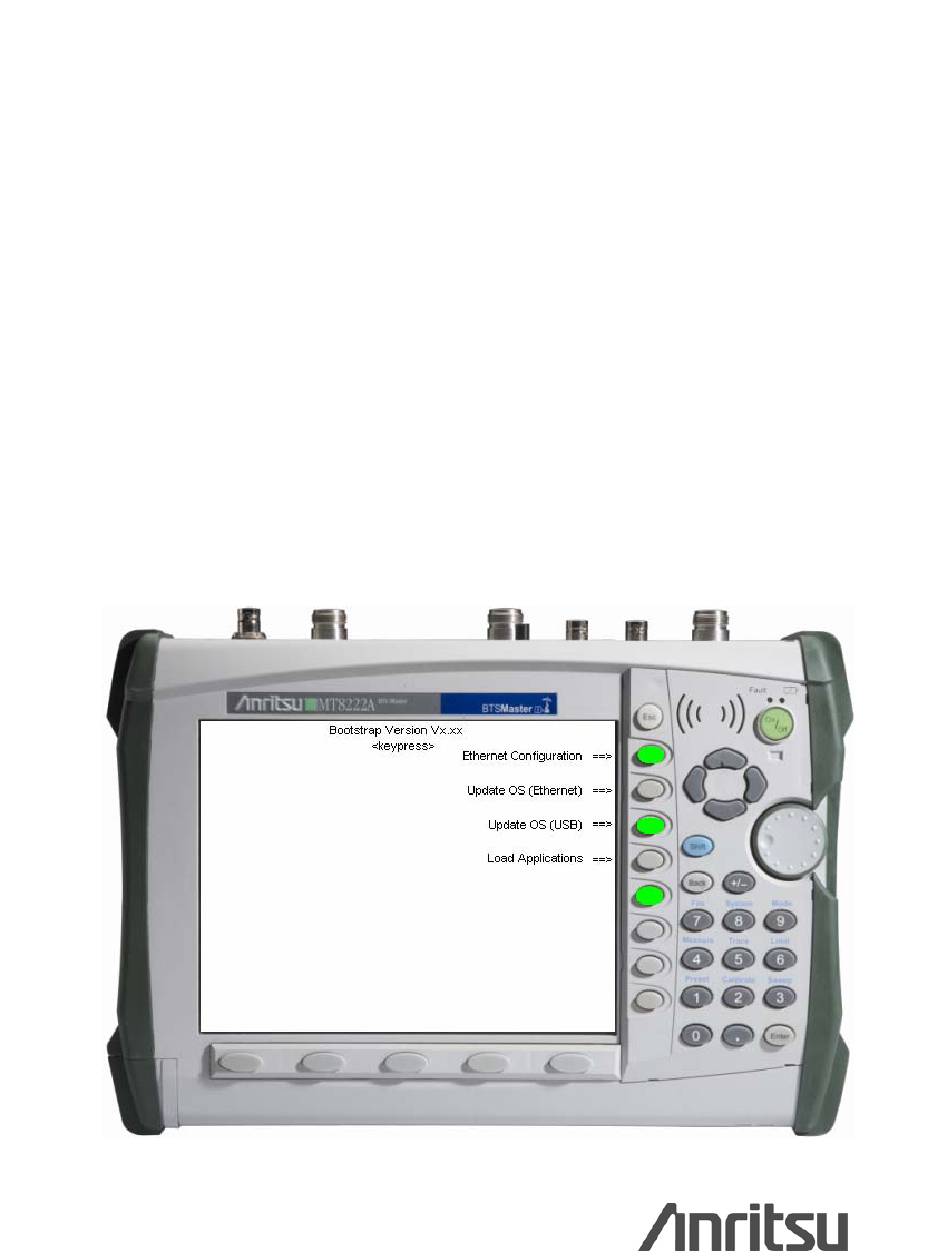

3. Power up the instrument into bootstrap mode. Hold the 1st, 3rd and 5th soft keys,
located right of the display directly below the "Esc" key, then press the Power button.
Keep the 3 soft keys pressed until the Anritsu logo appears on the display. The Bootstrap
screen will appear after a few seconds.
1
Advertisement
Table of Contents
Related Manuals for Anritsu BTSMaster MT8222A
Summary of Contents for Anritsu BTSMaster MT8222A
- Page 1 3. Power up the instrument into bootstrap mode. Hold the 1st, 3rd and 5th soft keys, located right of the display directly below the "Esc" key, then press the Power button. Keep the 3 soft keys pressed until the Anritsu logo appears on the display. The Bootstrap screen will appear after a few seconds.
- Page 2 4. Press the Ethernet Configuration soft key. • If your instrument is configured for DHCP, it will immediately attempt to obtain (lease) an IP address from the network DHCP server and display it at the bottom left hand corner of the screen. If successful, note and write down the address, press the Back soft key and go to step #7.
- Page 3 PC and the Emergency Repair button is active. If the file status is listed as “Available”, click on the Retrieve File button to download the file from the Anritsu website to your PC. Once the file has been downloaded, its status will be changed to Ready. Highlight that file.
- Page 4 If a zip file was sent to you from Anritsu Company – a. Copy it to the MST folder. (Default location is C:\Program Files\Anritsu\Anritsu Master Software Tools\Archives b. Select the box next to Show Obsolete Files at the bottom of the Product Updates screen.
