Chapter 3 — Options Verification 3-10 LTE Signal Analyzer Option 541 and/or 542 and/or 543 Verification

3-10 LTE Signal Analyzer Option 541 and/or 542 and/or 543 Verification

The tests in this section verify the functionality of the LTE Signal Analyzer of the MS272xC Spectrum
Master.There are tests for LTE Channel Power Accuracy Tests (Option 541 and 543) and LTE Residual EVM
and Frequency Error Tests (Option 542 and 543)
Equipment Required for MS2722C, MS2723C, and MS2724C
• Anritsu MG3700A Vector Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Power Meter, Anritsu Model ML2438A
• Power Sensor, Anritsu Model MA2482D
• Power Splitter, Aeroflex/Weinschel Model 1870A
• Fixed Attenuator, Aeroflex/Weinschel Model 4410 (2)
• Anritsu 34NN50A 50 ohm Adapter (2)
• Anritsu 15NN50-1.5C RF Coaxial Cable
• BNC male to BNC male Coaxial Cable
Equipment Required for MS2725C and MS2726C
• All of the above, plus
• Anritsu 71693-R Ruggedized K(f) to N(f) Adapter
Setup
MG3700
Vector Signal
Generator
250kHz-6GHz
Ext Ref In
(back panel)
MG3700A Vector Signal Generator

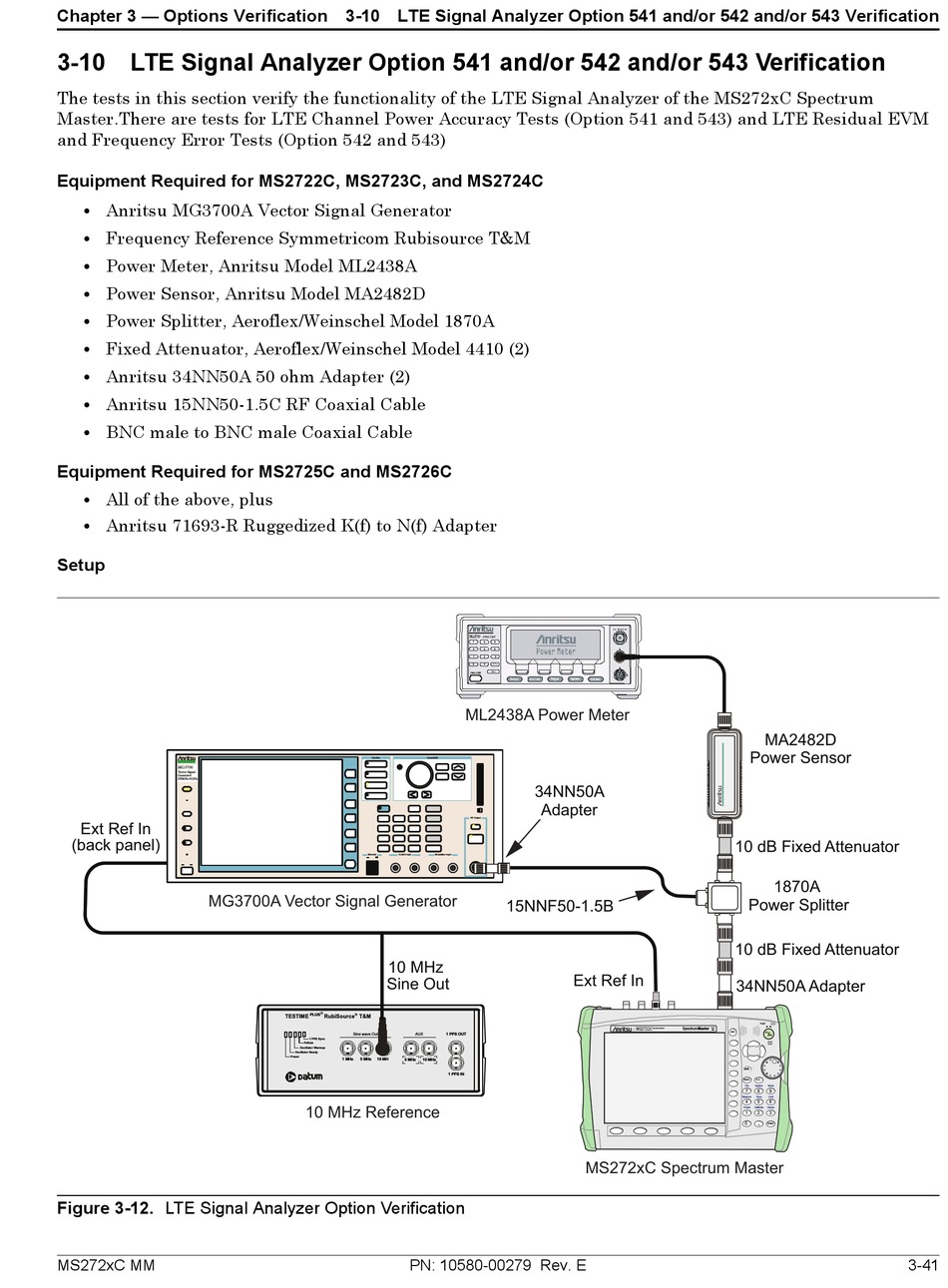

Figure 3-12. LTE Signal Analyzer Option Verification
MS272xC MM
Function Cursor/Edit
Ethernet Control Input Modulation Input
10 MHz
Sine Out
R
PLUS R
TESTIME RubiSource T&M
Sine wave Out AUX 1 PPS OUT
1 PPS Sync
Failure
Oscillator Warmup
Oscillator Ready
Power
1 MHz 5 MHz 10 MH
5 MHz 10 MHz
1 PPS IN
10 MHz Reference
PN: 10580-00279 Rev. E
ML2438A Power Meter
34NN50A
Adapter
RF Output
15NNF50-1.5B
Ext Ref In
MS2722C
MS272xC Spectrum Master
MA2482D
Power Sensor
10 dB Fixed Attenuator
1870A
Power Splitter
10 dB Fixed Attenuator
34NN50A Adapter
Fault
Spectrum Analyzer
SpectrumMaster
ESC On
Off
Shift
+/-
Back
File System Mode
7 8 9
Measure Trace Limit
4 5 6
Preset Calibrate Sweep
1 2 3
0
Enter
3-41
