5-7 Function Key Membrane and Switch Pad Replacement
5-7
Function Key Membrane and Switch Pad Replacement
This procedure provides instructions for replacing the function key membrane and switch pad.
Note
The function key membrane and switchplate can be replaced without opening the Spectrum Master.
1. Place the instrument face up on a protected work surface.
2. Remove the keypad bezel and membrane as described in
Keypad PCB Replacement
3. There are six locking tabs holding the function key bezel to the case. Using a small flat blade screwdriver,
carefully pry the function key bezel locking tabs free of the main body of the case. This will expose the
function key membrane.
4. Remove the function key membrane by gently pulling the membrane up and away from the front panel
(Figure
5-12).
Function Key Membrane

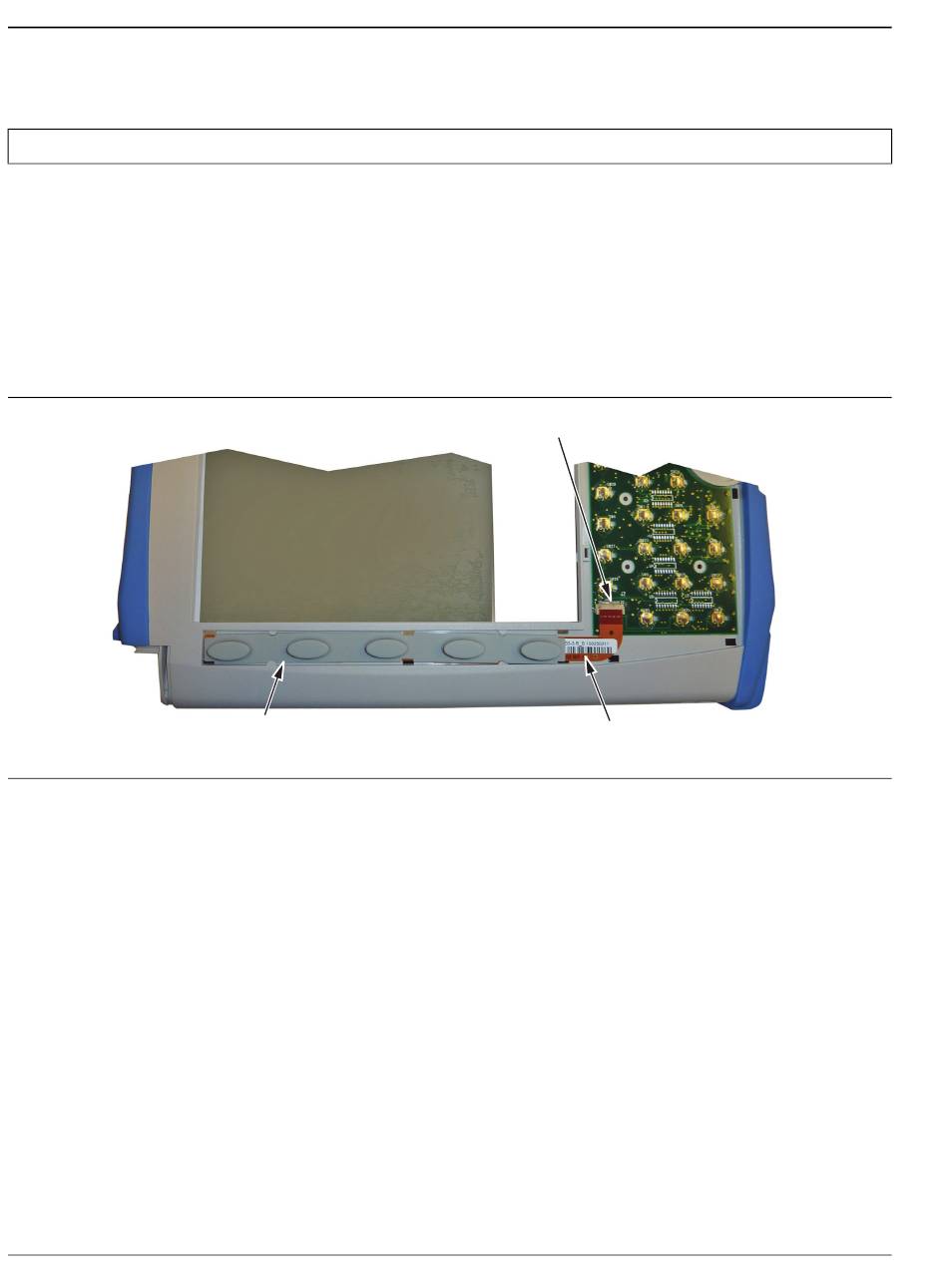

Figure 5-12. Function Key Membrane and switch pad
5. Disconnect the function key flexible switch pad from J2 of the keypad PCB by carefully lifting the locking
tab on connector J2 to release the flexible switch pad
6. Reverse the above steps to install the replacement switch pad or membrane.
• Carefully close the locking tab on connector J2 to secure the flexible switch pad connection. The
tab should "snap" into position when fully closed.
5-12
".
PN: 10580-00279 Rev. E
Chapter 5 — Assembly Replacement
Section 5-6 "Keypad Membrane and Main
J2 Connector
Function Key Switchpad
(Under the Membrane)
(Figure
5-12).
