5.3.2. Ethernet

NB3710 routers ship with an Ethernet switch (ETH1-ETH5) which can be linked via M12 connectors.
ETH1 usually forms the LAN1 interface which should be used for LAN purposes. Other interfaces can
be used to connect other LAN segments or for configuring a WAN link. The LAN10 interface will be
available as soon as a pre-configured USB Ethernet device has been plugged in.
Ethernet Port Assignment
HOME INTERFACES
WAN
Link Management
Supervision
Settings
Ethernet
Port Setup
VLAN Management
IP Settings
Mobile
Modems
SIMs
Interfaces
WLAN
Administration
Configuration
IP Settings
Bridges
USB
Serial
Digital I/O
GNSS
NetModule Router Simulator
Hostname NB1600
Software Version 4.4.0.103
© 2004-2020, NetModule AG
This menu can be used to individually assign each Ethernet port to a LAN interface, just in case you
want to have different subnets per port or use one port as WAN interface. You may assign multiple
ports to the same interface.
ROUTING FIREWALL VPN SERVICES
Port Assignment Link Settings
Ethernet 1
Administrative status:
Network interface:
Ethernet 2
Administrative status:
Network interface:
Apply

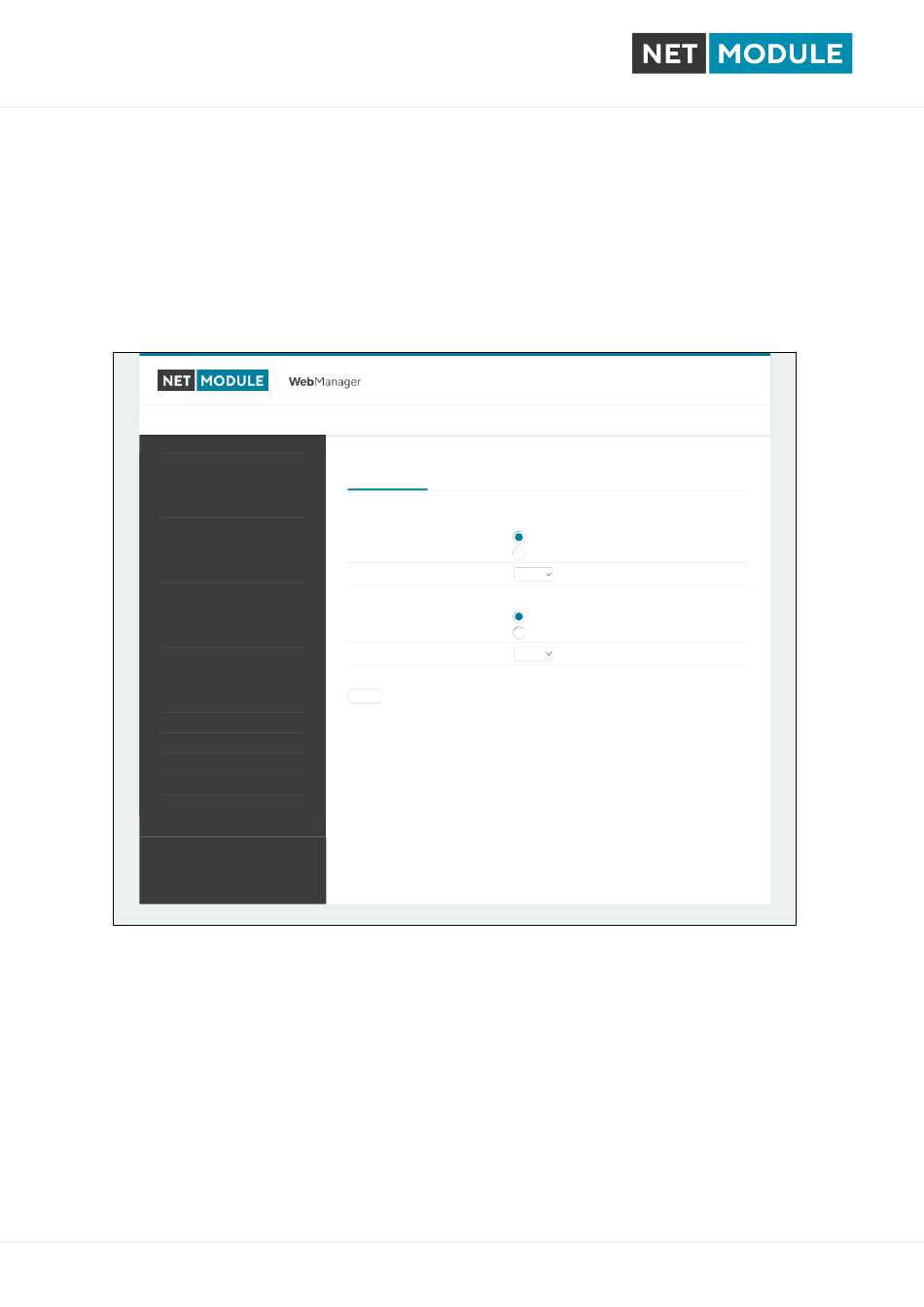

Figure 5.6.: Ethernet Ports
