5.3.8. Digital I/O

The Digital I/O page displays the current status of the I/O ports and can be used to turn output ports
on or off.
HOME INTERFACES
WAN
Link Management
Supervision
Settings
Ethernet
Port Setup
VLAN Management
IP Settings
Mobile
Modems
SIMs
Interfaces
WLAN
Administration
Configuration
IP Settings
Bridges
USB
Serial
Digital I/O
GNSS
NetModule Router Simulator
Hostname NB1600
Software Version 4.4.0.103
© 2004-2020, NetModule AG
You can apply the following settings:
Parameter
DO1 after reboot
DO2 after reboot
Besides on and off you may keep the default status as the hardware has initialized it after power-up.
The digital inputs and outputs can also be monitored and controlled by SDK scripts.
ROUTING FIREWALL VPN SERVICES
Digital I/O Status
DI1:
DI2:
DO1:
DO2:
Digital I/O Configuration
DO1 after reboot:
DO2 after reboot:
Apply

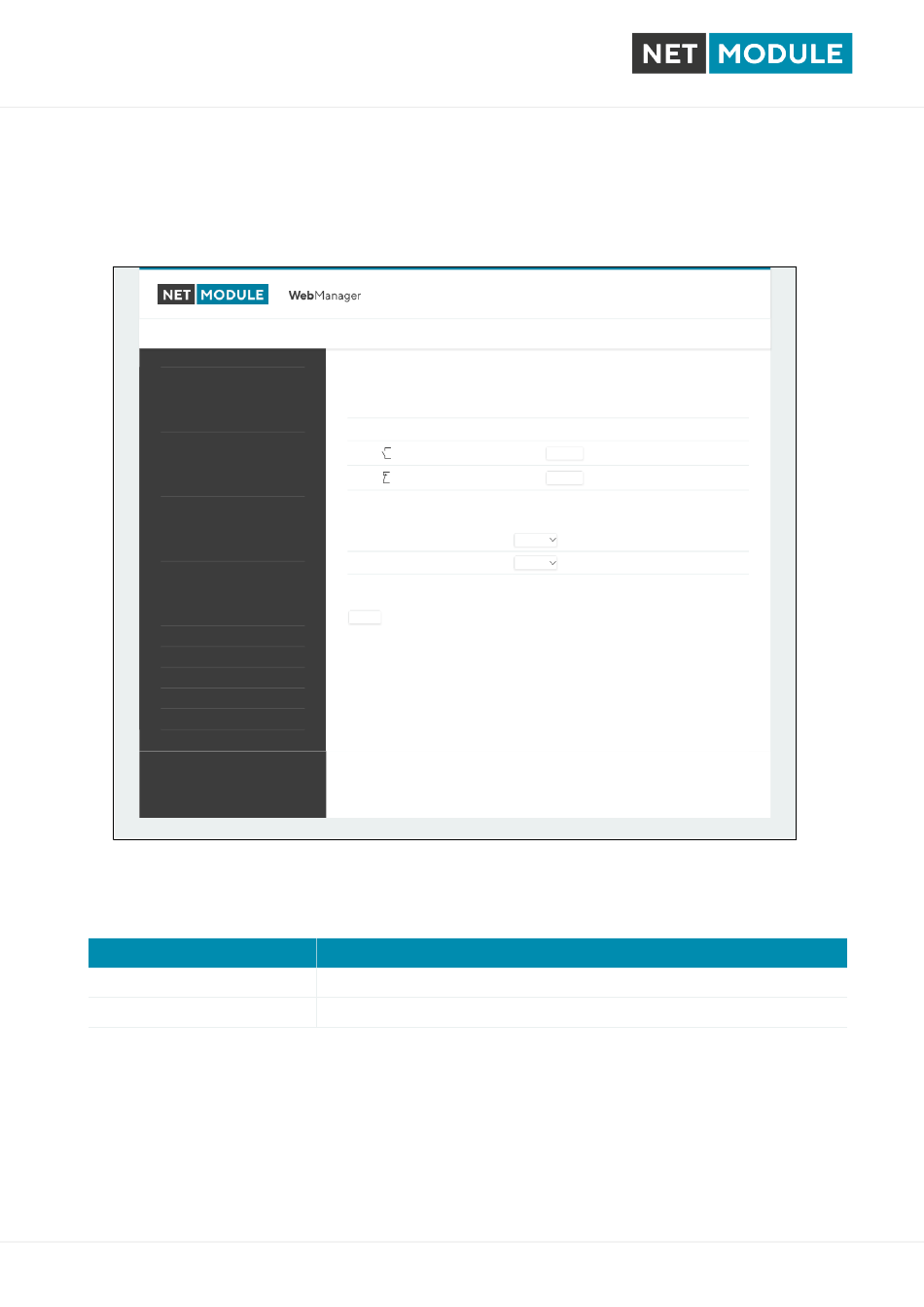

Figure 5.19.: Digital I/O Ports
