Page 1 NetModule Router NB2800 User Manual for Software Version 4.2 Manual Version 1.12 NetModule AG, Switzerland November 28, 2018...
Page 2 The following description of software, hard- ware or process of NetModule or other third party provider may be included with your product and will be subject to the software, hardware or other license agreements.
Page 3: Table Of Contents
Contents Welcome to NetModule ....... . . Conformity ........
Page 4 NB2800 User Manual 4.2 5.3.8. Audio ........72 5.3.9.
Page 5 NB2800 User Manual 4.2 5.8.10.Legal Notice ........173 5.9.
Page 6 List of Figures 5.1. Initial Login ........32 5.2.
Page 7 NB2800 User Manual 4.2 5.45. SNMP Agent ........135 5.46.
Page 8 ........10 3.3. NB2800 Status Indicators ......11 3.4.
Page 9 NB2800 User Manual 4.2 A.3. SDK Examples ........213...
Page 10: Welcome To Netmodule
1. Welcome to NetModule Thank you for purchasing a NetModule Router. This document should give you an introduc- tion to the router and its features. The following chapters describe any aspects of commis- sioning the device, installation procedure and provide helpful information towards con gu- ration and maintenance.
Page 11: Conformity
• Changes made to the device or the use of non-authorized accessories will render the warranty null and void and potentially invalidate the operating license. • NetModule routers must not be opened (SIM cards may be used according to the instructions).
Page 12 NB2800 User Manual 4.2 Information about the device interfaces: • All systems that are connected to the NetModule router interfaces must meet the requirements for SELV (Safety Extra Low Voltage) systems. • Interconnections must not leave the building nor penetrate the body shell of a vehicle.
Page 13: Declaration Of Conformity
• Exercise particular caution near personal medical aids, such as pacemakers and hearing aids. • The NetModule routers may also cause interference in the nearer distance of TV sets, radio receivers and personal computers. • Never perform work on the antenna system during a thunderstorm.
Page 14: Open Source Software
NB2800 User Manual 4.2 2.5. Open Source Software We inform you that NetModule products may contain in part open-source software. We are distributing such open-source software to you under the terms of GNU General Public License (GPL) , GNU Lesser General Public License (LGPL)
Page 15: Speci Cations

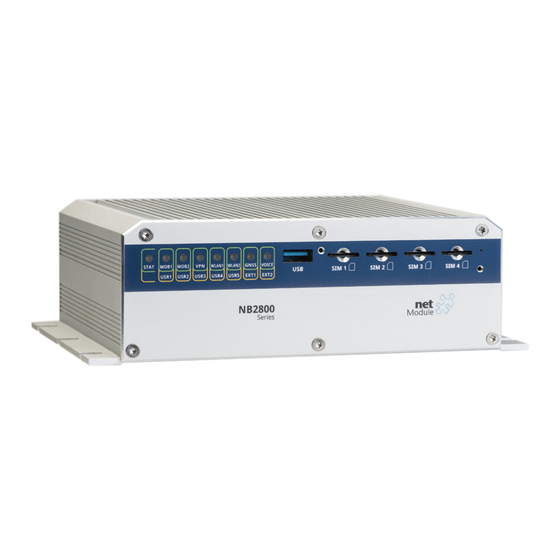

3. Speci cations 3.1. Appearance...
Page 16: Features
Due to its modular approach, the NB2800 router and its hardware components can be arbitrarily assembled according to its indented usage or application. Please contact us in case of special project requirements. 3.3. Type Label The type label of the NB2800 router is located on the bottom side of the enclosure.
Page 17: Environmental Conditions
NB2800 User Manual 4.2 3.4. Environmental Conditions Parameter Rating Input Voltage 12 V to 48 V ( 25%) main board: 40 C to +85 C UMTS: 25 C to +70 C Operating Temperature Range LTE: 25 C to +70 C...
Page 18: Interfaces
NB2800 User Manual 4.2 3.5. Interfaces 3.5.1. Overview Nr. Label Panel Function LED Indicators Front LED Indicators for the different interfaces Front USB 2.0 host port, can be used for software/con guration updates. SIM 1-4 Front SIM 1-4, they can be assigned dynamically to any modem by con guration.
Page 19: Led Indicators
2 FAKRA coding I/D jacks for MIMO WLAN or MIMO LTE WLAN 1 antenna Rear Audio/CAN/IBIS/RS-232/RS-485/Audio-PTT extension. Table 3.2.: NB2800 Interfaces 3.6. LED Indicators The following table describes the NB2800 status indicators. Label Color State Function STAT blinking The device is busy due to startup, software or con gura- tion update.
Page 20: Reset
The color of the LED represents the signal quality for wireless links. red means low yellow means moderate green means good or excellent Table 3.3.: NB2800 Status Indicators Ethernet LEDs The following table describes the Ethernet status indicators. Label Color...
Page 21 NB2800 User Manual 4.2 The start of the factory reset is con rmed by all LEDs lighting up for a second.
Page 22: Mobile
NB2800 User Manual 4.2 3.6.2. Mobile The various variants of the NB2800support multiple multimode modules for mobile com- munication. Standard Bands Data rate 4G (LTE/FDD) B1(2100), B2(1900), B3(1800), B5(850), Downlink: 100 Mbit/s B7(2600), B8(900), B20(800) Uplink: 50 Mbit/s 3G (DC-HSPA+/UMTS)
Page 23: Wlan
NB2800 User Manual 4.2 3.6.3. WLAN The variants of the NB2800 support up to 2 802.11 a/b/g/n/ac WLAN modules. Each can operate either as client or access point. Standard Frequencies Bandwidth Data Rate 802.11a 5 GHz 20 MHz 54 Mbit/s 802.11b...
Page 24: Gnss
NB2800 User Manual 4.2 3.6.4. GNSS GNSS (Option G) The GNSS is used from a WWAN Module. Feature Speci cation Systems GPS/GLONASS Data stream JSON or NMEA Tracking sensitivity -154 dBm Supported antennas Active and passive Table 3.9.: GNSS Speci cations option G...
Page 25: Usb 3.0 Host Port
NB2800 User Manual 4.2 3.6.5. USB 3.0 Host Port The USB 3.0 host port has the following speci cation: Feature Speci cation Speed Low, Full, Hi & Super-Speed Current max. 950 mA Max. cable length Cable shield mandatory Connector type Type A Table 3.12.: USB 3.0 Host Port Speci cation...
Page 26: Pin Terminal Block
NB2800 User Manual 4.2 Pin Assignment Signal Table 3.14.: Pin Assignments of RJ45 Ethernet Connectors 3.6.7. 6 Pin Terminal Block Connector The power supply and the serial interface shares the 6 pin terminal block. Feature Speci cation Connector pitch 5.00 mm...
Page 27: Power Speci Cations
NB2800 User Manual 4.2 Power Supply NB2800 routers provide a non-isolated power supply input. The power port has the follow- ing speci cations: Feature Speci cation Power supply nominal voltages 12 V , 24 V , 36 V and 48 V...
Page 28: Extension Port
NB2800 User Manual 4.2 3.6.8. Extension Port Available Options The NB2800 has an optional RJ45 extension connector with 8 pins. On this connector one of the following interfaces may be present: • Audio (Option A) • CAN (Option C) • IBIS (Option I) •...
Page 29: Audio Port Speci Cation
NB2800 User Manual 4.2 Audio Port Speci cation (Option A) The Audio port has the following speci cation: Feature Speci cation Protocol Audio Line In/Out Input reference level 0dBFS Signal level 1.9 V Input Impedance 21 kΩ Input bandwidth 100 Hz- 15 kHz Input galvanic isolation to enclo- functional (max.
Page 30: Can Port Speci Cation
NB2800 User Manual 4.2 CAN Port Speci cation (Option C) The CAN port has the following speci cation: Feature Speci cation Protocol CAN V2.0B Speed Up to 1 Mbit/s Default: 125 kbit/s Galvanic isolation to enclosure 1500 V Internal bus termination...
Page 31: Isolated Rs-232 Port Speci Cation
NB2800 User Manual 4.2 Isolated 3-wire RS-232 Port Speci cation (Option Sb) The isolated 3-wire RS-232 port has the following speci cation (bold characters show the default con guration): Feature Speci cation Protocol 3-wire RS-232: GND, TXD, RXD Baud rate...
Page 32: Port Speci Cation
NB2800 User Manual 4.2 RS-485 Port Speci cation (Option Sa) The RS-485 port has the following speci cation (bold characters show the default con gura- tion): Feature Speci cation Protocol 3-wire RS-485 (GND, A, B) Baud rate 600, 1 200, 2 400, 4 800, 9 600, 19 200,...
Page 33: Data Storage (Option Dx)
NB2800 User Manual 4.2 3.7. Data Storage (Option Dx) The integrated mass storage works independently of any router functionalities and is ded- icated for customer applications such as data collection or passenger entertainment. The storage can be accessed via the SDK. Please refer to SDK API Manual for further details, section 2.2 Media Mount.
Page 34: Common Ptt Speci Cation
NB2800 User Manual 4.2 Autio-PTT Speci cation (Option Ap) The Audio-PTT (push to talk) has the following speci cation in common: Feature Speci cation Isolation to enclosure/GND functional (max. 100 V Max. cable length 30 m Cable shield mandatory Connector type RJ45 Table 3.28.: Common PTT Speci cation...
Page 35: Digital Output Speci Cation
NB2800 User Manual 4.2 The Digital Output signal have the following speci cation: Feature Speci cation Number of ports 1x Digital Out (NO) Max. continuous output current Max. switching output voltage 60 V , 42 V Max. switching capacity Table 3.31.: Digital Output Speci cation...
Page 36: Installation
4. Installation The NB2800 is designed for mounting it on a worktop or wall. Please consider the safety instructions in chapter and the environmental conditions in chapter 3.4. The following precautions must be taken before installing a NB2800 router: • Avoid direct solar radiation •...
Page 37: Installation Of The Wlan Antennas
NB2800 User Manual 4.2 better location offering an adequate signal. In doubt, please contact us and we would be pleased to assist you in guring out the best matching antenna setup for your application. Keep in mind that effects caused by Faraday cages such as large metal surfaces (elevators, machine housings, etc.), close meshed iron constructions and others may reduce signal re-...
Page 38: Installation Of The Gnss Antenna
• WLAN antennas may have an ampli cation of maximum 3dBi in the rele- vant frequency range. WLAN antennas with a higher ampli cation may be used with the NetModule router "Enhanced-RF-Con guration" software li- cense and the antenna gain and cable attenuation that have been correctly con gured by certi ed specialized personnel.
Page 39: Installation Of The Local Area Network
NB2800 User Manual 4.2 4.5. Installation of the Local Area Network Up to two 10/100/1000 Mbps Ethernet devices can be directly connected to the router, fur- ther devices can be attached via an addtional Ethernet switch. Please ensure that the con-...
Page 40: Con Guration
5.1. First Steps NetModule routers can be easily set up by using the HTTP-based con guration interface, called the Web Manager. It is supported by the latest web browsers (e.g. Microsoft Internet Explorer 11, Mozilla Firefox 28.0, Safari 7 and many others). Please ensure to have JavaScript turned on.
Page 41: Recovery
NB2800 User Manual 4.2 as one that contains numbers, letters and punctuation characters). The password shall have a minimum length of 6 characters. It shall contain a minimum of 2 numbers and 2 letters. Figure 5.1.: Initial Login Please note that the admin password will be also applied for the root user which can be used to access the device via the serial console, telnet, SSH or to enter the bootloader.
Page 42 NB2800 User Manual 4.2 would require a terminal emulator (such as PuTTY or HyperTerminal) and an RS232 connection (115200 8N1) attached to the serial port of your local computer. You will also see the kernel messages at bootup there. 3. Recovery Image: In severe cases we can provide a recovery image on demand which can be loaded into RAM via TFTP and executed.
Page 43: Home
NB2800 User Manual 4.2 5.2. HOME This page provides a status overview of enabled features and connections. Figure 5.2.: Home Summary This page offers a short summary about the administrative and operational status of the router’s interfaces. This page offers details about any enabled Wide Area Network (WAN) links (such as the IP addresses, network information, signal strength, etc.) The information about the amount of...
Page 44 NB2800 User Manual 4.2 GNSS This page displays the position status values, such as latitude/longitude, the satellites in view and more details about the used satellites. Ethernet This page shows information about the Ethernet interfaces and packet statistics information. This page shows information about the LAN interfaces plus the neighborhood information.
Page 45 NB2800 User Manual 4.2 System Status The system status page displays various details of your NB2800 router, including system details, information about mounted modules and software release information. This section will list all webpages generated by SDK scripts.
Page 46: Interfaces
NB2800 User Manual 4.2 5.3. INTERFACES 5.3.1. WAN Link Management Depending on your hardware model, WAN links can be made up of either Wireless Wide Area Network (WWAN), Wireless LAN (WLAN), Ethernet or PPP over Ethernet (PPPoE) connections. Please note that each WAN link has to be con gured and enabled in order to appear on this page.
Page 47 NB2800 User Manual 4.2 In general, a link will be only dialed or declared as up if the following prerequisites are met: Condition WWAN WLAN PPPoE Modem is registered Registered with valid service type Valid SIM state Su cient signal strength...
Page 48 If WLAN client, the LAN interface to which the WAN link should be bridged. NetModule routers provide a feature called IP pass-through (aka Drop-In mode). If enabled, the WAN address will be be passed-through to the rst DHCP client of the speci ed LAN interface.
Page 49 NB2800 User Manual 4.2 Parameter IP Pass-Through Settings Interface Speci es the interface on which the address shall be passed- through WAN network Speci es the WAN network WAN netmask Speci es the WAN netmask...
Page 50: Wan Settings
NB2800 User Manual 4.2 WAN Settings This page can be used to con gure WAN speci c settings like the Maximum Segment Size (MSS). The MSS corresponds to the largest amount of data (in bytes) that the router can handle in a single, unfragmented TCP segment. In order to avoid any negative side effects the number of bytes in the data segment and the headers must not add up to more than the number of bytes in the Maximum Transmission Unit (MTU).
Page 51: Link Supervision
NB2800 User Manual 4.2 Supervision Network outage detection on a per-link basis can be performed by sending pings on each link to some authoritative hosts. A link will be declared as down in case all trials have failed and only as up if at least one host can be reached.
Page 52 NB2800 User Manual 4.2 Parameter Supervision Settings Retry interval The interval in seconds at which pings are re-transmitted in case a rst ping failed Max. number of failed tri- The maximum number of failed ping trials until the link will be...
Page 53: Ethernet
NB2800 User Manual 4.2 5.3.2. Ethernet NB2800 routers ship with 2 dedicated Gigabit Ethernet ports (ETH1 and ETH2) and an addi- tional extension port which can be linked via RJ45 connectors. ETH1 usually forms the LAN1 interface which should be used for LAN purposes. Other inter- faces can be used to connect other LAN segments or for con guring a WAN link.
Page 54: Ethernet Link Settings
NB2800 User Manual 4.2 Please note that NB2800 routers don’t have a switch but single PHY ports. If both ports are assigned to the same LAN interface the ports will be bridged by software. The following options exist: Parameter Ethernet Softbridge Settings...
Page 55: Vlan Management
NB2800 User Manual 4.2 VLAN Management NetModule routers support Virtual LAN according to IEEE 802.1Q which can be used to cre- ate virtual interfaces on top of an Ethernet interface. The VLAN protocol inserts an additional header to Ethernet frames carrying a VLAN Identi er (VLAN ID) which is used for distributing the packets to the associated virtual interface.
Page 56 NB2800 User Manual 4.2 Parameter VLAN Priority Levels Voice (< 10 ms latency and jitter) Internetwork Control Network Control...
Page 57: Lan Ip Con Guration
NB2800 User Manual 4.2 IP Settings This page can be used to con gure IP addressing for your LAN/WAN Ethernet interfaces. In addition to the primary IP address/subnet mask you may de ne an additional IP address alias on the interface.
Page 58 NB2800 User Manual 4.2 Parameter LAN IP Settings Alias subnet mask The alias subnet mask for this interface When running in WAN mode, the interface may be con gured with the following settings: Parameter WAN IP Settings WAN mode The WAN operation mode, de nes whether the interface should run as DHCP client, statically con gured or over PPPoE.
Page 59: Mobile
NB2800 User Manual 4.2 5.3.3. Mobile Modems Con guration This page lists all available WWAN modems. They can be disabled on demand. Query This page allows you to send Hayes AT commands to the modem. Besides the 3GPP-conforming AT command-set further modem-speci c commands can be applicable which we can provide on demand.
Page 60 NB2800 User Manual 4.2 Under some circumstances (e.g. in case the modem aps between base stations) it might be necessary to set a speci c service type or assign a xed operator. The list of operators around can be obtained by initiating a network scan (may take up to 60 seconds). Further details can be retrieved by querying the modem directly, a set of suitable commands can be provided on request.
Page 61 NB2800 User Manual 4.2 Con guration A SIM card is generally assigned to a default modem but might be switched, for instance if you set up two WWAN interfaces with one modem but different SIM cards. Close attention has to be paid when other services (such as SMS or Voice) are operating on that modem, as a SIM switch will naturally affect their operation.
Page 62: Wwan Interfaces
NB2800 User Manual 4.2 WWAN Interfaces This page can be used to manage your WWAN interfaces. The resulting link will pop up automatically as WAN link once an interface has been added. Please refer to chapter 5.3.1 for how to manage them.
Page 63 NB2800 User Manual 4.2 Generally, the connection settings are derived automatically as soon as the modem has registered and the network provider has been found in our database. Otherwise, it will be required to con gure the following settings manually:...
Page 64: Wlan
NB2800 User Manual 4.2 5.3.4. WLAN WLAN Management In case your router is shipping with a WLAN (or Wi-Fi) module you can operate it either as client, access point, mesh point or certain dual modes. As a client it can create an additional WAN link which for instance can be used as backup link.
Page 65: Ieee 802.11 Network Standards
20 MHz 11 Mbit/s 802.11g 2.4 GHz 20 MHz 54 Mbit/s 802.11n 2.4/5 GHz 20/40 MHz 300 Mbit/s 802.11ac 5 GHz 20/40/80 MHz 866.7 Mbit/s Table 5.20.: IEEE 802.11 Network Standards Only available for NetModule Routers NB2800, NB3701, NB3711 and NB3800...
Page 66 Radio band Selects the radio band to be used for connections, depending on your module it could be 2.4 or 5 GHz Channel Speci es the channel to be used Note: NetModule Routers with 802.11n and 802.11ac support 2x2 MIMO...
Page 67 NB2800 User Manual 4.2 Prior to setting up an access point, it is always a good idea to run a network scan for getting a list of neighboring WLAN networks and then choose the less interfering channel. Please note that two adequate channels are required for getting good throughputs with 802.11n and a bandwidth of 40 MHz.
Page 68: Wlan Con Guration
NB2800 User Manual 4.2 Running in access-point mode you can create up to 4 SSIDs with each running their own network con guration. The networks can be individually bridged to a LAN interface or oper- ate as dedicated interface in routing-mode.
Page 69 NB2800 User Manual 4.2 This section can be used to con gure security-related settings. Parameter WLAN Access-Point Con guration SSID The network name (called SSID) Security mode The desired security mode WPA/WPA2 mixed mode WPA2 should be preferred over WPA1, running WPA/WPA2 mixed-mode offers both.
Page 70 NB2800 User Manual 4.2 Running in mesh point mode, it is possible to connect to one or more mesh points within the mesh network at the same time. The system will automatically join the wireless net- work, connect to the other mesh partners with the same ID and sercurtiy credentials. The authentication credentials have to be obtained by the operator of the mesh network.
Page 71 NB2800 User Manual 4.2 The following security modes can be con gured: Parameter WLAN Mesh-Point Security Modes MESHID is disabled None No authentication, provides an open network SAE (Simultaneous Authentication of Equals) is a secure password-based authentication and key establishment proto-...
Page 72: Wlan Ip Con Guration
NB2800 User Manual 4.2 WLAN IP Settings This section lets you con gure the TCP/IP settings of your WLAN network. A client interface can be run over DHCP or with a statically con gured address and default gateway. Figure 5.14.: WLAN IP Con guration The access point networks can be bridged to any LAN interface for letting WLAN clients and Ethernet hosts operate in the same subnet.
Page 73: Software Bridges
NB2800 User Manual 4.2 5.3.5. Software Bridges Software bridges can be used to bridge layer-2 devices like OpenVPN TAP, GRE or WLAN interfaces without the need for a physical LAN interface. Bridge Settings This page can be used to enable/disable software bridges.
Page 74: Usb
NB2800 User Manual 4.2 5.3.6. USB NetModule routers ship with a standard USB host port which can be used to connect a storage, network or serial USB device. Please contact our support in order to get a list of supported devices.
Page 75: Usb Device Management
NB2800 User Manual 4.2 Please note that some USB devices behave latency-sensitive which may raise problems when operating over a slow IP connection. Some devices may generally not work with the USB/IP driver. Please contact our support in case of compatibility issues.
Page 76 NB2800 User Manual 4.2 USB Autorun This feature can be used to automatically launch a shell script or perform a software/con g update as soon as an USB storage stick has been plugged in. For authentication, a le called autorun.key must exist in the root directory of a FAT16/32 formatted stick. It can be down- loaded from that page and holds the SHA256 hash key of the admin password.
Page 77: Serial Port
NB2800 User Manual 4.2 5.3.7. Serial Port This page can be used to manage your serial ports. A serial port can be used by: Parameter Serial Port Usage none The serial port is not used login console The serial port is used to open a console which can be accessed with a serial terminal client from the other side.
Page 78: Serial Port Settings
NB2800 User Manual 4.2 Running a device server, the following settings can be applied: Figure 5.18.: Serial Port Settings Parameter Serial Settings Physical protocol Selects the desired physical protocol on the serial port Baud rate Speci es the baud rate run on the serial port...
Page 79 NB2800 User Manual 4.2 Parameter Serial Settings You may choose the IP protocols Telnet or TCP raw for the Protocol on TCP/IP device server Port The TCP port for the device server Timeout The timeout until a client is declared as disconnected...
Page 80 NB2800 User Manual 4.2 When running the serial port as AT modem emulator the following settings can be applied: Parameter Serial Port Settings Physical protocol Selects the desired physical protocol on the serial port Baud rate Speci es the baud rate run on the serial port...
Page 81: Audio
NB2800 User Manual 4.2 5.3.8. Audio Audio Administration This page can be used to pre-con gure the audio module. It can be later used for the voice gateway. It can be con gured as follows: Parameter Audio Settings Volume level...
Page 82: Gnss
NB2800 User Manual 4.2 5.3.9. GNSS Administration The GNSS page lets you enable or disable the GNSS modules present in the system and can be used to con gure the daemon that can be used to share access to receivers without contention or loss of data and to respond to queries with a format that is substantially easier to parse than the NMEA 0183 emitted directly by the GNSS device.
Page 83 NB2800 User Manual 4.2 Position This pages provides further information about the satellites in view and values derived from them: Parameter GNSS Information Latitude The geographic coordinate specifying the north-south position Longitude The geographic coordinate specifying the east-west position Altitude...
Page 84 NB2800 User Manual 4.2 Parameter GNSS Supervision Emergency action The corresponding emergency action. You can either let just restart the server, which will also re-initialize the GPS function on the module, or reset the module in severe cases. Please note that this may have effects on any running WWAN/SMS...
Page 85: Routing
NB2800 User Manual 4.2 5.4. ROUTING 5.4.1. Static Routes This menu shows all routing entries of the system. They are typically formed by an ad- dress/netmask couple (represented in IPv4 dotted decimal notation) which specify the des- tination of a packet. The packets can be directed to either a gateway or an interface or both.
Page 86: Static Route Flags
NB2800 User Manual 4.2 Parameter Static Route Con guration Destination The destination address of a packet Netmask The subnet mask which forms, in combination with the des- tination, the network to be addressed. A single host can be speci ed by a netmask of 255.255.255.255, a default route cor- responds to 0.0.0.0.
Page 87: Extended Routing
NB2800 User Manual 4.2 5.4.2. Extended Routing Extended routes can be used to perform policy-based routing, they generally precede static routes. Figure 5.20.: Extended Routing In contrast to statis routes, extended routes can be made up, not only of a destination address/netmask, but also a source address/netmask, incoming interface and the type of service (TOS) of packets.
Page 88: Multipath Routes
NB2800 User Manual 4.2 5.4.3. Multipath Routes Multipath routes will perform weighted IP-session distribution for particular subnets across multiple interfaces. Figure 5.21.: Multipath Routes At least two interfaces have to be de ned to establish multipath routing. Additional inter- faces can be added by pressing the plus sign.
Page 89: Mobile Ip
Cisco 2900 Series home agent implementation has been veri ed. However, since NetModule routers implement a mobile node as well as a home agent, a MIP network with up to 10 mobile nodes can be imple- mented without requiring expensive third party routers.
Page 90 NB2800 User Manual 4.2 Parameter Mobile IP Con guration The Security Parameter Index (SPI) identifying the security context for the mobile IP tunnel between the mobile node and the home agent. This is used to distinguish mobile nodes from each other. Therefore each mobile node needs to be assigned a unique SPI.
Page 91: Mobile Ip
NB2800 User Manual 4.2 If MIP is run as a home agent, you will have to set up a home address and network mask for the home agent rst. Then you will need to add the con guration for all mobile nodes which is made up of the following settings: Figure 5.22.: Mobile IP...
Page 92: Quality Of Service
NB2800 User Manual 4.2 5.4.5. Quality Of Service NetModule routers are able to prioritize and shape certain kinds of IP tra c. This is currently limited on egress, which means that only outgoing tra c can be stipulated. The current QoS solution is using Stochastic Fairness Queueing (SFQ) classes in combination with Hierarchy Token Bucket (HTB) qdiscs.
Page 93 NB2800 User Manual 4.2 In case an interface has been activated, the system will automatically create the following queues: Parameter QoS Default Queues high A high priority queue which may hold any latency-critical ser- vices (such as VoIP) default A default queue which will handle all other services...
Page 94: Multicast
5.4.6. Multicast Multicast routing (MCR) can be con gured and managed by a daemon. Only one MCR dae- mon can be used at a time. NetModule routers ship with two different MCR daemons to select from depending on your dependencies: Parameter...
Page 95: Ospf
NB2800 User Manual 4.2 5.4.7. OSPF The OSPF tab allows the NetModule router to be added to a network of OSPF routers. Parameter OSPF General Settings OSPF status Speci es whether the OSPF routing protocol is active Redistribute connected Redistribute routes to networks which are directly connected...
Page 96: Bgp
NB2800 User Manual 4.2 5.4.8. BGP The BGP tab allows to set up peerings of the NetModule router with other Border Gateway Protocol enabled routers. Parameter BGP General Settings BGP status Speci es whether the BGP routing protocol is active...
Page 97: Firewall
NB2800 User Manual 4.2 5.5. FIREWALL 5.5.1. Administration NetModule routers use Linux’s net lter/iptables rewall framework http://www.netfilter.org (see for more information) which supports stateful inspection, that is, granting the same permissions for inherited connections within an IP session (e.g. FTP which builds up a control and data connection).
Page 98: Rules
NB2800 User Manual 4.2 5.5.3. Rules In general, the rewall is set up of a range of rules which control each packet’s permission to pass the router. Please note that the rules are processed by order, that means traversing the list from top to bottom until a matching rule is found. Packets which are not matching any of the rules con gured will be ALLOWED.
Page 99 NB2800 User Manual 4.2 Parameter Firewall Rule Con guration Protocol The used IP protocol of matching packets (UDP, TCP or ICMP) Destination port(s) The destination port of matching packets, which can be speci- ed by a single port or a range of ports (only UDP/TCP).
Page 100: Napt
NB2800 User Manual 4.2 5.5.4. NAPT This page can be used to con gure Network Address and Port Translation (NAPT) for packets traversing the system. NAPT hereby modi es IP addresses or/and TCP/UDP ports in match- ing IP packets. By tracking those connections, it will also automatically adjust the returning packets of an IP session.
Page 101: Inbound Napt
NB2800 User Manual 4.2 NAPT Inbound Rules Inbound rules can be used to modify the target section of IP packets and, for instance, forward a service or port to an internal host. By doing so, you can expose that service and make it available from the Internet.
Page 102 NB2800 User Manual 4.2 Parameter Inbound NAPT Rules Ports The used UDP/TCP port of matching packets Redirect to The address to which matching packets shall be redirected Redirect port The port to which matching packets will be redirected Select mapping context according to your needs:...
Page 103: Vpn
NB2800 User Manual 4.2 5.6. VPN 5.6.1. OpenVPN OpenVPN Administration Figure 5.27.: OpenVPN Administration...
Page 104: Openvpn Con Guration
NB2800 User Manual 4.2 Tunnel Con guration NetModule routers support one single server tunnel and up to four client tunnels. You can specify tunnel parameters either in standard con guration or upload an expert mode le which has been created in advance. Refer to chapter 5.6.1...
Page 105 NB2800 User Manual 4.2 If the tunnel is operated in client mode, the following settings can be applied: Parameter OpenVPN Client Con guration Peer selection Speci es how the remote peer shall be selected, besides a sin- gle server you may con gure multiple servers which can, in case of failures, either be selected sequently (i.e.
Page 106 NB2800 User Manual 4.2 The following further options can be applied: Parameter OpenVPN Options use compression Enable or disable LZO packet compression use keepalive Can be used to send a periodic keepalive packet in order to keep the tunnel up despite of inactivity...
Page 107 NB2800 User Manual 4.2 OpenVPN Expert Con guration (Server) A server tunnel typically requires the following les: Parameter Server Expert Files server.conf OpenVPN con guration le ca.crt Root certi cate authority le server.crt Certi cate le server.key Private key le dh1024.pem...
Page 108: Openvpn Client Management
NB2800 User Manual 4.2 Client Management Once you have successfully set up an OpenVPN server tunnel, you can manage and enable clients connecting to your service. Currently connected clients can be seen on this page, including the connect time and IP address. You may kick connected clients by disabling them.
Page 109: Ipsec
NB2800 User Manual 4.2 5.6.2. IPsec IPsec is a protocol suite for securing IP communications by authenticating and encrypting each packet of a communication session and thus establishing a secure virtual private net- work. IPsec includes various cryptographic protocols and ciphers for key exchange and data en- cryption and can be seen as one of the strongest VPN technologies in terms of security.
Page 110: Ipsec Administration
NB2800 User Manual 4.2 Administration Figure 5.30.: IPsec Administration This page can be used to enable/disable IPsec, you may also specify whether NAT-Traversal should be used. NAT-Traversal is mainly used for connections which traverse a path where a router modi es the IP address/port of packets.
Page 111: Ipsec Con Guration
NB2800 User Manual 4.2 Con guration Figure 5.31.: IPsec Con guration General For setting up the tunnel you will have to con gure the following parameters rst: Parameter IPsec General Settings Remote peer IP address or host name of the remote IPsec peer. You may specify 0.0.0.0 to act as a responder for roadwarrior clients.
Page 112 Restart the peer. IKE Authentication NetModule routers support IKE authentication through pre-shared keys (PSK) or certi cates within a public key infrastructure. Extended Authentication (XAUTH) leverages RADIUS-like authentication and can be used to apply user level access control over IPSec.
Page 113 NB2800 User Manual 4.2 IKE Proposal This section can be used to con gure the phase 1 settings: Parameter IPsec IKE Proposal Settings Choose the desired negotiation mode. Preferably, main mode Negotiation mode should be used but aggressive mode might be applicable when dealing with dynamic endpoint addresses.
Page 114 NB2800 User Manual 4.2 Networks When creating Security Associations, IPsec will keep track of routed networks within the tun- nel. Packets will be only transmitted when a valid SA with matching source and destination network is present. Therefore, you may need to specify the networks right and left of the...
Page 115: Pptp
NB2800 User Manual 4.2 5.6.3. PPTP The Point-to-Point Tunneling Protocol (PPTP) is a method for implementing virtual private networks between two hosts. PPTP is easy to con gure and widely deployed amongst Mi- crosoft Dial-up networking servers. However, due to its weak encryption algorithms, it is nowadays considered insecure but it still provides a straightforward way for establishing tunnels.
Page 116: Pptp Tunnel Con Guration
NB2800 User Manual 4.2 Figure 5.33.: PPTP Tunnel Con guration Setting up a server requires the following settings: Parameter PPTP Server Settings Listen address Speci es on which IP address should be listened for incoming client connections Server address The server address within the tunnel...
Page 117: Pptp Client Management
NB2800 User Manual 4.2 PPTP Client Management PPTP clients for a server tunnel need to be con gured here. They are made up of user-name and password. A xed IP address can be assigned to them which can be used to point any routes to a dedicated tunnel.
Page 118: Gre
NB2800 User Manual 4.2 5.6.4. GRE The Generic Routing Encapsulation (GRE) is a tunneling protocol that can encapsulate a wide variety of network layer protocols inside virtual point-to-point links over IP. GRE is de ned in RFC 1701, 1702 and 2784. It does not provide encryption nor authorization but can be used on an address-basis on top of other VPN techniques (such as IPsec) for tunneling purposes.
Page 119: Dial-In
NB2800 User Manual 4.2 5.6.5. Dial-In On this page you can con gure the Dial-In server in order to establish a data connection over GSM calls. Thus, one would generally apply a required service type of 2G-only, so that the modem registers to GSM only. Naturally, a concurrent use of outgoing WWAN interfaces and Dial-In connection is not possible.
Page 120 NB2800 User Manual 4.2 Please note that Dial-In connections are generally discouraged. As they are implemented as GSM voice calls, they suffer from unreliability and poor bandwidth.
Page 121: Services
5.7. SERVICES 5.7.1. SDK NetModule routers are shipping with a Software Development Kit (SDK) which offers a sim- ple and fast way to implement customer-speci c functions and applications. It consists of: 1. An SDK host which de nes the runtime environment (a so-called sandbox), that is,...
Page 122 NB2800 User Manual 4.2 SDK API Functions The current range of API functions can be used to implement the following features: 1. Send/Retrieve SMS 2. Send E-mail 3. Read/Write from/to serial device 4. Control digital input/output ports 5. Run TCP/UDP servers 6.
Page 123 NB2800 User Manual 4.2 Let’s now pay some attention to the very powerful API function nb_status. It can be used to query the router’s status values in the same manner as they can be shown with the CLI. It returns a structure of variables for a speci c section (a list of available sections can be obtained by running cli status -h).
Page 124 NB2800 User Manual 4.2 Here is an example how one might adopt those functions: /* check current city and enable the second WAN link */ location = nb_status ( " location " ( location ) { city = struct_get ( location , "...
Page 125: Sdk Administration
NB2800 User Manual 4.2 Administration Figure 5.36.: SDK Administration This page can be used to control the SDK host and apply the following settings: Parameter SDK Administration Settings Administrative status Speci es whether SDK scripts should run or not Storage The storage device on which the sandbox shall be stored (see chapter 5.8.1)
Page 126: Sdk Jobs
NB2800 User Manual 4.2 Job Management Figure 5.37.: SDK Jobs This page can be used to set up scripts, triggers and jobs. It is usually a good idea to create a trigger rst which is made up by the following parameters:...
Page 127 NB2800 User Manual 4.2 Parameter SDK Script Parameters Arguments An optional set of arguments passed to the script (supports quoting) Action You may either edit a script, upload it to the system or select one of the example scripts or an already uploaded script...
Page 128 NB2800 User Manual 4.2 Testing The testing page offers an editor and an input eld for optional arguments which can be used to perform test runs of your script or test dedicated portions of it or upload an entire le. Please note that you might need to quote arguments as they will otherwise be separated by white-spaces.
Page 129: Sms Control Commands
NB2800 User Manual 4.2 The following commands are supported: Command Action status Will reply a message to the sender including a short system overview connect Will enable the rst WAN link con gured on the system disconnect Will disable the rst WAN link con gured on the system...
Page 130: Dhcp Server
NB2800 User Manual 4.2 5.7.2. DHCP Server This section can be used to individually con gure the Dynamic Host Con guration Protocol (DHCP) service for each LAN interface which will serve dynamic IP addresses to hosts in the local network. You may also have a look to the status page where you can nd an overview about negotiated client addresses.
Page 131 NB2800 User Manual 4.2 Parameter DHCP Server Settings Persistent leases By turning on this option the router will remember issued leases even after a reboot. This can be used to ensure that the same IP address will be assigned to a particular host.
Page 132: Dns Server
NB2800 User Manual 4.2 5.7.3. DNS Server The DNS server can be used to proxy DNS requests towards servers on the net which have for instance been negotiated during WAN link negotiation. By pointing DNS requests to the router, one can reduce outbound DNS tra c as it is caching already resolved names but it can be also used for serving xed addresses for particular host names.
Page 133 NB2800 User Manual 4.2 You may further con gure static hosts for serving xed IP addresses for various host names. Parameter DNS Static Hosts Settings Address The IP address of the static host Hostname The hostname of the static host...
Page 134: Ntp Server
NB2800 User Manual 4.2 5.7.4. NTP Server This section can be used to individually con gure the Network Time Protocol (NTP) server function. Figure 5.40.: NTP Server The following settings for each interface can be applied then: Parameter NTP Server Settings...
Page 135: Dynamic Dns
We provide support for a bunch of common DynDNS operators but it is also possible to de ne a custom update URL. Please note that your NetModule router can operate as DynDNS server on its own, provided that you have your hosts pointed to the DNS service of the router.
Page 136 NB2800 User Manual 4.2 A DynDNS service can receive the following parameters: Parameter Dynamic DNS Settings Provider You can choose one of the listed providers or provide a custom Dynamic address Speci es whether the address is derived from the hot-link or...
Page 137: E-Mail
NB2800 User Manual 4.2 5.7.6. E-Mail The E-Mail client can be used to send noti cations to a particular E-Mail address upon certain events or by SDK scripts. Figure 5.42.: E-Mail Settings It can be enabled by applying the following settings.
Page 138: Events
NB2800 User Manual 4.2 5.7.7. Events By using the event manager you can notify remote systems about system events. A noti ca- tion can be sent using E-Mail, SMS or SNMP traps. Parameter Event Noti cation Settings E-Mail address The E-Mail address to which the noti cation shall be sent (E-...
Page 139: Sms
5.7.8. SMS Administration NetModule routers can receive or send short messages (SMS) if enabled by your SIM provider. Messages are received/sent by the modem which has been assigned to a SIM, so one has to properly con gure a SMS-capable default modem as described in chapter 5.3.3.
Page 140: Sms Number Expressions
NB2800 User Manual 4.2 Parameter SMS SIM Con guration SMS gateway The service center number for sending short messages. It is generally retrieved automatically from your SIM card but you may de ne a x number here. Routing & Filtering By using SMS routing you can specify outbound rules which will be applied whenever mes- sage are sent.
Page 141: Ssh/Telnet Server
NB2800 User Manual 4.2 5.7.9. SSH/Telnet Server Apart from the Web Manager, the SSH and Telnet services can be used to log into the system. Valid users include root and admin as well as additional users as they can be created in the User Accounts section.
Page 142 NB2800 User Manual 4.2 The following parameters can be applied to the SSH service: Parameter SSH Server Settings Administrative status Whether the SSH service is enabled or disabled Server port The TCP port of the service (usually 22) Disable admin login...
Page 143: Snmp Agent
NB2800 User Manual 4.2 5.7.10. SNMP Agent NetModule routers are equipped with an SNMP daemon, supporting basic MIB tables (such as ifTable), plus additional enterprise MIBs to manage multiple systems. Parameter Supported MIBs .1.3.6.1.2.1 MIB-II (RFC1213), SNMPv2-MIB (RFC3418) .1.3.6.1.2.1.2.1 IF-MIB (RFC2863) .1.3.6.1.2.1.4...
Page 144: Snmp Agent
NB2800 User Manual 4.2 SNMP Con guration Figure 5.45.: SNMP Agent The following parameters can be used to con gure the SNMP agent: Parameter SNMP Con guration Administrative status Enable or disable the SNMP agent Operation mode Speci es if agent should run in compatibilty mode or for SN-...
Page 145 NB2800 User Manual 4.2 SNMP Authentication When running in SNMPv3, it is possible to con gure the following authentication settings: Parameter SNMPv3 Authentication Authentication De nes the authentication (MD5 or SHA) Encryption De nes the privacy protocols to use (DES or AES) In general, the admin user can read and write any values.
Page 146 NB2800 User Manual 4.2 Getting the current con g description: snmpget -v 3 -u admin -n "" -l authNoPriv -a MD5 -x DES -A admin01admin01 192.168.1.1 1.3.6.1.4.1.31496.10.40.4.0 Getting the current con g hash: snmpget -v 3 -u admin -n "" -l authNoPriv -a MD5 -x DES -A admin01admin01 192.168.1.1...
Page 147 NB2800 User Manual 4.2 Switching to alternative software: snmpset -v 3 -u admin -n "" -l authNoPriv -a MD5 -x DES -A admin01admin01 192.168.1.1 1.3.6.1.4.1.31496.10.40.16.0 i 0 The return value can be derived from the software update status. Switching to alternative con g: snmpset -v 3 -u admin -n ""...
Page 148: Web Server
NB2800 User Manual 4.2 5.7.11. Web Server This page can be used to con gure different ports for accessing the Web Manager via HTTP/HTTPS. We strongly recommend to use HTTPS when accessing the web service via a WAN interface as the communication will be encrypted and thus avoids any misuse of the system.
Page 149: Discovery
NB2800 User Manual 4.2 5.7.12. Discovery This page can be used to enabled discovery protocols which can be used to discover and to get discovered by other hosts. Parameter Discovery Con guration Administrative status Administrative status Enabled protocols List of enabled discovery protocols...
Page 150: Redundancy
NB2800 User Manual 4.2 5.7.13. Redundancy This page can be used to set up a redundant pair of NetModule routers (or other systems) by running the Virtual Router Redundancy Protocol (VRRP) between them. A typical VRRP scenario de nes a rst host playing the master and another the backup device, they both de ne a virtual gateway IP address which will be distributed by gratuitous ARP messages for updating the ARP cache of all LAN hosts and thus redirecting the packets accordingly.
Page 151 NB2800 User Manual 4.2 Parameter Redundancy Con guration Interface Interface on which VRRP should be performed Virtual gateway address The virtual gateway address formed by the participating hosts We assign a priority of 100 to the master and 1 to the backup router. Please adapt the...
Page 152: Voice Gateway
NB2800 User Manual 4.2 5.7.14. Voice Gateway Depending on your hardware, you can set up a voice gateway on the router which can be used to connect mobile calls to VoIP clients and vice versa. Administration Figure 5.48.: Voice Gateway Administration...
Page 153 NB2800 User Manual 4.2 Parameter Voice Gateway Administration Settings SIP register expires Speci es the registration interval in seconds In case you are running multiple WWAN interfaces sharing the same SIM, please bear in mind that the system may switch SIMs during operation which will also result in different settings for voice communication.
Page 154 NB2800 User Manual 4.2 Parameter Voice-Over-Mobile Audio Pro les Speakerphone Handle situations of loud echo with extreme acoustic distor- tion. This mode is intended for use with a car kit or speakerphone applications with high volume and high distortion. Acoustic echo in this situation has negative ERL and is impossible to cancel completely.
Page 155 NB2800 User Manual 4.2 Parameter Endpoint Settings SIP (user-agent) Domain The domain name used at the registrar Subscriber The subscriber name used at the registrar Username The username to authenticate at the registrar Password The password used for autentication Register...
Page 156 NB2800 User Manual 4.2 Voice Routing This page can be used to con gure generic voice routing between the endpoints. Enhanced routing facilities are provided via the SDK interface which is able to dispatch voice calls based on their attributes (such as phone numer) and other system related status infor- mation (e.g.
Page 157 NB2800 User Manual 4.2 Client Con guration Any SIP client must be con gured to use the router as its registrar/proxy. Parameter X-Lite Con guration User ID SIP username used in from headers (i.e. subscriber name) Domain SIP Domain used in from headers (optional) Authorization name Username used for authentication (i.e.
Page 158: System
NB2800 User Manual 4.2 5.8. SYSTEM 5.8.1. System System Settings Figure 5.49.: System System The following system parameters can be set: Parameter System Settings Local hostname The hostname of the system Application area The desired application area which in uences the system be- haviour such as registration timeouts or other adaptions when operating in mobile environments.
Page 159 NB2800 User Manual 4.2 Parameter System Settings Enable TCP timestamps Enable TCP timestamps for system wide TCP communication. This is needed for Protection Against Wrapped Sequence num- bers (PAWS), but with these timestamps enabled a remote at- tacker can guess the uptime of the system. The uptime is a lower bound for the age of the main system components like the kernel.
Page 160 This page can be used for setting the system time and con guring the time zone. You may further enable daylight saving changes for your speci c time zone. NetModule routers can synchronize their system time by using one or more servers by the help of the Network Time Protocol (NTP) or via GNSS.
Page 161: Regional Settings
Virtualization techniques can be used to run multiple isolated guests on top of the host system. The netmodule routers use OS-level virtualization: A system is virtualized at the op- erating system level, enabling multiple isolated user-space instances called containers. The same operating system kernel is used to implement the guest environments, applications running in a guest environment view it as a stand-alone system.
Page 162 NB2800 User Manual 4.2 General settings: Parameter Virtualization Settings Administrative status De nes whether virtualization is enabled or not The following parameters can be used to con gure a virtual guest: Parameter Guest Settings Type De nes which virtualization technique is being used...
Page 163 NB2800 User Manual 4.2 Parameter Guest Networking Bridge interface The interface to which the guest interace shall be bridged The guest devices parameter shows a list of devices (e.g bluetooth, CAN) which can be pro- vided to the guest system.
Page 164: Authentication
NB2800 User Manual 4.2 5.8.2. Authentication This page can be used to de ne the access model for all management interfaces (e.g. GUI, SSH/telnet server). Parameter Authentication Methods Authentication required Users can login via HTTP/telnet if authentication succeeds Secure authentication re-...
Page 165: Remote Authentication
NB2800 User Manual 4.2 The Web Manager supports up to 5 concurrent users. Inactive users will be kicked after being idle for 30 minutes. If login was successful, any duplicate users from other remote hosts will be logged out. Remote hosts will be blocked for 5 mintes after 10 failed login attempts.
Page 166 NB2800 User Manual 4.2 It can be con gured as follows: Parameter Remote authentication settings Administrative status De nes whether a remote server should be used for authenti- cation RADIUS server The RADIUS server address RADIUS secret The secret used to authenticate against the RADIUS server...
Page 167: Software Update
NB2800 User Manual 4.2 5.8.3. Software Update Manual Software Update This menu can be used to run a manual software update of the system. Parameter Manual Software Update Update operation The update operation method being used. You can upload the...
Page 168: Module Firmware Update
NB2800 User Manual 4.2 Attention In case you perform a major downgrade with a previous release line (e.g. 3.7.0 to 3.6.0), please ensure to always use the latest release of that branch (i.e. 3.6.0.X) as only those tend to be fully forward-compatible. Also keep in mind, that some hardware features may not work (e.g.
Page 169: Software Pro Les
A rmware package (ZIP) usually consists of a ash utility, an info le and the correspond- ing rmware les. Please follow http://www.netmodule.com/support/supportform.aspx in order to get the latest version. 5.8.5. Software Pro les The system consists of two root partitions which can hold different software versions and this menu can be used to switch between them.
Page 170: Con Guration
NB2800 User Manual 4.2 5.8.6. Con guration Con guration via the Web Manager becomes tedious for larger volumes of devices. The router therefore offers automatic and manual le-based con guration to automate things. Once you have successfully set up the system you can back up the con guration and restore the system with it afterwards.
Page 171: Automatic File Con Guration
NB2800 User Manual 4.2 Automatic File Con guration Figure 5.54.: Automatic File Con guration This menu can be used to run an automatic con guration update of the system. It is con g- ured as follows: Parameter Automatic File Con guration...
Page 172: Factory Con Guration
NB2800 User Manual 4.2 Factory Con guration Figure 5.55.: Factory Con guration This menu can be used to reset the device to factory defaults. Your current con guration will be lost. This procedure can also be initiated by pressing and holding the Reset button for at least ve seconds.
Page 173: Troubleshooting
NB2800 User Manual 4.2 5.8.7. Troubleshooting Network Debugging There are serveral tools for network debugging like ping, traceroute, tcpdump and darkstat. Parameter Automatic software update Ping The ping utility can be used to verify whether a remote host can be reached via IP.
Page 174: Log Viewer
NB2800 User Manual 4.2 System Debugging You can view the system log here by selection the option Debug log or if you are interested in the boot log select Boot log. Another way to see what is going on on the box is opening a SSH or Telnet session as root and typing tail-log.
Page 175: Tech Support File
NB2800 User Manual 4.2 Tech Support You can generate and download a tech support le here. We strongly recommend providing this le when getting in touch with our support team, either by e-mail or via our on-line support form, as it would signi cantly speed up the process of analyzing and resolving your problem.
Page 176: Keys And Certi Cates
NB2800 User Manual 4.2 5.8.8. Keys and Certi cates The key and certi cate page lets you generate required les for securing your services (such as HTTP and SSH server) but also to implement authentication and encryption for certi cate- based VPN tunnels and WLAN clients.
Page 177: Certi Cate Sections
NB2800 User Manual 4.2 Type Description IPsec Server or client keys and certi cates for running IPsec tunnels. WLAN Keys and certi cates for implementing certi cate-based WLAN authentication (e.g. WPA-EAP-TLS). Authorities Other certi cate authorities which we trust when establishing SSL client connections.
Page 178: Certi Cate Con Guration
NB2800 User Manual 4.2 Con guration Figure 5.59.: Certi cate Con guration This page provides some general con guration options which will be applied when operating on keys and certi cates. If keys, certi cates and signing requests are generated locally, the following settings will be...
Page 179 NB2800 User Manual 4.2 Parameter Certi cate Con guration Expiry period The number of days a certi cate will be valid from now on Key size The length of the private key in bits DH primes The number of bits for custom Di e-Hellman primes...
Page 180 NB2800 User Manual 4.2 When enrolling certi cates, the CA certi cate will be initially fetched from the speci ed SCEP URL using the getca operation. It will be shown on the con guration page and it has to be veri ed that it belongs to the correct authority.
Page 181: Licensing
NB2800 User Manual 4.2 5.8.9. Licensing Certain features of NetModule routers require a valid license to be present in the system, some of them also depend on the mounted modules. Please contact us for getting a valid license for available components and we will provide a license le based on your serial number which can be installed to the router afterwards.
Page 182: Legal Notice
5.8.10. Legal Notice OSS Notice We inform you that NetModule products may contain in part open-source software. We are distributing such open-source software to you under the terms of GNU General Public License (GPL), GNU Lesser General Public License (LGPL) or other open-source licenses.
Page 183: Logout
NB2800 User Manual 4.2 5.9. LOGOUT Please use this menu to log out from the Web Manager.
Page 184: Command Line Interface
6. Command Line Interface The Command Line Interface (CLI) offers a generic control interface to the router and can be used to get/set con guration parameters, apply updates, restart services or perform other system tasks. It will be started automatically in interactive mode when logging in as admin user or by running cli -i.
Page 185: Print Help
NB2800 User Manual 4.2 Key Sequence Action CTRL-r Search backward starting at the current line and moving up through the history CTRL-s Freeze session CTRL-q Reactivate frozen session CTRL-d Delete character at point or exit CLI if at the beginning of the line CTRL-t Drag the character before point forward moving point forward as well;...
Page 186: Getting Con G Parameters
NB2800 User Manual 4.2 exit Exit 6.3. Getting Con g Parameters The get command can be used to get con guration values. > get Usage : get [ hsvfc ] <parameter > [ < parameter > . . ] Options :...
Page 187: Scanning Networks
NB2800 User Manual 4.2 Options : generate sourceable output Available sections : summary Short status summary info System and config information config Current configuration system System information configuration Configuration information license License information wwan WWAN module status wlan WLAN module status...
Page 188: Updating System Facilities
NB2800 User Manual 4.2 > send Usage : send [ h ] <type > <dest > <msg > Options : type of message to be sent ( mail , sms , techsupport , <type > ussd ) destination of message ( mail address , phone number or <dest >...
Page 189: Restarting Services
NB2800 User Manual 4.2 enroll enroll a certificate via SCEP erase erase an installed certificate view view an installed certificate 6.11. Restarting Services The restart command can be used to restart system services. > restart Usage : restart [ h ] <service >...
Page 190: Resetting System
NB2800 User Manual 4.2 event manager home agent led manager link manager mobile node qmid qosd scripts sdkhost ser2net smsd surveyor swupdate system voiced watchdog wwan manager wwanmd 6.13. Resetting System The reset command can be used to reset the router back to factory defaults.
Page 191: Working With History
NB2800 User Manual 4.2 6.16. Working with History The history command will print the list of entered commands on a per-user basis. > history Usage : history [ c ] It can be cleared by history -c. 6.17. CLI-PHP CLI-PHP, the HTTP frontend to the CLI application, can be used to con gure and control the router remotely.
Page 192 NB2800 User Manual 4.2 the URL must be specified according to RFC1738 ( usually done by common clients such as wget , lynx , curl ) . Response : The returned response will always contain a status line in the format : <return >...
Page 193 NB2800 User Manual 4.2 set - Set con guration parameter Key usage : command=set&arg0=<config key>&arg1=<config value >[& arg2=<config key>& arg3=<config value > . . ] Notes : In contrast to the other commands , this command requires a set of tuples because of the reserved ' = ' char , i .
Page 194 NB2800 User Manual 4.2 command=reset Examples : http : / / 1 9 2 . 1 6 8 . 1 . 1 / cli . php ? version=2&output=html&usr=admin&pwd=admin01& command=reset update - Update system facilities Key usage : command=update&arg0=<facility >&arg1=<URL >...
Page 195 NB2800 User Manual 4.2 command=send&arg0=mail&arg1=<address>&arg2=<text > Notes : The address has to be a valid E Mail address such as abc@abc . com ( the at sign can be encoded with %40) . The E Mail client must be properly configured prior to using that function .
Page 196: Appendix
A. Appendix A.1. Abbrevations Parameter Description ETHx Corresponds to Ethernet interfaces (either single or switched ones) LANx LAN interfaces which are generally based on Ethernet inter- faces (including bridges) WLANx Refers to a Wireless LAN interface which will be represented as additional LAN interface when con gured as access point WWANx Refers to a Wireless Wide Area Network (2G/3G/4G) connec-...
Page 197: Abbreviations
NB2800 User Manual 4.2 Parameter Description DHCP Dynamic Host Con guration Protocol Script Development Kit which can be used to program applica- tions Command Line Interface, a generic interface to query the router or perform system tasks Subscriber Identity Module...
Page 198: System Events
NB2800 User Manual 4.2 starting from one. A.2. System Events Event Description wan-up WAN link came up wan-down WAN link went down dio-in1-on DIO IN1 turned on dio-in1-off DIO IN1 turned off dio-in2-on DIO IN2 turned on dio-in2-off DIO IN2 turned off...
Page 199: System Events
NB2800 User Manual 4.2 Event Description system-rebooting System reboot has been triggered system-startup System has been started test test event sdk-startup SDK has been started system-time- System time has been updated updated system-poweroff System poweroff has been triggered system-error System is in error state...
Page 200: Factory Con Guration
NB2800 User Manual 4.2 A.3. Factory Con guration The factory con guration including default values for any con guration parameter can be derived from the le /etc/config/factory-config.cfg on the router. You may also call cli get -f <parameter> for obtaining a speci c default value.
Page 201: Snmp Vendor Mib
-- * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * -- NetModule AG VENDOR MIB -- ( c ) COPYRIGHT 2018 by NetModule AG , Switzerland -- All rights reserved .
Page 202 NB2800 User Manual 4.2 OBJECT IDENTIFIER ::= { nb 53 } OBJECT IDENTIFIER ::= { nb 90 } traps OBJECT IDENTIFIER ::= { nb 100 } -- * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *...
Page 203 NB2800 User Manual 4.2 systemDate OBJECT - TYPE SYNTAX DateAndTime MAX - ACCESS read - only STATUS current DESCRIPTION " The current local date and time of day . " ::= { admin 9 } deviceRestart OBJECT - TYPE SYNTAX...
Page 204 NB2800 User Manual 4.2 " The status of the last configuration update cycle " ::= { admin 21 } co nf i gU p d at e Er r or OBJECT - TYPE SYNTAX Integer32 MAX - ACCESS read - only...
Page 205 NB2800 User Manual 4.2 altC onf ig U pd ate d OBJECT - TYPE SYNTAX DateAndTime MAX - ACCESS read - only STATUS current DESCRIPTION " The date of the last alternative configuration update " ::= { admin 32 }...
Page 206 NB2800 User Manual 4.2 MAX - ACCESS not - accessible STATUS current DESCRIPTION " The table describing any WWAN modems and their current settings " ::= { nb 50 } nbWwanEntry OBJECT - TYPE SYNTAX NBWwanEntry MAX - ACCESS not - accessible...
Page 207 NB2800 User Manual 4.2 w w a n L o c a l A r e a I d e n t i f i c a t i o n OBJECT - TYPE SYNTAX DisplayString MAX - ACCESS read - only...
Page 208 NB2800 User Manual 4.2 SYNTAX DisplayString MAX - ACCESS read - only STATUS current DESCRIPTION " The current signal quality of the WWAN modem " ::= { nbWwanEntry 19 } -- * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *...
Page 209 NB2800 User Manual 4.2 SYNTAX Integer32 MAX - ACCESS read - only STATUS current DESCRIPTION " The current number of satellites in view for the GNSS device " ::= { nbGnssEntry 7 } gnssNumSatUs ed OBJECT - TYPE SYNTAX Integer32...
Page 210 NB2800 User Manual 4.2 STATUS current DESCRIPTION " WLAN module type " ::= { nbWlanEntry 3 } wlanNumClien ts OBJECT - TYPE SYNTAX Integer32 MAX - ACCESS read - only STATUS current DESCRIPTION " Current number of clients connected to the WLAN module in access - point mode "...
Page 211 NB2800 User Manual 4.2 STATUS current DESCRIPTION " The MAC address of a connected station " ::= { n b Wl a nS t a t i o nE n t r y 3 } w l a n S t a t i o n S i g n a l S t r e n g t h OBJECT - TYPE...
Page 212 NB2800 User Manual 4.2 wanD ia lFa ilur es Integer32 , wa n D at a Do w n l o a de d Counter64 , wanD at aUp load ed Counter64 , wanD ow nlo adRa te Integer32 ,...
Page 213 NB2800 User Manual 4.2 SYNTAX Integer32 MAX - ACCESS read - only STATUS current DESCRIPTION " WAN link dial success " ::= { nbWanEntry 11 } wanDial Fa ilur es OBJECT - TYPE SYNTAX Integer32 MAX - ACCESS read - only...
Page 214 NB2800 User Manual 4.2 on (1) MAX - ACCESS read - only STATUS current DESCRIPTION " The current value of digital I / O port IN2 " ::= { dio 2 } dioStatusOut1 OBJECT - TYPE SYNTAX INTEGER { off (0) ,...
Page 215 NB2800 User Manual 4.2 STATUS current DESCRIPTION " Serial port index " ::= { nbSerialEntry 1 } serialName OBJECT - TYPE SYNTAX DisplayString MAX - ACCESS read - only STATUS current DESCRIPTION " Serial port name " ::= { nbSerialEntry 2 }...
Page 216 NB2800 User Manual 4.2 n bT r a p H i st o r yE n t r y OBJECT - TYPE SYNTAX N B T ra p Hi s t or y En t ry MAX - ACCESS not - accessible...
Page 217 NB2800 User Manual 4.2 dio - out1 - on NOTIFICATION - TYPE STATUS current DESCRIPTION " DIO OUT1 turned on " ::= { events 205 } dio - out1 - off NOTIFICATION - TYPE STATUS current DESCRIPTION " DIO OUT1 turned off "...
Page 218 NB2800 User Manual 4.2 system - login - failed NOTIFICATION - TYPE STATUS current DESCRIPTION " User login failed " ::= { events 501 } system - login - succeeded NOTIFICATION - TYPE STATUS current DESCRIPTION " User login succeeded "...
Page 219 NB2800 User Manual 4.2 ddns - update - failed NOTIFICATION - TYPE STATUS current DESCRIPTION " Dynamic DNS update failed " ::= { events 802 } usb - storage - added NOTIFICATION - TYPE STATUS current DESCRIPTION " USB storage device has been added "...
Page 220: Sdk Examples
NB2800 User Manual 4.2 A.5. SDK Examples Event Description best-operator.are This script will scan for operators on startup and choose the one with the best signal candump.are This script can be used to receive CAN messages con g-summary.are This script shows a summary of the currently running con gu- ration.
Page 221 NB2800 User Manual 4.2 Event Description opcua-write.are This script will write a new value to a node at a OPC-UA server. ping-supervision.are This script will supervise a speci ed host. read-con g.are This script can be used to read a con guration parameter.
Page 222 NB2800 User Manual 4.2 Event Description snmp-trap.are This script can be used to send SNMP traps status.are This script can be used to display all status variables syslog.are Throw a simple syslog message. tcpclient.are This script sends a message to a TCP server.

NetModule NB2800 User Manual

1 Welcome to Netmodule

2 Conformity

3 Speci Cations

4 Installation

5 Con Guration

6 Command Line Interface

Appendix

Quick Links

Need help?

Questions and answers

Related Manuals for NetModule NB2800

Summary of Contents for NetModule NB2800

Table of Contents
