Pin Signal
1 DI1+
2 DI1
3 DI2+
4 DI2
5 DO1: Dry contact relay normally open
6 DO1: Dry contact relay normally open
7 DO2: Dry contact relay normally closed
8 DO2: Dry contact relay normally closed

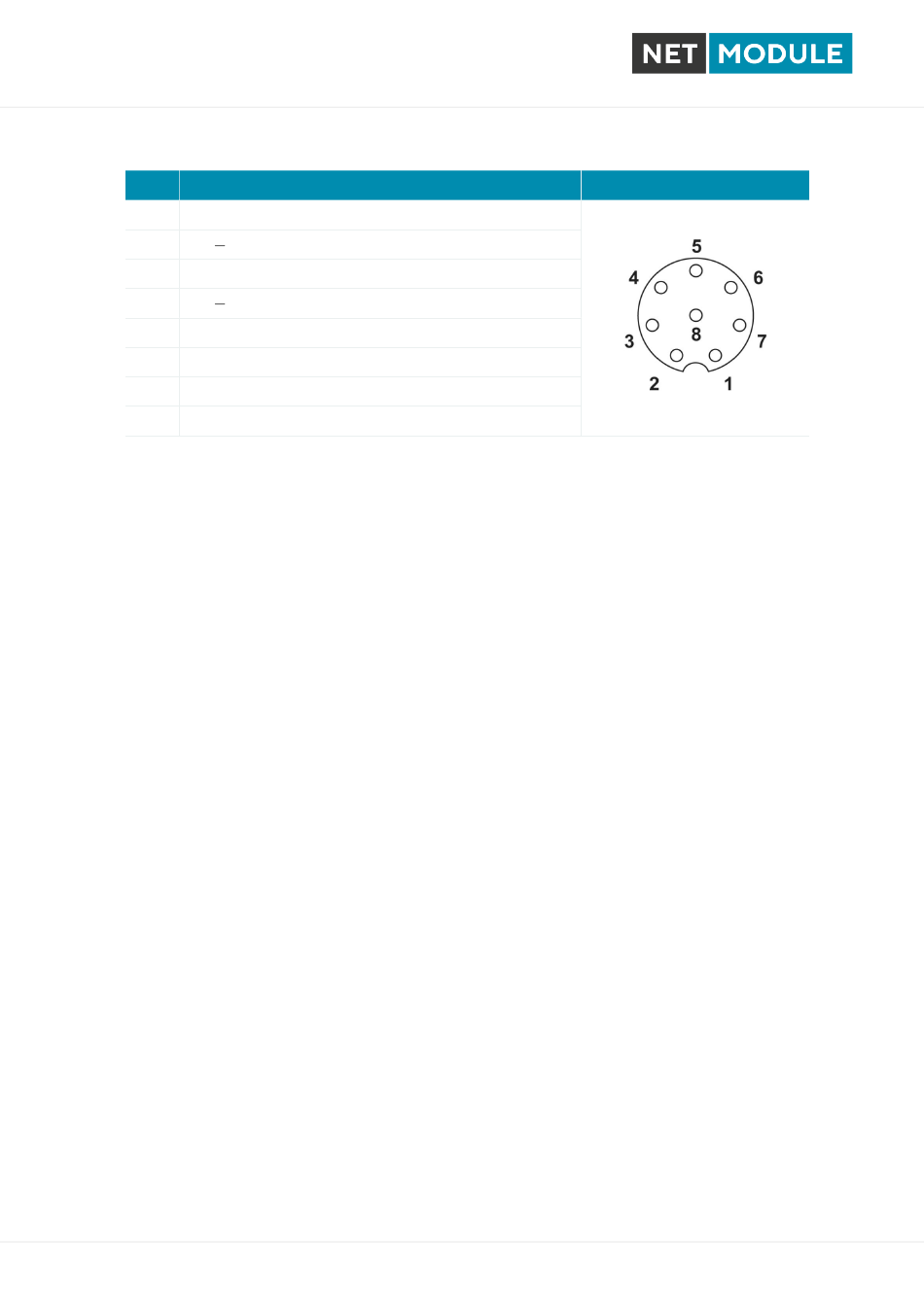

Table 3.21.: Pin Assignments of Digital Inputs and Outputs
