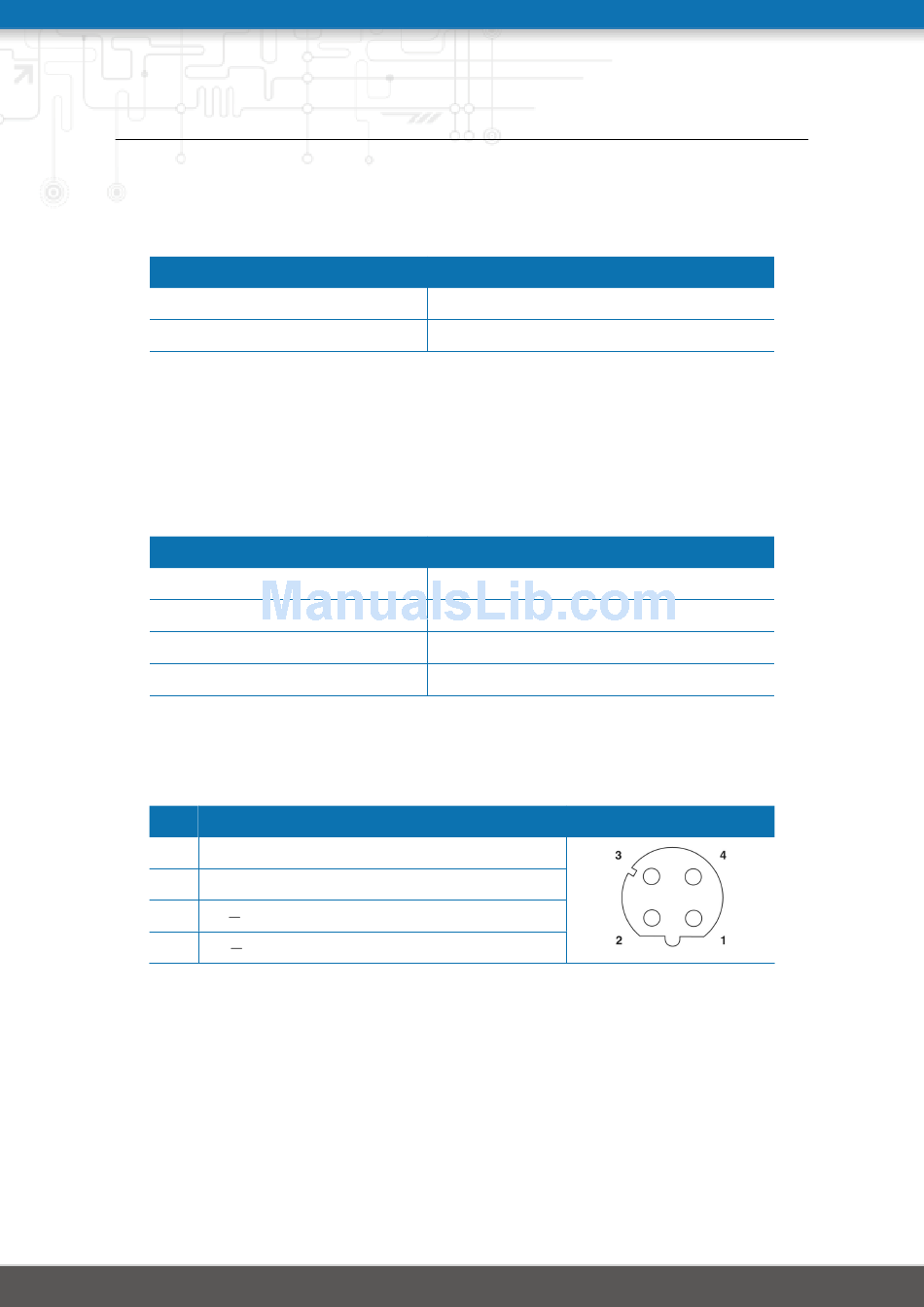

3.3.2. USB 2.0 Host Port

The USB 2.0 host port has the following specification:
Feature
Speed
Current
Table 3.4.: USB 2.0 Host Port Specification

3.3.3. M12 Ethernet Connectors

Specification
The five Ethernet ports have the following specification:
Feature
Isolation
Speed
Mode
Crossover
Pin Assignment on M12, 4 poles, D-coded female
Pin Signal
1 Tx+
2 Rx+
3 Tx
4 Rx
Table 3.6.: Pin Assignments of Ethernet Connectors
NB3700 User Manual 3.8
Specification
Low, Full & Hi-Speed
max. 500 mA
Specification
1500 V
10/100 Mbps
Half- & Full-Duplex
Automatic MDI/MDI-X
Table 3.5.: Ethernet Port Specification
16
rms
Pinning
