3.4.11. Extension Connector

Available Options
The NB3710 has an M12 extension connector with 8 pins. The 8 pins are split into two logical ports:
Pins 1 to 4 represent Extension Port 1 (EP1) and pin 5 to 8 represent Extension Port 2 (EP2). On both
EP1 and EP2 the following interfaces may be present:
– Non-isolated RS-232 (Default configuration on EP1)
– Audio (Option A)
– CAN (Option C)
– IBIS (Option I)
– Isolated RS-485 (Option Sa)
– Isolated RS-232 (Option Sb)

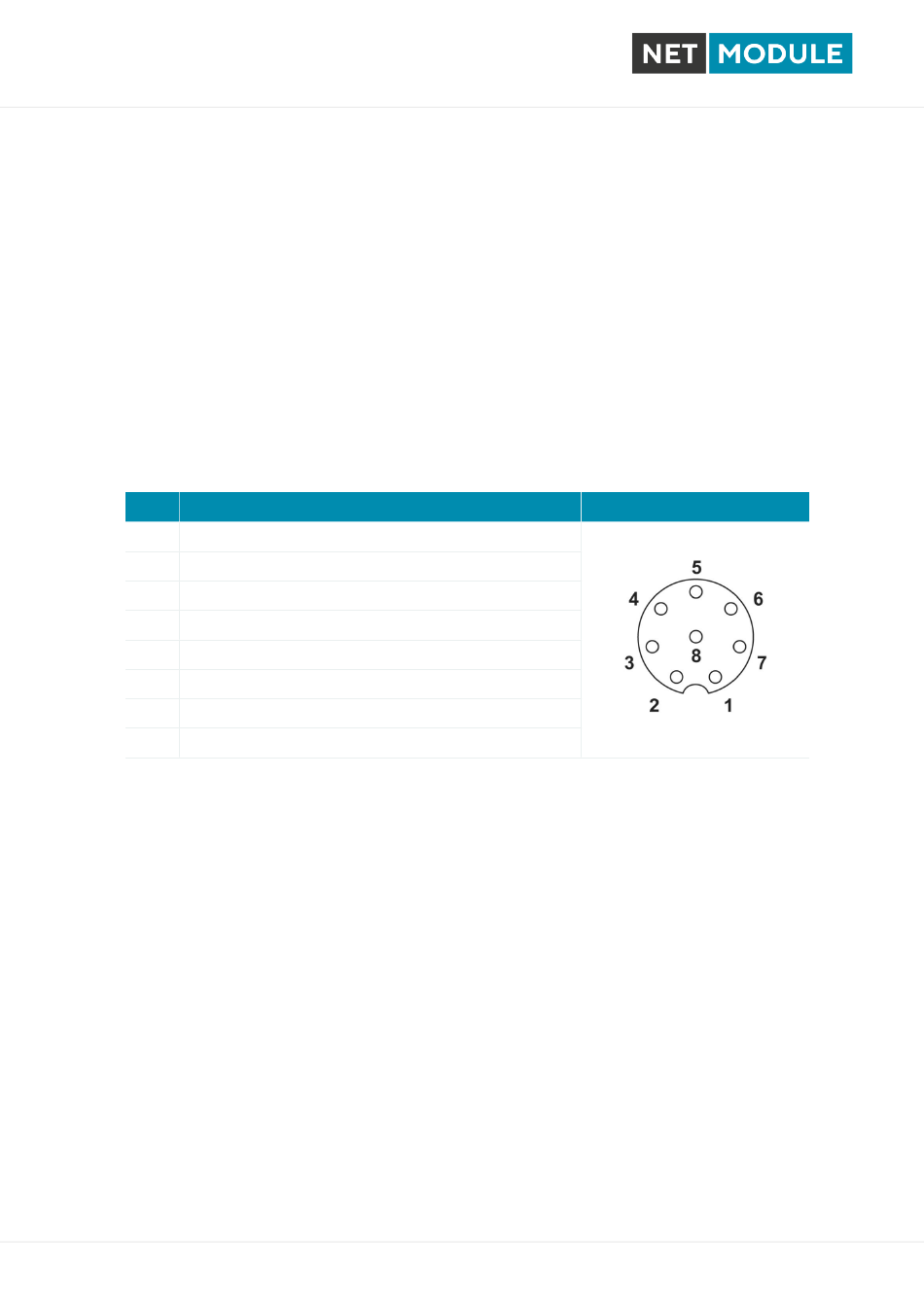

Pin Signal
1 EP1 - Pin 1
2 EP1 - Pin 2
3 EP1 - Pin 3
4 EP1 - Pin 4
5 EP2 - Pin 1
6 EP2 - Pin 2
7 EP2 - Pin 3
8 EP2 - Pin 4
Table 3.22.: Pin Assignments of Digital Inputs and Outputs
30
Pinning
