Daikin VRV III Manual page 247

Accessories

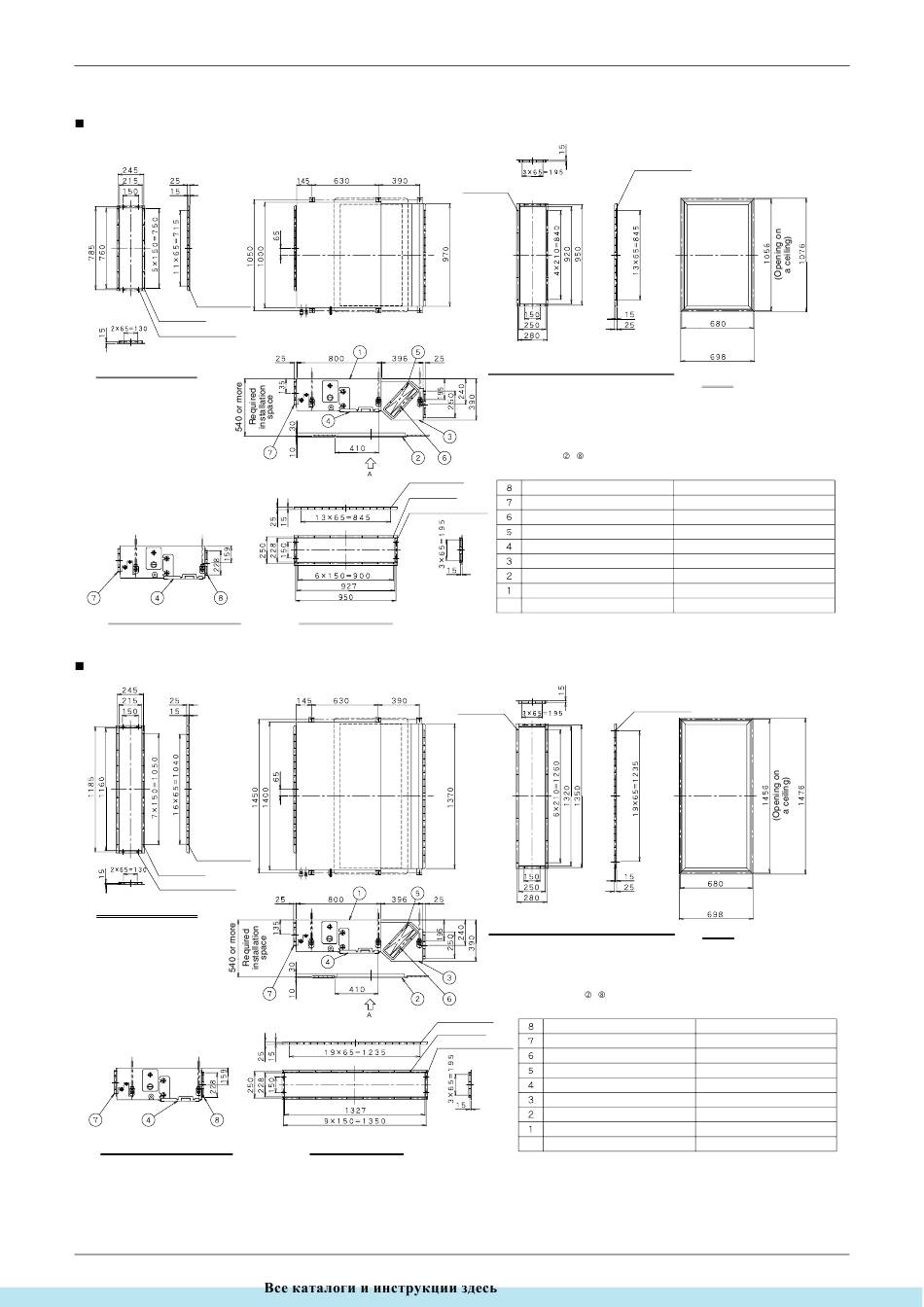

Duct Style Installation
FXSQ63M
30-φ4.7 hole
12-φ7 hole
4- key shape hole
Discharge outlet details
At installation of suction flange
FXSQ80~125M
40-φ4.7 hole
16-φ7 hole
4- key shape hole
Discharge outlet details
At installation of suction flange
242
14-φ7 hole
36-φ4.7 hole
14-φ7 hole
4- key shape hole
Suction flange details
18-φ7 hole
48-φ4.7 hole
20-φ7 hole
4- key shape hole
Suction flange details
36-φ4.7 hole
Suction flange
(filter chamber for rear-suction type) details
Note)
1. When optional accessory other than these kits will be built in, refer to the
external drawing with optional accessories.
2. Parts names ~ show optional accessories.
Suction flange
Discharge outlet flange
Long life filter for rear-suction type
High efficiency filter
Rear-suction sealing plate
Rear-suction type filter chamber
Access panel
Built-in Hi type body
Number Name
48-φ4.7 hole
Suction flange
(filter chamber for rear-suction type) details
Note)
1. When optional accessory other than these kits will be built in, refer to the
external drawing with optional accessories.
2. Parts names ~ show optional accessories.
Suction flange
Discharge outlet flange
Long life filter for rear-suction type
High efficiency filter
Rear-suction sealing plate
Rear-suction type filter chamber
Access panel
Built-in Hi type body
Number Name
: http://splitoff.ru/tehn-doc.html
ED34-862
(Opening on
a ceiling)
A view
(with rear-suction sealing plate)
Description
JC : DU826-208F
(Opening on
a ceiling)
A view
(with rear-suction sealing plate)
Description
JC : DU828-216F
FXSQ-M
