Accessories
Caution
After thoroughly reading these "Safety Precautions", properly perform the installation.
• For the installation parts, accessory parts and specified components must
always be used.
If the specified components are not used, the kit may fall or an air leak may occur.
• After the completion of installation, perform a test run to check that no
abnormality is present.
Recommendations
(When using ultra-long life filter)
The ultra-long life filter can be reused after cleaning.
After engineering work is completed, provide instructions to the customer about
the filter cleaning interval and how to remove the filter.
Parts content
Check the following parts.
Name Filter chamber
Shape
Number of pieces 1

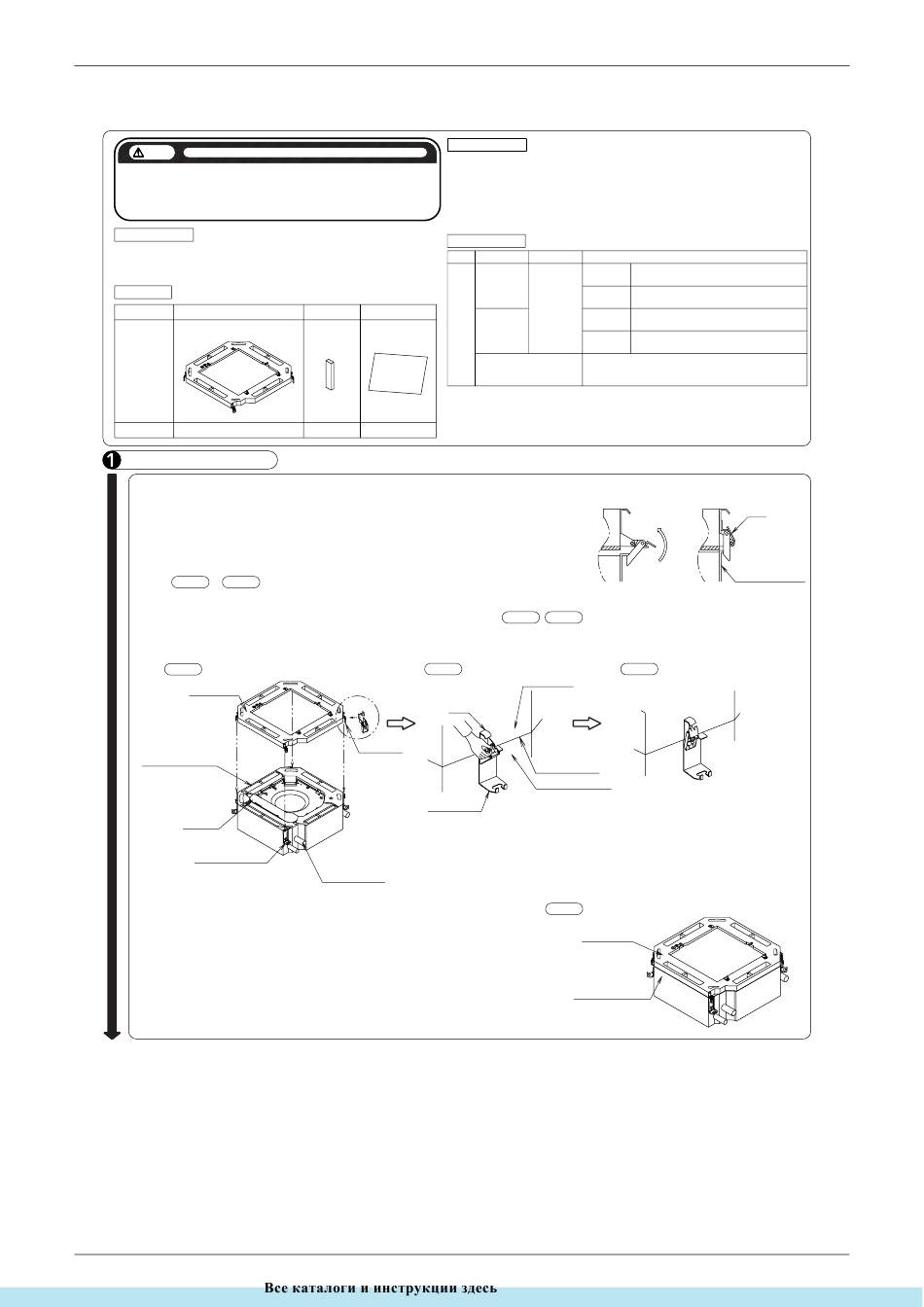

Mounting of Filter Chamber
* When the indoor unit main body is already installed, perform the following operations, complying with
precautions below.
Shut off power supply before performing the operation.
Remove the decoration panel from the indoor unit main body.
(For details, refer to the installation manual attached to the decoration panel.)
* When the indoor unit main body is newly installed
(1) Mount the filter chamber to the indoor unit main body using the hooks (4 positions).
Figure 1 to Figure 3
For the fixing method of the hooks, refer to the figure to the right. Mount at 4 positions.
* Mount so that the contours of the indoor unit main body and chamber are match. Figure 2
Figure 1
Filter chamber
Indoor unit main body
Lead wire
Suspension bracket
(4 positions)
112
Recommendations
• This product can be mounted to ceiling mounted cassette-type air conditioner
<round flow>.
• According to the table below, check the model name of the indoor unit main body, then
mount the product.
• At the time of mounting, also refer to the installation manual for the indoor unit and to
the one for the decoration panel.
Combination table
Model name High efficiency filter
KAFP552H80
KAFP553H80
Sealing pad Installation manual
KDDFP
KAFP552H160
55H160
KAFP553H160
2 1 (This document)
Figure 2 Mounting status
Hook
Hook
(4 positions)
Suspension bracket
Refrigerant piping
Ultra-long life filter Installable indoor unit model name / Panel model name
SkyAir FCQ(N)71KVEA
or
VRV FXFQ25·32·40·50·63·80PVE
KAFP55H160H
SkyAir FCQ(N)100·125·140KVEA
or
VRV FXFQ100·125PVE
Panel BYCP125K-W1
Fixing method of hooks
Figure 4
Figure 3 Status after mounting
Filter chamber
Match the contour
Indoor unit main body
Drawing of mounting at
Figure 4
completion
Filter chamber
Indoor unit main body
