Chapter 3: System Setup

Installing the M.2 Module

1. Locate the M.2 slot on the motherboard.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

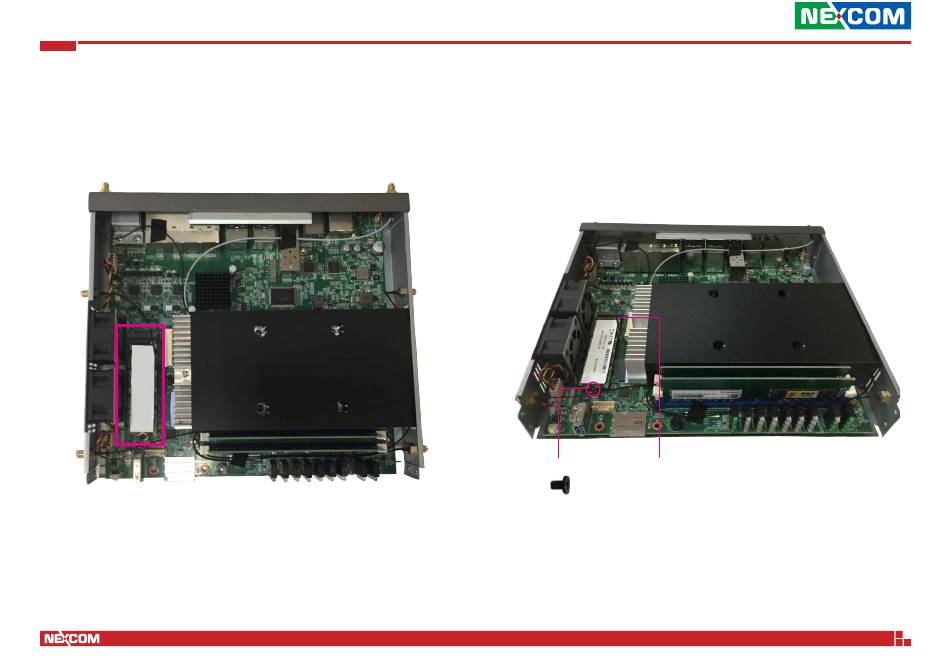

2. Insert the M.2 module into the M.2 slot at a 45 degrees angle until the
gold-plated connector on the edge of the module completely disappears
inside the slot. Push the M.2 module down and fasten the M.2 mounting
screw into the mounting hole to secure the module.
M.2 Mounting Screw
M.2 Slot
