Chapter 2: Jumpers and Connectors

Jumpers

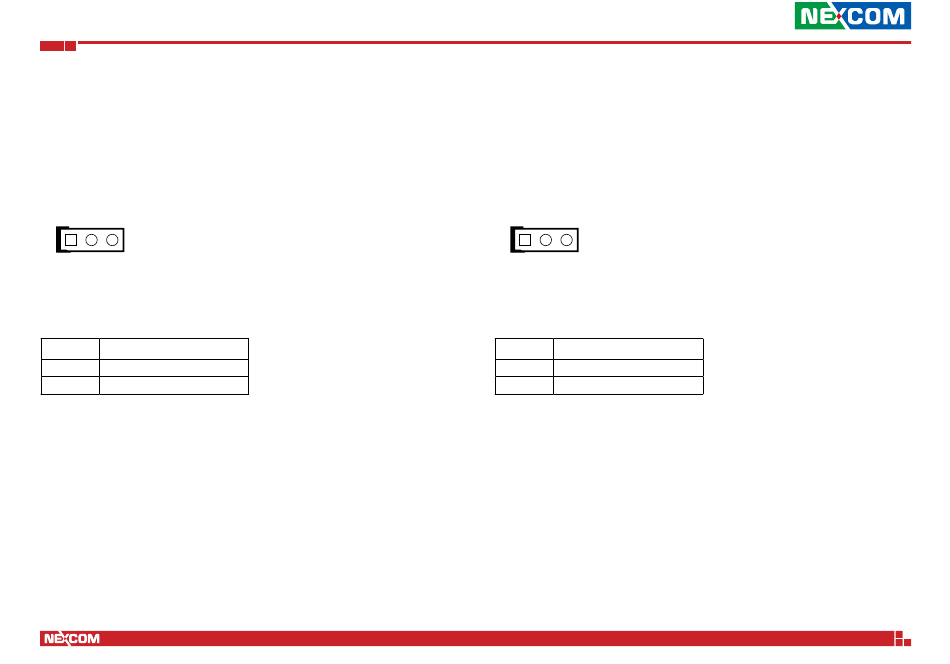

RTC Clear

Connector type: 1x3 3-pin header
Connector location: JP9
1 3
Pin Description
1-2 Normal
2-3 Clear CMOS
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

PMC Clear

Connector type: 1x3 3-pin header
Connector location: JP10
1 3
Pin Description
1-2 Normal
2-3 Clear PMC
