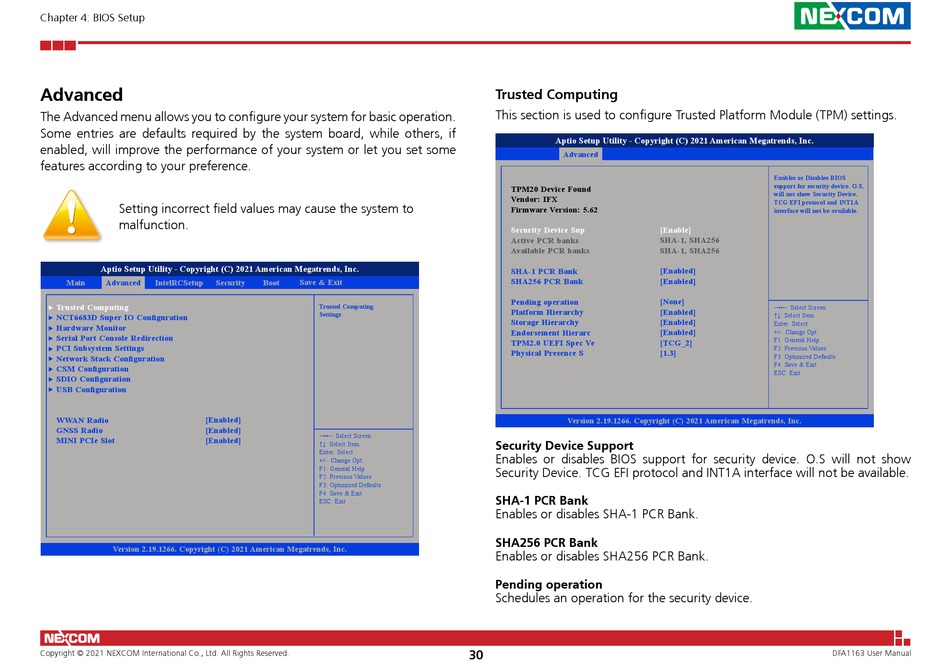

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation.
Some entries are defaults required by the system board, while others, if
enabled, will improve the performance of your system or let you set some
features according to your preference.
Setting incorrect field values may cause the system to
malfunction.
Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc.
Main Advanced IntelRCSetup Security
Trusted Computing

NCT6683D Super IO Configuration

Hardware Monitor

Serial Port Console Redirection

PCI Subsystem Settings

Network Stack Configuration

CSM Configuration

SDIO Configuration

USB Configuration

WWAN Radio [Enabled]
GNSS Radio [Enabled]
MINI PCIe Slot [Enabled]
Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Boot Save & Exit
Trusted Computing
Settings
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Trusted Computing
This section is used to configure Trusted Platform Module (TPM) settings.
Aptio Setup Utility - Copyright (C) 2021 American Megatrends, Inc.
Advanced
TPM20 Device Found
Vendor: IFX
Firmware Version: 5.62
Security Device Sup
Active PCR banks
Available PCR banks
SHA-1 PCR Bank
SHA256 PCR Bank
Pending operation
Platform Hierarchy
Storage Hierarchy
Endorsement Hierarc
TPM2.0 UEFI Spec Ve
Physical Presence S
Version 2.19.1266. Copyright (C) 2021 American Megatrends, Inc.
Security Device Support
Enables or disables BIOS support for security device. O.S will not show
Security Device. TCG EFI protocol and INT1A interface will not be available.
SHA-1 PCR Bank
Enables or disables SHA-1 PCR Bank.
SHA256 PCR Bank
Enables or disables SHA256 PCR Bank.
Pending operation
Schedules an operation for the security device.
30
Enables or Disables BIOS
support for security device. O.S.
will not show Security Device.
TCG EFI protocol and INT1A
interface will not be available.
[Enable]
SHA-1, SHA256
SHA-1, SHA256
[Enabled]
[Enabled]
[None]
→←: Select Screen
[Enabled]
↑↓: Select Item
[Enabled]
Enter: Select
[Enabled]
+/-: Change Opt.
F1: General Help
[TCG_2]
F2: Previous Values
[1.3]
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
