Chapter 2: Jumpers and Connectors

Internal Connectors

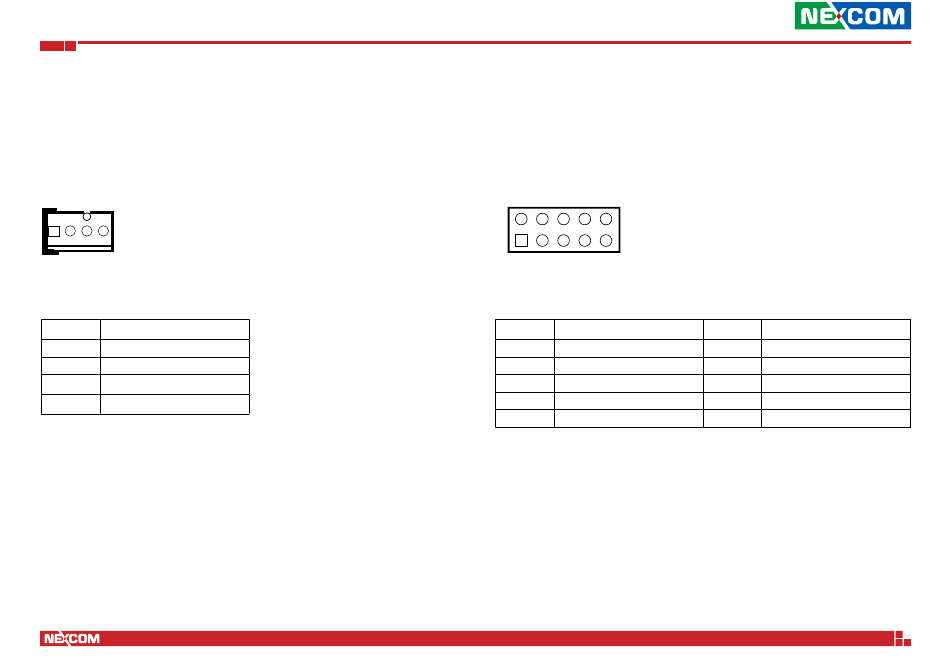

Fan Connector

Connector type: 1x4 4-pin header
Connector location: CN9 & CN10
1 4
Pin Description
1 GND
2 P12V
3 TACH
4 PWM
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

GPIO

Connector type: 2x5 10-pin header
Connector location: JP5
2 10
1 9
Pin Signal
1 P5V
2 GND
3 SIO_GPIN1
4 SIO_GPOUT1
5 SIO_GPIN2
16
Pin Signal
6 SIO_GPOUT2
7 SIO_GPIN3
8 SIO_GPOUT3
9 SIO_GPIN4
10 SIO_GPOUT4
