Chapter 3: System Setup

Installing a DIMM Memory Module

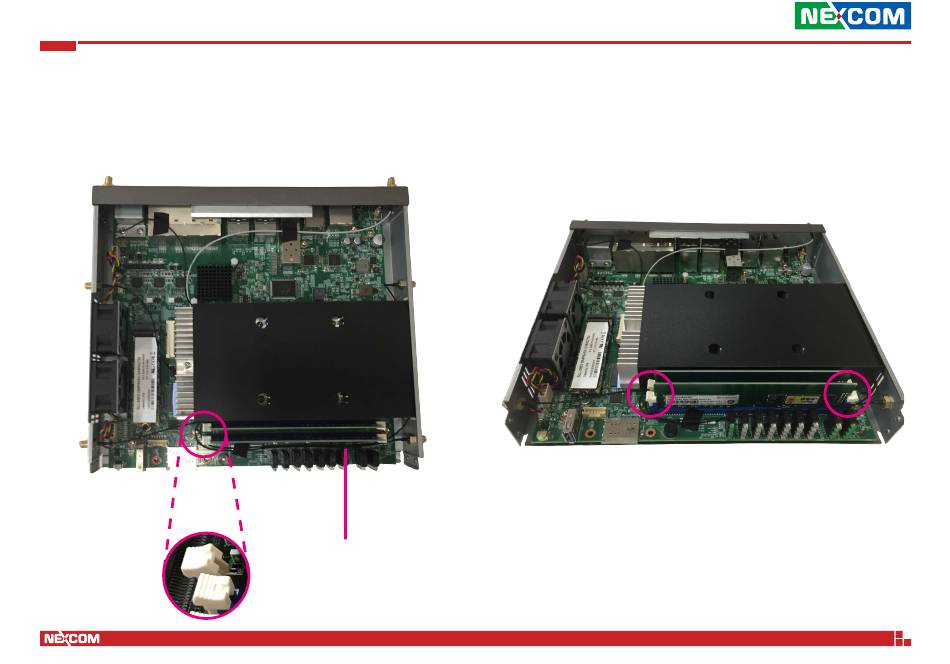

1. Locate the DIMM socket on the motherboard and push the ejector tabs
which are at the ends of the socket outward. This indicates that the
socket is unlocked.
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
DIMM Sockets
21
2. Seat the module vertically, pressing it down firmly until it is completely
seated in the socket. The ejector tabs at the ends of the socket will
automatically snap into the locked position to hold the module in place.
