Chapter 2: Jumpers and Connectors

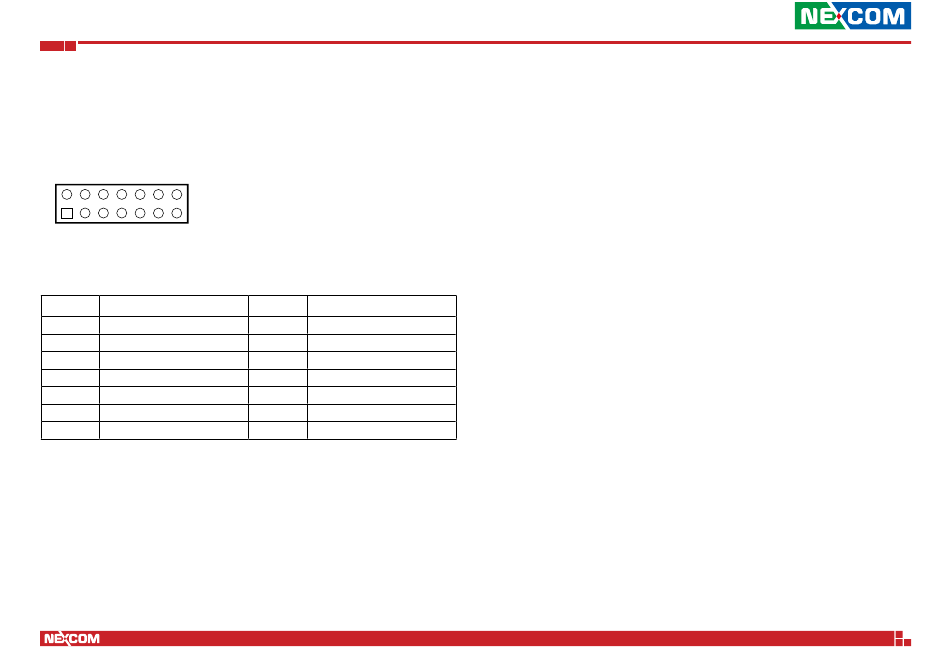

TPM
Connector type: 2x7 14-pin header
Connector location: TPM
2
14
1
13
Pin
Signal
1
GND
2
LPC_CLKOUT1_BK
3
NC
4
LPC_FRAME_N
5
LPC_LAD2
6
CPLD_TPM_PLTRST_N
7
LPC_LAD1
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Signal
8
LPC_LAD3
9
GND
10
LPC_LAD0
11
LPC_SERIRQ
12
P3V3
13
GND
14
GND
17
DFA1163 User Manual
