Chapter 2: Jumpers and Connectors

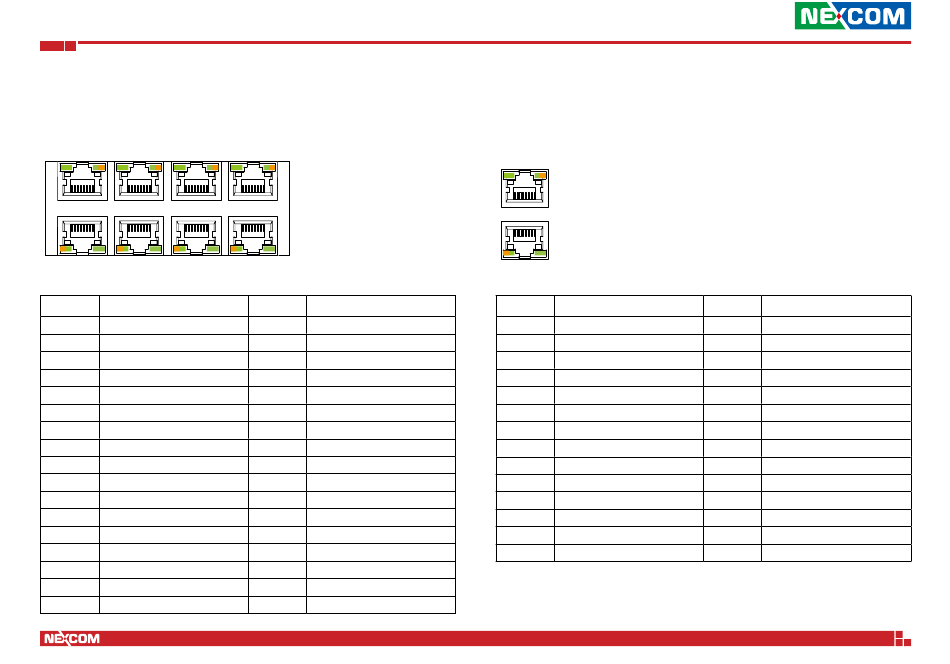

LAN Connector

Connector type: GbE Ethernet switch with PoE+
Connector location: CN4
ACT LINK
10
6 8
8 1 8 1 8 1
8
1 8 1 8 1
11
7 9
Pin Signal
A1 P_LAN2_MDI0P
A2 P_LAN2_MDI0N
A3 P_LAN2_MDI1P
A4 P_LAN2_MDI1N
A5 P_LAN2_MDI2P
A6 P_LAN2_MDI2N
A7 P_LAN2_MDI3P
A8 P_LAN2_MDI3N
A9 GND
A10 GND
AL4 P3V3
AL3 PORT2_ACT_N
AL1 PORT2_L100_N
AL2 PORT2_L1000_N
MH1 CGND
MH2 CGND
MH3 CGND
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
12
8 1
1 8
13
Pin Signal
B1 P_LAN1_MDI0P
B2 P_LAN1_MDI0N
B3 P_LAN1_MDI1P
B4 P_LAN1_MDI1N
B5 P_LAN1_MDI2P
B6 P_LAN1_MDI2N
B7 P_LAN1_MDI3P
B8 P_LAN1_MDI3N
B9 GND
B10 GND
BL4 P3V3
BL3 PORT1_ACT_N
BL1 PORT1_L100_N
BL2 PORT1_L1000_N
MH4 CGND
MH5 CGND
MH6 CGND
LAN Connector
Connector type: 2.5GbE RJ45 port with PoE+
Connector location: CON1
ACT LINK
4
8 1
1 8
5
Pin Signal
A1 LAN1_MDIN0
A2 LAN1_MDIP0
A3 LAN1_MDIN1
A4 LAN1_MDIP1
A5 LAN1_MDIN2
A6 LAN1_MDIP2
A7 LAN1_MDIN3
A8 LAN1_MDIP3
A9 GND
A10 GND
AL4 P3V3
AL3 LAN1_LED_ACT_N
AL1 LAN1_LED_LINK1000_N
AL2 LAN1_LED_LINK2500_N
12
Pin Signal
B1 LAN2_MDIN0
B2 LAN2_MDIP0
B3 LAN2_MDIN1
B4 LAN2_MDIP1
B5 LAN2_MDIN2
B6 LAN2_MDIP2
B7 LAN2_MDIN3
B8 LAN2_MDIP3
B9 GND
B10 GND
BL4 P3V3
BL3 LAN2_LED_ACT_N
BL1 LAN1_LED_LINK1000_N
BL2 LAN2_LED_LINK2500_N
