Chapter 2: Jumpers and Connectors

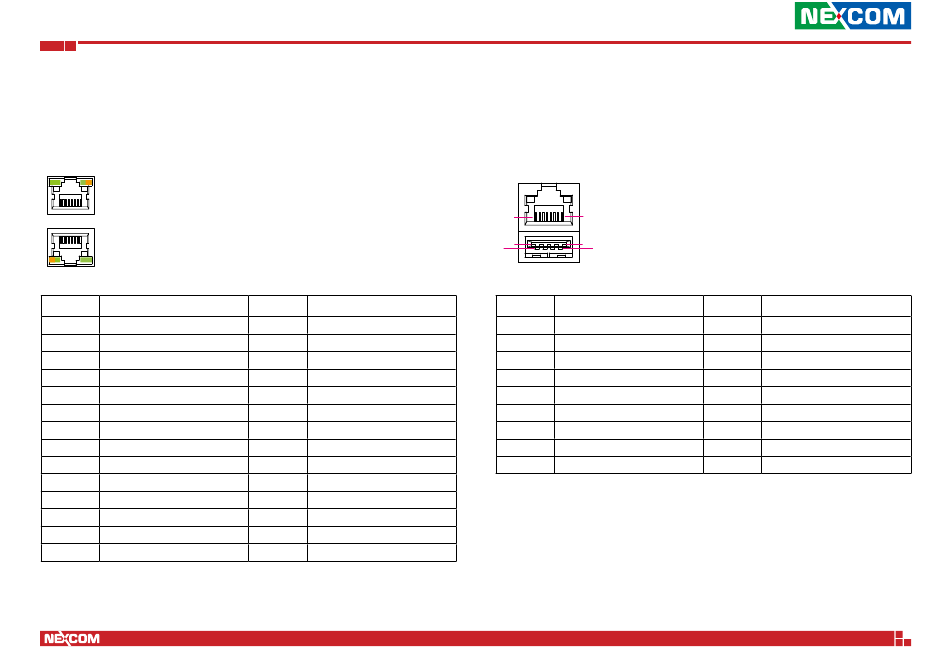

LAN Connector

Connector type: GbE with PoE+
Connector location: CON2
ACT LINK
2
8 1
1 8
3
Pin Signal
A1 Port3_TX0N
A2 Port3_TX0P
A3 Port3_TX1N
A4 Port3_TX1P
A5 Port3_TX2N
A6 Port3_TX2P
A7 Port3_TX3N
A8 Port3_TX3P
A9 GND
A10 GND
AL4 P3V3
AL3 P1_LED2
AL1 P1_LED1
AL2 P1_LED0
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Signal
B1 LAN2_MDIN0
B2 LAN2_MDIP0
B3 LAN2_MDIN1
B4 LAN2_MDIP1
B5 LAN2_MDIN2
B6 LAN2_MDIP2
B7 LAN2_MDIN3
B8 LAN2_MDIP3
B9 GND
B10 GND
BL4 P3V3
BL3 P3_LED2
BL1 P3_LED1
BL2 P3_LED0
Console Port & USB 3.0
Connector type: RJ45 console port & USB 3.0
Connector location: J1
8 1
9 5
4
1
Pin Signal
1 USB_PORT1_VBUS
2 USB2_P1-
3 USB2_P1+
4 GND
5 USB3_RX_D1-
6 USB3_RX_D1+
7 GND
8 USB3_TX_D1-
9 USB3_TX_D1+
14
Pin Signal
P1 SP_RTS1_R
P2 SP_DTR1_R
P3 SP_TXD1_R
P4 SP_DCD1_R
P5 GND
P6 SP_RXD1_R
P7 SP_DSR1_R
P8 SP_CTS1_CON
