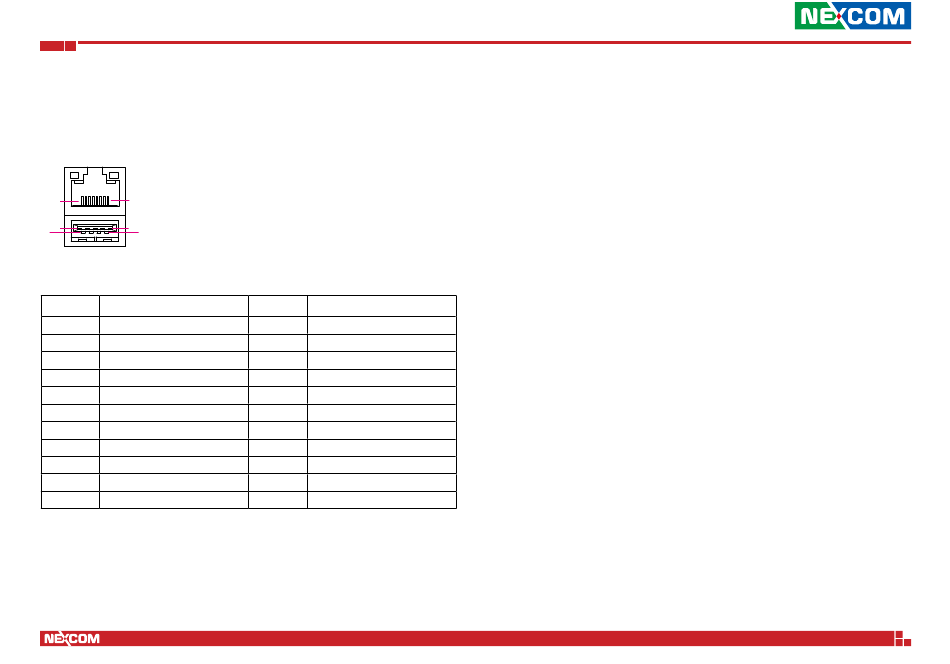

Chapter 2: Jumpers and Connectors
MGMT Port & USB 3.0
Connector type: RJ45 management port & USB 3.0
Connector location: J2
8
1
9
5
4
1
Pin
Signal
1
USB_PORT2_VBUS
2
USB2_P2-
3
USB2_P2+
4
GND
5
USB3_RX_D2-
6
USB3_RX_D2+
7
GND
8
USB3_TX_D2-
9
USB3_TX_D2+
L1
LAN3_LED_LINK100#
L2
LAN3_LED_LINK1G#
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Signal
11
LAN3_TX0P
12
LAN3_TX0N
13
LAN3_TX1P
14
LAN3_TX1N
15
LAN3_TX2P
16
LAN3_TX2N
17
LAN3_TX3P
18
LAN3_TX3N
L3
LAN3_LED_ACT#
L4
P3V3_STBY
15
DFA1163 User Manual
