Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

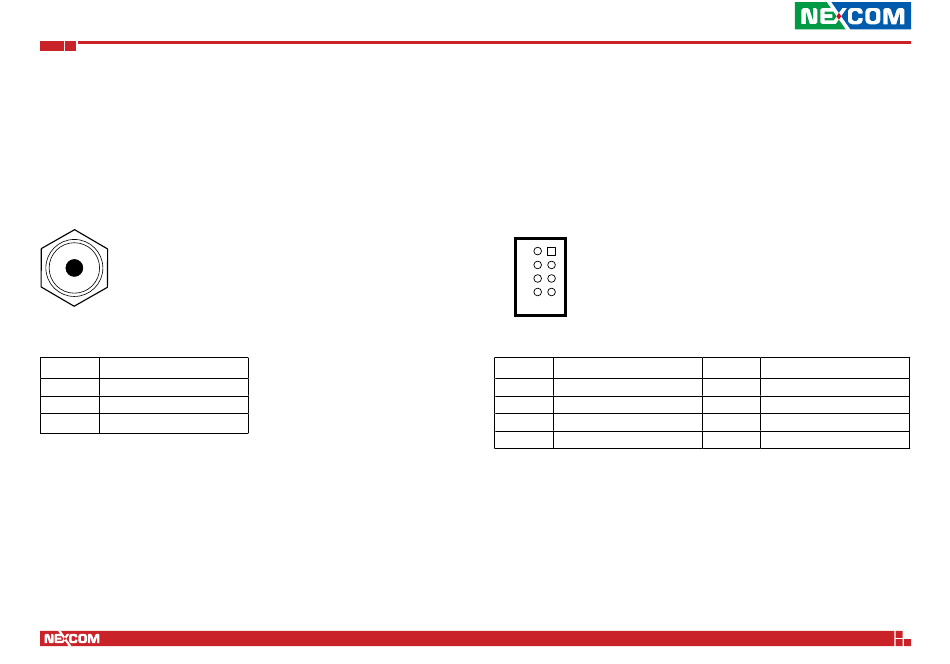

DC-12V Power Connector

Connector type: 12V for x86 system
Connector location: CN1
Pin Description
1 GND
2 GND
3 DC_IN
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.

+54V DC IN

Connector type: 54V for PoE
Connector location: CN8
5 1
8 4
Pin Signal
1 Vmain_54V
2 POE_AGND
3 NA
4 P54V_PG
10
Pin Signal
5 NA-
6 NA
7 POE_AGND
8 POE_AGND
