Chapter 1: Product Introduction

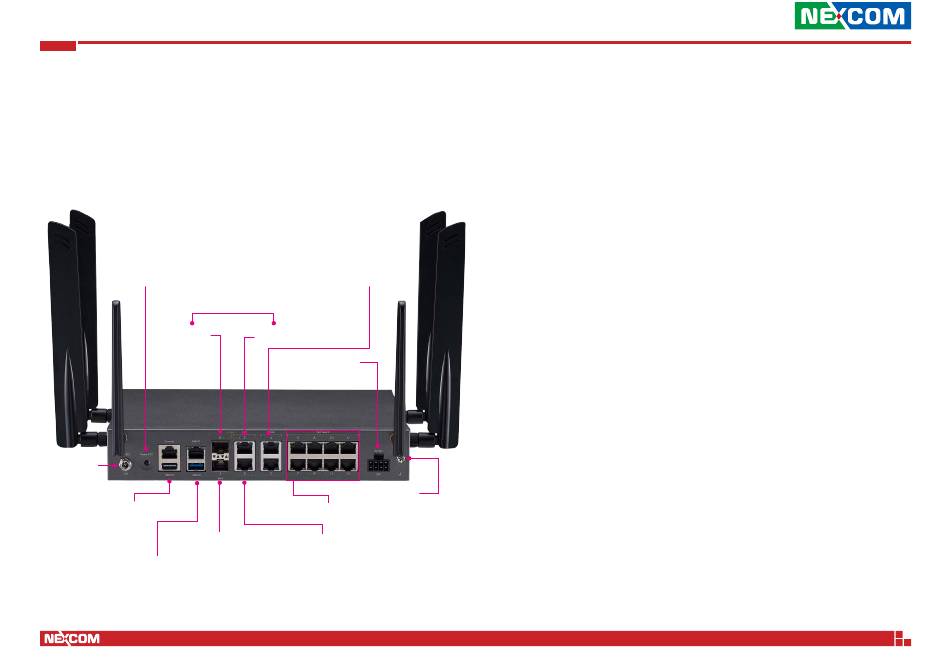

Rear Panel

Power Button
1x SFP
12V DC Input
RJ45 Console + 1x USB 3.0
1x 10G SFP+
MGMT Port + 1x USB 3.0
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
2x 2.5GbE with PoE+
Combo
1x GbE with PoE+
54V DC
Ground Screw
8x GbE Ethernet Switch with PoE+
1x GbE with PoE+
12V DC Input/54V DC Input
12V: Used to plug a DC power cord. (For x86 system)
54V: Used to plug a DC power cord. (For PoE)
Power Button
Press to power-on or power-off the system.
RJ45 Console Port
Used to connect to devices with RJ45 type console connection.
USB 3.0 Ports
Used to connect USB 3.0/2.0 devices.
MGMT Port
For the remote management and configuration of a networking device.
SFP Port
Used to connect SFP transceivers/modules.
Gigabit PoE Ports
Used to connect the system to Powered Device (PD) compliant devices, such
as IP cameras.
GbE Ethernet switch with PoE+
Used for connection with multiple network devices.
Ground Screw
Used for chassis grounding.
Antenna Holes
Used to mount and connect external antennas.
