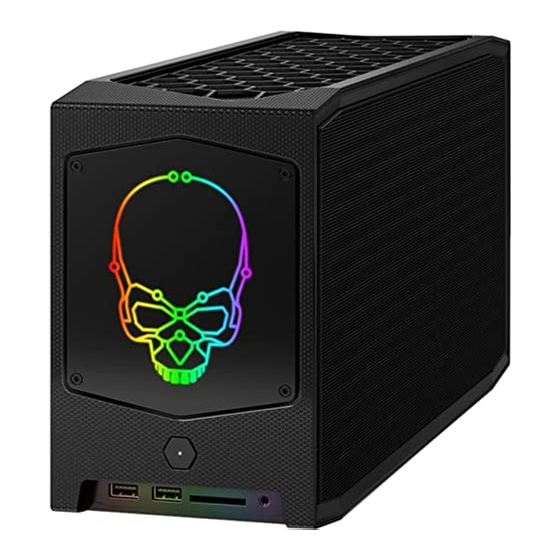

- Page 1 Intel® NUC 11 Extreme Kit NUC11BTMi7 Intel® NUC 11 Extreme Kit NUC11BTMi9 User Guide August 2021 NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 2 You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.
-
Page 3: Table Of Contents
Contents Introduction ..........................5 Before You Begin ............................5 Installation Precautions ..........................5 Observe Safety and Regulatory Requirements ................. 6 Open the Chassis ........................7 System Memory ........................13 Change the M.2 SSD ......................16 Close the Chassis .........................20 Connect Power ........................26 Install an Operating System ..................28 Install the Latest Device Drivers and Software ..........29 NUC11BTMi7, NUC11BTMi9... - Page 4 Revision History Date Revision Description August 2021 Initial release. NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
-
Page 5: Introduction
ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis. Installation Precautions When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions. To avoid injury, be careful of: NUC11BTMi7, NUC11BTMi9 User Guide –... -
Page 6: Observe Safety And Regulatory Requirements
Sharp pins on connectors Sharp pins on circuit boards Rough edges and sharp corners on the chassis Hot components (such as SSDs, processors, voltage regulators, and heat sinks) Damage to wires that could cause a short circuit Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel. -
Page 7: Open The Chassis
Open the Chassis 1. Unscrew the four screws on the rear side of the chassis and shift the cover: 2. Remove back panel: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021... - Page 8 3. Remove the both side panels: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 9 4. Flip the top fan lid: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 10 5. Flip PCIe bracket holder down: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 11 6. Remove Compute Element air flow cover: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 12 7. Remove Compute Element fan assembly: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
-
Page 13: System Memory
System Memory Intel® NUC kit NUC11BTMi7 and NUC11BTMi9 have two 260-pin DDR4 SO-DIMM sockets. Be sure to select memory modules that meet these requirements: 1.2V low voltage memory 1.35V via XMP support 3200 MHz SO-DIMMs Max capacity - 64GB ... - Page 14 3. Align the small space at the bottom edge of the memory module with the key in the socket. 4. Insert the bottom edge of the module at a 45-degree angle into the socket (A). 5. When the module is inserted, push down on the outer edge of module until the retaining clips snap into place (B).
- Page 15 To remove a SO-DIMM, follow these steps: 1. Observe the precautions in "Before You Begin" on page 5. 2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord. 3. Remove the computer’s bottom chassis cover. 4.
-
Page 16: Change The M.2 Ssd
Install an M.2 SSD Intel® NUC kit NUC11BTMi7 and NUC11BTMi9 support 2x 42mm/80mm, 1x80mm, and 1x 80/110mm SSDs. The compute element supports 2x42mm or 3x 80mm. Under the chassis SSD compartment supports 1x 80/110mm. There are no pre-installed SSD available out of the box for the above SKUs. - Page 17 NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 18 NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 19 NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
-
Page 20: Close The Chassis
Close the Chassis After all components have been installed, close the Intel NUC chassis. Intel recommends this be done by hand with a screwdriver to avoid over-tightening and possibly damaging the screws. 1. Close the NUC door and connect two bottom screws: NUC11BTMi7, NUC11BTMi9 User Guide –... - Page 21 2. Install Compute Element air flow cover: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 22 3. Flip PCIe bracket holder up and secure: 4. Close and secure fan assembly lid: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 23 NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 24 6. Install the side panels: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
- Page 25 7. Install the back cover: NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
-
Page 26: Connect Power
Connect Power Each Intel NUC model includes either a region-specific AC power cord or no AC power cord. Product codes Power cord type No power cord included. An AC power cord needs to be purchased separately. The connector on the power RNUC11BTMi70000 adapter is a C13 type connector. - Page 27 NUC11BTMi7, NUC11BTMi9 User Guide – August 2021...
-
Page 28: Install An Operating System
Intel Product Compatibility Tool lists versions of Linux* that have been reported as compatible by Intel NUC owners. If you need assistance with Linux on your Intel NUC, check the distribution’s website and forums for peer assistance. Refer to Operating System Installation for system requirements and installation steps. -
Page 29: Install The Latest Device Drivers And Software
Install the Latest Device Drivers and Software Here are the options for keeping device drivers current: Allow the to detect out-of- Intel® Driver & Support Assistant (Intel® DSA) date drivers Manually download drivers, BIOS, and software from Download Center: NUC11BTMi7 NUC11BTMi9 The following device drivers and software are available.
