5.3.5

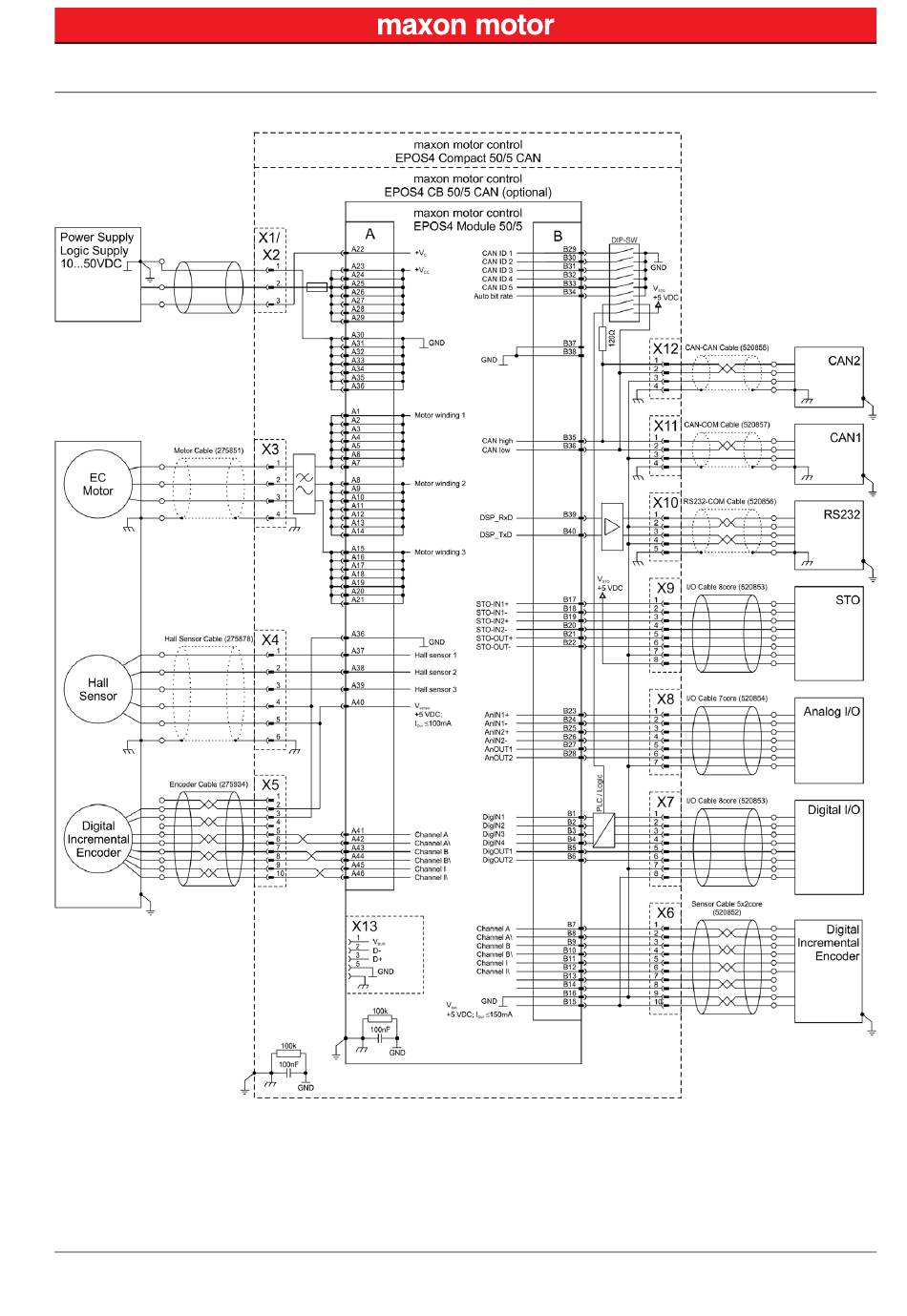

Figure 5-65
maxon motor control
EPOS4 Positioning Controller
EPOS4 Module/Compact 50/5 Hardware Reference
EC Motor – Hall Sensors & Digital & Digital Incremental Encoder
EC motor (Hall sensors & digital & digital incremental encoder)
Document ID: rel8003
Edition: May 2018
© 2018 maxon motor. Subject to change without prior notice.
