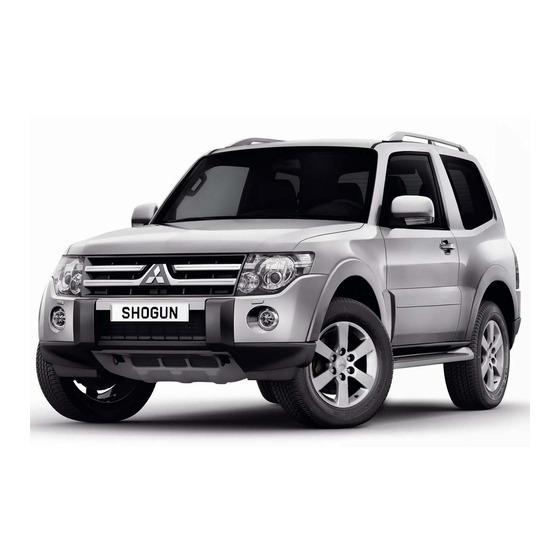

Mitsubishi MOTORS Shogun 2007 Owner's Manual

page of 538

/ 538
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

OWNER'S MANUAL

English

Table of Contents

Chapters

Table of Contents

Summary of Contents for Mitsubishi MOTORS Shogun 2007

Page 1 OWNER’S MANUAL English...
Page 2 Unleaded petrol octane number (EN228) in driving pleasure. death if instructions are not followed. 95 RON or higher MITSUBISHI MOTORS Europe B.V. reserves the right to Diesel-powered vehicles CAUTION Fuel make changes in design and specifications and/or to make...
Page 3 Table of contents Overview General information Locking and unlocking Seat and seat belts Instruments and controls Starting and driving For pleasant driving For emergencies Vehicle care Maintenance Specifications...
Page 4 Overview Instruments and Controls (Driver’s area) E00100102052 Hazard warning flasher switch Supplemental restraint system-airbag Instruments p. 3-2 p. 3-66 (for driver’s seat) p. 2-58 Horn switch p. 3-78 Daytime dipper button (meter illumination control) p. 3-9 Combination headlamps Windscreen wiper and washer and dipper switch p.
Page 5 Overview Supplemental restraint system-airbag Daytime dipper button (for driver’s seat) p. 2-58 (meter illumination control) Instruments p. 3-2 Horn switch p. 3-78 p. 3-9 Windscreen wiper and washer switch p. 3-68 Hazard warning flasher Rear window wiper and switch p. 3-66 washer switch p.
Page 6 Overview Instruments and Controls (Instrument panel) E00100102788 Audio* p. 5-20, 5-43 Mitsubishi Multi Communication System* Refer to the separate “Mitsubishi Multi Communication System owner’s manual” Front automatic air conditioning Front passenger’s airbag OFF indication lamp p. 2-63 p. 5-4 Centre information Centre ventilators p.
Page 7 Overview Audio* p. 5-20, 5-43 Front passenger’s airbag OFF indication lamp p. 2-63 Mitsubishi Multi Communication System* Refer to the separate “Mitsubishi Multi Centre ventilators p. 5-2 Centre information Communication System owner’s manual” Supplemental restraint system - airbag display p. 3-17 (for front passenger’s seat) p.
Page 8 Overview Interior E00100202415 Electric win- Sunglasses holder* p. 5-98 Luggage compartment lamp dow lock switch p. 5-88, 8-38, 8-52 Electric window control Sunroof switch* p. 1-18 p. 1-16 p. 1-21 Central door lock switch Room & map lamp p. 5-87, 8-38, 8-50 p.
Page 9 Overview Sunglasses holder* p. 5-98 Luggage compartment lamp Electric window control Central door lock p. 5-88, 8-38, 8-52 p. 1-16 switch p. 1-9 Sunroof switch* Electric window p.1-21 lock switch Room & map lamp p. 5-87, 8-38, 8-50 p. 1-18 Interior lamp switch p.
Page 10 Overview Luggage area E00100400963 3-door models Rear shelf* p. 5-101 Jack p. 6-11 Jack handle p. 6-11 Tools p. 6-11 Accessory socket p. 5-83 Securing bands of warning triangle p. 5-107 Luggage hooks p. 5-105 5-door models Accessory socket p. 5-83 Cargo area cover* p.
Page 11 Overview Outside (Front) E00100502434 Electric window control p. 1-16 Rain sensor* p. 3-71 Rear side/quarter window p. 1-20 Sunroof* p. 1-21 Antenna p. 5-77 Windscreen wiper and washer p. 3-68 Locking and unlocking p. 1-7 Engine compartment p. 9-16 Keyless entry system* p. 1-5 Bonnet p.
Page 12 Overview Outside (Rear) E00100502564 High-mounted stop lamp p. 8-36, 8-48 Rear window wiper and washer p. 3-75 Spare wheel p. 6-17 Backdoor p. 1-13 Rear-view camera* p. 4-84 Spare wheel garnish p. 6-18 Fuel tank filler p. 3 Licence plate lamps Tyre inflation pressure p.
Page 13: Table Of Contents
General information Fuel selection ......Filling the fuel tank ......Installation of accessories .
Page 14: Fuel Selection
Use of any other type of diesel fuel can adversely ence these problems, try another brand and/or grade of affect the engine. petrol. If the check engine warning lamp flashes, have the system checked as soon as possible at a MITSUBISHI MOTORS Authorized Service Point.
Page 15: Filling The Fuel Tank
Any static electricity on make the engine malfunction. For details, please contact your body could create a spark that ignites fuel your MITSUBISHI MOTORS Authorized Service Point. vapor. ● Perform the whole refuelling process (opening the fuel tank filler door, removing the fuel cap, etc.) by...
Page 16 General information Refueling 1. Before filling with fuel, stop the engine. 2. The fuel tank filler is located on the rear right side of your vehicle. Open the fuel tank filler door with the release lever located below the instrument panel.
Page 17 General information 3. Open the fuel tank filler tube by slowly turning the cap 4. Insert the gun in the tank port as far as it goes. anticlockwise. CAUTION ● Do not tilt the gun. 5. When the gun stops automatically, do not fill with fuel any more.
Page 18: Installation Of Accessories
We recommend you to consult your MITSUBISHI MOTORS ferent manufactures available in the market, it is not possible, Authorized Service Point. not only for MITSUBISHI MOTORS, but also for a MIT- ● The installation of accessories, optional parts, should only SUBISHI MOTORS Authorized Service Point, to check...
Page 19: Modification/Alterations To The Electrical Or Fuel Systems
General information Modification/alterations to the electrical or Genuine parts fuel systems E00200500330 MITSUBISHI MOTORS has gone to great lengths to bring you E00200400254 a superbly crafted automobile offering the highest quality and MITSUBISHI MOTORS has always manufactured safe, high dependability.
Page 20: Used Engine Oils Safety Instructions And Disposal Information
General information Used engine oils safety instructions and dis- posal information E00200600025 WARNING ● Prolonged and repeated contact may cause serious skin disorders, including dermatitis and cancer. ● Avoid contact with the skin as far as possible and wash thoroughly after any contact. ●...
Page 21 Locking and unlocking Keys ........1- Electronic immobilizer (Anti-theft starting system).
Page 22: Keys
Locking and unlocking Keys Type 2 E00300101161 The keys fit all locks. Type 1 NOTE ● The key number is stamped on the tag as indicated in the illustration. Make a record of the key number and store the key and key number tag in separate places, so that you can order a key in the event the original keys are lost.
Page 23: Electronic Immobilizer (Anti-Theft Starting System)
Locking and unlocking ● The key is a precision electronic device with a built-in sig- Electronic immobilizer nal transmitter. Please observe the following in order to (Anti-theft starting system) prevent damage. E00300201087 • Do not leave where it may be exposed to heat caused by The electronic immobilizer is designed to reduce significantly direct sunlight, such as on top of the dashboard.
Page 24 (including keys of other vehicles) (Type C) In cases like these, remove the object or additional key from the vehicle key. Then try again to start the engine. If the engine does not start, we recommend you to con- tact your MITSUBISHI MOTORS Authorized Service Point.
Page 25: Keyless Entry System
Locking and unlocking ● Electronic immobilizer is not compatible with remote Keyless entry system starting systems. Use of these systems may result in vehi- E00300301394 cle starting problems and a loss of security protection. Press the remote control switch, and all doors (including the ●...
Page 26 • The indication lamp (3) is dim or does not come on. ● If your remote control switch is lost or damaged, please contact your MITSUBISHI MOTORS Authorized Service Point for a replacement remote control switch.
Page 27: Doors
Locking and unlocking ● If you wish to add a remote control switch, we recom- Doors mend you to contact your MITSUBISHI MOTORS E00300401177 Authorized Service Point. CAUTION A maximum of 4 remote control switches are available for your vehicle.
Page 28 Locking and unlocking To lock or unlock from inside the vehicle To lock without using the key Front door 1- Lock 2- Unlock Set the inside lock knob (1) to the locked position, and while Pull the inside door handle towards you to open the door. pulling the outside handle up (2), close the door (3).
Page 29: Central Door Locks
Locking and unlocking Central door locks Rear door (5-door models) E00300800969 NOTE ● Each of the doors can be locked or unlocked independ- ently by using the inside lock knob. ● Repeated continuous operation between lock and unlock could activate the central door locking systems built-in protection circuit and prevent the system from operating.
Page 30 Locking and unlocking Driver’s door with key Driver’s door with central door lock switch Using the key on the driver’s door locks or unlocks all doors Using the central door lock switch locks or unlocks all doors (including the backdoor). (including the backdoor).
Page 31: Child-Protection" Rear Doors (5-Door Models)
Locking and unlocking “Child-protection” rear doors CAUTION (5-door models) ● When driving with a child in the rear seat, please E00300900263 use the child protection to prevent accidental door opening which may cause an accident. 1- Lock 2- Unlock Child protection helps prevent the rear doors from being opened accidentally from the inside.
Page 32: Approach Lamp
Locking and unlocking Approach lamp NOTE ● The lamps go off immediately if: E00306100023 • All the doors (including the backdoor) are locked by The lamps (A) in the bottom of each mirror illuminate the road means of the key in the driver’s door, the keyless entry surface while people are entering or exiting the vehicle.
Page 33: Backdoor
Locking and unlocking Backdoor To lock or unlock from outside the vehicle (Except for vehicles with keyless entry system) E00301300336 WARNING ● It is dangerous to drive with the backdoor open since carbon monoxide (CO) gas can enter the cabin. You cannot see or smell CO.
Page 34 Locking and unlocking To lock or unlock from inside the vehicle NOTE ● Repeated continuous operating between lock and unlock The backdoor can be locked or unlocked by using the central could cause the central door lock’s built-in protection cir- door lock switch.
Page 35 Locking and unlocking To open Backdoor stopper Pull the outside handle towards you to open the backdoor. Open the backdoor fully and then move the locking tube (A) to the LOCK position (B); this will ensure that the backdoor remains in the fully opened position. To subsequently release the stopper, move the locking tube back to the UNLOCK posi- tion (C).
Page 36: Electric Window Control
Locking and unlocking Electric window control Driver’s switch (RHD) E00302200185 The electric windows can only be operated with the ignition switch in the “ON” position. Electric window control switch E00302300766 Each door window opens or closes while the corresponding switch is operated. Driver’s switch (LHD) 1- Driver’s door window 2- Front passenger’s door window...
Page 37 Locking and unlocking Passenger’s switches NOTE ● Repeated operation with the engine stopped will run down The passenger’s switches can be used to operate the corre- the battery. Operate the window switches only while the sponding passenger’s door windows. engine is running. Press the switch down for opening the window, and pull up the switch for closing.
Page 38 Locking and unlocking Lock switch WARNING E00303100501 When this switch is operated, the passenger’s switches cannot ● A child may tamper with the switch at the risk of its be used to open or close the door windows. hands or head being trapped in the window. When To unlock, press it once again.
Page 39 Locking and unlocking Safety mechanism NOTE ● The safety mechanism can be activated if the driving con- E00302500218 If a hand or head is trapped in the closing window, it will lower ditions or other circumstances cause the door windows to automatically.
Page 40: Rear Side/Quarter Window
Locking and unlocking Rear side/quarter window 2. Push the lever towards the outside of the vehicle. 3. Push the lever towards the rear of the vehicle to secure it E00302600091 in place. To open 1. Pull the lever towards you. To close Pull the lever, returning it to its original position and securing it in place.
Page 41: Sunroof
Locking and unlocking Sunroof To tilt up, press switch (1). The rear sunroof raises for ventilation. E00302700832 The sunroof can only be operated with the ignition switch in NOTE the “ON” position. ● When the sunroof is tilted up, the sunshade is automati- cally opened slightly.
Page 42 Locking and unlocking Lock switch Safety mechanism When this switch is operated, the sunroof switch cannot be If a hand or head is trapped in the closing sunroof, it will re- used to open or close the sunroof. open automatically. To unlock, press it once again.
Page 43 Locking and unlocking 4. After pressing switch (3) to perform full opening, press Sunshade switch (2) to fully close the sunroof. Slide the sunshade manually to open and close it. NOTE ● The safety mechanism can be activated if the driving con- ditions or other circumstances cause the sunroof to be sub- jected to a physical shock similar to that caused by a trapped hand or head.
Page 44 Locking and unlocking NOTE ● If the sunroof is stopped midway, the sunshade will no longer be able to close together with the sunroof. In such a situation, press switch (2) to fully open the sunroof and then press switch (1). ●...
Page 45 Locking and unlocking NOTE ● The sunroof stops just before reaching the fully open posi- tion. If the vehicle is driven with the sunroof in this position, wind throb is lower than with the sunroof fully open. ● When leaving the vehicle unattended, make sure you close the sunroof and remove the ignition key.
Page 47 Seat and seat belts Seats ........2- Seat arrangement .
Page 48: Seats
Seat and seat belts Seats E00400100820 1- Front seats 2- Rear seats (3-door models)* / Second seats ● To adjust forward or backward → p. 2-6 (5-door models)* ● To recline the seatback → p. 2-7 ● To recline the seatback → p. 2-13 ●...
Page 49: Seat Arrangement
Seat and seat belts Seat arrangement E00400200515 By operating the front, rear/second or third seat select the desired seat arrangement. 3-door models 5-door models Normal usage Flat seat* → p. 2-35...
Page 50 Seat and seat belts 3-door models 5-door models Folding the rear seatbacks forward (3- door models)/folding the second seat- backs forward (5-door models) → p. 2-20 Folding the rear seats (3-door models)/ folding the second seats (5-door models) → p. 2-22 How to stow large articles Storage of the third seat →...
Page 51: Seat Adjustment
Seat and seat belts Seat adjustment CAUTION E00400300314 ● Make sure the seat is adjusted by an adult or with Adjust the driver’s seat so that you are comfortable and that adult supervision for correct and safe operation. you can reach the pedals, steering wheel, switches etc. while ●...
Page 52: Front Seats
Seat and seat belts Front seats Power type Adjust the seat by operating the switch as indicated by the E00400400100 arrows. To adjust forward or backward E00400500055 Manual type Pull the seat adjusting lever and adjust the seat forward or backward to the desired position, and release the adjusting lever.
Page 53 Seat and seat belts To recline the seatback Power type Adjust the seatback angle by operating the switch as indicated E00400600056 by the arrows. Manual type In order to recline the seatback, lean forward slightly, pull the seatback lock lever up, and then lean backward to the desired position and release the lever.
Page 54 Seat and seat belts To adjust seat cushion height E00400700451 Manual type To adjust the seat cushion height, turn the dial as shown in the illustration. 3- To move the rear of the seat cushion up 4- To move the rear of the seat cushion down 1- To move the front of the seat cushion up 2- To move the front of the seat cushion down...
Page 55 Seat and seat belts Power type To adjust the seat cushion height, operate the switch as indi- cated by arrows. NOTE ● To prevent the battery from running down, operate the power seat with the engine running. 2- To move the rear of the seat cushion up and down 1- To move the front of the seat cushion up and down 3- To move the whole seat cushion up and down...
Page 56 Seat and seat belts Lumbar support adjustment (Power type, Armrest driver’s seat) E00400900118 Slide forward the centre console lid while pressing the right E00400800032 upper lever (A). A lumbar support adjustment is located in the seatback of the driver’s seat. To adjust the lumbar support, operate the switch as indicated by arrows.
Page 57 Seat and seat belts To get in and out of the rear seat WARNING (3-door models, passenger’s seat) ● Do not drive the vehicle with the seatback folded E00401000044 forward. The seat is not retained with the seatback The lever can be used to make getting in and out easier. in this position, so serious injuries could be suffered Pull up the lever (A) or depress the pedal (B), tilt the seatback in the event of hard braking or a collision.
Page 58 Seat and seat belts Heated seats* CAUTION E00401100289 ● Operate in the high position for quick heating. Once The heated seats can be operated with the ignition switch in the “ON” position. Operate the switch as indicated by arrows. the seat is warm, set the heater to low to keep it warm.
Page 59: Rear Seats (3-Door Models)*/Second Seats (5-Door Models)
Seat and seat belts Rear seats (3-door models)*/ To recline the seatback Second seats (5-door models)* E00402200157 In order to recline the seatback, lean forward slightly, pull the seatback lock lever up, and then lean backward to the desired E00402000184 position and release the lever.
Page 60 Seat and seat belts Armrest CAUTION E00402400218 ● The reclining mechanism of the seatback is spring For rear seats (3-door models) loaded, causing it to return to the vertical position Press the button (A) at the top of the armrest and allow the when the lock lever is operated.
Page 61 Seat and seat belts For second seats (5-door models) To get in and out of the third seat (5-door models) Lift the centre head restraint and then tilt the armrest for use as E00402500163 Getting in and out of the third seat can be made easily by fold- illustrated.
Page 62: Third Seat (5-Door Models)
Seat and seat belts Third seat (5-door models) Head restraints E00402700149 E00403300474 To recline the seatback WARNING E00402800124 In order to recline the seatback, lean forward slightly, pull the ● Driving without the head restraints in place can seatback lock lever as shown in the illustration, and then lean cause you and your passengers serious injury or backward to the desired position and release the lever.
Page 63 Seat and seat belts To adjust height To adjust forward or backward Adjust the head restraint height so that the centre of the Tilt the head restraint towards you to adjust it forward. To restraint is as close as possible to eye level to reduce the adjust it backward, tilt the head restraint backward.
Page 64 Seat and seat belts To remove CAUTION Lift the head restraint with the height adjusting knob (A) ● Confirm that the height adjusting knob (A) is cor- pushed in. rectly adjusted as shown in the illustration, and also To install lift the head restraints to ensure that they do not Confirm that the head restraint is facing the correct direction, come out of the seatback.
Page 65: Making A Luggage Area
Seat and seat belts Making a luggage area CAUTION E00403400013 ● The head restraints for the seats differ in shape and CAUTION size. When installing head restraints, make sure the head restraints are fitted in their respective seats. ● Do not stack luggage above the seatback height. Secure the luggage firmly.
Page 66 Seat and seat belts Folding the rear seatbacks forward (3-door mod- 2. Lift up the knob (A) behind the seatback, then tilt the seat- back forward. els) / Folding the second seatbacks forward (5-door models) E00403500232 The passenger and luggage compartments can be joined by folding the rear (3-door models) / second (5-door models) seat- back forward.
Page 67 Seat and seat belts 3. Push the seat until you hear a “click” and the seat locks To replace securely. Raise the seatback until it locks securely into place. Push lightly on the seatback to confirm that it has actually been secured.
Page 68 Seat and seat belts Folding the rear seats (3-door models) / Folding To fold 1. If your vehicle is equipped with a rear shelf (3-door mod- the second seats (5-door models) els) / cargo area cover (5-door models), remove it before E00403700221 To create luggage space, you can fold the rear (3-door models)/ performing the following steps.
Page 69 Seat and seat belts 3. Lift the seat until you hear a “click”. To replace 1. Hold the seat with your hand, then return the seat to its original position while pushing the stopper (A). 2-23...
Page 70 Seat and seat belts 2. Push the seat until you hear a “click” and the seat locks 3. Raise the seatback until it locks securely into place. securely. Push lightly on the seatback to confirm that it has actually been secured. 2-24...
Page 71 Seat and seat belts Storage of the third seat 2. Stow the removed head restraints in the luggage floor box with their front faces facing upward. E00404100206 By folding the third seat into the luggage floor box, large arti- cles can be stored in the vehicle. To store 1.
Page 72 Seat and seat belts 3. Pull up knob (C) on the side of the seatback, then tilt the 4. Push lever (D) forward, then tilt the seatback forward seatback forward. until the seatback touches the seat cushion. CAUTION ● Do not drive with luggage placed on the forward- folded seatback.
Page 73 Seat and seat belts 5. Pull lever (E), fold the seat backward, and store it into the CAUTION luggage floor box. ● When folding the seat away into the luggage floor box, hold the seat by hand and fold it slowly. If the seat is not held properly, it might fall under its own weight during folding and pinch your hand.
Page 74 Seat and seat belts 6. Fold down the stand (F). To replace 1. Remove the luggage floor board. And then raise the stand. 2. Raise the seat forward until you hear a “click” and the seat locks securely. 7. Refit the luggage floor board. 2-28...
Page 75 Seat and seat belts 3. Push knob (A) forward, and raise the seatback until it Removing the third seat locks securely into place. E00404200122 To create more luggage space, you can remove the third seat. After the operation, push lightly on the seatback to con- firm that it has actually been secured.
Page 76 Seat and seat belts To remove 3. Push the lever (B) forward, then tilt the seatback forward until the seatback touches the seat cushion. 1. Remove the head restraints. Refer to “Head restraints” on page 2-16. 2. Pull up the knob (A) on the side of the seatback, then tilt the seatback forward.
Page 77 Seat and seat belts 4. Pull the seat lock lever (C). 5. Fold the stands (D) towards you from the seat side, while lifting the front end of the seat. 2-31...
Page 78 Seat and seat belts 6. Put down the front end of the seat to the floor. In this situ- 7. Remove the covers (E) by turning the knob (F) anticlock- ation, the seat locking system is unlocked automatically. wise. G- Unlock H- Lock 2-32...
Page 79 Seat and seat belts 8. Hold the seat as shown in the illustration, remove the seat CAUTION by sliding it backward. ● Do not sit or place luggage on the removed seat. Any weight placed on the folded seat could deform the seat mountings, preventing the seat from being locked securely onto the floor.
Page 80 Seat and seat belts To refit 2. Confirm that the seat’s mounting arms are secured by the hooks (A). 1. Push the seat’s mounting arms into the luggage compart- ment’s fixtures. 3. Fold the stands forward from the seat side, while lifting the front end of the seat.
Page 81: Making A Flat Seat
Seat and seat belts Making a flat seat 5. Push the knob (B) forward, raise the seatback until it locks securely into place. E00404300048 After the operation, push the seatback lightly to confirm By removing the head restraints and fully reclining the seat- that it has actually been secured.
Page 82 Seat and seat belts 1. If your vehicle is equipped with a rear shelf (3-door mod- 3. Slide the front seats fully forward, then tip their seatbacks els) / cargo area cover (5-door models), remove it before backward. performing the following steps. On 5-door models, slide the front seats backward until Refer to “Rear shelf (3-door models)”...
Page 83 Seat and seat belts 4. On 3-door models, remove the head restraints from the NOTE ● On 5-door models, each of the second seat’s sidebacks (A) rear seat. Recline the rear (3-door models) / second (5-door models) is foldable. When either side of the seatback is reclined to seatback backward.
Page 84: Seat Belts
Seat and seat belts Seat belts 5. On 3-door models, store the front head restraints and rear centre head restraint between the front seats. E00404800072 And store the rear outboard head restraints on the side of To protect you and your passengers in the event of an accident, the rear seat.
Page 85 Seat and seat belts 3-point type seat belt (with emergency locking WARNING mechanism) ● No modifications or additions should be made by the E00404900871 user which will either prevent the seat belt adjusting This type of belt requires no length adjustment. Once worn, the devices from operating to remove slack, or prevent belt adjusts itself to the movement of wearer, but in the event of the seat belt assembly from being adjusted to...
Page 86 Seat and seat belts Seat belt reminder/warning lamp WARNING E00409800338 The seat belt warning lamp is located on the instrument panel. ● Never wear the lap portion of the belt across your A tone and warning lamp are used to remind the driver to fas- abdomen.
Page 87 Seat and seat belts Adjustable seat belt anchor (front seats) Rear / second, third seat belt storage* E00405000286 E00405300029 The seat belt anchor height can be adjusted. When the seat belt is not in use, store it as shown in the illustra- Move the seat belt anchor down with the lock knob (A) tion.
Page 88 Seat and seat belts Seat belt plate storage Seat belt buckle storage After passing the belt through the rear notch (A), insert the Store the seat belt buckle in the storage pocket. plate into the front notch (B). Rear/Second seat Third seat (5-door models) 2-42...
Page 89: Pregnant Women Restraint
Seat and seat belts Pregnant women restraint Seat belt pre-tensioner system and force limiter system E00405600064 WARNING E00405700081 The driver’s seat and front passenger’s seat each have a seat belt equipped with a pre-tensioner system. ● Seat belts work for everyone, including pregnant women.
Page 90: Child Restraint
● If you need to scrap the vehicle, please consult a When transporting children in your vehicle, some type of child MITSUBISHI MOTORS Authorized Service Point. restraint system should always be used according to the size of It is important to do so because unexpected activa- the child.
Page 91 Seat and seat belts Caution for installing the child restraint on vehi- Use rearward facing child restraints in the rear seat or turn off the front passenger’s airbag ON-OFF switch. (Refer to “To turn cles with a front passenger airbag an airbag off”...
Page 92 Seat and seat belts Infants and small children WARNING E00406600641 When transporting infants and small children in your vehicle, ● A FORWARD FACING CHILD RESTRAINT follow the instruction given below. should be used in the rear seat whenever possible; if used in the front seat, adjust the seat to the most rearward position.
Page 93 Seat and seat belts ● Before purchasing a child restraint system, try installing it NOTE ● Depending on the seating position in the vehicle and the in the rear seat to make sure there is a good fit. Because of the location of the seat belt buckles and the shape of the child restraint system that you have, the child restraint can seat cushion, it may be difficult to securely install some...
Page 94 Seat and seat belts Suitability for various ISOFIX positions E00411400038 Vehicle ISOFIX positions Mass Group Size class Fixture Rear / second Outboard Front Passenger Rear Centre Left side Right side Carrycot ISO/L1 ISO/L2 - Up to 10 kg ISO/R1 - Up to 13 kg ISO/R1 IL, IL* ISO/R2...
Page 95 ● X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class. IL (Genuine part information) Genuine part No. ECE No. MZ313045 E1-04301133 MZ313589 E1-04301146 NOTE ● MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point. 2-49...
Page 96 ● U- Suitable for “universal” category restraints approved for use in this mass group. ● UF- Suitable for forward-facing “universal” category restraints approved for use in this mass group. ● L- Suitable for particular child restraints (MITSUBISHI MOTORS genuine parts). ● B- Built-in restraint approved for this mass group.
Page 97 E1-04301148 NOTE ● There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0- Up to 10 kg”. MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
Page 98 ● U- Suitable for “universal” category restraints approved for use in this mass group. ● UF- Suitable for forward-facing “universal” category restraints approved for use in this mass group. ● L- Suitable for particular child restraints (MITSUBISHI MOTORS genuine parts). ● B- Built-in restraint approved for this mass group.
Page 99 E1-04301148 NOTE ● There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0- Up to 10 kg”. MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement. For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
Page 100 Seat and seat belts Installing a child restraint system to the lower Tether anchorage locations There are 2 attachment points on the floor, located behind the anchorage (ISOFIX child restraint mountings) rear seat (3-door models) / second seat (5-door models). These and tether anchorage* are for securing a child restraint system tether strap to both of E00408900169...
Page 101 Seat and seat belts Child restraint system with ISOFIX mountings To install 1. Remove any foreign material in or around the connectors The child restraint system is designed only for seats that incor- and ensure the vehicle seat belt is in its normal storage porate lower anchorages.
Page 102 Seat and seat belts 3. Remove the head restraint from the location in which you WARNING wish to install a child restraint. 4. Open the cover from the tether anchor installation point ● Do not latch the top tether strap hook to any place, by pulling it back with your hand as illustrated.
Page 103 Seat and seat belts Installing a child restraint system to a 3-point 3. Push and pull the child restraint in all directions to be sure it is secure. type seat belt E00408700428 WARNING 3-door models ● For some types of child restraint, the locking clip (A) should be used to help avoid personal injury during a collision or sudden manoeuvre.
Page 104: Seat Belt Inspection
MITSUBISHI MOTORS Author- to-severe side impact collisions. ised Service Point. Incorrect repair or replacement...
Page 105 Seat and seat belts How the supplemental restraint system works E00407300922 The SRS includes the following components: 5- Side airbag modules* 6- Curtain airbag modules* The airbags will operate only when the ignition switch is in the 1- Airbag module (Driver) “ON”...
Page 106 Seat and seat belts CAUTION WARNING ● Airbags inflate at an extremely rapid speed. In cer- ● Do not sit on the edge of the seat, or lean head or tain situations, contact with inflating airbags can chest close to the steering wheel or instrument panel. result in abrasions, light cuts, bruises, and the like.
Page 107 Seat and seat belts Use rearward facing child restraints in the rear seat or turn off WARNING the front passenger’s airbag ON-OFF switch. (Refer to “To turn ● Infants and small children should never be unre- an airbag off” on page 2-64.) strained, stand up against the instrument panel or held in your arms or on your lap.
Page 108 Seat and seat belts Caution for installing the child restraint on vehi- WARNING cles with a front passenger airbag ● A FORWARD FACING CHILD RESTRAINT E00408800012 should be used in the rear seat whenever possible; if The label shown here is attached on vehicles with a front pas- it must be used in the front passenger seat, adjust senger airbag.
Page 109 Seat and seat belts Front passenger’s airbag ON-OFF switch Front passenger’s airbag OFF indication lamp E00411500026 E00410100070 The front passenger’s airbag off indicator is located in the The front passenger’s airbag ON-OFF switch can be used to instrument panel. disable the front passenger’s airbag. If you have a rearward facing child restraint system that cannot be fitted to any seat other than the front passenger seat, be sure to turn OFF the front passenger’s airbag ON-OFF switch before using it.
Page 110 Seat and seat belts To turn an airbag off WARNING E00410600075 ● Do not fit any accessory that makes the indicator WARNING impossible to see, and do not cover the indicator with a sticker. You would not be able to verify the ●...
Page 111 Seat and seat belts To turn an airbag off, follow these steps: Driver’s and passenger’s front airbag system 1. Insert the key into the airbag ON-OFF switch, and turn it E00407400372 The driver’s airbag is located under the padded cover in the to the “OFF”...
Page 112 Seat and seat belts Deployment of front airbags The front airbags will deploy if the severity of impact is above the designed threshold level, comparable to an approximately E00407500067 25 km/h (15 mph) collision when impacting straight into a solid The front airbags ARE DESIGNED TO DEPLOY wall that does not move or deform.
Page 113 Seat and seat belts The front airbags MAY NOT DEPLOY when... The front airbags ARE NOT DESIGNED TO DEPLOY With certain types of frontal collisions, the vehicle’s body when... structure is designed to absorb the shock to help protect the The front airbags are not designed to deploy in conditions occupants from harm.
Page 114 Seat and seat belts The front airbags MAY DEPLOY when... WARNING The front airbags may deploy if the bottom of the vehicle suf- ● Do not attach anything to the steering wheel padded fers a moderate to severe impact (undercarriage damage). cover, such as trim material, badges, etc.
Page 115 ● The airbag system is designed to work only once. Once the airbags have deployed, they will not work again. They must promptly be replaced, and we rec- ommend you to have the entire airbag system inspected by a MITSUBISHI MOTORS Authorized Service Point. 2-69...
Page 116 Seat and seat belts The label shown here is attached to the seatbacks with a side Curtain airbag system* airbag. E00409100243 The curtain airbags are contained in the front pillars and roof side rail. The curtain airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat or rear (3-door models)/second (5-door models) seat.
Page 117 Seat and seat belts Deployment of side airbags and curtain airbags The side airbags and curtain airbags MAY NOT DEPLOY when... E00407700375 With certain types of side collisions, the vehicle’s body struc- The side airbags and curtain airbags ARE DESIGNED ture is designed to absorb the shock to help protect the occu- TO DEPLOY when...
Page 118 Seat and seat belts 1- Side impacts in an area away from the passenger compart- 4- Oblique side impacts ment 5- Vehicle rolls onto its side or roof 2- Motorcycle or other similar small vehicle collides with the Because the side airbags and curtain airbags do not protect the side of vehicle occupant in all types of side collisions, be sure to always prop- 3- Collision with a utility pole, tree or other narrow object...
Page 119 Seat and seat belts The side airbags and curtain airbags ARE NOT WARNING DESIGNED TO DEPLOY when... ● The side airbags and curtain airbags are designed to The side airbags and curtain airbags are not designed to deploy supplement the protection through the driver and in conditions where they cannot usually provide protection to passenger seat belts in certain side impacts.
Page 120 Seat and seat belts WARNING WARNING ● Do not allow any rear seat occupant to hold onto the ● Do not attach a microphone (A) or any other device seatback of either front seat, in order to reduce risk or object around the part where the curtain airbags of injury from a deploying side airbag.
Page 121 Failure to follow all these instructions could lead to serious or fatal injury to the child. ● We recommend work around and on the side air- bags and curtain airbags system to be done by a MITSUBISHI MOTORS Authorized Service Point. 2-75...
Page 122 ● We recommend any maintenance performed on or inspected by a MITSUBISHI MOTORS Authorized near the components of the SRS to be performed by Service Point immediately.
Page 123 SRS and refer that owner to the applica- ble section in this owner’s manual. ● If your vehicle has to be scrapped do this in line with local legislation and contact a MITSUBISHI MOTORS Authorized Service Point to safely dismantle the airbag system.
Page 125 Instruments and controls Instruments.......3- Indicator and warning lamps ....3- 10 Indicator lamps.
Page 126: Instruments
Instruments and controls Instruments Tachometer E00500300458 E00500100241 The tachometer indicates the engine speed (r/min). The tachometer helps you to obtain more economical driving and also warns you of excessive engine speeds (Red zone). 1- Speedometer (km/h or mph + km/h) 2- Tachometer 3- Tripmeter reset button/Daytime dipper button CAUTION...
Page 127 Instruments and controls Odometer/Tripmeter/Service reminder E00500600998 TRIP With the ignition switch in the “ON” position, odometer, tripm- eter, and service reminder indications are given. TRIP Service reminder Odometer The odometer indicates the total distance the vehicle has trav- elled. Tripmeter A- Odometer/Tripmeter/Service reminder The tripmeter indicates the distance travelled during a particu- B- Reset button...
Page 128 Instruments and controls Service reminder NOTE ● If you do not push the button for about 10 seconds while E00517700092 the service reminder is showing, the display will return to the odometer indication. ● The odometer, tripmeter, and service reminder indications are given for 30 seconds after the ignition switch has been turned to the “ACC”...
Page 129 For further information, we recommend you to consult a NOTE MITSUBISHI MOTORS Authorized Service Point. ● The indicated distance decreases in steps of 100 km (or At this time, a spanner mark is shown for a few seconds 100 miles).
Page 130 Instruments and controls Resetting the service reminder With the ignition switch in the “OFF” position, it is possible to reset the spanner mark (A) and “-----” indication (B). When they have been reset, the number of months and driving dis- tance remaining until the next inspection are shown and the spanner mark (A) is no longer shown every time the ignition switch is turned from the “OFF”...
Page 131 Instruments and controls 1. Push the reset button (D) to view the number of months Fuel gauge and driving distance remaining until the next inspection. E00500700638 The fuel gauge indicates the fuel level in the fuel tank when the 2. Give the reset button (D) a long push (at least two sec- ignition switch is in the “ON”...
Page 132 Instruments and controls Low fuel warning lamp NOTE ● When the vehicle has been refuelled, the pointer in the E00508100595 The warning lamp (A) illuminates when the fuel level is get- fuel gauge takes a short while to stabilize. ting low (approx. 10 litres) with the ignition switch in the ●...
Page 133 Instruments and controls Water temperature gauge Daytime dipper button (meter illumination con- trol) E00500800408 The water temperature gauge indicates the engine coolant tem- E00508800097 perature when the ignition switch is in the “ON” position. Turn the dial to adjust the illumination (meter, multi centre dis- play, audio system’s control panel, heater control panel, etc.) to the desired brightness.
Page 134: Indicator And Warning Lamps
Instruments and controls Indicator and warning lamps E00501501353 12- Seat belt warning lamp → p. 2-40 1- Turn-signal indication lamps/Hazard warning indication lamps → p. 3-12 13- A/T fluid temperature warning lamp (vehicles with A/T) → p. 4-31 2- Rear fog lamp indication lamp → p. 3-12 14- CRUISE indication lamp* →...
Page 135 Instruments and controls 24- Rear differential lock indication lamp* → p. 4-43 25- Door-ajar warning lamp → p. 3-17 26- Service reminder → p. 3-4 27- Sports mode indicator (vehicles with A/T) → p. 4-30 28- Selector lever position indication lamps (vehicles with A/T, “N”...
Page 136: Indicator Lamps
Instruments and controls Indicator lamps Rear fog lamp indication lamp E00502000084 E00501600012 This indication lamp illuminates while the rear Turn-signal indication lamps/Hazard fog lamp is on. warning indication lamps E00501700068 These indication lamps blink on and off when a Position lamp indication lamp turn-signal lamp is operating.
Page 137: Warning Lamps
Instruments and controls Warning lamps Fuel filter indication lamp (diesel-powered vehicles) E00502400017 Brake warning lamp (brake warning E00509900040 This indication lamp illuminates when the igni- buzzer) tion switch is turned to the “ON” position and goes off after the engine has started. If it lights E00502501057 This lamp illuminates when the ignition switch up while the engine is running, it indicates that...
Page 138 Instruments and controls CAUTION CAUTION ● The vehicle should be brought to a halt ● In the situations listed below, brake in the following manner when brake performance may be compromised or performance has deteriorated. the vehicle may become unstable if •...
Page 139 Instruments and controls Check engine warning lamp NOTE ● The engine electronic control module E00502600093 This lamp is a part of an onboard diagnostic sys- accommodating the onboard diagnostic sys- tem which monitors the emissions, engine and tem has various fault data (especially about automatic transmission control systems.
Page 140 Instruments and controls Charge warning lamp Oil pressure warning lamp E00502700472 E00502800529 This lamp illuminates when the ignition switch This lamp illuminates when the ignition switch is turned to the “ON” position, and goes off after is turned to the “ON” position, and goes off after the engine has started.
Page 141: Centre Information Display
• The screen goes dark temporarily. ● Buzzer settings can be changed at a your • The compass may not show the correct direction. MITSUBISHI MOTORS Authorized Serv- ● Depending on the angle of view, you may see reddish hor- ice Point to: izontal lines on the monitor.
Page 142 Instruments and controls Type 1 Type 2 9- “ADJ” button 1- Digital clock → p. 3-19 Used for adjusting the clock and for selecting settings dis- Indicates the time. plays. 2- Electronic compass* 10- Display for function buttons This display shows the direction of the vehicle. This display shows the options available for each function 3- Frozen road warning →...
Page 143 Instruments and controls Adjusting the time E00518000021 Manual mode Following modes are available for clock adjustment: ● For vehicles with MITSUBISHI genuine audio: The manual mode is also available in case the automatic mode “Automatic mode” and “Manual mode” shows the incorrect time when the adjacent local RDS stations ●...
Page 144 Instruments and controls Changing the information display E00517900010 Every time the “INFO” button is pressed lightly, the display can be changed to the following: 3-20...
Page 145 Instruments and controls 1- Audio information → p. 5-20, 5-43 2- Average fuel consumption → p. 3-22 3- Driving range → p. 3-23 4- Average speed → p. 3-25 5- Outside temperature → p. 3-26 6- Altimeter → p. 3-28 7- Barometer →...
Page 146 Instruments and controls Average fuel consumption NOTE ● When you turn the ignition switch to the “ON” position E00518200052 The average fuel consumption during the period since the last after turning it from the “ON” position to the “ACC” or reset is shown in (A).
Page 147 Instruments and controls Resetting the average fuel consumption Driving range Press the “RESET” function button to reset the average fuel E00518300037 This value (A) shows the distance (in km or miles) that can be consumption indication. driven on the fuel remaining in the fuel tank. The driving range is graphed every 5 minutes and the data for up to 4 hours are shown in (B).
Page 148 Instruments and controls Resetting the driving range NOTE ● When the driving range is 50 km (30 miles) or less, the Press the “RESET” function button to reset the driving range display shows “----”. plotted in graph. When it is 3,000 km (2,000 miles) or more, “3,000 km” or “2,000 miles”...
Page 149 Instruments and controls Average speed NOTE ● When you turn the ignition switch to the “ON” position E00518400041 The average speed during the period since the last reset is after turning it from the “ON” position to the “ACC” or shown in (A).
Page 150 Instruments and controls Resetting the average speed Outside temperature Press the “RESET” function button to reset the average vehicle E00518500039 The outside temperature is graphed every 5 minutes and the speed. data for up to 4 hours are shown in (A). The current outside temperature is shown in (B).
Page 151 Instruments and controls Resetting the outside temperature Frozen road warning Press the “RESET” function button to reset the graph of the This shows the temperature outside the vehicle. outside temperature. When the outside air temperature drops below about 3 °C (37 °F), the alarm sounds and the outside air temperature warn- ing symbol (A) flashes for about 10 seconds.
Page 152 Instruments and controls Altimeter “+”- Adjustment of elevation E00518600027 The elevation increases by 50 m (200 ft) every time you The current elevation in units of 50 m (200 ft) is shown in (A). lightly push the “+” button. The elevation is graphed every 5 minutes and the data for up to If you continue pressing the button for about 2 seconds or 4 hours are shown in (B).
Page 153 Instruments and controls Resetting the elevation Barometer Press the “RESET” function button to reset the elevation plot- E00518700015 This display shows the atmospheric pressure at the present ted in graph. location in (A). The atmospheric pressure values are graphed every 5 minutes and the data for up to 4 hours are shown in (B). NOTE ●...
Page 154 Instruments and controls Resetting the atmospheric pressure Calendar Press the “RESET” function button to reset the atmospheric E00518800016 The date is shown. The calendar pattern can be changed to your pressure plotted in the graph. desired setting. Refer to “Changing the calendar setting” on page 3-42. NOTE ●...
Page 155 Instruments and controls Clock-only Blank E00518900017 E00519000015 Only the clock is shown. The time notation can be changed to The whole display can be turned into blank. In this case, but- the setting you desire. (12 hour / 24 hour) tons remain illuminated.
Page 156 Instruments and controls Selecting settings displays E00519100045 Every time the “ADJ” button is pressed lightly, the display can be changed to the following: CAUTION ● The driver should not operate the display while the vehicle is in motion. ● When operating the system, stop the vehicle in a safe area.
Page 157 Instruments and controls Changing the clock settings E00519200017 1. Press the “ADJ” button to select the clock setting display. 3-33...
Page 158 Instruments and controls 2. It is possible to adjust the clock using the function buttons “SET”- To reset the minutes to zero. The time is adjusted as described below by pressing the function button “SET”. ● 10:30-11:29 · · · · Change to 11:00 ●...
Page 159 Instruments and controls Adjusting the display brightness 2. Press the “←” or “→” function button to select the setting you wish to adjust (daytime or nighttime). Then press the E00519300018 The display brightness can be adjusted at 13 levels for both “SELECT”...
Page 160 Instruments and controls 3. Use the function buttons to adjust the brightness. NOTE ● If you next wish to adjust the other adjustment setting (daytime or nighttime), press the “ADJ” button or “BACK” function button. 4. After adjustment, press the “INFO” button to select the information display.
Page 161 Instruments and controls Correcting the compass NOTE ● This system uses the earth’s magnetic field, and so may E00519400080 This compass shows the direction of the vehicle by the 8 azi- not show the correct direction depending on the traffic muth system.
Page 162 Instruments and controls Setting the declination With a settings display showing, press the “ADJ” button and The declination is the difference between true north (the direc- select “COMPASS VARIANCE”. tion of the geographic north pole) and where a compass needle 1.
Page 163 Instruments and controls 2. Press the function button for “←” or “ → ” to set the 3. When the declination adjustment has been completed, desired declination. press the “SET” function button. Pressing “←” or “ → ” for more than 1 second makes the value change rapidly.
Page 164 Instruments and controls Setting the compass With a settings display showing, press the “ADJ” button and The compass is usually calibrated automatically when the vehi- select “COMPASS CALIBRATION”. cle is moving. At times when complete calibration is not possi- 1. Press the function button for “SELECT”. ble, no compass indications are given.
Page 165 Instruments and controls 2. Press the function button for “SELECT”. NOTE ● If you wish to stop calibrating the compass part-way through the procedure, press the “INFO” button or “ADJ” button. 3. Turn the vehicle slowly through 360 degrees in a safe, open area with no buildings and other vehicles.
Page 166 Instruments and controls 4. The compass setting will finish automatically and the Changing the calendar setting words “COMPASS CALIBRATION COMPLETE” will E00519500010 The date and the calendar indication patterns can be changed. appear on the screen. Date setting 1. Press the “ADJ” button to select the calendar setting dis- play.
Page 167 Instruments and controls 2. Press the “←” or “→” function button to select “CALEN- 3. Use the function buttons to set the calendar. DAR ADJUST”. Then press the “SELECT” function but- ton. "→"- Select “YEAR”, “MONTH”, “DAY” you wish to change.
Page 168 Instruments and controls Changing the calendar pattern NOTE ● The year changes in the following sequence: 2006 → 1. Press the “ADJ” button to select the calendar setting dis- 2007 → ... 2099 → 2006. play. Press the “←” or “→” function button to select ●...
Page 169 Instruments and controls 2. Press function button “←” or “→” to select your desired 3. Press the function button “SET”. The display will flash indication pattern. twice, and the indication pattern will be updated. Type 1 Type 2 NOTE ● You can return to the previous display by pressing the “BACK”...
Page 170 Instruments and controls 4. After setting the calendar pattern, press the “INFO” but- User customization ton to return to the information display. E00519600079 You can set the indication of unit, language, and the time nota- tion. In addition, you can return these settings to the factory default settings.
Page 171 Instruments and controls 2. Press the function button “←” or “ → ” to select the item Changing display units you wish to set. It is possible to change the display units for the fuel consump- · “UNIT”: Changing the unit tion, driving range, average speed, outside temperature, eleva- ·...
Page 172 Instruments and controls 2. Press the “←” or “ → ” function button to select “km/L”. • Changing the display unit for fuel consumption 1. Press the “←” or “ → ” function button to select “FUEL Then press the “SET” function button. The display will ECONOMY”.
Page 173 Instruments and controls 3. After setting, press the “INFO” button to return to the Changing the language information display. It is possible to set the display language of the centre informa- tion display to English, Spanish, French, German, or Italian (Portuguese).
Page 174 Instruments and controls 2. After setting the language, press the “INFO” button to Changing the time notation return to the information display. It is possible set the time notation to 12-hour or 24-hour. 1. Press the “←” or “ → ” function button to select “12h TIME NOTATION”...
Page 175 Instruments and controls 2. After setting the time notation, press the “INFO” button to 12-hour 24-hour return to the information display. NOTE ● You can return to the previous display by pressing the “BACK” function button. 3-51...
Page 176 Instruments and controls Returning display items to their factory settings 2. Press the “←” function button to select “YES”. You can return to the setting of each item to the factory default settings. NOTE ● The factory settings are as follows: •...
Page 177 Instruments and controls 4. Once more press the “←” function button to select 6. The display shown below will appear, and the display “YES”. items will return to their factory settings. 5. Press the “SET” function button. NOTE ● If the battery terminals are disconnected, the settings for the date and time may be erased.
Page 178 Instruments and controls Adjusting the barometer To adjust the barometer 1. Press the “ADJ” button to select the barometer adjustment E00524400017 It is possible to adjust the barometer indication and return it to display. the factory setting. NOTE ● It is not necessary to adjust the barometer because it has been adjusted at the factory.
Page 179 Instruments and controls 2. Press the “←” or “→” function button to select the 3. Adjust the barometer by pressing the function buttons. “BAROMETER ADJUST” display. Then press the “SELECT” function button. “+”- To adjust the barometer Each gentle press of the “+” function button will increase the indicated barometer by 2 hPa.
Page 180 Instruments and controls 4. After setting the barometer adjust, press the “INFO” but- Resetting to the factory setting ton to return to the information display. 1. Press the “ADJ” button to select the barometer adjustment display. Press the “←” or “→” function button to select the “BAROMETER DEFAULT”...
Page 181 Instruments and controls 2. Press the “SET” function button. The display will flash 3. After setting the barometer default, press the “INFO” but- twice and the barometer indication will return to the fac- ton to return to the information display. tory setting.
Page 182: Combination Headlamps And Dipper Switch
Instruments and controls Combination headlamps and dipper switch Type 1 Rotate the switch to turn on the lamps. E00506001353 Headlamps NOTE ● Do not leave the lights on for a long time while the engine is stationary (not running). A run-down battery could result.
Page 183 Rotate the switch to turn on the lamps. adjusted. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point. ● When the headlamps are turned off by the automatic on/off control with the ignition switch in the “ON” posi- tion, the front fog lamps (if so equipped) and rear fog lamps also go off.
Page 184 NOTE ● For further information, we recommend you to consult door is opened within 3 minutes while the lamp switch in MITSUBISHI MOTORS Authorized Service Point. the “ ” position, a buzzer will sound to warn the driver that the lamps have not been turned off, and these lamps Lamp monitor buzzer will automatically turn off.
Page 185 Instruments and controls Dipper (High/Low beam change) Headlamp flasher E00506200055 E00506300128 The high beams flash when the lever is pulled slightly to (2), When the lamp switch is in the “ ” position, the beam and will go off when it is released. changes from high to low (or low to high) each time the lever is When the high beam is on, the high beam indication lamp in pulled fully (1).
Page 186: Headlamp Levelling
Instruments and controls Headlamp levelling E00517400015 Headlamp levelling switch* E00517500133 Except for vehicles with discharge headlamps The angle of the headlamp beam varies depending upon the load carried by the vehicle. The headlamp levelling dial can be used to adjust the headlamp illumination distance (when the lower beam is illuminated) so that the headlamps’...
Page 187 Instruments and controls 3-door models 5-door models Vehicle Vehicle condition condition Switch Switch “1” or “0” “0” “2” “3” “4” “0” “0” “2” “3” “4” position position “2” •:1 person •:1 person :Full luggage loading :Full luggage loading Switch position 0- Driver only/Driver + 1 front passenger Switch position 0- Driver only/Driver + 1 front passenger Switch position 2- 5 passengers (including driver) Switch position 1- Driver + 1 front passenger + 2 passengers on...
Page 188 Instruments and controls Automatic headlamp levelling* CAUTION E00517600017 ● If the warning lamp stays on or does not illuminate Vehicles with discharge headlamps when the ignition switch is turned “ON”, it indicates This function automatically adjusts the illumination distance of that the automatic headlamp levelling device is not the headlamps according to the number of people and the load functioning.
Page 189: Turn-Signal Lever
Instruments and controls Turn-signal lever NOTE ● If the lamp flashes unusually quickly, the bulb in a turn- E00506500771 signal lamp may have burned out. We recommend you to have the vehicle inspected. ● It is possible to activate the following functions. For fur- ther information, we recommend you to consult a MIT- SUBISHI MOTORS Authorized Service Point.
Page 190: Hazard Warning Flasher Switch
NOTE ● It is possible for a buzzer to sound with flashing of the turn-signal lamps. For further information, we recom- mend you to consult a MITSUBISHI MOTORS Author- ized Service Point. 3-66...
Page 191 Instruments and controls Rear fog lamp switch NOTE ● The front fog lamps are automatically turned off when the E00508400123 The rear fog lamp illuminates only when the headlamps or headlamps or tail lamps turn off. To turn on the front fog front fog lamps (if so equipped) are on.
Page 192: Wiper And Washer Switch
Instruments and controls Wiper and washer switch Type 2 E00507101191 CAUTION ● If the washer is used in cold weather, the washer fluid sprayed against the glass may freeze, which may hinder visibility. Warm the glass with the defroster or rear window demister before using the washer.
Page 193 ● The speed-sensitive-operation function of the windscreen wipers can be deactivated. MIST- Misting function For furher information, we recommend you to consult a The wipers will operate once. MITSUBISHI MOTORS Authorized Service Point. OFF- INT- Intermittent (Speed sensitive) Slow Fast...
Page 194 Instruments and controls Misting function Vehicle with rain sensor The misting function can be used when the ignition switch is in E00526400011 The windscreen wipers can be operated with the ignition the “ON” or “ACC” position. switch in the “ON” or “ACC” position. If the blades are frozen to the windscreen or rear window, do not operate the wipers until the ice has melted and the blades are freed, otherwise the wiper motor may be damaged.
Page 195 Instruments and controls Rain sensor CAUTION E00517000066 Can only be used when the ignition switch is in the “ON” posi- ● With the ignition switch in the “ON” position and tion. the lever in the “AUTO” position, the wipers may If the lever is put in the “AUTO”...
Page 196 ● In the following cases, the rain sensor may be malfunc- tioning. Have the vehicle inspected by a MITSUBISHI MOTORS Authorized Service Point. • When the wipers operate at a constant interval despite changes in the extent of rain.
Page 197 Instruments and controls Misting function E00517300030 Move the lever in the direction of the arrow and release, to operate the wipers once. Use this function when you are driving in mist or drizzle. With the ignition switch in the “ON” position, if the lever is moved to the AUTO position and pulled towards you a little, the wipers operate once.
Page 198 Instruments and controls Windscreen washer E00507200528 The washer fluid will be sprayed onto the windscreen by pull- ing the lever toward you. The wipers operate automatically several times while the washer fluid is being sprayed. On a vehicle equipped with the headlamp washer, the head- lamp washer operates together with the windscreen washer the first time the windscreen washer is used if the headlamps are The wipers will operate once if the lever is moved to the...
Page 199 Instruments and controls Rear window wiper and washer NOTE ● To ensure a clear rearward view, the wiper performs sev- E00507300819 The rear window wiper and washer switch can be operated eral continuous operations when the reverse gear is with the ignition switch in the “ON” or “ACC” position. engaged while the switch is in the “INT”...
Page 200 Instruments and controls Headlamp washer switch* Precautions to observe when using wipers and washers E00510100231 The headlamp washer can be operated when the ignition switch E00507600027 is in the “ON” or “ACC” position and the headlamps are on. ● If the moving wipers become blocked by ice or other Push the button once and the washer fluid will be sprayed on to deposits on the glass, the motor may burn out even if the the headlamps.
Page 201: Wiper Deicer Switch
Instruments and controls Wiper deicer switch Rear window demister switch E00507700060 E00507900844 The wiper deicer switch can be operated with the ignition The rear window demister switch can be operated with the switch in the “ON” position. ignition switch in the “ON” position. When the front wipers have frozen to the windscreen at the Push the switch to turn on the rear window demister.
Page 202: Horn Switch
Instruments and controls Horn switch NOTE ● When the rear window demister switch is pushed, the E00508000347 window glass becomes warm and the wipers become Press the steering wheel on or around the “ ” mark. operable. Refer to “Wiper deicer switch” on page 3-77. ●...
Page 203 Starting and driving Economical driving ......4- Braking ....... . . 4- 56 Driving, alcohol and drugs.
Page 204: Economical Driving
Starting and driving Economical driving Idling The vehicle consumes fuel even during idling. Avoid extended E00600100561 For economical driving, there are some technical requirements idling whenever possible. that have to be met. The prerequisite for low fuel consumption Speed is a properly adjusted engine. In order to achieve longer life of At higher vehicle speed, more fuel is consumed.
Page 205: Driving, Alcohol And Drugs
Starting and driving Driving, alcohol and drugs Safe driving techniques E00600200067 E00600300244 Driving after drinking alcohol is one of the most frequent Driving safety and protection against injury cannot be fully causes of accidents. ensured. However, we recommend that you pay extra attention Your driving ability can be seriously impaired even with blood to the following: alcohol levels far below the legal minimum.
Page 206 Starting and driving Floor mats Carrying children in the vehicle ● Never leave your vehicle unattended with the key in the WARNING ignition and children inside the vehicle. Children may play with the driving controls and this could lead to an ●...
Page 207: Running-In Recommendations
Starting and driving Running-in recommendations Vehicles with A/T E00600401271 During the running-in period for the first 1,000 km (620 miles), Speed limit it is advisable to drive your new vehicle using the following 3200 models 3800 models precautions as a guideline to aid long life as well as future Shift point economy and performance.
Page 208: Parking Brake
Starting and driving Parking brake To release the parking brake E00600500422 To park the vehicle, first bring it to a complete stop, fully apply the parking brake lever sufficiently to hold the vehicle. To apply the parking brake 1- Pull the lever up slightly. 2- Push the button at the end of hand grip.
Page 209: Parking
Starting and driving Parking CAUTION E00600600595 ● Before driving, be sure that the parking brake is To park the vehicle, fully engage the parking brake, and then fully released and brake warning lamp is off. move the gearshift lever to the 1st or “R” (Reverse) position If a vehicle is driven without releasing the parking for vehicles with M/T, or set the selector lever to the “P”...
Page 210: Steering Wheel Height Adjustment
Starting and driving Steering wheel height adjustment NOTE ● If your vehicle is equipped with A/T, be sure to apply the E00600700222 parking brake before moving the selector lever to the “P” 1. Release the tilt lock lever while holding the steering wheel (PARK) position.
Page 211: Inside Rear-View Mirror
Starting and driving Inside rear-view mirror Adjust the rear-view mirror to maximize the view through the rear window. E00600800148 Adjust the rear-view mirror only after making any seat adjust- To adjust the vertical mirror position ments so you have a clear view to the rear of the vehicle. It is possible to move the mirror up and down to adjust its posi- tion.
Page 212 Starting and driving To reduce the glare Type 2 When the headlamps of the vehicles behind you are very Type 1 bright, the reflection factor of the rear-view mirror is automati- The lever (A) at the bottom of the mirror can be used to adjust cally changed to reduce the glare.
Page 213: Outside Rear-View Mirrors
Starting and driving Outside rear-view mirrors WARNING E00600900484 ● The sense of distance that you get from an object Compound curved-surface mirror* you see on the inner side of the mirror boundary line On the driver’s side, a compound curved-surface mirror is differs from the sense of distance that you get from used, while on the front passenger’s side, a single curved-sur- an object you see on the outer side.
Page 214 Starting and driving 1. Place the lever (A) to the same side as the mirror whose Retracting and extending the outside mirrors adjustment is desired. E00618200011 The outside mirrors can be folded in towards the side window to prevent damage when parking in narrow areas. CAUTION ●...
Page 215 Starting and driving Retracting and extending the mirrors using the mirror CAUTION retractor switch ● It is possible to retract and extend the mirrors by With the ignition switch in the “ON” or “ACC” position, push hand. After retracting a mirror using the mirror the mirror retractor switch to retract the mirrors.
Page 216: Ignition Switch
Starting and driving Ignition switch Automatic extension of mirrors If the engine is stopped and started with the mirrors retracted, E00601400822 the mirrors automatically extend for safety when the vehicle Vehicles with M/T Vehicles with A/T speed reaches 30 km/h (19 mph). Heated mirror* E00601200312 To demist or defrost the outside rear-view mirrors, press the...
Page 217 Starting and driving Ignition switch illumination NOTE ● For vehicles equipped with Daytime Running Lamps, In the situations listed below, the ignition switch illumination when the ignition switch is in the “ON” position, the comes on to facilitate insertion or removal of the ignition key. headlamp low beams etc.
Page 218 “ACC” position and keep it depressed until it is turned goes off). For details, we recommend you to consult a to the “LOCK” position, and remove it. MITSUBISHI MOTORS Authorized Service Point. ● If the illumination period of the room & map lamps or rear Vehicles with M/T...
Page 219 Starting and driving For vehicles with an A/T, when removing the key, first set the CAUTION selector lever to the “P” (PARK) position, and then turn the key to the “LOCK” position, and remove it. ● Do not remove the ignition key from the ignition switch while driving.
Page 220: Steering Wheel Lock
Starting and driving Steering wheel lock Starting E00601500298 E00601600488 To lock Tips for starting ● Do not continuously operate the starter motor longer than Remove the key at the “LOCK” position. Turn the steering wheel until it is locked. 10 seconds; doing so could run down the battery. If the engine does not start, turn the ignition switch back to To unlock “LOCK”...
Page 221 Starting and driving Starting the engine (petrol-powered vehicles) 6. Turn the ignition key to the “START” position without depressing the accelerator pedal, and release it when the E00601701297 engine starts. Normal conditions The starting procedure is as follows: NOTE 1. Insert the ignition key and fasten the seat belt. ●...
Page 222 Starting and driving At extreme cold ambient temperature Starting the engine (diesel-powered vehicles) If the engine won’t start, depress the accelerator pedal about E00601800086 1. Insert the ignition key and fasten the seat belt. halfway while cranking the engine. Once the engine starts, 2.
Page 223 Starting and driving Fuel injection amount learning process (diesel- NOTE ● If the engine is cold, the diesel preheat indication lamp is powered vehicles) on for a longer time. E00616000044 ● When the engine has not been started within about 5 sec- To keep exhaust emissions and engine noise low, the engine onds after the diesel preheat indication lamp went out, very occasionally performs a learning process for the fuel...
Page 224: Diesel Particulate Filter (Dpf)
Starting and driving Diesel particulate filter (DPF) DPF warning lamp The DPF warning lamp comes on or flashes in the event of an E00619800027 The diesel particulate filter (DPF) is a device that captures abnormality in the DPF system. Provided the DPF system is most of the particulate matter (PM) in the exhaust emissions of working normally, the DPF warning lamp comes on when the the diesel engine.
Page 225: Manual Transmission
20 min- utes at a speed of at least 40 km/h (25 mph). If the DPF warning lamp subsequently stays on, contact your MITSUBISHI MOTORS Authorized Service Point. CAUTION ● You do not have to continuously drive exactly as indicated above.
Page 226 Starting and driving Possible driving speed CAUTION E00610800574 ● If the clutch is engaged suddenly while the engine Avoid shifting down at high speed, as this may cause excessive revolution is high, an extremely large load will be engine speed (the tachometer needle into the red zone) and applied instantaneously to the power train, possibly damage the engine.
Page 227: Automatic Transmission Invecs-Ii Sports Mode 5A/T (Intelligent & Innovative Vehicle Electronic Control System Ii)
Starting and driving Automatic transmission INVECS-II Sports Selector lever operation Mode 5A/T (Intelligent & Innovative Vehi- E00603300522 The transmission has 5 forward gears and 1 reverse gear. cle Electronic Control System II) The individual gears are selected automatically, depending on the position of the gear selector lever, the speed of the vehicle E00603200101 Designed for optimum control and equipped with adaptive con-...
Page 228 Starting and driving In the main gate, selector lever has 4 positions, and is equipped with a lock button (A) to avoid inadvertent selection of the wrong gear. The lock button must be pushed while the brake pedal is depressed to move the selector lever. The lock button must be pushed to move the selector lever.
Page 229 Starting and driving Selector lever position indication lamps WARNING E00603500247 ● Always depress the brake pedal when shifting the When the ignition switch is turned to the “ON” position, the selector lever into a gear from the “P” (PARK) or indication lamps in the instrument panel illuminate to show the “N”...
Page 230 Starting and driving Selector lever positions (Main gate) “N” NEUTRAL At this position the transmission is disengaged. It is the same as E00603800400 the neutral position on a M/T, and should only be used when “P” PARK the vehicle is stationary for an extended length of time during This position locks the transmission to prevent the vehicle driving, such as in a traffic jam.
Page 231 Starting and driving Sports mode CAUTION E00603900892 Whether the vehicle is stationary or in motion, sports mode is ● In sports mode, the driver must execute upward selected by gently pushing the selector lever from the “D” shifts in accordance with prevailing road conditions, (DRIVE) position into the manual gate (A).
Page 232 Starting and driving Sports mode indicator NOTE ● On petrol-powered vehicles, the upward shift may be E00612300254 In sports mode, the currently selected position is indicated by made automatically in sports mode when the engine revo- the indicator (A) shown on the instrument panel. lutions rises and approaches the tachometer’s red zone (the red-coloured part of the tachometer dial).
Page 233 Starting and driving When a malfunction occurs in the A/T When the A/T fluid temperature warning lamp comes E00615100035 When the “N” indication lamp blinks E00615300109 The A/T fluid temperature warning lamp comes on when the E00615200023 automatic transmission fluid temperature becomes abnormally When the “N”...
Page 234 Starting and driving Operation of the A/T Passing acceleration E00604500156 E00604200342 To gain extra acceleration in “D” (DRIVE) position, push the CAUTION accelerator to the floor. The automatic transmission will auto- matically downshift. ● Before selecting a gear with the engine running and the vehicle stationary, fully depress the brake pedal NOTE ●...
Page 235 Starting and driving Waiting Parking E00604600245 E00604700161 For short waiting periods, such as at traffic signals, the vehicle To park the vehicle, first bring it to a complete stop, fully can be left in gear and held stationary with the service brake. engage the parking brake, and then move the selector lever to For longer waiting periods with the engine running, place the the “P”...
Page 236: Super Select 4Wd Ii (Ss4 Ii)
Starting and driving Super select 4WD II (SS4 II) When the A/T makes no speed change E00604800348 E00605700067 If the transmission does not change speeds while driving, or Shifting to rear-wheel drive or 4-wheel drive can be made by your vehicle does not pick up enough speed when starting on operating the transfer shift lever (A).
Page 237 Starting and driving Shift lever position and 2WD/4WD operation CAUTION indication lamp ● The “4LLc” range gives maximum torque for low- E00605800127 speed driving on steep slopes, as well as sandy, 2WD/4WD muddy, and other difficult surfaces. On vehicles Transfer shift operation indi- Driving conditions with A/T, do not exceed speeds of approximately...
Page 238 Starting and driving Transfer shift lever operation E00605900072 The transfer shift lever is operated by pushing it down and slid- ing it to the desired position. 4-36...
Page 239 Starting and driving Procedure To shift from Vehicles with M/T Vehicles with A/T The transfer shift lever can be operated while the vehi- The transfer shift lever can be operated while the vehi- cle is either moving or stationary. cle is either moving or stationary. When the vehicle is not in motion, shift the selector When the vehicle is not in motion, shift the gearshift lever to the “N”...
Page 240 Starting and driving ↔ 2WD/4WD operation indication lamp “2H” “4H” E00606000113 2WD/4WD operation indica- Transfer shift lever position tion lamp Drive mode switching in progress A: Front wheel lamp B: Centre differential lock lamp C: Rear wheel lamp D: Low-range centre differential lock lamp When the ignition switch is in the “ON”...
Page 241 Starting and driving ↔ ↔ “2H” “4HLc” “4H” “4HLc” 2WD/4WD operation indica- 2WD/4WD operation indica- Transfer shift lever position Transfer shift lever position tion lamp tion lamp Drive mode switching in Drive mode switching in progress progress 4HLc 4HLc : Blink : Blink : Illuminate : Illuminate...
Page 242 Starting and driving ↔ “4HLc” “4LLc” NOTE ● The 2WD/4WD operation indication lamp blinks while the selection is in process. Take the following precautions 2WD/4WD operation indica- Transfer shift lever position when the indication lamp is blinking. tion lamp • Keep the steering wheel in the straight ahead position while making range selections.
Page 243 Starting and driving ● If the front and rear wheel lamps blink rapidly (twice per CAUTION second) when you attempt to make a “4HLc” ↔ “4LLc” selection, the selection cannot be made. Stop the vehicle ● If a problem is detected in the transfer system, a and release the accelerator pedal.
Page 244: Rear Differential Lock
Starting and driving Rear differential lock Operating the rear differential lock 1. Move the transfer shift lever to “4LLc” or “4HLc” posi- E00606200043 If one wheel starts to spin freely and the vehicle becomes stuck tion. and cannot be freed even using 4-wheel drive, the rear differen- 2.
Page 245 Starting and driving The rear differential lock indication lamp NOTE ● The rear differential lock does not operate when the trans- E00606300132 When the ignition switch is turned to the “ON” position, the fer shift lever is in “4H” or “2H” position. rear differential lock indication lamp (A) in the meter cluster ●...
Page 246 Starting and driving NOTE The operation state of rear Rear differential lock indica- ● The indication lamp blinks while the rear differential lock differential lock tion lamp is being switched between its activated and deactivated conditions. When the switching operation is complete, the indication lamp is either illuminated steadily or not illumi- nated.
Page 247 Starting and driving ● If the indication lamp continues blinking after the switch Examples of effective use of the rear differential has been pressed to deactivate the rear differential lock, lock hold the steering wheel in the straight ahead position then E00606400045 slowly depress and release the accelerator pedal several CAUTION...
Page 248 Starting and driving When driving on rocky roads When getting out of snow When the vehicle is unable to move because one of the wheels When the vehicle is unable to get going because one of the is suspended in the air. wheels is on the snow and the other on a paved road.
Page 249 Starting and driving Examples of incorrect use of the rear differential WARNING lock ● If the rear differential lock is used by mistake when E00606500046 turning a curve or making a right or left turn at a WARNING crossing or the like: The vehicle is unable to make a turn and may go straight ahead.
Page 250: 4-Wheel Drive Operation
Starting and driving 4-wheel drive operation WARNING E00606600627 ● If the rear differential lock is used by mistake except By selecting 4-wheel drive, both axles of the vehicle are rigidly when making an emergency escape on snow or fro- connected with each other. This improves the traction charac- zen road: It becomes difficult to make a steady turn.
Page 251 Starting and driving Driving on dry paved road and highway Driving on snowy or icy roads Select the “2H” or “4H” position to drive on the dry paved Set the transfer shift lever to the “4H” or “4HLc” position in road.
Page 252 Starting and driving NOTE CAUTION ● Avoid sudden braking, acceleration, and turning; such ● Do not force the vehicle or drive recklessly on sandy operations could result in the vehicle becoming stuck. ● If the vehicle becomes stuck in sandy or muddy roads, it surfaces.
Page 253 ● If you begin to lose traction, ease off the accelerator ● MITSUBISHI MOTORS is not responsible to the opera- pedal and gently turn the steering wheel alterna- tor for any damage or injury caused or liability incurred tively left and right to regain adequate traction by the improper and negligent operation of a vehicle.
Page 254 Starting and driving Crossing a stream NOTE ● Because the inside of the vehicle is flooded with water 4-wheel drive vehicles are not necessarily waterproof. If the when crossing at a place where the water is more than electrical circuits become wet, further operation of the vehicle 50 cm deep, we recommend you to have your vehicle will be impossible;...
Page 255: Inspection And Maintenance Following Rough Road Operation
● After crossing a stream, be sure to have the following sary, replace all of them. items inspected at a MITSUBISHI MOTORS Authorized ● All tyres should be rotated whenever the wear difference Service Point and take the necessary measures.
Page 256 Refer to “Tyre rotation” on page If towing is necessary, we recommend you to have it done by 8-21. your MITSUBISHI MOTORS Authorized Service Point or a ● Check the tyre inflation pressure regularly. commercial tow truck service.
Page 257 Starting and driving Jacking up a 4-wheel drive vehicles If you can shift the transfer shift lever to the “2H” position. WARNING ● Do not crank the engine while jacking up the vehi- cle. The tyre on the ground may turn and the vehicle may roll off the jack.
Page 258: Braking
Starting and driving Braking Power brakes The power brakes use brake fluid pressurized by the pump to E00607000905 All the parts of the brake system are critical to safety. We rec- power-assist the brake. If the brake system fails during driving, ommend you to have the vehicle checked at regular intervals the brake warning lamp comes on and a buzzer sounds continu- according the service booklet.
Page 259 Starting and driving When brakes are wet WARNING Check the brake system while driving at a low speed immedi- ● Never coast downhill with the engine OFF. Keep the ately after starting, especially when the brakes are wet, to con- engine running whenever your vehicle is in motion.
Page 260: Anti-Lock Brake System (Abs)
Starting and driving Anti-lock brake system (ABS) Brake pads ● Avoid hard braking situations. E00607100850 Environmental conditions can have an effect on braking. Dur- New brakes need to be broken-in by moderate use for the ing sudden braking when there is snow, ice, oil, water etc. on first 200 km (125 miles).
Page 261 In this situation, to let the ABS work for you, just hold ● Never install a limited slip differential, which is not the brake pedal down more firmly. Do not pump the MITSUBISHI MOTORS genuine parts, as the ABS brake. This will result in reduced braking perform- may not function normally.
Page 262 Starting and driving ABS warning lamp NOTE ● Depressing the brake pedal repeatedly may turn on the E00607200532 The ABS warning lamp should illuminate when the ignition brake warning lamp, ABS warning lamp and brake warn- switch is turned “ON”, and should go off in a few seconds. ing buzzer.
Page 263 Starting and driving If the warning lamp illuminates while driving If the ABS warning lamp and brake warning lamp illu- minate at the same time E00607300416 ● The ABS and brake force distribution function will not If only the ABS warning lamp illuminates work, so hard braking could make the vehicle unstable.
Page 264 Starting and driving Inspection following snowy road operation Rear E00618300012 After driving on snowy roads, remove any snow and ice which may have become adhered to the wheel areas. When doing this, be careful not to damage the wheel speed sensors (A) and cables located at each wheel on vehicles equipped with an ABS.
Page 265: Power Steering System
Starting and driving Power steering system Active stability & traction control (ASTC) E00607400084 E00613800168 When the engine is stopped, the power steering system will not The active stability & traction control (ASTC) takes overall function and it will require greater manual effort to operate the control of the anti-lock brake system, active stability control steering wheel.
Page 266 Starting and driving ASTC indication lamp NOTE ● An operation noise may be emitted from the engine com- E00618000035 The ASTC indication lamp shows the operating status of the partment in the following situations. The sound is associ- active stability control function and active traction control ated with checking the operations of the ASTC.
Page 267 Starting and driving ASC OFF switch CAUTION E00620500024 The active stability control function is automatically activated ● For safety, operate the ASC OFF switch with the when the ignition switch is turned to the “ON” position. You vehicle stationary. can deactivate the system by pressing the ASC OFF switch when the vehicle is stationary.
Page 268 Starting and driving Driving hints Active stability control function E00618100036 E00613900097 When extricating the vehicle from mud, sand or fresh snow The active stability control function is designed to help main- with the transfer shift lever in the “2H”, “4H”, or “4HLc” posi- tain the vehicle’s control in slippery conditions, or during rapid tion, you may find that operation of the ASTC prevents the steering maneuvers.
Page 269 Starting and driving Active stability control function indication lamp indication lamp blinks when the active stability control E00614000125 function is operating. indication lamp illuminates when the active stability control function is deactivated by either of the following operations: ● The ASC OFF switch is pressed to deactivate the system. ●...
Page 270 Starting and driving Active traction control function NOTE ● Immediately after reconnection of the battery cable, the E00614100041 The active traction control function maintains traction on slip- indication lamp will illuminate and the active stability pery road surfaces by automatically controlling the engine out- control function will stop operating.
Page 271 Starting and driving Active traction control function indication lamp NOTE ● In the event of a fault in the active stability control func- E00614200097 tion, the indication lamps illuminate. As a indication lamp (1) should illuminate when the ignition result, an indication of the active traction control function switch is turned to the “ON”...
Page 272: Cruise Control
Starting and driving Cruise control CAUTION E00609100519 ● If the vehicle is towed with the ignition switch in the Cruise control is an automatic speed control system that keeps “ON” position and only the front wheels or only the a set speed. It can be activated at about 40 km/h (25 mph) or rear wheels raised off the ground, the active traction more.
Page 273 Starting and driving Cruise control switches NOTE ● When operating the cruise control switches, press the cruise control switches correctly. The set speed driving may be deactivated automatically if two or more switches of the cruise control are pressed at the same time. A- “ON OFF”...
Page 274 Starting and driving To activate NOTE ● If the cruise control is on when the ignition switch is E00609300553 1. With the ignition switch in the “ON” position, press the turned to the “LOCK” or “ACC” position, cruise control “ON OFF” switch (A) to turn on the cruise control. The will be on automatically the next time you start the “CRUISE”...
Page 275 Starting and driving 2. Accelerate or decelerate to your desired speed, then press To increase the set speed and release the “COAST SET” switch (B) when the E00609400482 There are 2 ways to increase the set speed. “CRUISE” indication lamp is illuminated. The vehicle will then maintain the desired speed.
Page 276 Starting and driving Accelerator pedal To decrease the set speed While driving at the set speed, use the accelerator pedal to E00609500412 There are 2 ways to decrease the set speed. reach your desired speed and then press the “COAST SET” switch (B) and release the switch momentarily to set a new “COAST SET”...
Page 277 Starting and driving Brake pedal To temporarily increase or decrease the speed While driving at the set speed, use the brake pedal, which dis- E00619500037 engages the cruise control, then press the “COAST SET” To temporarily increase the speed switch (B) and release the switch momentarily to set a new Depress the accelerator pedal as you would normally.
Page 278 Starting and driving To temporarily decrease the speed To deactivate Depress the brake pedal to decrease the speed. To return to the E00609700632 The set speed driving can be deactivated as follows: previously set speed, press the “ACC RES” switch (C). ●...
Page 279 Starting and driving ● When the active stability & traction control (ASTC) starts To resume the set speed operating. E00609800460 If the set speed driving is deactivated by the condition Refer to “Active stability & traction control (ASTC)” on described in “To deactivate” on page 4-76, you can resume the page 4-63.
Page 280: Reversing Sensor System
Starting and driving Reversing sensor system Corner and back sensor locations E00618500014 E00615500055 There are two corner sensors (A) at the corners of the rear This system operates when you are backing the vehicle. It uses bumper, and two back sensors (B) in the spare wheel garnish. corner and back sensors to detect an obstacle and sounds a buzzer to inform you of the approximate distance to the obsta- cle.
Page 281 Starting and driving Reversing sensor system detection areas Vehicles with towing bar The detection areas are within approximately 50 cm (A) from Depending on whether the vehicle is equipped with a towing the corner sensors, 150 cm (B) from the back sensors. The non- bar, you can change the reversing sensor system between the detection areas (C) are within approximately 20 cm (D) from standard mode and the towing bar mode.
Page 282 Starting and driving For information on how to change the detection areas, please NOTE ● The buzzer may sound lower than the normal warning refer to “Changing the detection areas” on page 4-83. sound when the corner sensor system is receiving ultra- CAUTION sonic noise from other sources, but this is not a malfunc- tion.
Page 283 Starting and driving To operate The “SONAR OFF” indication lamp will illuminate to indicate that the system has stopped operating. E00615700086 To operate the system, move the gearshift lever to the “R” It will flash in case there is a malfunction in the system. For (Reverse) position (with M/T) or the selector lever to the “R”...
Page 284 Starting and driving The warning buzzer sounds when the system detects an obsta- Warning for obstacles cle during operation. If there is an obstacle behind the vehicle, a warning buzzer sounds to indicate the distance between the vehicle and the NOTE obstacle.
Page 285 Starting and driving Changing the detection areas CAUTION E00615800032 The detection areas can be changed as follows: ● The distances given are to be used for reference only, as errors may be caused by various factors, such as Vehicles with a towing bar temperature, humidity, or the shape of the obstacles.
Page 286: Rear-View Camera
Starting and driving Rear-view camera “SONAR OFF” indication lamp E00615900075 E00618400013 In case there is a malfunction in the reversing sensor system, The rear-view camera is a system that shows the view behind the “SONAR OFF” indication lamp will flash and the warning the vehicle on a screen in the centre panel.
Page 287 Starting and driving Location of rear-view camera Range of view of rear-view camera The rear-view camera (A) is integrated into the spare wheel garnish. 4-85...
Page 288 Starting and driving How to use the rear-view camera Example of rear-view camera screen indication The lines (F and G) in the view from the rear-view camera have When you place the shift lever in the “R” (Reverse) position the meanings shown below. Please use them as guides. (on vehicles with M/T) or selector lever in the “R”...
Page 289 Starting and driving NOTE A: Rear extremity of the rear bumper ● It is possible to set the display language of the screen to B: Spare wheel garnish English, Spanish, French, German, Italian, Swedish, C: Approx. 20 cm Dutch, Danish or Portuguese. D: Approx.
Page 290: Cargo Loads
Starting and driving ● It is not possible to fully see obstacles when the lens is Cargo loads dirty. If the lens becomes contaminated by water droplets, E00609900937 snow, mud or oil, wipe off the contamination, taking care Cargo loads precautions not to scratch the lens.
Page 291 Starting and driving Roof carrier mounting brackets* Roof carrier precaution CAUTION ● Make sure that the weight of the luggage does not exceed the allowable roof load. If the allowable roof load is exceeded, this may cause damage to the vehicle. The roof load is the total allowable load on the roof 3-door models (the weight of the roof carrier plus the weight of lug-...
Page 292: Trailer Towing
● Before using an automatic car wash, remove the roof car- towing device mounted that meets all relevant regulations in rier. your area, consult a MITSUBISHI MOTORS Authorized Serv- ● Be sure that adequate clearance is maintained for raising ice Point.
Page 293 Starting and driving Maximum towable weight with brake and maxi- Towing bar mounting specifications mum trailer-nose weight See the following table for fixing points (A) for the towing bar. Never exceed the maximum towable weight with brake and the maximum trailer-nose weight as listed in the specifications. (Refer to “Vehicle weight”...
Page 294 Starting and driving 3-door models 5-door models 512.5 mm 794 mm 564 mm 564 mm 8 mm 8 mm 124 mm 179 mm 131 mm 131 mm 44 mm 44 mm 55 mm 55 mm — 149 mm 139 mm 138 mm 460 mm 477 mm...
Page 295 Starting and driving Operating hints ● Do not let the clutch slip (vehicles with a M/T only) and do not increase the engine speed more than necessary when starting. ● Be sure that the driving speed does not exceed the 100 km/h (62 mph) for trailer operation.
Page 297 For pleasant driving Ventilators .......5- Luggage hooks ......5-105 Front automatic air conditioning .
Page 298: Ventilators
For pleasant driving Ventilators Rear ventilators (5-door models)* E00700100373 Front ventilators 4- Roof ventilators 5- Rear floor ventilators (from under the second seat) 1- Centre ventilators 6- Rear floor ventilators 2- Side ventilators (from side of the third seat) 3- Floor ventilators* (from the centre console box) NOTE ●...
Page 299 For pleasant driving Air flow and direction adjustments Rear ventilators Adjust the direction of the air flow by moving the knob (C) E00700200185 either left or right. Front ventilators The ventilator can be opened and closed with the dial (A). ) - Open ) - Close Adjust the direction of the air flow by moving the knob (B).
Page 300: Front Automatic Air Conditioning
For pleasant driving Front automatic air conditioning E00702400165 The front air conditioning can only be used while the engine is running. Control panel E00702500632 12- Mode selection display 1- Temperature control dial 13- Rear blower operation display 2- Demister switch 14- Front blower speed display 3- MODE switch 4- OFF switch...
Page 301 For pleasant driving Blower speed selection dial NOTE ● There is an interior air temperature sensor (A) in the illus- E00702800198 Select the blower speed by turning the blower speed selection trated position. dial clockwise or anticlockwise. The blower speed will gradu- Never place anything on top of the sensor, since doing so ally increase as the dial is turned to the right.
Page 302 For pleasant driving Temperature control dial Air selection switch E00703000403 E00703400436 Turn the temperature control dial clockwise or anticlockwise. To change the air selection, simply press the air selection The selected temperature will be shown by the temperature dis- switch. play (A).
Page 303 For pleasant driving AUTO switch CAUTION E00702600011 When the AUTO switch is pressed, the operation indication ● Normally, use the outside position to keep the wind- lamp (A) illuminates and the mode selection (except for “ ”), screen and side windows clear and quickly remove blower speed adjustment, recirculated/outside air selection, fog or frost from the windscreen.
Page 304 For pleasant driving Air conditioning switch NOTE ● If a problem is detected in the air conditioning compres- E00703500886 Push the switch to turn the air conditioning on, indication lamp sor, the air conditioning operation indication lamp (A) (A) will come on. blinks.
Page 305 For pleasant driving OFF switch MODE switch E00702700012 E00703300015 Push the switch to turn off the air conditioning system. Each time the MODE switch is pressed, the mode changes to ” → “ the next one in the following sequence: “ ”→...
Page 306 For pleasant driving Demister switch Changing the front mode selection E00703900037 E00727100017 When this switch is pressed, the mode changes to the “ ” To change the position and amount of air flowing from the ven- mode. The indication lamp (A) will come on. The selected tilators, push the MODE switch or demister switch.
Page 307 For pleasant driving Foot/Face position Foot position Air flows to the upper part of the passenger compartment, and Air flows mainly to the leg area. flows to the leg area. *: Optional equipment *: Optional equipment 5-11...
Page 308 For pleasant driving Foot/Demister position Demister position Air flows to the leg area, the windscreen and the door win- Air flows mainly to the windscreen and the door windows. dows. *: Optional equipment 5-12...
Page 309 For pleasant driving Operating the system in automatic mode CAUTION E00704100456 ● For vehicles with A/T, while the vehicle is stationary, fully depress the brake pedal to prevent the vehicle from creeping caused by slightly increased idling speed when the air conditioning compressor is switched on automatically.
Page 310 For pleasant driving Operating the system in manual mode For ordinary demisting Use this setting to keep the windscreen and door windows clear E00704200154 Blower speed and ventilator mode may be controlled manually of mist, and to keep the leg area heated. by setting the blower speed selection dial and the MODE switch to the desired positions.
Page 311: Rear Heater* / Rear Air Conditioning
For pleasant driving Rear heater* / Rear air conditioning For quick demisting E00704600015 The rear heater can be operated when the ignition switch is in the “ON” position. The rear air conditioning can only be used while the engine is running and the front air conditioning is switched on.
Page 312 For pleasant driving Rear fan switch for the front seat Main switch for the rear seat E00705000016 E00704900018 When the rear blower switch is pressed, the rear blower starts Push the switch, and the rear blower will operate, turning the operating, the rear blower operation display (A) shows “REAR operation indication lamp (A) on.
Page 313 For pleasant driving Blower speed selection dial Temperature control dial E00705300019 E00705500011 The blower has 3 different speeds. Select the best speed to fit Type A your needs. When the temperature is low and you wish to increase the heat- ing performance, turn the dial to the “ON”...
Page 314: Important Operation Tips For The Air Conditioning
For pleasant driving Important operation tips for the air Type B Select the desired temperature level by turning clockwise or conditioning anticlockwise. E00708300746 ● Park the vehicle in the shade. Parking in the hot sun will make the vehicle inside extremely hot, and it will require more time to cool the interior.
Page 315: Air Purifier (With Deodorizing Function)
For pleasant driving Air purifier (with deodorizing function) Air conditioning system refrigerant and lubri- cant recommendations E00708400183 An air filter is incorporated into the air conditioning system to If the air conditioning seems less effective than usual, the cause remove pollen, dust, tobacco smells and exhaust smells. might be a refrigerant leak.
Page 316: Lw/Mw/Fm Electronic Tuning Radio With Cd Player
For pleasant driving LW/MW/FM electronic tuning radio with Volume and tone control panel CD player E00708600114 E00708500432 The audio system can be used when the ignition switch is in the “ON” or “ACC” position. NOTE ● To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC”...
Page 317 For pleasant driving To adjust the volume To adjust the tone E00708700229 E00708800653 1. Press the MENU button (4) repeatedly to select your VOL (Volume control) desired sound customization setting to change. The order Press the VOL button (2) until the desired volume is reached. is: EQUALIZER TYPE →...
Page 318 For pleasant driving EQUALIZER TYPE (Equalizer type select) BASS (Bass tone control) To select the desired equalizer type. To select the desired bass level. MID (Midrange tone control) EQUALIZER Description To select the desired midrange level. type TREBLE (Treble tone control) Sounds good for all types of music (espe- NONE To select the desired treble level.
Page 319 For pleasant driving Speed Compensated Volume function E00726800277 Speed Compensated Volume function is a feature that automat- ically adjusts the VOL, BASS, MID, and TREBLE settings in accordance with the vehicle speed. It is possible to turn this function ON-OFF using the following method: 1.
Page 320 For pleasant driving Radio control panel and display E00708900351 1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button 3- Memory select buttons 4- SEEK (Down-seek) button 5- SEEK (Up-seek) button 6- TUNE (Down-step) button 7- TUNE (Up-step) button 8- FM (FM1/FM2/FM3) indicator 9- ST (Stereo) indicator 10- Preset memory number display 11- Display...
Page 321 For pleasant driving To listen to the radio To enter frequencies into the memory E00716100440 E00709000388 1. Press the PWR button (2) to turn the audio system on and Manual setting off. You can assign to the memory select buttons (3) a maximum of 2.
Page 322 For pleasant driving 3. The preset memory setting is retrieved by pressing the button for less than 2 seconds. Automatic setting With the method, all manually set stations in the band currently selected for reception are replaced with stations in the same band that are automatically selected in order of signal strength.
Page 323 For pleasant driving Radio data system (RDS) E00709200162 16- Display 1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button 3- Memory select buttons 4- MENU button 5- SEEK (Down-seek) button 6- SEEK (Up-seek) button 7- TUNE (Down-step) button 8- TUNE (Up-step) button 9- TP (Traffic program) button 10- PTY (Program type) button 11- RDS (Radio data system) indicator...
Page 324 For pleasant driving RDS uses PI (program identification) signal and AF (alterna- REG (Regional) function tive frequency) list transmitted in addition to the normal FM E00721100028 REG function limits to receive the stations broadcasting broadcasting programs, and picks up the FM stations that are regional programs.
Page 325 For pleasant driving PTY (Program type) 1. NEWS 2. AFFAIRS (Current affairs) E00721300222 RDS broadcasts are classified according to program type 3. INFO (Information) (PTY) as follows. Use the TUNE button (7 or 8) to select your 4. SPORT desired PTY. 5.
Page 326 For pleasant driving To search for a broadcast of desired program type: How to enter PTYs in the memory 1. Press the PTY button (10). E00721400089 As many as 6 PTYs can be entered in the memory. 2. Press the TUNE button (7 or 8) for less than 1 second at a Follow the steps described below.
Page 327 For pleasant driving Traffic information E00721600137 The radio will automatically tune in to traffic information broadcasts while receiving FM broadcasts or playing compact discs. To select this function: 1. Press the TP button (9). The display will show TP indica- tor (14).
Page 328 For pleasant driving TP (Traffic information Program) search function Emergency broadcasts E00721800100 E00721700138 The traffic information program search function is turned on (with the TP indicator (14) shown on the display), if: ● The RDS is off for 45 seconds due to a weak signal. ●...
Page 329 For pleasant driving Function setup mode E00722500205 It is possible to change the following functions: ● AF ● CT ● REG ● TP-S ● PI-S* ● SCV (Refer “Speed Compensated Volume function” on page 5-23). ● PHONE 1. Press the “MENU” button (4) for 2 seconds longer to select the function setup mode.
Page 330 For pleasant driving 2. Press the “MENU” button (4) repeatedly to select the NOTE mode you wish to change. ● Although “PHONE” appears on the display, the PHONE The order is: AF → CT → REG → TP-S → PI-S* → function is inoperative.
Page 331 For pleasant driving 3. Select the desired setting for each mode to be turned ON and OFF as shown below. The setting will be shown on the display. Example NOTE ● After selecting a mode, you can leave the function setup mode by taking either of the following steps: •...
Page 332 For pleasant driving CD control panel and display E00709500309 16- CD indicator 1- AM/FM button 17- TRACK indicator 2- PWR (On-Off) button 18- Track play time indicator 3- DISP (Title display) button 19- RPT/RDM indicator 4- CD (CD mode changeover) button 20- SCAN indicator 5- RPT (Repeat) button 6- RDM (Random) button...
Page 333 For pleasant driving To listen to a CD To listen to an MP3 CD This CD player allows you to play MP3 (MPEG Audio Layer- E00709601062 1. Insert a disc with the label facing up, and the CD player 3) files recorded on CD-ROMs, CD-Rs (recordable CDs), and will begin playing even if the radio is being used.
Page 334 For pleasant driving NOTE Folder selection order/MP3 file playback order (Example) ● While listening to a disc on which CD-DA (CD-Digital Audio) and MP3 files have both been recorded, you can switch between reading of the CD-DA, reading of the Root folder (root directory) MP3 files, and the external audio input mode (AUX) by pressing the CD button for 2 seconds or longer (until you...
Page 335 For pleasant driving To fast-forward/fast-reverse the disc To select a desired folder (MP3 CDs only) To fast-forward or fast-reverse the disc, press the fast-forward/ You can select your desired folder by pressing the FOLDER fast-reverse button (9). buttons (12 or 13). Fast-forward You can fast-forward the disc by pressing the side of the...
Page 336 For pleasant driving ● With a disc that contains both CD-DA and MP3 files, the To select a desired track repeat mode causes only files of the same format (CD-DA You can select your desired track by using the TRACK button only or MP3 files only) to be repeated.
Page 337 For pleasant driving To find the start of each track on a disc for playback CD text and MP3 title display Press the SCAN button (14). “SCAN” will appear on the dis- E00725000399 This CD player can display CD text and MP3 titles including play and the CD player will play back the first 10 seconds of ID3 tag information.
Page 338 For pleasant driving MP3 title ID3 tag information The CD player can display folder and track titles for discs The CD player can display ID3 tag information for files that encoded with folder and track information. Press the DISP but- have been recorded with ID3 tag information.
Page 339: Lw/Mw/Fm Electronic Tuning Radio With Cd Autochanger
For pleasant driving LW/MW/FM electronic tuning radio with Volume and tone control panel CD autochanger E00708600433 E00708500706 The audio system can be used when the ignition switch is in the “ON” or “ACC” position. NOTE ● To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC”...
Page 340 For pleasant driving To adjust the volume To adjust the tone E00708700274 E00708800666 VOL (Volume control) AUDIO CONTROL ADJUSTMENT MODE Press the VOL button (2) until the desired volume is reached. 1. Press the MENU button (4) repeatedly to select your The status will be displayed in the display (6).
Page 341 For pleasant driving 2. Press the sound adjust button (5) to adjust the sound cus- EQUALIZER TYPE (Equalizer type select) tomization features. To select the desired equalizer type. Adjusting operation EQUALIZER Description Mode type Sounds good for all types of music (espe- NONE SUBWOOFER cially for jazz and classic).
Page 342 For pleasant driving SURROUND CONTROL ADJUSTMENT MODE (for Sound field type Description premium sound system) Utilizing sound reflections in the Digital 1. Press the MENU button (4). The display will show Signal Processor, CONCERT gives the “AUDIO CONTROL/SURROUND CONTROL”. CONCERT impression that the listener is at concert hall 2.
Page 343 For pleasant driving SURROUND MODE (Surround mode select) (for pre- SOUND TYPE (Sound type select) (for premium sound mium sound system) system) To select the desired surround mode. To select the desired sound type. SURROUND SOUND TYPE Description Description MODE CINEMA The optimal setting for watching a movie Creates a realistic three-dimensional sound...
Page 344 For pleasant driving Speed Compensated Volume function NOTE ● Depending on the selected tone adjustment mode, certain E00726800280 Speed Compensated Volume function is a feature that automat- other adjustment modes cannot be used. Adjustments are ically adjusts the VOL, BASS, MID, and TREBLE settings in not possible as follows: accordance with the vehicle speed.
Page 345 For pleasant driving Radio control panel and display E00708900436 1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button 3- Memory select button 4- SEEK (Down-seek) button 5- SEEK (Up-seek) button 6- TUNE (Down-step) button 7- TUNE (Up-step) button 8- FM (FM1/FM2/FM3) indicator 9- ST (Stereo) indicator 10- Preset memory number display 11- Display...
Page 346 For pleasant driving To listen to the radio To enter frequencies into the memory E00716100567 E00709000418 1. Press the PWR button (2) to turn the audio system on and Manual setting off. You can assign to the memory select buttons (3) a maximum of Press the AM/FM button (1) to turn on the radio if a CD is 18 stations in the FM band (6 FM1, 6 FM2 and 6 FM3 stations) being played.
Page 347 For pleasant driving Follow the steps described below. Automatic setting 1. Press either the TUNE button (6 or 7) to tune the fre- With the method, all manually set stations in the band currently quency to be entered in the memory. selected for reception are replaced with stations in the same 2.
Page 348 For pleasant driving Radio data system (RDS) E00709200175 16- Display 1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button 3- Memory select buttons 4- MENU button 5- SEEK (Down-seek) button 6- SEEK (Up-seek) button 7- TUNE (Down-step) button 8- TUNE (Up-step) button 9- TP (Traffic program) button 10- PTY (Program type) button 11- RDS (Radio data system) indicator...
Page 349 For pleasant driving RDS uses PI (program identification) signal and AF (alterna- REG (Regional) function tive frequency) list transmitted in addition to the normal FM E00721100015 REG function limits to receive the stations broadcasting broadcasting programs, and picks up the FM stations that are regional programs.
Page 350 For pleasant driving PTY (Program type) 27. OLDIES 28. FOLK M (Folk music) E00721300235 RDS broadcasts are classified according to program type 29. DOCUMENT (PTY) as follows. Use the TUNE button (7 or 8) to select your To search for a broadcast of desired program type: desired PTY.
Page 351 For pleasant driving Traffic information NOTE ● If the SEEK button (5 or 6) is pressed for less than 1 sec- E00721600140 The radio will automatically tune in to traffic information ond, the radio will try to find out another broadcast of the broadcasts while receiving FM broadcasts or playing compact same program type as currently selected.
Page 352 For pleasant driving TP (Traffic information Program) search function E00721800113 The traffic information program search function is turned on (with the TP indicator (14) shown on the display) If: ● The RDS is off for 45 seconds due to a weak signal. ●...
Page 353 For pleasant driving Emergency broadcasts Function setup mode E00721700141 E00722500218 It is possible to change the following functions: ● AF ● CT ● REG ● TP-S ● PI-S* ● SCV (Refer to “Speed Compensated Volume function” on page 5-48). ● PHONE 1.
Page 354 For pleasant driving 2. Press the “MENU” button (4) repeatedly to select the NOTE mode you wish to change. The order is: AF → CT → ● Although “PHONE” appears on the display, the PHONE REG → TP-S → PI-S* → SCV → PHONE → Function function is inoperative.
Page 355 For pleasant driving 3. Select the desired setting for each mode to be turned ON and OFF as shown below. The setting will be shown on the display. Example NOTE ● After selecting a mode, you can leave the function setup mode by taking either of the following steps: •...
Page 356 For pleasant driving CD control panel and display E00709500338 16- DISC (Disc up) button 1- AM/FM button 17- DISC (Disc down) button 2- PWR (On-Off) button 18- CD indicator 3- DISP (Title display) button 19- DISC indicator 4- CD (CD mode changeover) button 20- TRACK indicator 5- RPT (Repeat) button 21- RPT/RDM indicator...
Page 357 For pleasant driving To listen to a CD To set discs E00709601075 The CD can be loaded or ejected by pressing the LOAD button (15) or the eject button (7) even if the audio system power is off. 1. Press the PWR button (2) to turn the audio system on and off.
Page 358 For pleasant driving To set all the discs To eject discs 1. Press the LOAD button (15) for 2 seconds or longer (until you hear a beep). 2. The autochanger will select the lowest-numbered empty slot and switch to loading standby mode. 3.
Page 359 For pleasant driving To eject all the discs To listen to a music CD 1. Press the eject button (7) for 2 seconds or longer (until you hear a beep). 2. The currently selected disc will be ejected. When you remove the ejected disc, the next disc will automatically be ejected.
Page 360 For pleasant driving To listen an MP3 CD NOTE ● While listening to a disc on which CD-DA (CD-Digital This autochanger allows you to play MP3 (MPEG Audio Audio) and MP3 files have both been recorded, you can Layer-3) files recorded on CD-ROMs, CD-Rs (recordable switch between reading of the CD-DA, reading of the CDs), and CD-RWs (rewritable CDs) in ISO9660 Level MP3 files, and the external audio input mode (AUX) by...
Page 361 For pleasant driving To fast-forward/fast-reverse the disc Folder selection order/MP3 file playback order (Example) To fast-forward or fast-reverse the disc, press the fast-forward /fast-reverse button (9). Fast-forward Root folder (root directory) You can fast-forward the disc by pressing the side of the fast-forward button.
Page 362 For pleasant driving To select a desired folder (MP3 CDs only) Track down You can select your desired folder by pressing the FOLDER Press the side of the TRACK button (11) repeatedly until button (12 or 13). the desired track number appears on the display. NOTE ●...
Page 363 For pleasant driving To play tracks in random order Random playback for all folders on a disc (MP3 CDs only) Press the RDM button (6) for 1 second or longer (until you Random playback for a disc (music CDs only) hear a beep).
Page 364 For pleasant driving CD text and MP3 title display MP3 title The autochanger can display folder and track titles for discs E00725000403 This autochanger can display CD text and MP3 titles including encoded with folder and track information. Press the DISP but- ID3 tag information.
Page 365 For pleasant driving ID3 tag information To listen to a disc in the rear-seat display (vehicle The autochanger can display ID3 tag information for files that with rear-seat display) have been recorded with ID3 tag information. E00709700040 1. Press the DISP button (3) for 2 seconds or longer to It is possible to listen to the audio from the rear-seat display switch to the ID3 tag information.
Page 366: Steering Wheel Remote Control Switch
For pleasant driving Steering wheel remote control switch To turn on the power E00710000173 PWR (ON-OFF) button — 3 The remote control switches are located on the left side of the When the power is off, press this button to turn the power on. steering wheel.
Page 367 For pleasant driving To listen to a CD To fast-forward/fast-reverse the disc To fast-forward or fast-reverse the disc, press the fast-forward button (4) or the fast-reverse button (5). Fast-forward button — 4 You can fast-forward the disc by pressing the fast-forward but- ton.
Page 368: Error Codes
For pleasant driving Error codes E00710100738 If an error code (1) appears in the display, take action in accordance with the table below. Error display Problem Item Repair NO DISC No disc inserted Disc is not in CD player. Insert disc. Disc is not loaded correctly, or condensation Insert disc with label facing up.
Page 369 For pleasant driving Error display Problem Item Repair Communication error between external device Communication or Consult a MITSUBISHI MOTORS Author- ERROR and audio equipment. Power supply error of power supply error ized Service Point. external device. 5-73...
Page 370: Handling Of Compact Discs
For pleasant driving Handling of compact discs E00723000106 ● Use only the type of compact discs that have the mark shown in the illustration below. Playback of CD-R or CD- RW discs may cause problems. ● The use of special shaped, damaged compact discs (like cracked discs) or low-quality compact discs (like warped discs or burrs on the discs) will damage the CD player.
Page 371 For pleasant driving ● In the following circumstances, moisture can form on ● To clean a disc, use a soft, clean, dry cloth. Wipe directly discs and inside the audio system, preventing normal from the centre hole toward the outer edge. Do not wipe in operation.
Page 372 For pleasant driving ● Do not put additional labels (A) or stickers (B) on com- Notes on CD-Rs/RWs pact discs. Also, do not use any compact disc on which a E00725100026 ● You may have trouble playing back some CD-R/RW discs label or sticker has started to peel off or any compact disc recorded on CD recorders (CD-R/RW drives), either due that has stickiness or other contamination left by a peeled-...
Page 373: Antenna
For pleasant driving Antenna Sun visors E00710500048 E00711200811 Glass antenna Antenna leads (1) are printed on the left-hand side of the rear side window (3-door models)/quarter window (5-door models) glasses. 1- To eliminate front glare 2- To eliminate side glare NOTE ●...
Page 374 For pleasant driving Vanity mirror Type 2 A vanity mirror is fitted to the back of the sun visor. E00731900090 Operating the lid of the vanity mirror will automatically turn Type 1 on the mirror lamp (A). A vanity mirror is fitted to the back of the sun visor. CAUTION ●...
Page 375 For pleasant driving Card holder* Type 2 E00732000014 Cards can be slipped into the holder (A) on the back of the sun visor. Type 1 5-79...
Page 376 For pleasant driving Slide plate* To block out a broader range of glare from your side, swing the sun visor sideways and pull out the slide plate (B). E00732100015 To block out the glare of the sunlight from behind the inside rear-view mirror, swing down the sun visor, and then pull out the slide plate (B).
Page 377: Ashtray
For pleasant driving Ashtray Mounting position for moveable ashtray There is a mounting position on the front console box. E00711400363 CAUTION ● Put out matches and cigarettes before they are placed in the ashtray. ● Don’t put papers and other things that burn into your ashtrays.
Page 378: Cigarette Lighter
We recommend you to have it checked. ● Do not use any electric appliance that is not approved by MITSUBISHI MOTORS. Doing so could damage the socket. If you used the cigarette lighter after damaging the socket, the cigarette lighter might pop out or fail to come out after being pushed in.
Page 379: Accessory Socket
For pleasant driving Accessory socket Type 1 Pull out the plug (A) in the instrument panel to uncover the E00711600701 The accessory socket can be used while the ignition switch is socket. Use it to plug in an electrical device. in the “ON”...
Page 380 For pleasant driving Type 2 Rear (3-door models) Open the cap (B) on the centre console box and the side wall of the luggage compartment to uncover the socket. Use it to plug in an electrical device. Console box* Rear (5-door models) 5-84...
Page 381: Interior Lamps
For pleasant driving Interior lamps Interior lamp switch E00717300292 E00712000148 The interior lamp switch can be used to turn the room & map lamps and rear personal lamps on and off. 1- Luggage compartment lamp 2- Rear personal lamp The room & map lamps and rear personal lamps go 3- Door courtesy lamps on regardless of opening and closing of the doors 4- Ceiling lamp...
Page 382 The dimming period is also adjustable. For further information, we recommend you to consult a MITSUBISHI MOTORS Author- ized Service Point. ● When the room & map lamp switch is in the “ON” position, closing the doors and back- door does not cause the room &...
Page 383 For pleasant driving Room & map lamps Rear personal lamp E00717400062 E00712600199 With the doors and backdoor closed and the interior lamp With the doors and backdoor closed and the interior lamp switch in the “DOOR” or “ ” position, pressing the lens (A) switch in the “DOOR”...
Page 384 For pleasant driving Luggage compartment lamp Type 2 E00712700262 *: Front of the vehicle NOTE The lamp illuminates. ● When the interior lamp switch is in the “ ” position, the The lamp goes on when any of the doors or the back- lamp remains off even when the lens (A) is pressed and door is opened.
Page 385 The lamps go on in case of the followings: ● Any of the doors or the backdoor is opened. For further information, we recommended you to consult a MITSUBISHI MOTORS Authorized ● The ignition switch is turned to the “ON” position. Service Point.
Page 386 For pleasant driving NOTE Rear foot lamp* ● When the ignition switch is turned from the “ON” posi- tion to the “ACC” or “LOCK” position, the lamps illumi- nate for 15 seconds and then go off. ● All doors and backdoor are unlocked using the key mech- anism of the driver’s door, the central door lock switch or the remote control switch of the keyless entry system (vehicle with keyless entry system), the lamps illuminate...
Page 387 For pleasant driving Door courtesy lamps Rear (5-door models) E00717500047 Each door courtesy lamp illuminates when the relevant door is opened and goes off when the door is closed. Front 5-91...
Page 388: Storage Spaces
For pleasant driving Storage spaces Lamps (room lamps, etc.) auto-cutout function (Vehicle with keyless entry system) E00713100885 E00712900613 CAUTION If any of the interior lamps are left switched on with the igni- tion key in any position other than “ON” or “ACC”, it goes off ●...
Page 389 For pleasant driving Glove box E00717600657 The glove box can be locked and unlocked using the key. 1- Sunglasses holder* 2- Glove box 3- Accessory box* 4- Centre console box 1- To lock 5- Side box* 2- To unlock 6- Luggage floor box 3- To open, pull the lever 5-93...
Page 390 For pleasant driving Centre console box NOTE ● When the lamp switch is in the “ ” or “ ” position, E00722600017 Upper and lower boxes are located inside the centre console the lower glove box lamp illuminates. box. ● Small articles can be stored in the upper area (A) of the The centre console box can also be used as an armrest.
Page 391 For pleasant driving Upper box Lower box To open the upper box, lift the left upper release lever (A) and To open the lower box, lift the lower release lever (B) and raise raise the lid. the lid. NOTE ● It also can be used as the armrest by sliding the lid. Refer to “Armrest”...
Page 392 For pleasant driving Accessory box* Card holder To store a card, insert it into the card holder (A) until you hear E00717900096 To open, push the lid. a click. To remove the card, give it a push. It will come out automatically.
Page 393 For pleasant driving Side box* Luggage floor box* E00722700092 E00718700280 The box for storing articles is located inside the luggage com- The box for storing articles is located inside the luggage com- partment. partment. 3-door models To use the box, raise the luggage floor board by pulling up on the strap (A).
Page 394 For pleasant driving 5-door models Sunglasses holder* To use the box, raise the luggage floor board. E00718600133 To open, push the lid. NOTE ● On 5-door models, the luggage floor board can be CAUTION removed. This is useful for storing large articles. ●...
Page 395: Cup Holder
For pleasant driving Cup holder For the rear seat/second seat E00716900321 E00714500408 3-door models CAUTION To use the cup holder, press the button (A) at the top of the armrest and allow the armrest to drop down. ● Do not drink beverages while driving the vehicle; doing so could distract you and result in an accident.
Page 396 For pleasant driving 5-door models 2. Open the lid (C) while holding the side face of the lid with your hand. 1. Lift the head restraint (B) and tilt the armrest. 5-100...
Page 397: Rear Shelf (3-Door Models)
For pleasant driving Rear shelf (3-door models) For the third seat* E00719000075 E00722800035 The cup holder is located at the left side of the third seat. The rear shelf divides the passenger compartment and luggage The cup holder is designed for holding cups or drink-cans area.
Page 398 For pleasant driving To remove 2. Raise the rear shelf, then pull it upward to remove it from the groove (B) on each side of the luggage area. 1. Pull the 5 velcro tapes (A) on the front of the rear shelf to separate them from the attachment points on the rear seat- back.
Page 399: Cargo Area Cover (5-Door Models)
For pleasant driving Cargo area cover (5-door models) To remove 1. Unhook the hooks (A) on the cover from the mounting E00715500388 The cargo area cover divides the passenger compartment and grooves (B) on the side of the cargo area, and the cover cargo area.
Page 400 For pleasant driving 2. Pull the hooks (C) to separate them from the head 3. Pull up the cargo area cover (D) from the mounting restraint. grooves (E). To refit Refit the cover by performing the removal steps in reverse. NOTE ●...
Page 401: Convenient Hooks (5-Door Models)
For pleasant driving Convenient hooks (5-door models) Luggage hooks E00715600099 E00715700306 There are four hooks (A) on the side of the luggage compart- There are hooks on the floor and the side of the luggage com- ment. partment. Light items of luggage can be hung from the hook. Use the hooks on the floor for securing the luggage.
Page 402: Coat Hooks
For pleasant driving Coat hooks 5-door models E00725600050 There are two hooks on the rear / second assist grips for use in hanging clothes. CAUTION ● Do not pile up the luggage beyond the seatback height. Secure the luggage firmly. WARNING Otherwise, serious accidents could result due to hin- dered rearward view or flying objects during sud-...
Page 403: Installation Position For Warning Triangle
For pleasant driving Installation position for warning triangle E00718400085 There are securing bands (A) for the warning triangle on the backdoor. To remove or install the warning triangle, turn the lock knobs (B) counter clockwise, then remove the backdoor lid (C). NOTE ●...
Page 405 For emergencies If the vehicle breaks down ....6- Emergency starting ......6- Engine overheating .
Page 406: If The Vehicle Breaks Down
For emergencies If the vehicle breaks down Emergency starting E00800100505 E00800501287 If the vehicle breaks down on the road, move it to the shoulder If the engine cannot be started because the battery is weak or and use the hazard warning flashers and/or the warning triangle dead, the battery from another vehicle can be used with jumper etc.
Page 407 For emergencies 1. Get the vehicles close enough so the jumper cables can 3. Turn off all lamps, heater and other electrical loads. reach, but be sure the vehicles aren’t touching each other. 4. Make sure battery electrolyte is at the proper level. Refer to “Battery”...
Page 408 For emergencies 5. Connect one end of one jumper cable to the positive (+) terminal of the discharged battery (A), and the other end to the positive (+) terminal of the booster battery (B). 3800 models 3200 models LHD* RHD* *: Optional equipment 6.
Page 409 For emergencies 7. Start the engine in the vehicle which has the booster bat- WARNING tery, let the engine idle a few minutes, then start the ● Be sure to observe the connecting sequence of engine in the vehicle with the discharged battery. →...
Page 410: Engine Overheating
For emergencies Engine overheating NOTE ● If the vehicle is put in motion without fully charging the E00800600991 battery, it might cause the loss of smooth engine operation If the water temperature gauge indication remains in the over- and the anti-lock brake warning lamp to illuminate. heating zone for a long time, the engine may be overheating.
Page 411 For emergencies 3. Confirm that the cooling fan is turning. If the fan is not 4. After the engine coolant temperature has dropped to the turning, stop the engine immediately and have it checked. normal temperature, stop the engine. Front A- Radiator cap B- Cooling fan C- Reserve tank...
Page 412 For emergencies 5. Check the coolant level in the reserve tank (A). 6. Add coolant to the radiator and/or reserve tank if neces- sary. (Refer to the “Maintenance” section.) CAUTION ● Do not add coolant while the engine is hot. Suddenly adding cold coolant could damage the engine.
Page 413: Bleeding The Fuel System (Diesel-Powered Vehicles Only)
For emergencies Bleeding the fuel system Removal of water from the fuel filter (diesel-powered vehicles only) (diesel-powered vehicles only) E00800700149 E00800800140 The fuel system should be bled to remove air as described If the fuel filter indication lamp in the instrument panel illumi- below if the fuel supply is exhausted during travel.
Page 414 For emergencies 2. Operate the hand pump (B) slowly 6 or 7 times in order to 3. Tighten the drain plug when water no longer comes out. force the water out through the drain plug. 4. Bleed the air in the fuel system. (Refer to “Bleeding the fuel system”...
Page 415: Tool, Jack And Jack Handle
For emergencies Tool, jack and jack handle 5-door models E00800900659 Storage The storage location of the tool, jack and jack handle should be remembered in case of an emergency. 3-door models D- Jack E- Jack handle F- Tool (wheel nut wrench) A- Jack handle B- Tool (wheel nut wrench) C- Jack...
Page 416 For emergencies Tool Removing and storing the tool, jack and jack handle E00801900483 E00802300178 3-door models Tool, jack and jack handle are in the storage compartment at the rear of the vehicle, on the right side. 1. Loose the knob (A), and remove the lid (B). 1- Wheel nut wrench 6-12...
Page 417 For emergencies 2. Remove the securing bolt (C), and then take out the jack. 3. Remove the tool and the jack handle from the holder (D), and take it out. 4. Reverse the removing procedure when storing the tool, jack and jack handle. CAUTION ●...
Page 418 For emergencies 5-door models 3. Remove the tool and the jack handle from the holder (A), and take it out. Tool, jack and jack handle are located in the luggage floor box. 1. When the third seat is folded into the luggage floor box, raise the seat forward and return it to the original position.
Page 419 For emergencies 4. Pull the lid to remove it. 6. Reverse the removing procedure when storing the tool, jack and jack handle. To use the jack handle E00802400023 1. While pushing the snap pin (A), remove the inside handle (B). 5.
Page 420: How To Change A Tyre
For emergencies How to change a tyre 2. With the snap pin (C) pushed, insert the inside handle until it is locked. E00801201757 Before changing a tyre, first stop your vehicle in a safe, flat location. 1. Park the vehicle on level and stable ground. 2.
Page 421 For emergencies 5. To prevent the vehicle from rolling when it is raised on the 6. Get the spare wheel, jack, jack handle and wheel nut jack, place a chock or block (A) at the tyre that is diago- wrench ready. nally opposite from the tyre (B) you are changing.
Page 422 For emergencies To remove the spare tyre 1. Open the backdoor. 2. Open the lids (A) inside of the backdoor. E00803300016 CAUTION ● Grasp the spare wheel firmly when removing or attaching it. ● When removing the spare wheel, put on gloves. Removing the spare wheel with your bare hands may cause injury to the fingers.
Page 423 For emergencies 3. Remove the bolts (B) by turning them anticlockwise with 4. Close the backdoor. the wheel nut wrench. 6-19...
Page 424 For emergencies 5. Open the spare wheel garnish (C). If necessary insert the 6. Loosen the spare wheel bolts with the wheel nut wrench pin (D) to the hinge (E). (F), then remove the spare wheel. CAUTION ● Do not open the backdoor with the spare wheel gar- nish open.
Page 425 For emergencies To change a tyre NOTE ● Put the spare wheel under the vehicle body near the flat E00803200015 1. Loosen the wheel nuts a quarter turn with the wheel nut tyre. This makes it safer if the jack slips out of position. wrench.
Page 426 For emergencies 2. Using the jack handle, turn the release valve (A) clock- 3. Insert the jack handle in the bracket of the jack and hook wise until it stops. the notch (B) on the jack handle end to the claw (C) of the bracket.
Page 427 For emergencies 4. Place the jack under one of the jacking points shown in the illustration. Use the jacking point closest to the tyre you wish to change. E- Rear jacking point WARNING D- Front jacking point ● Set the jack only at the positions shown here. If the jack is set at a wrong position, it could dent your vehicle or the jack might fall over and cause per- sonal injury.
Page 428 For emergencies 5. Move the jack handle up and down to raise the ram until 7. Remove the wheel nuts with the wheel nut wrench, then just before the jack contacts the jacking point of the vehi- take the wheel off. cle.
Page 429 For emergencies 9. Temporarily tighten the wheel nuts (flange nuts) until WARNING their flange section comes in contact with the wheel and it ● Mount the spare wheel with the valve stem (I) facing is no longer loose. outboard. If you cannot see the valve stem, you have installed the wheel backwards.
Page 430 For emergencies 10. Put the notch (J) provided on the jack handle end on the 11. Tighten the nuts crisscross in 2 or 3 steps until each nut valve (K) of the jack. has been tightened securely. Using the jack handle, turn the release valve anticlock- Tightening torque wise slowly to lower the vehicle until the tyre touches the 105 to 125 Nm...
Page 431 For emergencies 12. Lower the jack all the way and remove it. NOTE ● Occasionally when the vehicle is jacked up, the grooved CAUTION portion of the designated point will not come off. When this happens, rock the vehicle to lower the ram. ●...
Page 432 For emergencies 13. Check your tyre inflation pressure at the next gasstation. To store the flat tyre or spare tyre The correct pressures are shown on the door label. See the E00803400075 1. Attach the wheel to the spare wheel hanger (A) while illustration.
Page 433: Towing
If towing is necessary, we recommend you to have it done by 11 to 25 Nm (Achieved by applying a force of 40 to 92 N at the end of your MITSUBISHI MOTORS Authorized Service Point or a commercial tow truck service. the wheel nut wrench supplied with the vehicle.) In the following cases, transport the vehicle using a tow truck.
Page 434 For emergencies Towing the vehicle by a tow truck CAUTION ● This vehicle must not be towed by a tow truck using sling lift type equipment (Type A) as illustrated. Using a sling lift will damage the bumper and front end.
Page 435 For emergencies Towing with front wheels off the ground (Type B) Towing with rear wheels off the ground (Type C) Place the gearshift lever in the “N” (Neutral) position (manual Place the gearshift lever in the “N” (Neutral) position (manual transmission) or the selector lever in the “N”...
Page 436 For emergencies Emergency towing Rear If towing service is not available in an emergency, your vehicle may be temporarily towed by a rope secured to the towing hook. If your vehicle is to be towed by another vehicle or if your vehicle tows another vehicle, pay careful attention to the fol- lowing points: If your vehicle is to be towed by another vehicle...
Page 437 For emergencies 2. Keep the engine running. 6. During towing make sure that close contact is maintained If the engine is not running, turn the ignition switch to the between the drivers of both vehicles, and that the vehicles “ACC” or “ON” position to unlock the steering wheel. travel at low speed.
Page 438 For emergencies If your vehicle tows another vehicle NOTE ● Do not tow a vehicle heavier than your own vehicle. Only use the rear towing hook as shown in the illustration. Secure the tow rope to the rear towing hook. CAUTION ●...
Page 439: Operation Under Adverse Driving Conditions
For emergencies Operation under adverse driving conditions On a snow-covered or frozen road ● When driving on a snow-covered or frozen road, it is rec- E00801701547 ommended that you use snow tyres or tyre chains. On a flooded road Refer to the “Snow tyres” and “Tyre chains” sections. ●...
Page 441 Vehicle care Vehicle care precautions ....7- Cleaning the interior of your vehicle ...7- Cleaning the exterior of your vehicle.
Page 442 Vehicle care Vehicle care precautions CAUTION E00900100375 ● Cleaning products can be dangerous. Always follow In order to maintain the value of your vehicle, it is necessary to the instructions of the cleaning product supplier. perform regular maintenance using the proper procedures. ●...
Page 443 Vehicle care Cleaning the interior of your vehicle Upholstery E00900500063 E00900200129 1. To maintain the value of your new vehicle, handle the After cleaning the interior of your vehicle with water, cleaner upholstery carefully and keep the interior clean. or similar, wipe and dry in a shady, well-ventilated area. Use a vacuum cleaner and brush to clean the seats.
Page 444 Vehicle care Cleaning the exterior of your vehicle Genuine leather* E00900600224 E00900700195 1. Lightly wipe off with gauze or other soft cloth soaked If the following is left on your vehicle, it may cause corrosion, with a 5 % aqueous solution of neutral detergent for wool. discolouration and stains, wash the vehicle as soon as possible.
Page 445 Vehicle care CAUTION CAUTION ● After washing the vehicle, drive the vehicle slowly ● When washing the under side of your vehicle or while lightly depressing the brake pedal several wheel, be careful not to injure your hands. times in order to dry out the brakes. ●...
Page 446 Vehicle care During cold weather Waxing Salt and other chemicals spread on the roads in some areas in E00901000254 Waxing the vehicle will help prevent the adherence of dust and winter can have a harmful effect on the vehicle body. You road chemicals to the paintwork.
Page 447 Vehicle care Polishing Cleaning plastic parts E00901100024 E00901300361 The vehicle should only be polished if the paintwork has Use a sponge or chamois leather. become stained or lost its lustre. Matt-finish parts and plastic If a car wax adheres on a grey or black rough surface of the bumpers must not be polished, polishing these parts will stain bumper, moulding or lamps, the surface becomes white.
Page 448 Vehicle care Chrome parts Window glass E00901400115 E00901600032 In order to prevent spots and corrosion of chrome parts, wash The window glass can normally be cleaned using only a with water, dry thoroughly, and apply a special protective coat- sponge and water. ing.
Page 449 Vehicle care Cleaning the sunroof* Engine compartment E00901800034 E00902100311 Clean the inside of the sunroof with a soft cloth. Hard deposits Clean the engine compartment at the beginning and end of should be wiped away with a cloth dipped in warm, neutral winter.
Page 451 Maintenance Service precautions ......8- Catalytic converter ......8- Bonnet .
Page 452: Service Precautions
We recommend you to have the periodic inspection and main- tenance performed by a MITSUBISHI MOTORS Authorized Service Point or another specialist. In the event a malfunction or other problem is discovered, we recommend you to have it checked and repaired.
Page 453: Catalytic Converter
Maintenance Catalytic converter Bonnet E01000200550 E01000301125 For ordinary use, there are no particular precautions except that To open of using unleaded petrol. 1. Pull the release lever towards you to unlock the bonnet. The exhaust gas scavenging devices used with the catalytic converter are extremely efficient for the reduction of noxious gases.
Page 454 Maintenance 2. Raise the bonnet while pressing the safety lock. NOTE ● Only open the bonnet when the wipers are in the parked position. Failure to do so may cause bonnet damage.
Page 455 Maintenance 3. Support the bonnet by inserting the support bar in its slot. To close 1. Unlatch the support bar and clip it in its holder. CAUTION 2. Slowly lower the bonnet to a position about 30 cm above ● Note that the support bar may disengage the bonnet the closed position, then let it drop.
Page 456: Engine Oil
Maintenance Engine oil 3800 models E01000401171 To check and refill engine oil 3200 models The engine oil used has a significant effect on the engine’s per- formance, service life and startability. Be sure to use oil of the recommended quality and appropriate viscosity. All engines consume a certain amount of oil during normal operation.
Page 457 Maintenance 1. Park the car on a horizontal surface. NOTE ● Engine oil consumption is greatly influenced by payload, 2. Switch off the engine. 3. Wait a few minutes. engine speed, etc. It may reach 1.0 lit./1,000 km depend- 4. Remove the dipstick and wipe it with a clean cloth. ing on style of driving.
Page 458 Maintenance Selection of engine oil NOTE ● Use of additives is not recommended since they may Petrol-powered vehicles reduce the effectiveness of additives already included in the engine oil. It may result in failure of the mechanical assembly. ● Select engine oil of the proper SAE viscosity number according to the atmospheric temperature.
Page 459 Maintenance Diesel-powered vehicles Vehicles with diesel particulate filter (DPF) Vehicles without diesel particulate filter (DPF) ● Select engine oil of the proper SAE viscosity number according to the atmospheric temperature. ● Select engine oil of the proper SAE viscosity number ●...
Page 460: Engine Coolant
Maintenance Engine coolant To add coolant The cooling system is a closed system and normally the loss of E01000501042 coolant should be very slight. A noticeable drop in the coolant To check the coolant level level could indicate leakage. If this occurs, we recommend you A translucent coolant reserve tank is located in the engine com- to have the system checked as soon as possible.
Page 461: Washer Fluid
Maintenance Washer fluid Because of the necessity of this anti-corrosion agent, the cool- ant must not be replaced with plain water even in summer. The E01000700412 required concentration of anti-freeze differs depending on the Windscreen washer fluid expected ambient temperature. The windshield washer fluid reservoir is in the engine compart- ment.
Page 462 Maintenance Rear window washer fluid 2. Pull out the rear window washer fluid reservoir filler port (B) and check the washer fluid level. E01006500063 1. Remove the rear window washer fluid reservoir filler port If the level is low, replenish the container with washer lid (A) on the backdoor.
Page 463: Brake Fluid
Maintenance Brake fluid E01000900401 To check the fluid level The brake fluid level is monitored by a float. When the brake fluid level falls below the “MIN” mark, the brake fluid warning lamp lights up. The brake fluid level must be between the “MAX” and “MIN” marks on the reservoir.
Page 464: Clutch Fluid
Maintenance Clutch fluid Fluid type Use brake fluid conforming to DOT3 or DOT4 from a sealed E01001000193 container. The brake fluid is hygroscopic. Too much moisture To check the fluid level in the brake fluid will adversely affect the brake system, reduc- The clutch fluid in the master cylinder should be checked when ing the brake performance.
Page 465 Maintenance Fluid type Brake fluid conforming to DOT 3 or DOT 4 should be used. The reservoir cap must be fully tightened to avoid contamina- tion from foreign matter or moisture. DO NOT ALLOW PETROLEUM-BASED FLUID TO CON- TACT, MIX WITH, OR OTHERWISE CONTAMINATE THE BRAKE FLUID.
Page 466: Power Steering Fluid
Maintenance Power steering fluid Battery E01001100484 E01001201307 The condition of the battery is very important for quick starting To check the fluid level of the engine and proper functioning of the vehicle’s electrical Check the fluid level in the reservoir while the engine is idling. system.
Page 467 Maintenance Checking battery electrolyte level During cold weather The capacity of the battery is reduced at low temperatures. This is an inevitable result of its chemical and physical properties. This is why a very cold battery, particularly one that is not fully charged, will only deliver a fraction of the starter current which is normally available.
Page 468 Maintenance NOTE CAUTION ● Keep the terminals clean. After the battery is connected, ● Keep it out of reach of children. apply terminal protection grease. To clean the terminals, ● Never disconnect the battery with the ignition use lukewarm water. ●...
Page 469: Tyres
Maintenance Tyres E01001300239 WARNING ● Driving with tyres that are worn, damaged or improperly inflated can lead to a loss of control or blow out of the tyres which can result in a collision with serious or fatal injury. Tyre inflation pressures E01001401064 To 5 passengers To max.
Page 470 Maintenance Wheel condition Tread wear indicators will appear in six places on the surface of the tyre as the tyre wears, thereby indicating that the tyre no E01001800478 longer meets the minimum requirement for use. When these wear indicators appear, the tyres must be replaced with new ones.
Page 471 Maintenance CAUTION Spare tyre used ● Even if a wheel has the same rim size and offset as the specified type of wheel, its shape may prevent it from being fitted correctly. We recommend you to consult a specialist before using wheels that you have.
Page 472 Maintenance CAUTION CAUTION ● If the tyres have arrows (A) indicating the correct ● Avoid the combined use of different types of tyres. direction of rotation, swap the front and rear wheels Using different types of tyres can affect vehicle per- on the left hand side of the vehicle and the front and formance and safety.
Page 473 Before fitting tyre chains, we recommend you to consult a ● Choose a clear straight stretch of road where you MITSUBISHI MOTORS Authorized Service Point. The max. can pull over and still be seen while you are fitting chain height is as follows.
Page 474: Parking Brake Break-In
This procedure is described in the vehicle service manual and can be carried out by a MITSUBISHI MOTORS Authorized Service Point. 8-24...
Page 475: Wiper Blade Rubber Replacement
Maintenance Wiper blade rubber replacement 3. Attach the retainers (C) to a new wiper blade. Refer to the illustration to ensure that the retainers are cor- E01008200110 rectly aligned as you attach them. 1. Lift the wiper arm off the windscreen. 2.
Page 476 Maintenance 5. Push the wiper blade until the hook (B) engages securely Rear window wiper blade with the stopper (A). 1. Lift the wiper arm off the window glass. 2. Pull the wiper blade downward to disengage it from the stopper (A) at the end of the wiper arm.
Page 477: General Maintenance
Maintenance General maintenance 4. Firmly insert the retainer (C) into the groove (D) in the wiper blade. E01002700360 Refer to the illustration to ensure that the retainers are cor- Fuel, engine coolant, oil and exhaust gas leakage rectly aligned as you insert them into the groove. Look under the body of your vehicle to check for fuel, engine coolant, oil and exhaust gas leaks.
Page 478: For Cold And Snowy Weather
Maintenance For cold and snowy weather Meter, gauge and indicator/warning lamps oper- ation E01002800299 Run the engine to check the operation of all meters, gauges, Ventilation slots and indicator/warning lamps. The ventilation slots in front of the windscreen should be kept If there is anything wrong, we recommend you to have your clear of leaves or brushed clear after heavy snowfall, so that the vehicle inspected.
Page 479: Fusible Links
Maintenance Fusible links Fuses E01002900434 E01003000849 The fusible links will melt to prevent a fire if a large current Fuse block location attempts to flow through certain electrical systems. E01007600074 In case of a melted fusible link, we recommend you to have To prevent damage to the electrical system due to short- your vehicle inspected.
Page 480 Maintenance Engine compartment Passenger compartment fuse location In the engine compartment, the fuse block is located as shown in the illustration. Fuse load capacity E01007700105 The fuse capacity and the name of the electrical systems pro- tected by the fuses are indicated on the inside of the lid located at the driver’s leg area and on the inside of the fuse block cover for fuses located in the engine compartment.
Page 481 Maintenance Symbol Electrical system Capacity Symbol Electrical system Capacity Sunroof 20 A Ignition coil 10 A Anti-lock brake system 10 A Gauge 7.5 A Heated seat 20 A Reversing lamp 7.5 A Approach lamps 10 A — — 7.5 A —...
Page 482 Maintenance Engine compartment fuse location table Symbol Electrical system Capacity E01008000105 Alternator 140 A* Engine compartment fuse location Fuse (+B) 60 A* Ignition switch 40 A* Electric window control 30 A* Engine control 20 A* Fuel pump 20 A Rear heater 25 A Accessory socket 25 A...
Page 483 Maintenance Identification of fuse Symbol Electrical system Capacity E01008100092 Front fog lamps 15 A 7.5 A Brown — — — 10 A Windscreen wiper 20 A 15 A Blue Tail lamp (right) 7.5 A 20 A Yellow (fuse type)/Light blue (fusible link type) Tail lamp (left) 7.5 A 25 A...
Page 484 Maintenance Fuse replacement 4. The replacement of fuses located in the driver’s seat leg area should be performed from the hole of the fuse block E01007800122 1. Before replacing a fuse, always turn off the electrical cir- lid. cuit concerned and place the ignition switch in the “LOCK”...
Page 485 Maintenance 5. Referring to the fuse load capacity table, check the fuse 6. Insert a new fuse of the same capacity by using the fuse pertaining to the problem. puller and insert the fuse at the same place in the fuse block.
Page 486: Replacement Of Lamp Bulbs
● Do not attempt to repair or replace the lamp bulbs other than described in this owner’s manual. For repair or replacement, contact a MITSUBISHI MOTORS Author- ized Service Point. ● If you are unsure of how to carry out the work as required, we recommend you to consult a specialist.
Page 487 11- Rear turn-signal lamps*: 21 W (WY21W) the bulbs and bulb terminals. To avoid the risk of an 12- Stop and tail lamps*: 21/5 W (W21/5W) electric shock, contact a MITSUBISHI MOTORS Stop lamps*: 21/5 W (W21/5W) Authorized Service Point whenever repair or 13- Reversing lamps: 21 W (W21W) replacement is necessary.
Page 488 Maintenance Inside Headlamps E01003400814 E01003500961 Replacement of high beam 1. Remove the bulb and connector assembly (A) by turning it anticlockwise. 1- Luggage compartment lamp: 8 W 2- Door courtesy lamps*: 3.4 W 3- Vanity mirror lamps*: 3 W 4- Room & map lamps: 8 W 5- Rear personal lamps: 8 W 6- Glove box lamp: 1.4 W 8-38...
Page 489 Maintenance 2. Depress the tab (B) on the harness connector and pull the Replacement of low beam harness connector (C) to remove it. 1. Remove the bulb and connector assembly (A) by turning it anticlockwise. 3. To install the bulb, perform the removal steps in reverse. 8-39...
Page 490 Maintenance 2. Depress the tab (B) on the harness connector and pull the CAUTION harness connector (C) to remove it. ● Handle halogen lamp bulbs with care. The gas inside halogen lamp bulbs is highly pressurized, so drop- ping, knocking, or scratching a halogen lamp bulb can cause it to shatter.
Page 491 Maintenance Position lamps Front turn-signal lamps E01003700471 E01003800414 1. Turn the bulb socket anticlockwise to remove it. 1. Turn the bulb socket anticlockwise to remove it. 2. Remove the bulb from the socket by pulling out. 2. Remove the bulb from the socket by pulling out 3.
Page 492 Maintenance Front fog lamps* 2. Depress the tab (E) on the harness connector (F) and pull the harness connector to remove it. E01004000774 1. Remove the 5 clips (A, C) and screw (B) by following procedures then turn up the cover (D). 8-42...
Page 493 Maintenance 3. Remove the entire socket and bulb assembly (G) by turn- CAUTION ing it anticlockwise. ● Handle halogen lamp bulbs with care. The gas inside halogen lamp bulbs is highly pressurized, so drop- ping, knocking, or scratching a halogen lamp bulb can cause it to shatter.
Page 494 Maintenance Rear combination lamps NOTE ● When refitting the clips of the cover, push the pin (H). E01004200659 On corner side 1. Remove the screws that hold the lamp unit. 2. Slide the lamp unit out sideways to remove it. Left side 8-44...
Page 495 Maintenance 3. Remove the socket and bulb assemblies by turning it anti- Right side clockwise. Remove the bulb by pulling it out. 3-door models 5-door models A- Rear turn-signal lamp* B- Stop and tail lamp* Stop lamp* C- Reversing lamp 4.
Page 496 Maintenance 2. Remove the socket and bulb assembly together by turning On bumper it anticlockwise, and then remove the bulb by pulling it 1. Remove the lens mounting screws. out. D- Rear turn-signal lamp E- Tail lamp 3. To install the bulb, perform the removal steps in reverse. 8-46...
Page 497 Maintenance Rear fog lamp 2. Remove the socket and bulb assembly (B) by turning it anticlockwise, and then remove the bulb by pulling it out. E01004100241 1. Open the spare wheel garnish (A). (Refer to “To remove the spare tyre” on page 6-18.) 3.
Page 498 Maintenance High-mounted stop lamp 2. Remove the socket and bulb assembly together by turning it anticlockwise, and then remove the bulb by pulling it E01004500362 1. Insert the tip of a blade (or minus) screwdriver at the edge out. of the cover and pry gently to remove the cover. 3.
Page 499 Maintenance Licence plate lamps 2. Remove the socket and bulb assembly (A) together by turning it anticlockwise and then remove the bulb by pull- E01004600477 1. Remove the lens mounting screws and remove the socket ing it out. and bulb assembly. 3.
Page 500 Maintenance Room & map lamps NOTE ● When installing the lens, make sure the direction of the E01004700306 1. Insert a straight blade (or minus) screwdriver with a cloth lens is installed as shown in the illustration. over its tip into the lens and pry gently to remove it. 2.
Page 501 Maintenance Rear personal lamps NOTE ● When installing the lens, align the tab on the lens with the E01005200151 When replacing a bulb, keep the interior lamp switch in the hole on the vehicle side. “ ” (OFF) position. 1. Insert a straight blade (or minus) screwdriver with a cloth over its tip into the notch of the lens and pry gently to remove it.
Page 502 Maintenance 3. To install the bulb, perform the removal steps in reverse. Luggage compartment lamp E01005300211 NOTE 1. Insert a straight blade (or minus) screwdriver with a cloth ● When installing the lens, align the tab on the lens with the over its tip into the notch of the lens and pry gently to hole on the vehicle side.
Page 503 Maintenance Door courtesy lamps NOTE ● When installing the lens, align the tabs on the lens with E01005400195 1. Insert a straight blade (or minus) screwdriver with a cloth the holes on the vehicle side. over its tip into the edge of the lens, pry gently to remove the lens.
Page 504 Maintenance NOTE Rear ● When installing the lens, align the 2 tabs on the lens with the notches on the vehicle side. 3. To install the bulb, perform the removal steps in reverse. 8-54...
Page 505 Maintenance Glove box lamp Vanity mirror lamps* E01006100232 E01006200103 1. Pull out the bulb. 1. Insert a straight blade (or minus) screwdriver with a cloth over its tip into the notch of the lens and pry gently to remove it. 2.
Page 507 Specifications Vehicle labeling ......9- Vehicle dimensions ......9- Vehicle performance .
Page 508: Vehicle Labeling
Specifications Vehicle labeling 2.Vehicle information code plate The vehicle information code plate is clipped as shown in the E01100101645 illustration. The plate shows model code, engine model, transmission model and body colour code, etc. Please use this number when ordering replacement parts. 1.Vehicle identification number The vehicle identification number is stamped on the bulkhead as shown in the illustration.
Page 509 Specifications Vehicle identification number plate Engine number (RHD vehicles only) The engine number is stamped on the engine cylinder block as shown in the illustration. This is stamped on the number plate riveted to the left front corner of the instrument panel pad. It is visible from outside of 3200 models the vehicle through the windscreen.
Page 510: Vehicle Dimensions
Specifications Vehicle dimensions E01100200997 3-door models 5-door models...
Page 511 Specifications Item 3-door models 5-door models Front track 1,560 mm 1,570 mm Without side protector moulding 1,845 mm — Overall width With side protector moulding 1,875 mm Front overhang 765 mm Wheel base 2,545 mm 2,780 mm Rear overhang 1,075 mm 1,355 mm Overall length 4,385 mm...
Page 512: Vehicle Performance
Specifications Vehicle performance E01100300914 3-door models 5-door models Item 3200 models 3800 models 3200 models 3800 models 177 km/h* 177 km/h* 174 km/h* 200 km/h 174 km/h* 200 km/h Maximum speed (124 mph) (124 mph) (110 mph* (110 mph* 108 mph* 108 mph* Maximum climbing ability (in 1st gear) 35 °...
Page 513: Vehicle Weight
Specifications Vehicle weight E01100402469 3-door models 3200 models Item INTENSE, INVITE INSTYLE 3800 models 2,120 kg* 2,110 kg* Without optional parts 2,085 kg 2,075 kg 2,030 kg 2,125 kg* 2,115 kg* Kerb weight 2,192 kg* 2,182 kg* With full optional parts 2,189 kg 2,179 kg 2,080 kg...
Page 514 Specifications : In case of trailer towing : Vehicles with 265/65R17 size tyre : Vehicles with 265/60R18 size tyre NOTE ● Trailer specifications indicate the manufacturer’s recommendation.
Page 515 Specifications 5-door models 3200 models Item INTENSE, INVITE INSTYLE 3800 models 2,300 kg* 2,290 kg* Without optional parts 2,265 kg 2,255 kg 2,210 kg 2,305 kg* 2,295 kg* Kerb weight 2,387 kg* 2,377 kg* With full optional parts 2,391 kg 2,381 kg 2,275 kg 2,386 kg*...
Page 516 Specifications : Vehicles with 265/60R18 size tyre NOTE ● Trailer specifications indicate the manufacturer’s recommendation. 9-10...
Page 517: Engine Specifications
Specifications Engine specifications E01100601204 3200 models Item 3800 models Engine model 4M41 6G75 6-V (60 °) No. of cylinders 4 in line Total displacement 3,200 cc 3,828 cc Bore 98.5 mm 95.0 mm Stroke 105.0 mm 90.0 mm Camshaft Double overhead Single overhead Mixture preparation Electronic injection...
Page 518: Electrical System
Specifications Electrical system E01100800964 Item 3200 models 3800 models Voltage 12 V Type (JIS) 95D31L, 80D26L* 75D23L, 80D26L* Battery Capacity (5HR) 64 Ah, 55 Ah* 52 Ah, 55 Ah* Alternator capacity 120 A, 140 A* 120 A Spark plug type —...
Page 519: Tyres And Wheels
Specifications Tyres and wheels E01100901483 Tyre 265/65R17 112H 265/60R18 110H* 17x7 JJ (Aluminium), Size 18x7 JJ (Aluminium)* Wheel 17x7 J (Steel)* Offset 46 mm *: Optional equipment 9-13...
Page 520: Fuel Consumption
Specifications Fuel consumption E01101100270 Combined Urban conditions Extra-urban conditions Fuel Fuel Fuel Model (g/km) (g/km) (g/km) consumption consumption consumption (L/100 km) (L/100 km) (L/100 km) 244* , 241* 9.2* , 9.1* 302* , 298* 11.4* , 11.2* 211* , 209* 7.9* , 7.8* 3-door...
Page 521: Notes Regarding Diesel Fuel
Specifications Notes regarding diesel fuel E01101400055 Due to the separation of paraffin, the fluidity of the fuel decreases considerably as the temperature falls. Because of this fact there are two kinds of fuel: “summer” and “winter”. This must be considered in winter use. When travelling abroad, find out in advance about the fuels served in local service stations.
Page 522: Refill Capacities
Specifications Refill capacities E01101301774 3200 models 3800 models 3200 models 3800 models 9-16...
Page 523 Specifications Item Quantity Lubricants Oil pan 7.5 litres 3200 models Oil filter 1.0 litre Oil cooler 1.3 litres Engine oil Refer to page 8-6 Oil pan 4.3 litres 3800 models Oil filter 0.3 litre Oil cooler 0.3 litre Automatic transmission fluid 9.7 litres DIA QUEEN ATF SP III Brake fluid...
Page 524 Specifications Item Quantity Lubricants Front 1.15 litres Hypoid gear oil API classification GL-5 or higher 10 Differential oil Above 10 °C SAE 90 Rear 1.6 litres Below 10 °C SAE 80W Without rear air conditioning 530 - 570 g Refrigerant HFC-134a (air conditioning) With rear air conditioning...
Page 525 Alphabetical index Selector lever position 4-28 Sports mode 4-29 Accessory socket 5-83 Accessory (Installation) 6 Active stability & traction control (ASTC) 4-63 Backdoor 1-13 Additional equipment 8-28 Battery 8-16 Air conditioning Charge warning lamp 3-16 Front automatic air conditioning 5-4 Discharged battery (Emergency starting) 6-2 Important operation tips for the air conditioning 5-18 Specification 9-12...
Page 526 Alphabetical index Changing a fuse 8-34 Diesel particulate filter (DPF) 4-22 Charge warning lamp 3-16 Diesel preheat indication lamp 3-12 Check engine warning lamp 3-15 Dimensions 9-4 Child restraint 2-44 Dipper (High/Low beam change) 3-61 Child-protection rear doors 1-11 Door courtesy lamps 5-91, 8-38, 8-53 Cigarette lighter 5-82 Door-ajar warning lamp 3-17 Cleaning...
Page 527 Alphabetical index Exterior and interior lamp operation 8-27 Low fuel warning lamp 3-8 Modification/alterations to the electrical or fuel systems 7 Tank capacity 3 Fuel consumption 9-14 Fluid Fuses 8-29 Automatic transmission fluid 9-16 Fusible links 8-29 Brake fluid 8-13, 9-16 Clutch fluid 8-14, 9-16 Engine coolant 8-10, 9-16 Manual transmission fluid 9-16...
Page 528 Alphabetical index Heated mirror 4-14 Heated seats 2-12 High-beam indicator lamp 3-12 Keyless entry system 1-5 High-mounted stop lamp Keys 1-2 Bulb capacity 8-36 Replacement 8-48 Hinges and latches lubrication 8-28 Labeling 9-2 Horn switch 3-78 Lamp monitor buzzer 3-60 Lamps (headlamps, fog lamp, etc.) auto-cutout function 3-60 Leakage (Fuel, engine coolant, oil and exhaust gas) 8-27 If the vehicle breaks down 6-2...
Page 529 Alphabetical index Mirror Fluid 8-16, 9-16 Inside rear-view mirror 4-9 System 4-63 Outside rear-view mirrors 4-11 Precautions to observe when using wipers and washers 3-76 MIVEC engine 4-20 Pregnant women restraint 2-43 Modification/alterations to the electrical or fuel systems 7 Puncture (Tyre changing) 6-16 Notes regarding diesel fuel 9-15 Radio...
Page 530 Alphabetical index Replacement 8-44 Rear / second, third seat belt storage 2-41 Rear window demister switch 3-77 Seat belt reminder/warning lamp 2-40 Rear-view camera 4-84 Seats Rear-view mirror Adjustment 2-5 Inside 4-9 Armrest 2-10, 2-14 Rear-view mirror Front seats 2-6 Outside 4-11 Head restraints 2-16 Refill capacities 9-16...
Page 531 Alphabetical index Stop lamps Turn-signal indication lamps 3-12 Bulb capacity 8-36 Turn-signal lever 3-65 Replacement 8-44 Tyres 8-19 Storage spaces 5-92 How to change a tyre 6-16 Sun visors 5-77 Inflation pressures 8-19 Sunglasses holder 5-98 Rotation 8-21 Sunroof 1-21 Size (tyre and wheel) 9-13 Super select 4WD II 4-34 Snow tyres 8-22...
Page 532 Alphabetical index Warning lamps 3-13 Washer Fluid 8-11, 9-16 Switch 3-68, 3-75, 3-76 Washing 7-4 Water temperature gauge 3-9 Waxing 7-6 Weatherstripping 8-28 Weight 9-7 Wheel Specification 9-13 Wheel condition 8-20 Wiper Rear window 3-75 Switch 3-68 Wiper blades 8-25 Wiper deicer switch 3-77...

Mitsubishi MOTORS Shogun 2007 Owner's Manual

General Information

Locking and Unlocking

Table of Contents

Table of Contents

Table of Contents

Table of Contents

For Emergencies

Table of Contents

Quick Links

Chapters

Related Manuals for Mitsubishi MOTORS Shogun 2007

Summary of Contents for Mitsubishi MOTORS Shogun 2007

Table of Contents
