Overview: DS Phones

1.3.6 Administration Menus

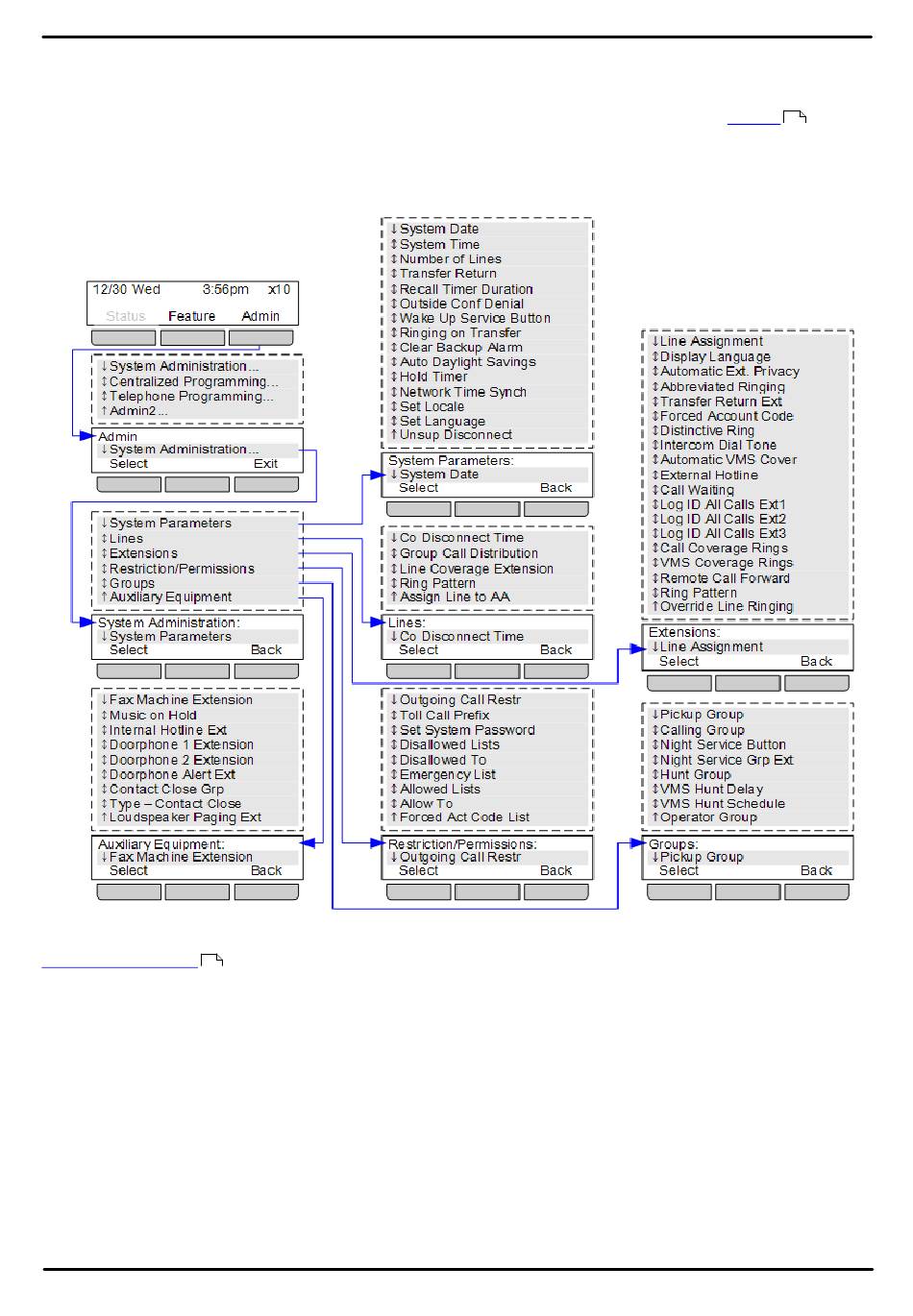

The following diagrams summarize the Admin menu options provided phones that use DS ports (1400 Series and 9500
Series). The phones supported for phone base administration are the 1408, 1416, 9504 and 9508.
These phones can still, after having selected a function, move between functions using the appropriate # codes 10 .
1.3.6.1 System Administration Menu
The System Administration menu is only shown on the first two extensions in the system.
There are some programming functions that do not appear in the menu. Instead they are accessed by dialing the
appropriate # code after having accessed the menu by pressing Admin | System Administration. Refer to the
Programming Functions 10 .
The Groups | Operator Group option is only available on systems running in PBX system mode.
