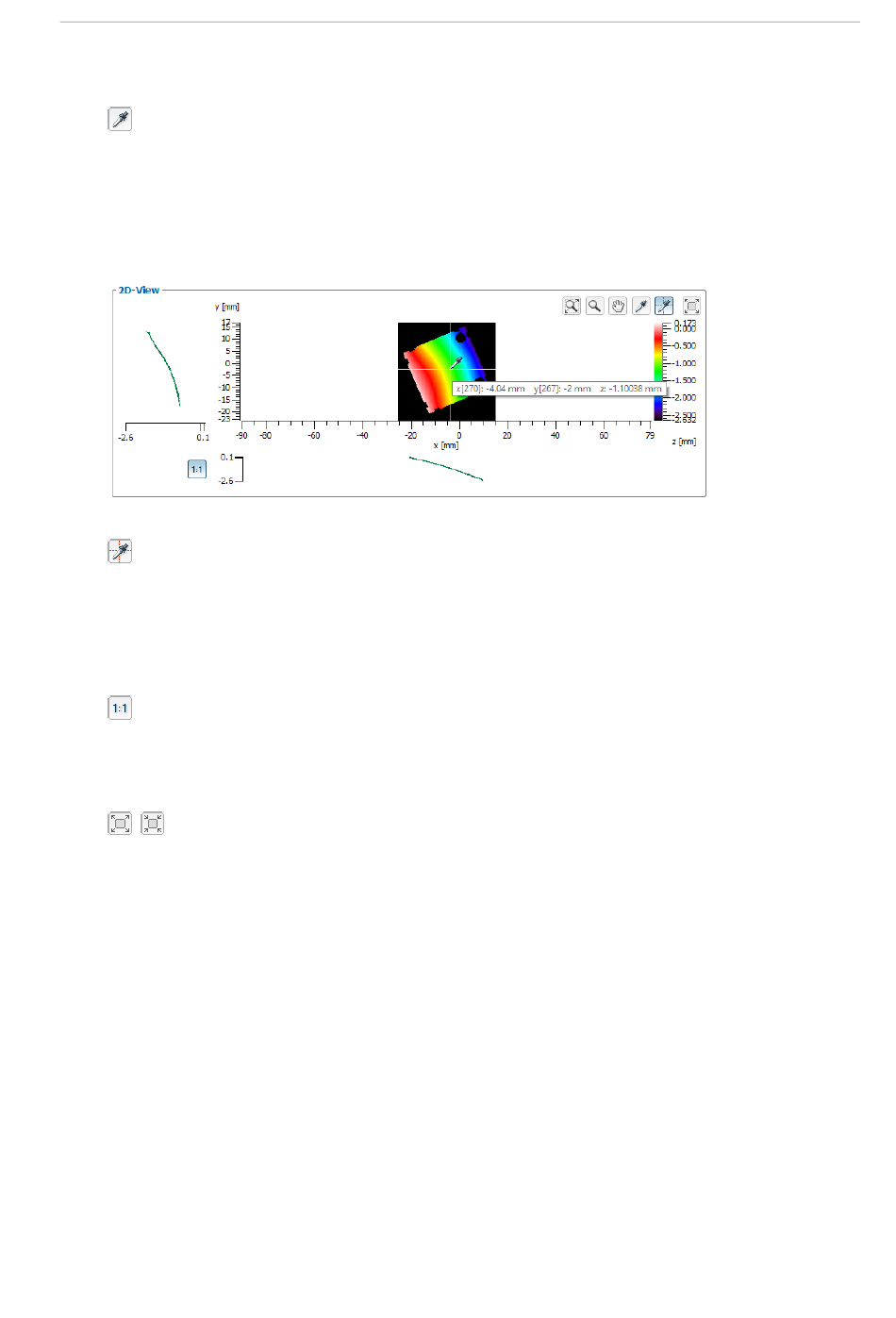

MICRO-EPSILON surfaceCONTROL 3D Instruction Manual page 56

Description of the "Data Acquisition" View
- Display extended information of a point: Press the correspondent button (see Fig. 4.10) to acti-
vate or deactivate the "Pipette" mode. Press the left mouse button on the desired point. The infor-
mation for the point will now be displayed in a tooltip next to the mouse pointer.
Fig. 4.10: "Pipette" button
- Profile mode: 3DInspect offers the possibility to display the height information along the X and Y
axis at a defined point as profile section (see Fig. 4.11). Press the "Pipette+Profile" button (see
Fig. 4.12) in order to activate the profile mode. Press the left mouse button on the desired point.
The information for the point will now be displayed in a tooltip next to the mouse pointer and the
profile section will be displayed under and accordingly next to the respective axis.
Fig. 4.11: "Profile mode" view
Fig. 4.12: "Pipette+Profile" button
To compare the profile evaluation along the X and Y axis, press the "Keep z scaling for row and col-
umn data" button (see Fig. 4.13). Activating this option both profile views are scaled equally in z
direction. Deactivating this option the scaling is adapted separately in both profile views to the ac-
tual values in z direction.
Fig. 4.13: "Keep z scaling for row and column data" button
- Maximize 2D-View: 3DInspect offers the possibility to maximize the 2D-View. Press the button
"Maximize 2D-View" or "Restore 2D-View" (see Fig. 4.14).
Fig. 4.14: "Maximize/Restore 2D-View" button
